Green circuit board with silver PCIe connector, black M.2 module, gold GPIO header, Ethernet port, SMA antenna jack

LORDWORLD

LORDWORLD PCIe to M.2 E Key Adapter with PoE HAT & Wireless-AX210 for Raspberry Pi 5

SKU CH-ZNWG-2Z00A

Adds PoE power, Wi-Fi 6 and Bluetooth 5.2 to Raspberry Pi 5 via a 16-pin PCIe adapter with a 40-pin stackable header and SMA antenna

  • Single-cable power and data via PoE HAT
  • Wi-Fi 6 and Bluetooth 5.2 from pre-installed AX210 module
  • Accepts NGFF M.2 E Key NICs for flexible networking
  • SMA antenna connector plus USB Bluetooth support
  • 16-pin PCIe link with stackable 40-pin GPIO header

PoE HAT with Wireless-AX210 for Raspberry Pi 5

This board combines a PCIe to M.2 E Key adapter, a Power over Ethernet HAT and a pre-installed Wireless-AX210 module into a single stackable unit for Raspberry Pi 5. It delivers both network connectivity and power through one Ethernet cable while adding Wi-Fi 6 and Bluetooth 5.2. A 16PIN PCIe link and 40PIN GPIO header allow further HATs to be stacked on top.

Makers needing wireless and PoE in one slot

The adapter suits builders who want Wi-Fi 6, Bluetooth 5.2 and PoE without occupying the Pi 5's only PCIe lane with separate cards. It also fits projects requiring an SMA antenna connector for improved signal reception. Buyers who need multiple PCIe devices, additional M.2 slots, or a different wireless module should look at other solutions.

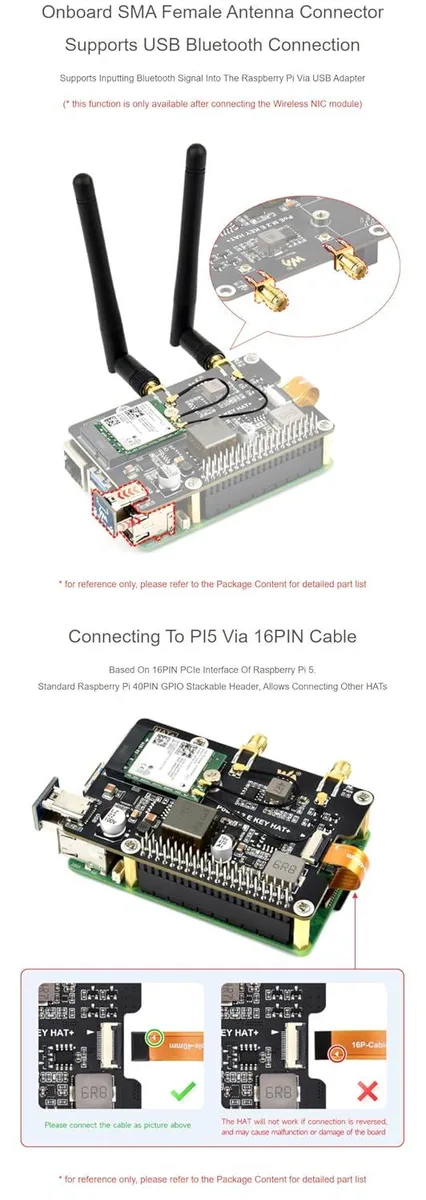

Single 16PIN PCIe lane to the Pi 5

All data traffic, including the Wireless-AX210 module and any stacked HATs, shares one 16PIN PCIe connection to the Raspberry Pi 5. This lane width and the M.2 E Key form factor determine which expansion cards can be used simultaneously.

Fordele

  • Single-cable power and data via PoE HAT
  • Wi-Fi 6 and Bluetooth 5.2 from pre-installed AX210 module
  • Accepts NGFF M.2 E Key NICs for flexible networking
  • SMA antenna connector plus USB Bluetooth support
  • 16-pin PCIe link with stackable 40-pin GPIO header

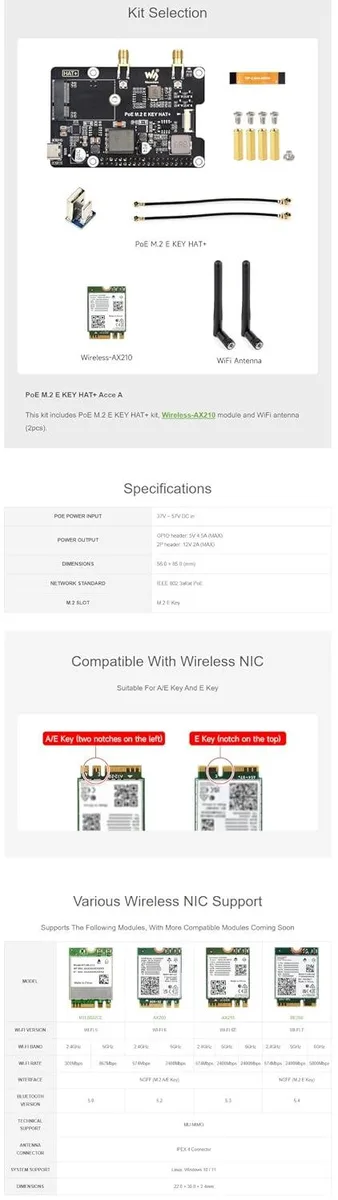

Specifikationer

BrandLORDWORLD

Spørgsmål om denne vare

Does the adapter come with the Wireless-AX210 module already fitted, or do I need to buy a separate M.2 E Key card?

The Wireless-AX210 module is pre-installed on the M.2 E Key slot, so no separate wireless card is required.

Which wireless standards does the fitted Wireless-AX210 support for the Raspberry Pi 5?

The module supports Wi-Fi 6 and Bluetooth 5.2, giving faster throughput and lower latency than earlier Wi-Fi generations.

Can the PoE HAT power the Raspberry Pi 5 entirely through the Ethernet cable while the Wireless-AX210 is active?

Yes, the PoE HAT supplies power to the Pi 5 over a single Ethernet cable, and the onboard Wireless-AX210 draws its power from the same board.
