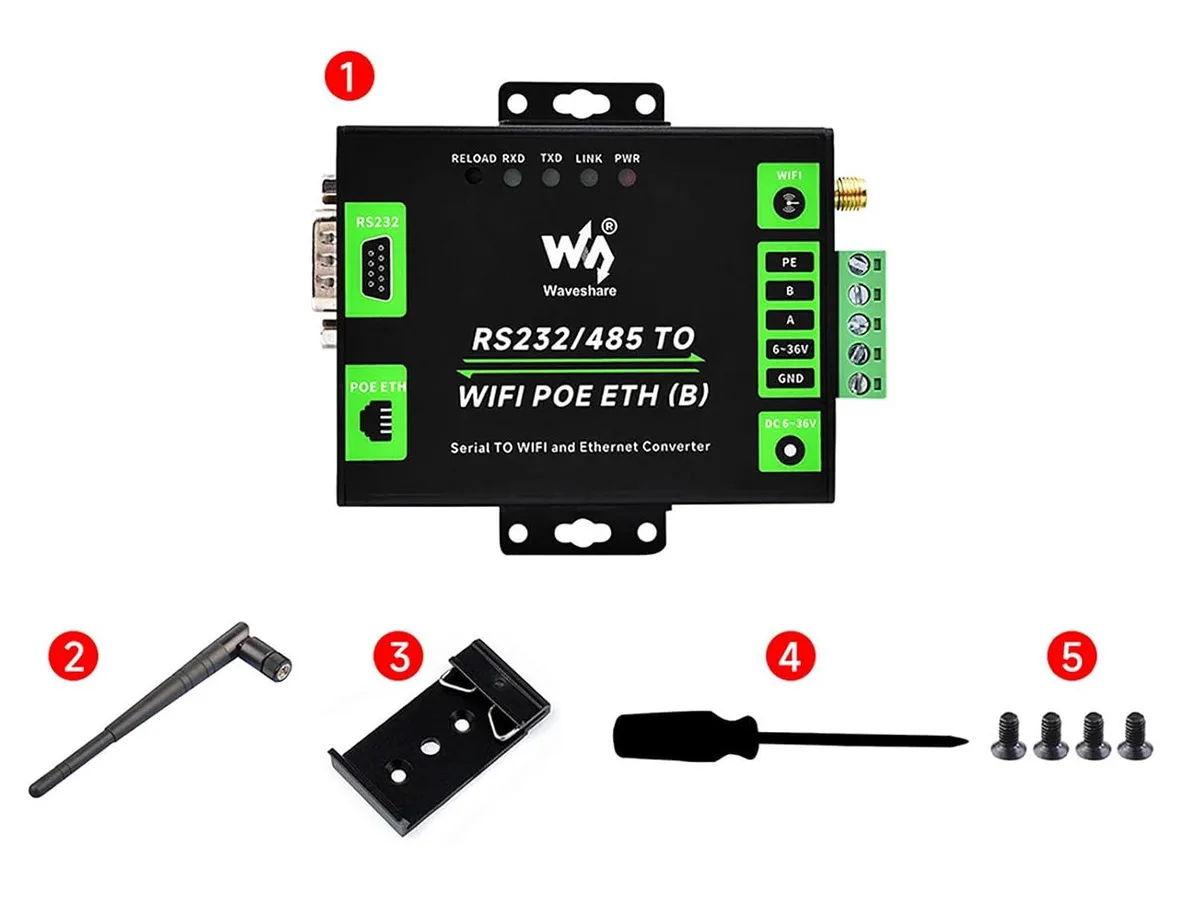

Rectangular metal enclosure with RS232, RS485, Ethernet and WiFi ports

LORDWORLD

LORDWORLD RS232/485 to WiFi PoE Ethernet Serial Server 6t Modbus MQTT Gateway Metal Case development board

SKU CH-VTEK-QZVYX

Converts RS232 and RS485 serial data to WiFi and PoE Ethernet with Modbus and MQTT gateway functions in an industrial metal case

  • Combines serial server, Modbus and MQTT gateway in one device
  • RS232, RS485, WiFi and Ethernet interfaces enable flexible connectivity
  • Wide 6~36V power input with optional PoE support
  • Industrial metal case allows wall or rail mounting
  • Suited for data acquisition, IoT gateway and instrument monitoring

Industrial serial gateway for IoT integration

The LORDWORLD RS232/485 converter combines serial server, Modbus gateway, MQTT gateway and HTTPD client functions in a single unit. It targets engineers building data-acquisition, security or instrument-monitoring systems that need legacy serial equipment connected to modern IP networks. The metal-cased module suits cabinet or field mounting where reliability matters.

Check interfaces and power before ordering

Verify that your existing devices use RS232 or RS485 signalling and that the host network provides Ethernet or WiFi infrastructure. The unit accepts 6 to 36 V DC or optional PoE, so confirm your supply voltage and whether PoE injectors or switches are available. No other protocol or connector types are supported by this hardware.

Metal case with wall and rail mounting

The industrial-grade enclosure shields circuitry in harsh environments and fits standard DIN rails or wall brackets for compact cabinet layouts. RS232, RS485, Ethernet and WiFi ports are all exposed on the same face, simplifying cable routing during commissioning and later maintenance. Wide-range power input reduces the need for extra regulators on site.

Fordele

  • Combines serial server, Modbus and MQTT gateway in one device
  • RS232, RS485, WiFi and Ethernet interfaces enable flexible connectivity
  • Wide 6~36V power input with optional PoE support
  • Industrial metal case allows wall or rail mounting
  • Suited for data acquisition, IoT gateway and instrument monitoring

Specifikationer

BrandLORDWORLD

Spørgsmål om denne vare

What comes in the box and what must I buy separately?

The board ships in an industrial metal case ready for wall or rail mounting; a 6–36 V DC supply or PoE injector is required and not included.

How do I choose between the serial interfaces on this unit?

Both RS232 and RS485 ports are present simultaneously — use RS232 for point-to-point links and RS485 for multi-drop buses up to 1.2 km.

What does the 6–36 V wide-range input mean for my installation?

You can power the gateway from any DC source between 6 V and 36 V, or use the optional PoE function, so one supply covers industrial and PoE networks.
