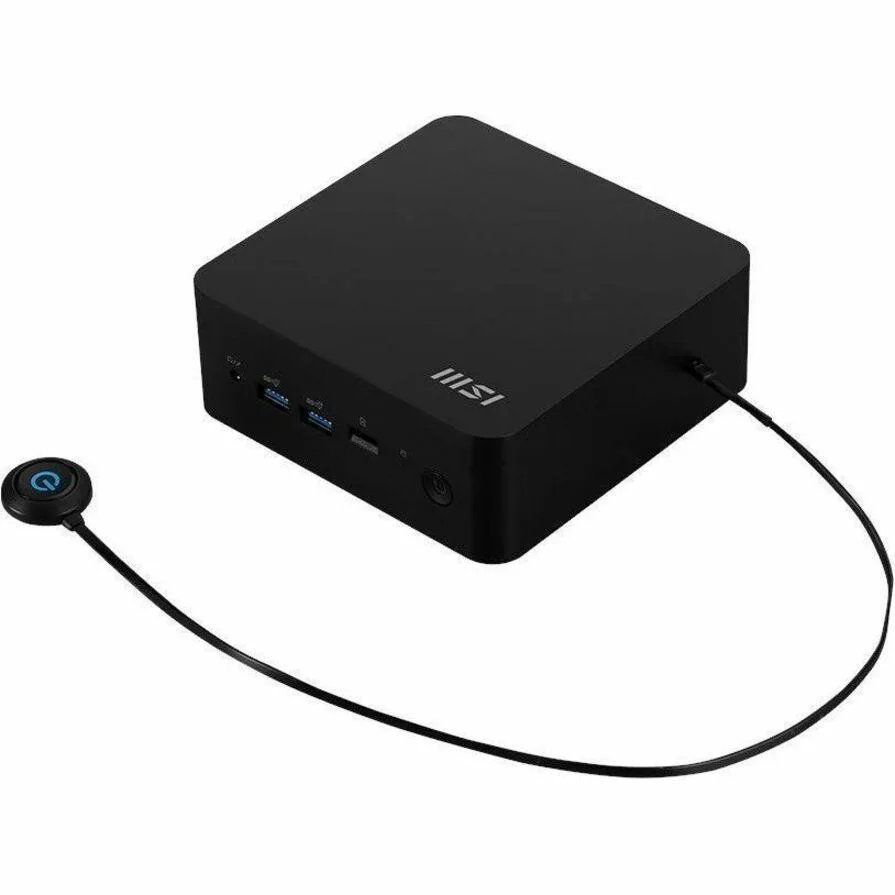

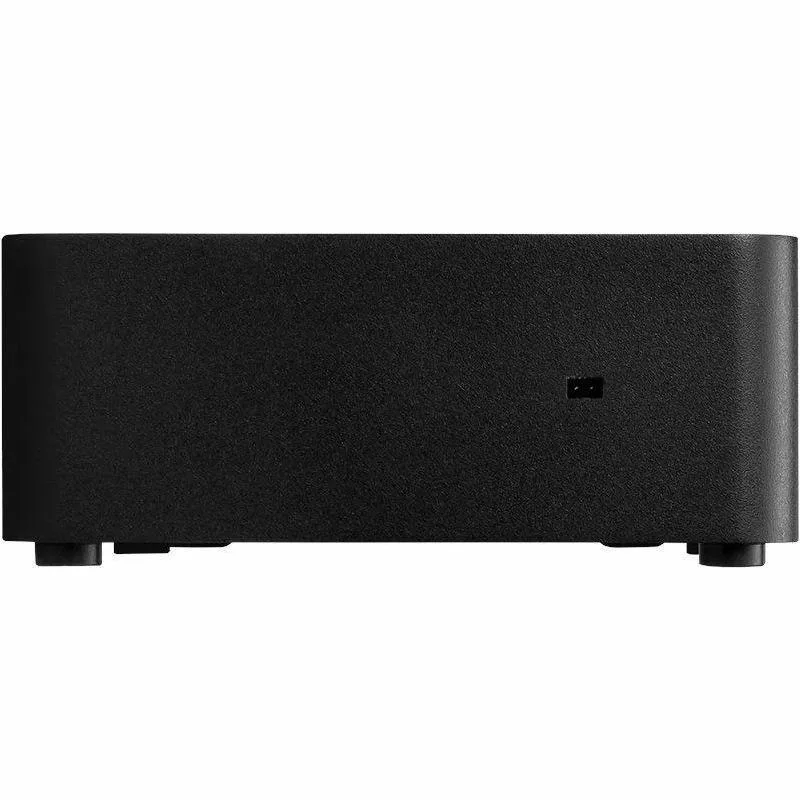

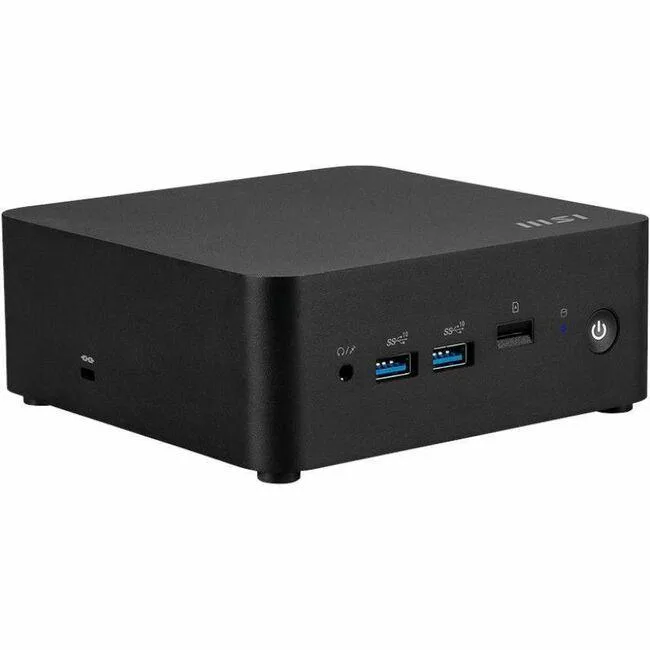

Small black cube mini PC on a plain background

MSI

MSI Cubi NUC 13MQG-202BUS barebone mini PC Core i7-1365U 10-core DDR5 64GB 120W

SKU CH-1V8P-91PHM MPN Cubi NUC 13MQG-202BUS

Barebone mini PC with 10-core Intel Core i7-1365U, dual DDR5 SO-DIMM slots for 64 GB, two Thunderbolt 4 ports and dual 2.5 GbE LAN

  • ColorBlack
  • CPU TypeIntel Core i7-1365U
  • CPU Cores10-Core (2P+8E)
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5200
  • Max Memory Supported64GB
  • Compact 10-core Intel Core i7-1365U vPro performance for business workloads
  • Dual DDR5 5200 SO-DIMM slots support up to 64GB memory
  • Thunderbolt 4 with DP 1.4 alt-mode up to 4K@60Hz and 15W PD-out
  • Dual 2.5GbE LAN plus Wi-Fi 6E AX211 vPro for reliable connectivity
  • VESA-mountable barebone with 120W adapter and PCR materials

Compact Business Barebone

The MSI Cubi NUC 13MQG-202BUS is a mini PC barebone built around an Intel Core i7-1365U processor with ten cores. It targets commercial deployments such as digital signage, point-of-sale terminals or office administration desks. The chassis uses post-consumer recycled plastic and includes a VESA mount for discreet installation behind displays.

Sustained-Load Behaviour

The 120W power adapter feeds the 15W base-power CPU, leaving headroom for the two DDR5 SO-DIMM slots and the single M.2 2280 slot during continuous operation. Dual 2.5GbE LAN ports and Wi-Fi 6E AX211 maintain stable network throughput under load. Thunderbolt 4 ports handle 4K@60Hz video and 15W power delivery without throttling the integrated Iris Xe graphics.

Deciding Specification

Maximum supported memory is 64GB of DDR5 5200 across two 262-pin SO-DIMM slots. Buyers needing more than 64GB of system memory must choose a different platform. The single M.2 2280 slot and one 2.5-inch bay limit internal storage expansion to two drives total.

Fordele

  • Compact 10-core Intel Core i7-1365U vPro performance for business workloads
  • Dual DDR5 5200 SO-DIMM slots support up to 64GB memory
  • Thunderbolt 4 with DP 1.4 alt-mode up to 4K@60Hz and 15W PD-out
  • Dual 2.5GbE LAN plus Wi-Fi 6E AX211 vPro for reliable connectivity
  • VESA-mountable barebone with 120W adapter and PCR materials

Specifikationer

BrandMSI
ModelCubi NUC 13MQG-202BUS
Part NumberCubi13MQG202B
ColorBlack
CPU TypeIntel Core i7-1365U
CPU Cores10-Core (2P+8E)
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe free slot
Integrated GraphicsIntel Iris Xe Graphics
LAN1 x I226-LM
1 x Intel I226-V
Wireless LANIntel Wi-Fi 6E AX211 (Gig+) which supports vPRO
2.5" Internal Bays1 x 2.5" SSD/HDD

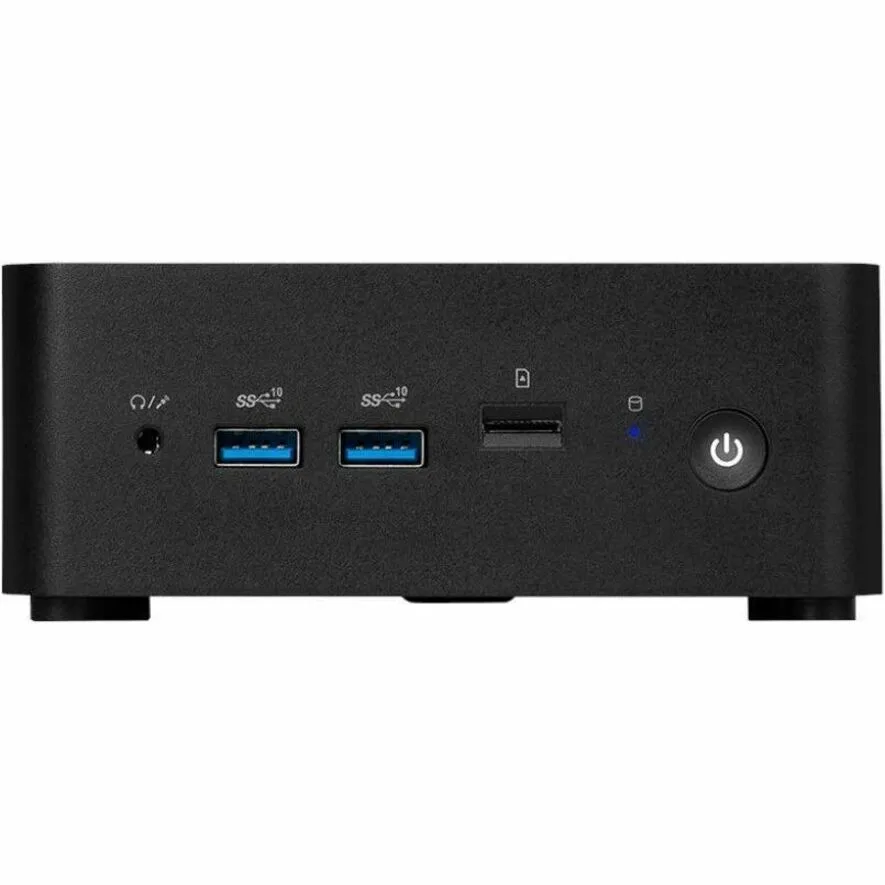

Front USB2 x USB 3.2 Gen2 Type-A
2 x Thunderbolt4 (DP 1.4 alt-mode up to 4K@60Hz /PD-out15W / One of TBT supports PD-in)
Front Audio Ports1 x Mic-in / Headphone-out combo

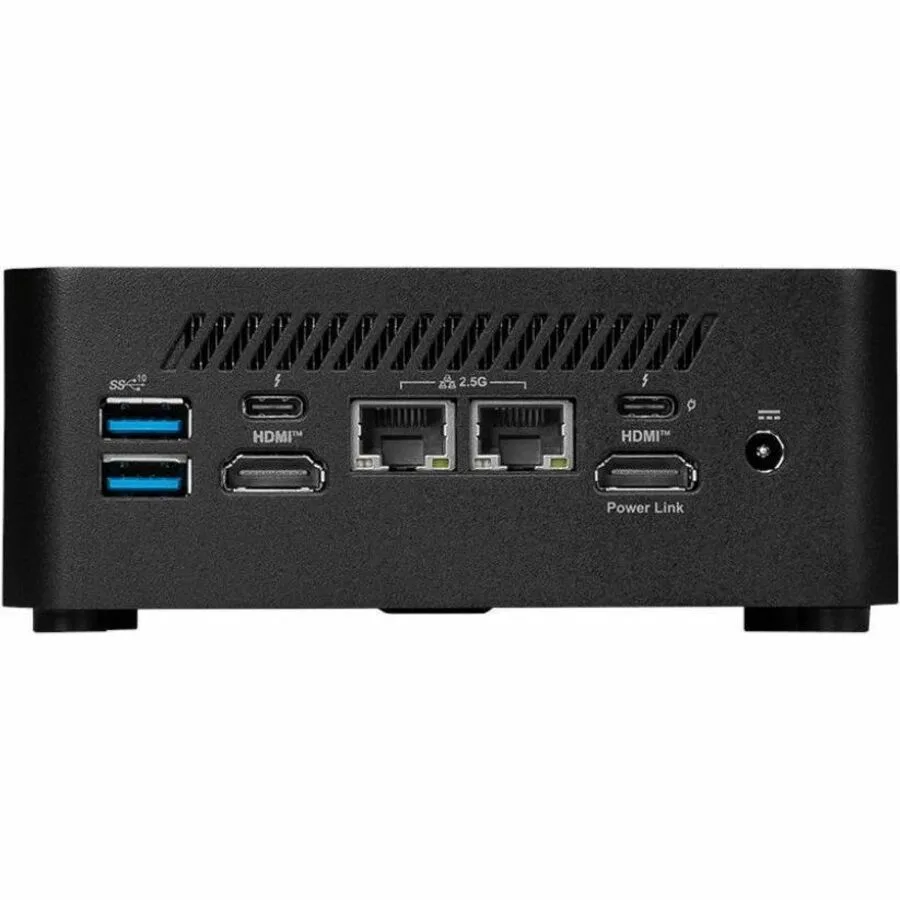

Rear USB2 x USB 3.2 Gen2 Type-A
RJ452
Power Supply120W Power Adapter
Dimensions1.97" x 5.34" x 5.22"
Weight1.38 lbs.
Forsendelsesvægt1.44 kg
Pakkestørrelse229 × 203 × 76 mm

Spørgsmål om denne vare

How much power does the 120W adapter draw when the Core i7-1365U runs at full load all day?

The included 120W power adapter supplies the system; the 10-core i7-1365U has a 15W base power rating, so sustained load stays well within the adapter capacity.

Which DDR5 SO-DIMMs and M.2 2280 drive must I supply to complete the barebone?

You need two DDR5 5200 SO-DIMMs up to 64GB total and one M.2 2280 PCIe SSD; the 2.5-inch bay is optional for extra storage.

Will the Intel I226-V and I226-LM dual 2.5GbE ports work with my older Cat5e cabling?

Yes, both RJ45 ports are backward compatible with Cat5e, though you will be limited to 1GbE speeds on that cable.
