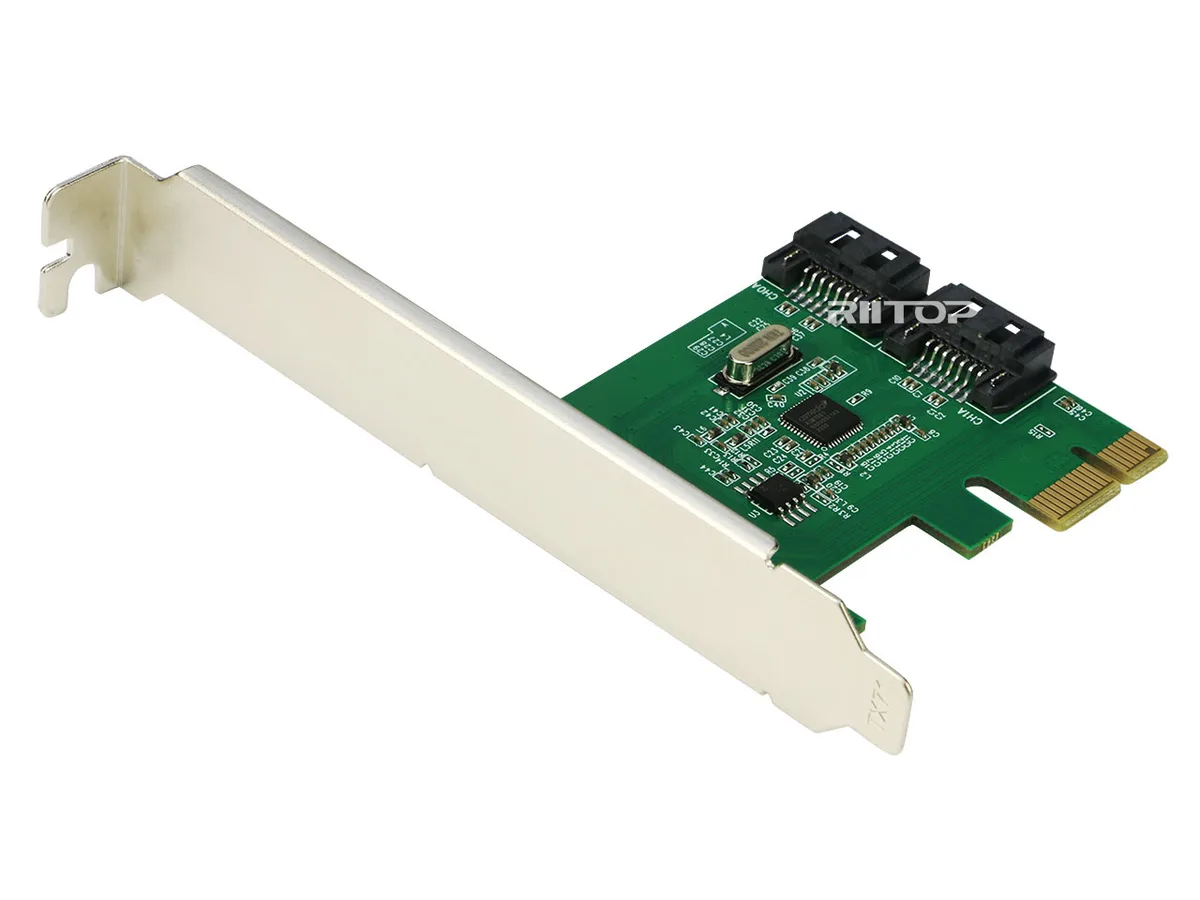

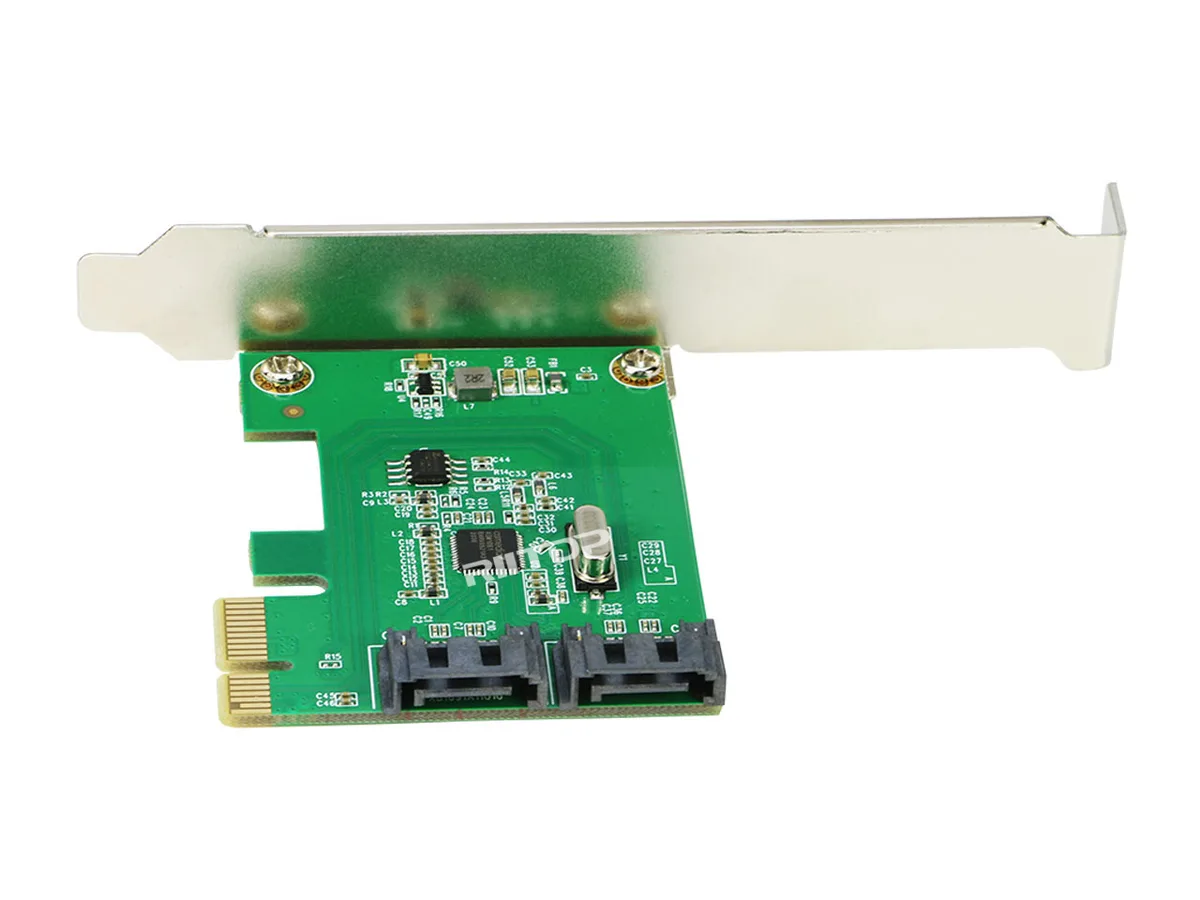

Green circuit board with silver PCIe connector and two black SATA ports

RIITOP

RIITOP PCES3-2I 2-Port SATA III PCIe x1 Expansion Card

SKU CH-Y34H-M7MD1

Adds two internal SATA III 6 Gbps ports through a PCIe x1 slot using the ASM1061 chipset, backward compatible with 1.5 and 3 Gbps speeds

  • TypePCI Express to SATA Card
  • External USB PortsNo
  • External Ports2 x SATA III
  • Operating Systems SupportedSupport Windows XP/Server 2003/Vista/7 /8 (32/64 bit) /MAC/l
  • CompatibilityHave one of the available PCI-Express slots(PCIe x1 or above
  • SpecificationsChipset: ASMEDIA ASM1061. Engaged in High Speed I/O solution

Model 2 Ports

  • 2 Ports
  • 6 Ports

De overstregede versioner findes, men er ikke på lager her.

  • Add two internal SATA III ports through a single PCIe x1 slot
  • ASMedia ASM1061 chipset provides stable 6Gbps SATA connectivity
  • Backward compatible with 1.5Gbps and 3Gbps SATA devices
  • Driver-free support for Windows, Mac, Linux and NAS systems
  • Fits PCIe x1, x4, x8 or x16 slots in most chassis

RIITOP PCES3-2I SATA III Expansion Card

The RIITOP PCES3-2I adds two internal SATA III ports through a single PCIe x1 slot. It uses the ASMedia ASM1061 chipset to deliver 6 Gbps speeds while remaining backward compatible with 1.5 Gbps and 3 Gbps devices. The card weighs 35 g and fits PCIe x1, x4, x8 or x16 slots. No driver is required for Windows XP through 10, Mac, Linux or NAS operating systems.

Suits builders adding two SATA drives to a spare

Ideal for upgrading older systems or adding storage to a compact build where only a x1 slot is free. The board supports booting from an attached drive and works with motherboard RAID if the platform provides it. Not for buyers who need more than two internal ports, external connectors or hardware RAID on the card itself.

Two SATA III ports via PCIe x1

The single specification that decides fit is the pair of internal SATA III connectors fed by a PCIe x1 interface. If the chassis has a spare x1 or wider slot and the project needs exactly two 6 Gbps SATA links, this card matches that requirement.

Fordele

  • Add two internal SATA III ports through a single PCIe x1 slot
  • ASMedia ASM1061 chipset provides stable 6Gbps SATA connectivity
  • Backward compatible with 1.5Gbps and 3Gbps SATA devices
  • Driver-free support for Windows, Mac, Linux and NAS systems
  • Fits PCIe x1, x4, x8 or x16 slots in most chassis

Specifikationer

BrandRIITOP
ModelPCES3-2I
TypePCI Express to SATA Card
External USB PortsNo
External Ports2 x SATA III
Operating Systems SupportedSupport Windows XP/Server 2003/Vista/7 /8 (32/64 bit) /MAC/linux
CompatibilityHave one of the available PCI-Express slots(PCIe x1 or above). Windows operating system support (R) XP/Server 2003/Vista/7 /8 (32/64 bit) /MAC/linux
SpecificationsChipset: ASMEDIA ASM1061. Engaged in High Speed I/O solution development, Asmedia Technology is committed to enlarging product portfolio with introducing. Enables Serial ATA PHY up to 6Gbps high speed interface, following Serial ATA Revision 3.0 specification. 2 ports Serial ATA PHY for 1.5, 3.0 and 6.0GHz signaling. Support Native Command Queue. Support Gen 1m and 2m SATA PHY. Support Port Multiplier.
FeaturesAdd Two Internal SATA III Ports To A Computer Through A PCI-e x1 Slot. Support for up to two internal hard drives using latest SATA III specification. The RIITOP 2-Port SATA III 6Gbps PCI-Express x1 Card is the easiest way to update any computer with SATA ports. This allows support of two SATA devices at speeds of up to 6Gb/s whether it is a SATA hard drive or SATA device. This adaptable add-in card gives SATA III connectivity 6Gbps, while remaining backward compatible with SATA2.0, SATA1.1. PCIe 1.x. Its support the communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
Weight35g / 0.07lb.
Package Contents1x PCIe SATA 3.0 Card 2-Port.

Spørgsmål om denne vare

What PCIe slot width does the RIITOP PCES3-2I card require?

The card fits any PCIe x1, x4, x8 or x16 slot on the motherboard.

Does the ASM1061 chipset need a driver during Windows setup?

No driver is required; Windows 10 PE can install the OS directly from a drive attached to the card.

How many SATA cables can be connected to the two internal ports?

Each of the two ports accepts one standard SATA data cable for a hard drive or SSD.
