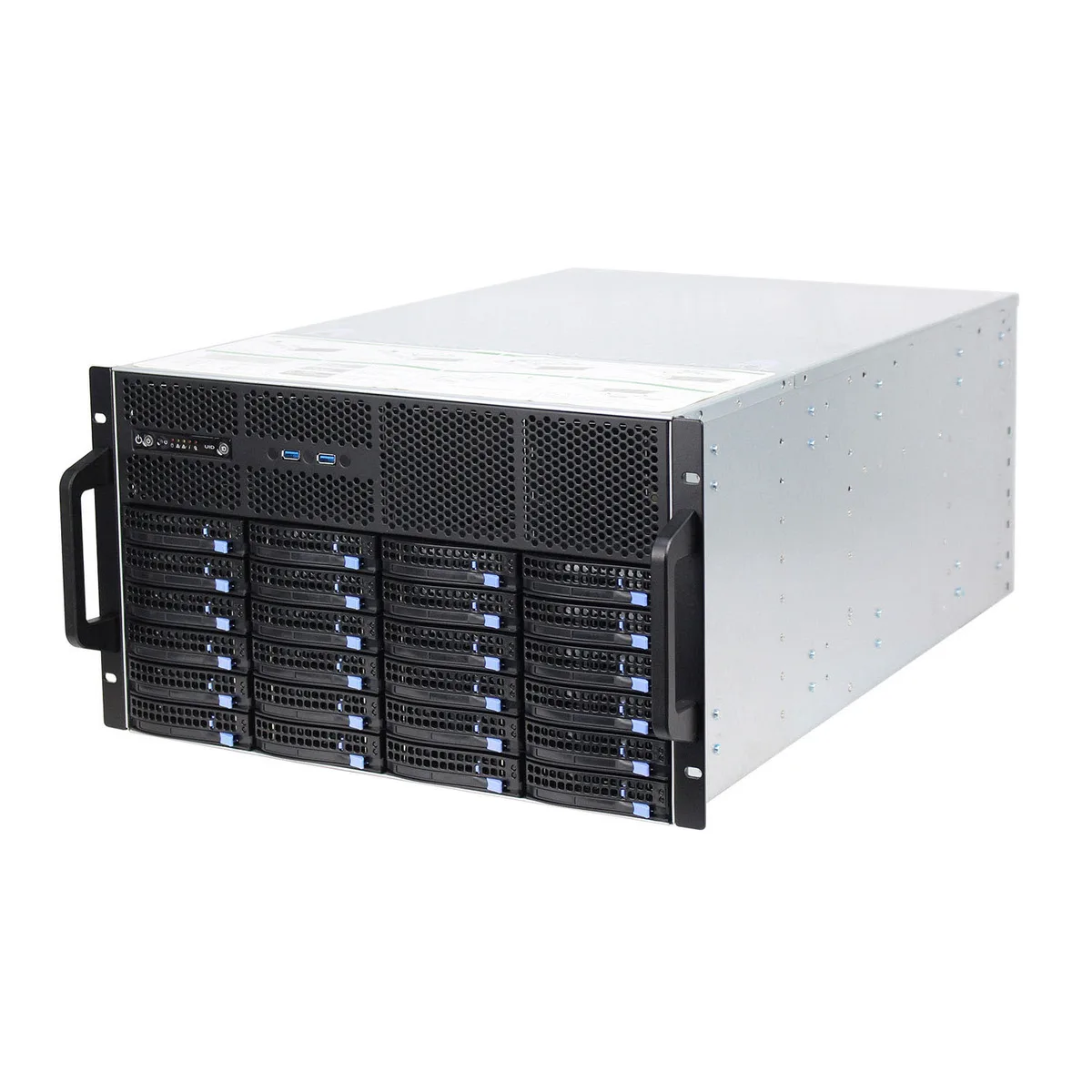

Silver 6U rackmount server chassis with 48 front hot-swap 3.5-inch drive bays

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 6U Rackmount Hotswap Server Chassis 48×3.5" 6Gb/s Backplane

SKU CH-3JC3-3FCNG

6U rack-mount chassis with 48 hot-swap 3.5" bays, 6Gb/s SAS backplane, redundant PSU support and seven half-height slots

  • Chassis TypeRackmount
  • Form Factor6U
  • 48 hot-swappable 3.5" drive bays maximise storage density
  • 6 Gb/s expander backplane with Mini-SAS SFF-8087 simplifies cabling
  • 7 half-height PCI/PCIe slots support diverse add-in cards
  • Redundant 2U power supply option ensures continuous uptime
  • Three-section ball-bearing rails enable smooth rack installation

6U Rackmount Chassis with 48 Hot-Swap Bays

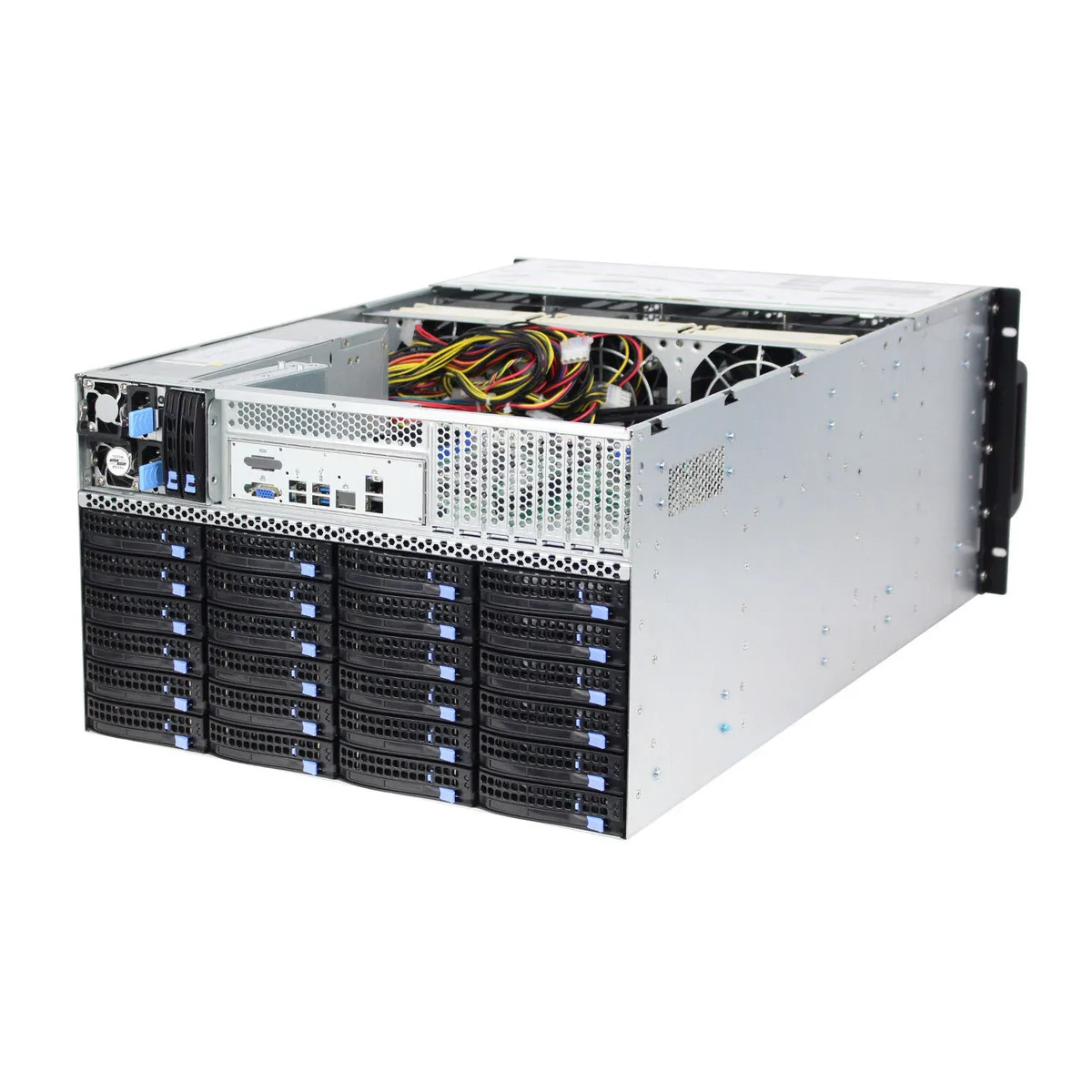

This 6U rackmount server chassis holds 48 hot-swappable 3.5-inch drives in the front and two internal 2.5-inch positions. It fits E-ATX motherboards and boards up to 12 by 13 inches. Seven half-height PCI or PCIe expansion slots are available. The enclosure is built from 1.0mm SGCC steel and measures 650mm deep by 437.5mm wide by 265mm high.

Suited for High-Density Storage Builds

This chassis targets cloud storage, big data and security monitoring deployments that need maximum 3.5-inch drive count in a single 6U space. Builders who need full-height expansion cards, a compact tower form factor or fewer than 48 drive bays should look at other platforms. The half-height slot restriction and rackmount-only mounting also rule out desktop or workstation use cases.

6Gb/s SAS Expander Backplane with Mini-SAS

The shipping backplane is a 6Gb/s expander with Mini-SAS SFF-8087 connectors, temperature control, SGPIO and staggered spin-up. An optional 12Gb/s expander with Mini-SAS HD SFF-8643 is offered. Drive compatibility and controller selection depend on which backplane version is installed.

Fordele

  • 48 hot-swappable 3.5" drive bays maximise storage density
  • 6 Gb/s expander backplane with Mini-SAS SFF-8087 simplifies cabling
  • 7 half-height PCI/PCIe slots support diverse add-in cards
  • Redundant 2U power supply option ensures continuous uptime
  • Three-section ball-bearing rails enable smooth rack installation

Specifikationer

Chassis TypeRackmount
Form Factor6U

Spørgsmål om denne vare

What Mini-SAS interface does the 6 Gb/s expander backplane use?

The 6 Gb/s expander backplane uses a Mini-SAS SFF-8087 interface.

What motherboard sizes fit in this 6U chassis?

The chassis supports E-ATX motherboards and any board up to 12 by 13 inches.

How are the hot-swap drive trays installed and what step is often missed?

Slide each tray into the front bay until it locks; the commonly missed step is engaging the tray's lock lever to secure the drive and complete the SGPIO connection.
