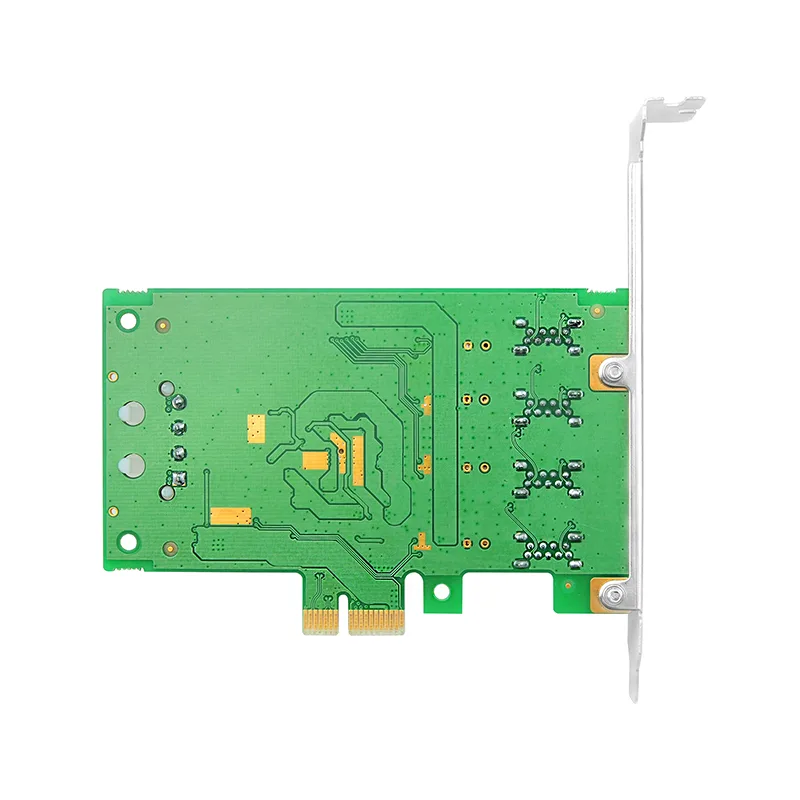

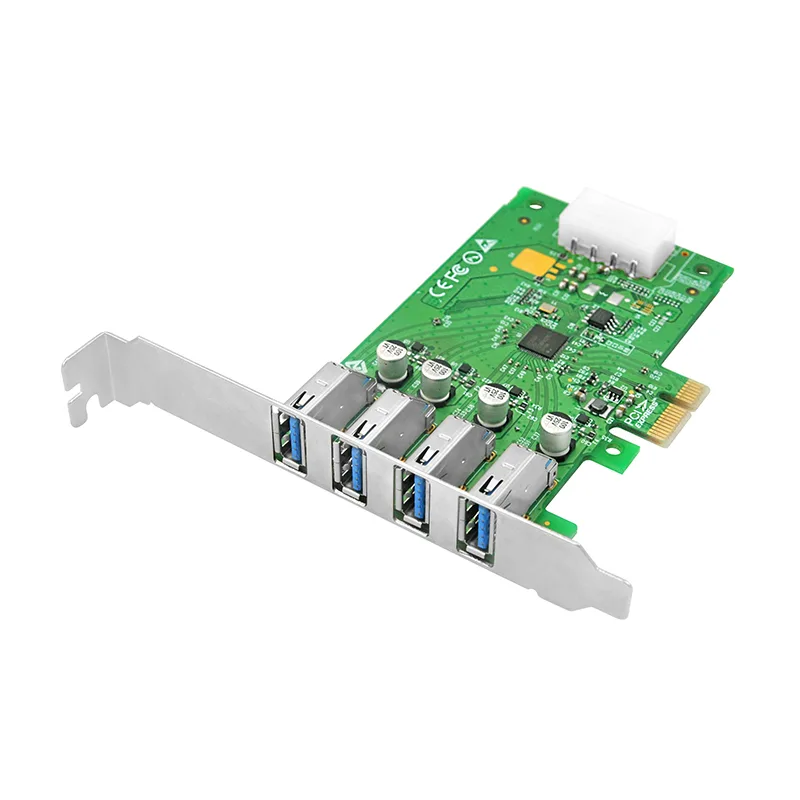

Green PCIe x1 card with four blue USB 3.0 Type-A ports and low-profile bracket

Shenzhen Lianrui Information Technology

Shenzhen Lianrui Information Technology LRSU9A71-4A 4 Port PCIe x1 USB 3.0 5Gb/s Expansion Card

SKU CH-Q906-52AP4 MPN LRSU9A71-4A

Adds four USB 3.0 ports at 5 Gb/s via a PCIe 2.0 x1 slot and includes a low-profile bracket

  • TypePCI Express to USB Card
  • External USB Ports4-port USB 3.0
  • External Ports4 port USB 3.0
  • StandardPCIe to USB 3.0 Expansion Card
  • Data Transfer Rate5Gb/s
  • Operating Systems SupportedWindows 98SE/ME/2000/XP/Vista
  • Adds four USB 3.0 ports via a single PCIe x1 slot
  • Delivers 5Gb/s transfer speeds for faster file moves
  • UASP support boosts SSD read and write up to 70%
  • Low-profile bracket included for small form factor builds
  • No extra power cable required for standard operation

Four-port USB 3.0 add-in card for desktop PCs

This PCIe 2.0 x1 card adds four Type-A USB 3.0 ports running at 5Gb/s. It uses the NEC uPD720201 chipset and draws power from the slot, so no extra power cable is required. The card fits standard and low-profile brackets for small-form-factor cases.

Sustained transfer with UASP support

The board supports the UASP protocol, which the supplier says can accelerate SSD read and write speeds by 70% over traditional USB 3.0 bulk endpoints. Backward compatibility with USB 2.0 and 1.1 keeps older peripherals functional at their native rates.

Simple installation with one common pitfall

The card installs in any PCIe x1, x4, x8 or x16 slot and works without drivers on Windows 98SE through Vista; newer Windows versions typically load a generic driver automatically. The only frequent issue is that the supplied low-profile bracket must be swapped for the full-height bracket on standard towers, otherwise the rear bracket will not align with the case cut-out.

Fordele

  • Adds four USB 3.0 ports via a single PCIe x1 slot
  • Delivers 5Gb/s transfer speeds for faster file moves
  • UASP support boosts SSD read and write up to 70%
  • Low-profile bracket included for small form factor builds
  • No extra power cable required for standard operation

Specifikationer

BrandLinkreal
SeriesPCIe to USB 3.0 Expansion Card
Model4x USB Ports
TypePCI Express to USB Card
External USB Ports4-port USB 3.0
External Ports4 port USB 3.0
StandardPCIe to USB 3.0 Expansion Card
Data Transfer Rate5Gb/s
Operating Systems SupportedWindows 98SE/ME/2000/XP/Vista
Dimensions4.21" x2.17" x0.24"
Weight0.13 lb

Spørgsmål om denne vare

Does the NEC uPD720201 chipset run hot or draw much power during all-day file transfers?

The card is described as low power consumption with low heat and no extra power connector needed for normal operation.

Will the PCIe 2.0 x1 slot on my motherboard provide enough bandwidth for four USB 3.0 ports at 5Gb/s each?

The host interface is PCIe 2.0 x1 and the card presents four USB 3.0 Type-A ports sharing that single lane.

Can I keep using my USB 2.0 flash drives and older peripherals with this adapter?

The card is backward compliant with USB 2.0 and 1.1 devices.
