Aluminium heatsink with three thermal pads and silicone bands for M.2 2280 SSD

Silverstone

Silverstone SST-TP02-M2 M.2 2280 DIY cooling kit

SKU CH-DW41-AWS4Q MPN SST-TP02-M2

Aluminium heatsink and three thermal pads cool 2280 M.2 SSDs using silicone bands for tool-free fitting

  • TypeCooling kit
  • Block CompatibilityM.2 length support: 2280 (22mm x 80mm)
  • Block Dim.Heatsink : 70mm (W) x 10mm (H) x 20mm (D), 16.1g Blue Pad :
  • Block MaterialAluminum, silicone
  • FeaturesWith the ever increasing popularity of solid state drive (SS
  • Aluminium heatsink expands cooling surface for better heat dissipation
  • Three thermal pads improve heat transfer to lower operating temperatures
  • Double-layer pad design enhances stability during sustained workloads
  • Fits 2280 M.2 SSDs for direct motherboard slot mounting
  • Silicone bands secure heatsink without damaging the drive

M.2 2280 DIY cooling kit

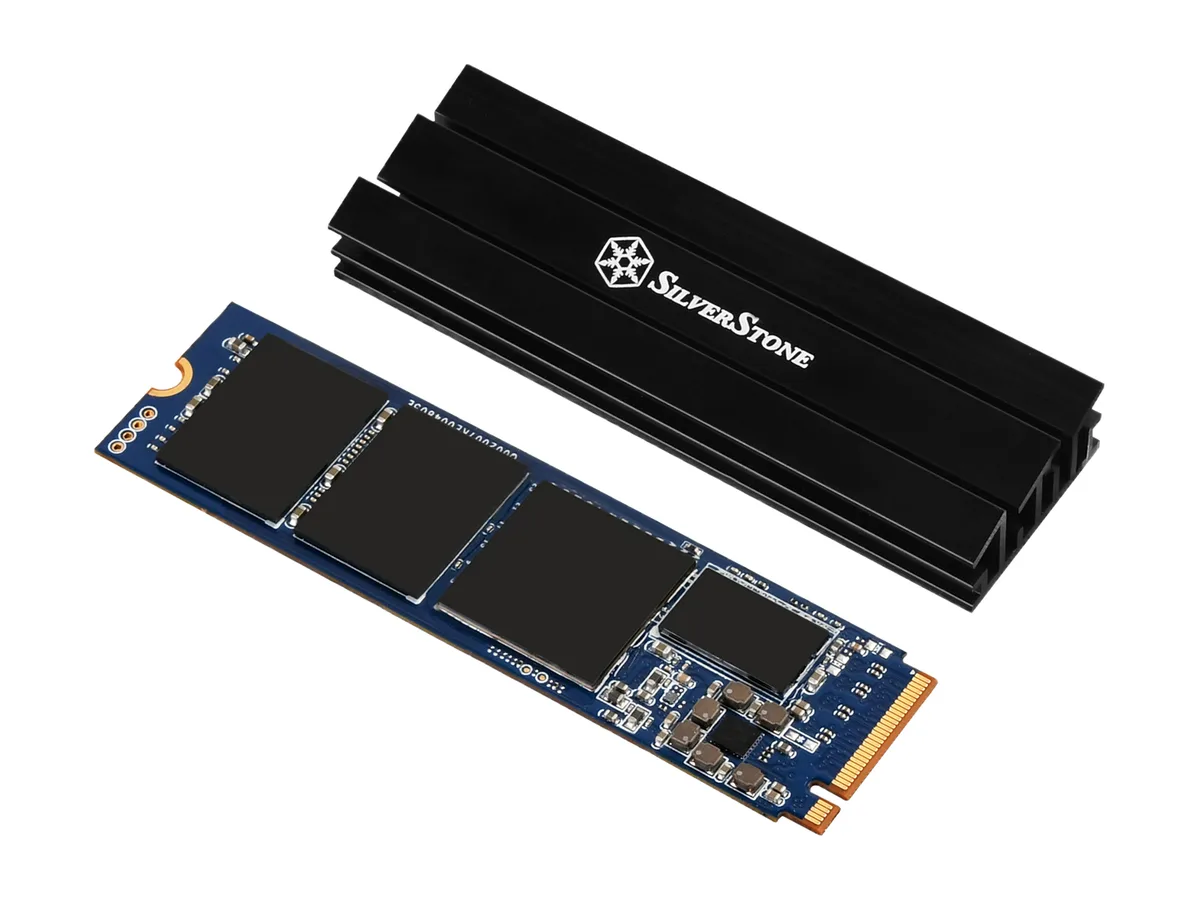

The SilverStone SST-TP02-M2 adds an aluminum alloy heatsink and three thermal pads to a 2280 M.2 SSD. It targets builders who see thermal throttling during large file transfers. The kit fits the standard motherboard M.2 slot without modification.

Upgrade from bare SSD operation

Without the kit a test transfer took 240 seconds on a Core i5-6500 platform with DDR4 2133 memory. With the heatsink and pads fitted the same transfer completed in 180 seconds. The jump is worth it when sustained writes cause the drive to slow down.

Tool-free install with silicone bands

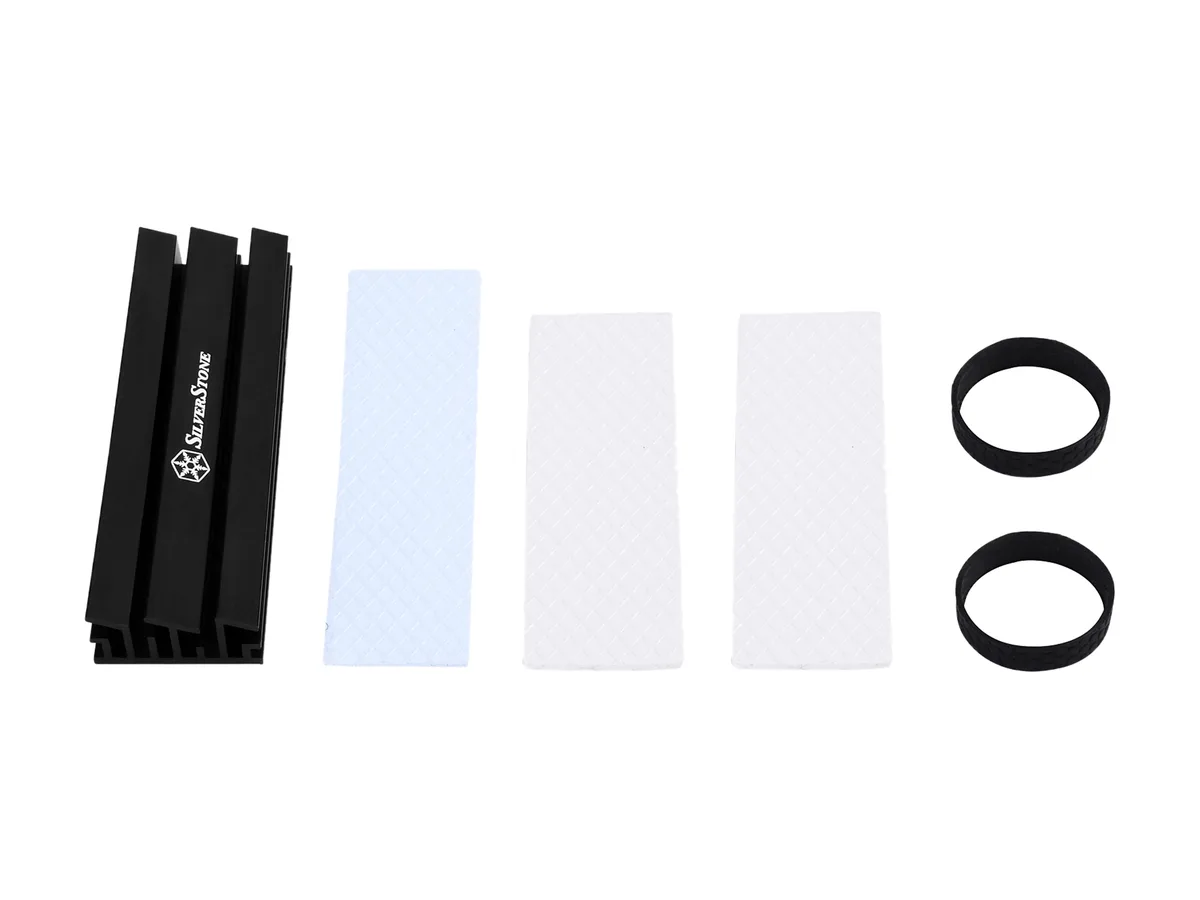

Two bands hold the 70mm wide heatsink onto the SSD using the included 1.0mm blue pad and two gray pads of 1.0mm and 1.5mm thickness. Misaligning the pads or using the wrong thickness for a double-sided drive are the common errors that reduce contact.

Fordele

  • Aluminium heatsink expands cooling surface for better heat dissipation
  • Three thermal pads improve heat transfer to lower operating temperatures
  • Double-layer pad design enhances stability during sustained workloads
  • Fits 2280 M.2 SSDs for direct motherboard slot mounting
  • Silicone bands secure heatsink without damaging the drive

Specifikationer

BrandSILVERSTONE
ModelSST-TP02-M2
TypeCooling kit
Block CompatibilityM.2 length support: 2280 (22mm x 80mm)
Block Dim.Heatsink : 70mm (W) x 10mm (H) x 20mm (D), 16.1g
Blue Pad : 70mm (W) x 1mm (H) x 20mm (D), 3.25g
Gray Pad 1 : 60mm(W) x 1mm(H) X 20mm(D), 2.8g
Gray Pad 2 : 60mm(W) x 1.5mm(H) X 20mm(D), 3.7g
Thermal pad thickness: 1.0mm, 1.5mm
Block MaterialAluminum, silicone
FeaturesWith the ever increasing popularity of solid state drive (SSD) being used as the primary storage device in PCs, capacity and performance continue to climb in newer models but so have their operating temperatures. This has resulted in situations where SSDs, especially the smaller M.2 variants with less surface areas have overheated and throttled or shut down completely. To help alleviate this new generation of heat problems, SilverStone created the TP02-M2 cooling kit, it includes quality aluminum heatsink and custom high efficiency thermal pads to provide a simple and effective cooli
Forsendelsesvægt0.45 kg
Pakkestørrelse203 × 102 × 25 mm

Spørgsmål om denne vare

Will the 70 mm wide heatsink fit my motherboard's M.2 slot?

The heatsink measures 70 mm wide by 20 mm deep and 10 mm high, so it fits standard M.2 2280 slots without overhanging adjacent components.

How do I attach the heatsink without screws?

Place the blue 1 mm pad on the controller and the two grey pads on the NAND, lay the heatsink on top, then wrap the included silicone bands around the assembly to hold it firmly.

When should I replace the thermal pads?

Replace the 1 mm and 1.5 mm thick pads if they become compressed, dried out, or if SSD temperatures rise back toward the 240-second transfer-time baseline.
