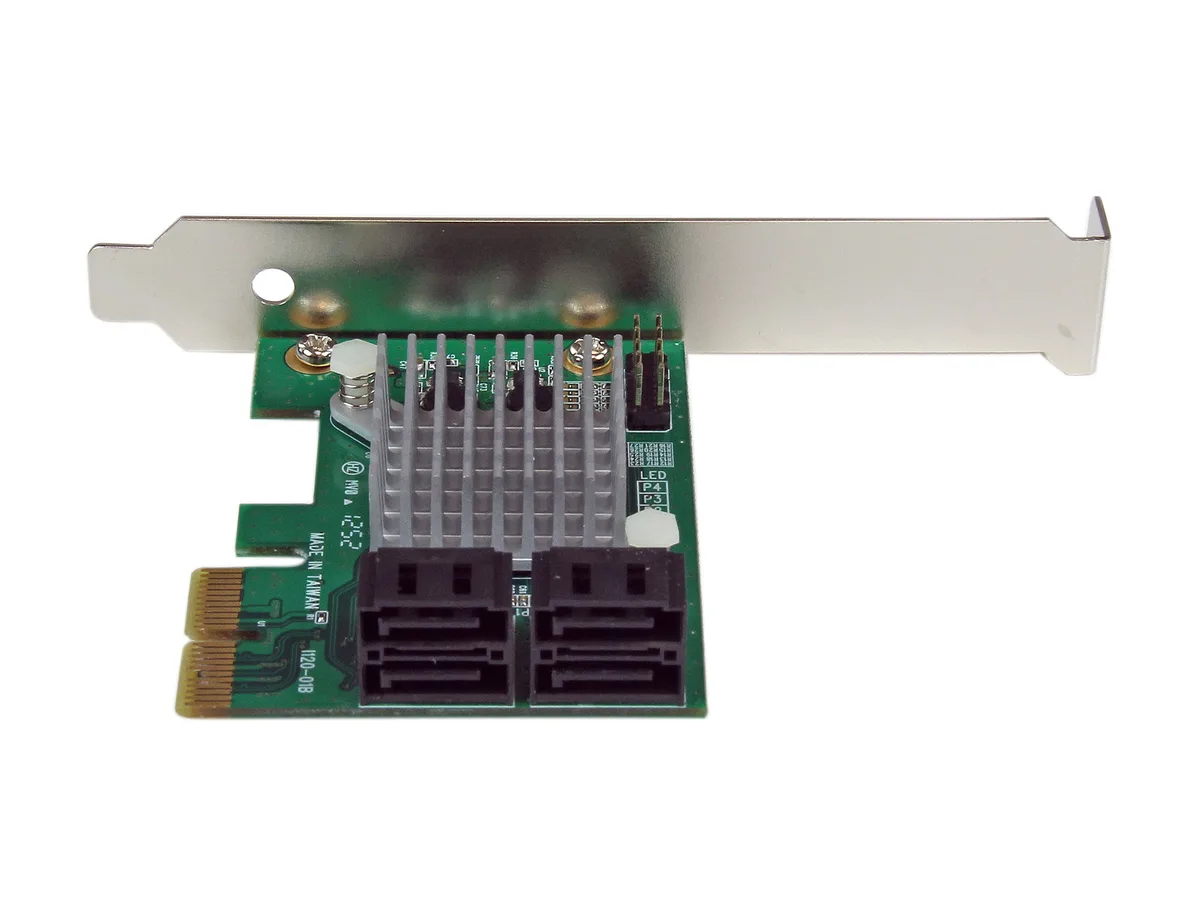

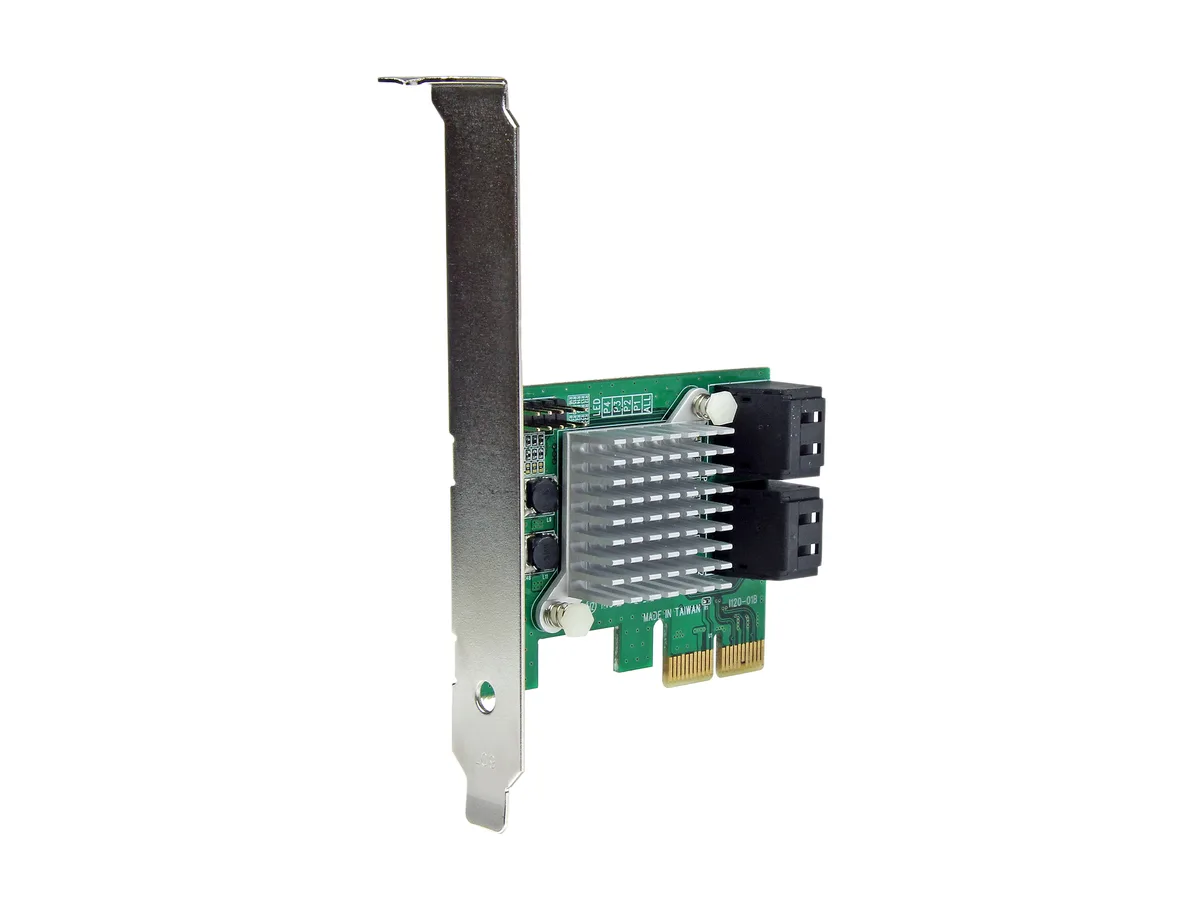

Green circuit board with four SATA ports and PCI Express gold fingers

STARTECH

STARTECH PEXSAT34RH 4-Port PCI Express 2.0 SATA 6.0 Gbps RAID expansion card

SKU CH-A29P-W53C1 MPN PEXSAT34RH

Adds four internal SATA 6.0 Gbps ports with RAID 0, 1, 10 and JBOD support through a PCI Express 2.0 x2 slot

  • TypePCI Express to SATA Card
  • Internal Ports4 x SATA
  • StandardPCI-Express 2.0 x2 SATA III 6Gbps
  • Data Transfer Rate6.0 Gbps
  • Operating Systems SupportedWindows XP (32/64-bit)/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8
  • SpecificationsChipset ID: Marvell 88SE9230 Supported RAID Modes: 0/1/10, J
  • Add four internal SATA III 6.0 Gbps ports via one PCI Express 2.0 x2 slot
  • Hardware RAID 0, 1, 10 and JBOD supported by Marvell 88SE9230 chipset
  • HyperDuo SSD tiering accelerates frequent data automatically
  • Full-height and low-profile brackets included for any chassis
  • Drivers supplied for Windows XP to 8, Mac OS 10.6 to 10.8 and Linux

Four-port SATA III RAID card

The StarTech PEXSAT34RH adds four internal SATA III 6.0 Gbps ports through a PCI Express 2.0 x2 slot. It uses the Marvell 88SE9230 chipset and supports RAID 0, 1, 10 and JBOD modes. A low-profile bracket is included for small-form-factor systems.

Desktop builders adding bulk storage

The card suits Windows XP through 8, Mac OS 10.6 to 10.8 and Linux users who need extra SATA ports for hard drives or SATA SSDs. Builders requiring more than four ports, a different PCIe generation or an interface other than SATA will not be served by this product.

PCI Express 2.0 x2 interface

The controller connects via a PCIe 2.0 x2 link, which sets the maximum bus bandwidth available to the four SATA III ports. Verify that the motherboard has a compatible x2 or larger slot before purchase.

Fordele

  • Add four internal SATA III 6.0 Gbps ports via one PCI Express 2.0 x2 slot
  • Hardware RAID 0, 1, 10 and JBOD supported by Marvell 88SE9230 chipset
  • HyperDuo SSD tiering accelerates frequent data automatically
  • Full-height and low-profile brackets included for any chassis
  • Drivers supplied for Windows XP to 8, Mac OS 10.6 to 10.8 and Linux

Specifikationer

BrandStarTech.com
ModelPEXSAT34RH
TypePCI Express to SATA Card
Internal Ports4 x SATA
StandardPCI-Express 2.0 x2
SATA III 6Gbps
Data Transfer Rate6.0 Gbps
Operating Systems SupportedWindows XP (32/64-bit)/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
Mac OS 10.6 /10.7 /10.8
Linux
SpecificationsChipset ID: Marvell 88SE9230
Supported RAID Modes: 0/1/10, JBOD
FeaturesAdd 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot. The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volu
Weight0.95 lb.

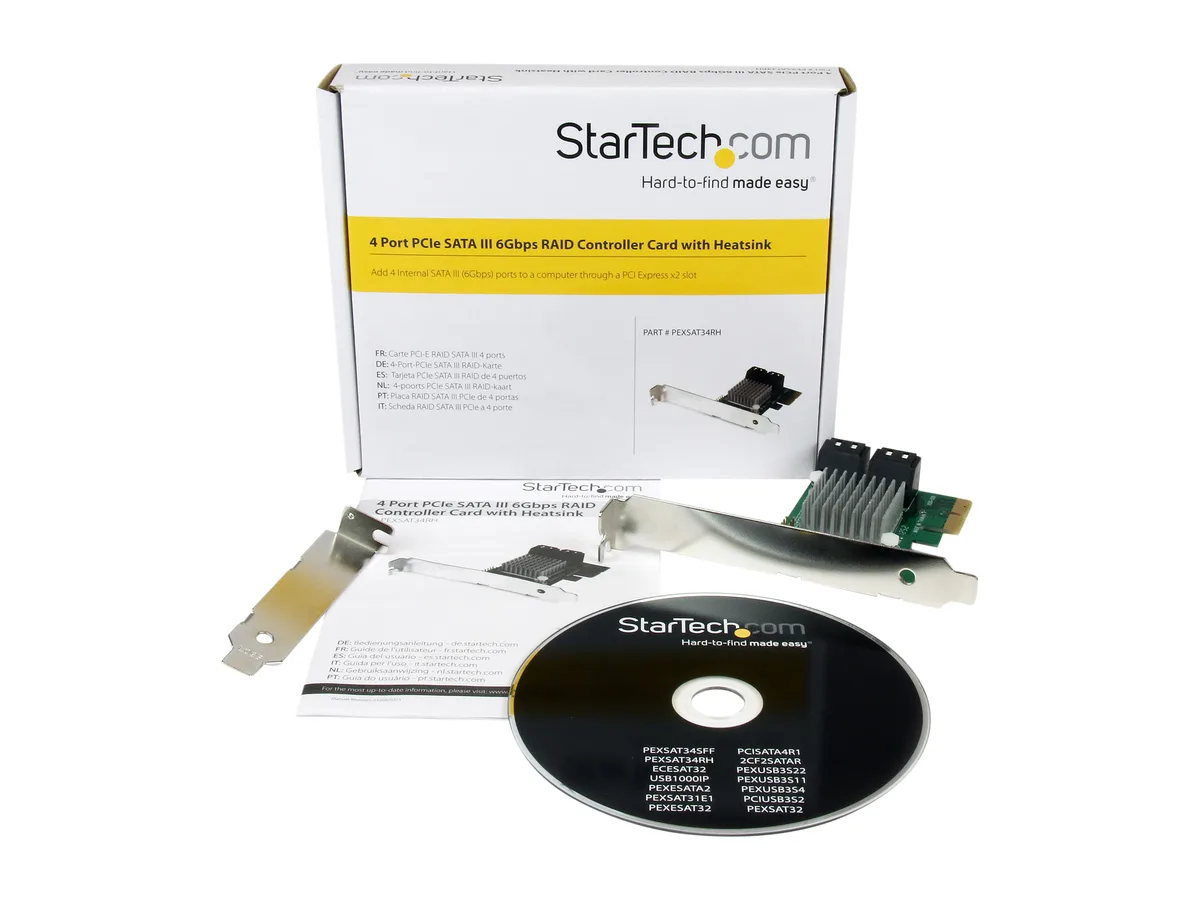

Package Contents1 - PCIe SATA Controller Card

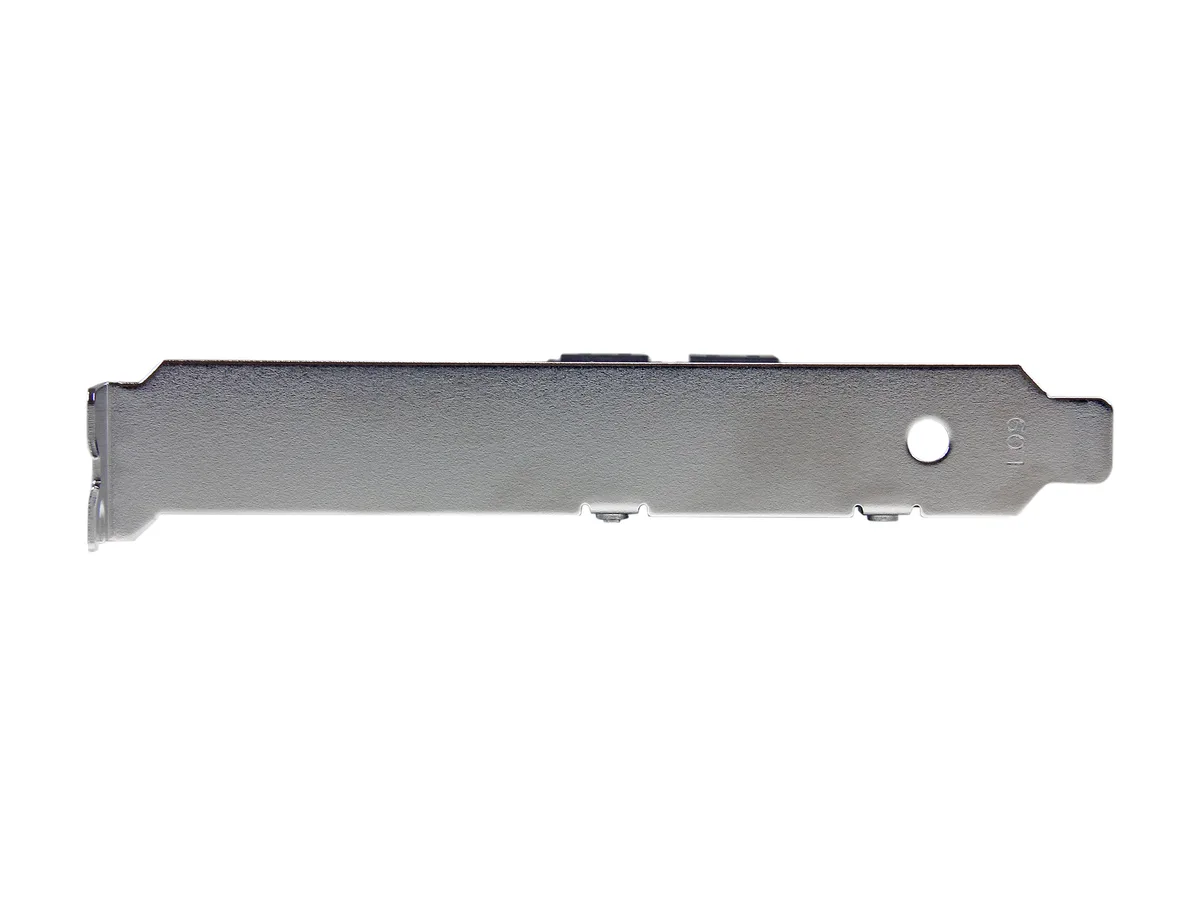

1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
Forsendelsesvægt0.15 kg
Pakkestørrelse173 × 140 × 33 mm

Spørgsmål om denne vare

What PCI Express slot version and width does the PEXSAT34RH need to operate?

The card installs in a PCI Express 2.0 x2 slot and provides four SATA III 6.0 Gbps ports.

Can the Marvell 88SE9230 controller run alongside an existing SATA II host controller without conflict?

Yes, the add-in card operates independently on the PCIe bus, so older SATA II ports on the motherboard remain active.

How can I verify the HyperDuo tiering feature is active after installing the driver?

Open the RAID management utility in Windows, macOS 10.6 through 10.8, or Linux; it will display the SSD and HDD paired as a single HyperDuo volume.
