Green circuit board with five black SATA ports and a gold PCIe x4 edge connector

Vantec

Vantec UGT-ST655 5-Port SATA III 6Gbps PCIe x4 expansion card

SKU CH-W91M-AZEM5

Adds five SATA III 6Gbps ports via a PCIe 3.0 x4 slot, supports simultaneous SSD, HDD and optical drives, and includes both standard and low-profile brackets

  • TypePCI Express to eSATA Card
  • External Ports5 x SATA III
  • CompatibilityDesktop
  • FeaturesSupport 5 SATA ports for Read/Write simultaneously Support S
  • Dimensions92 x 66 x 22 mm
  • Weight87g
  • Add five SATA III drives at once for simultaneous read and write
  • 6 Gbps SATA III speed moves large files quickly
  • Works with SSDs, HDDs and optical drives
  • Fits PCIe 3.0 x4 slots in standard or low-profile cases
  • Driver-free setup on Windows 11, 10, 8, 7 and Linux

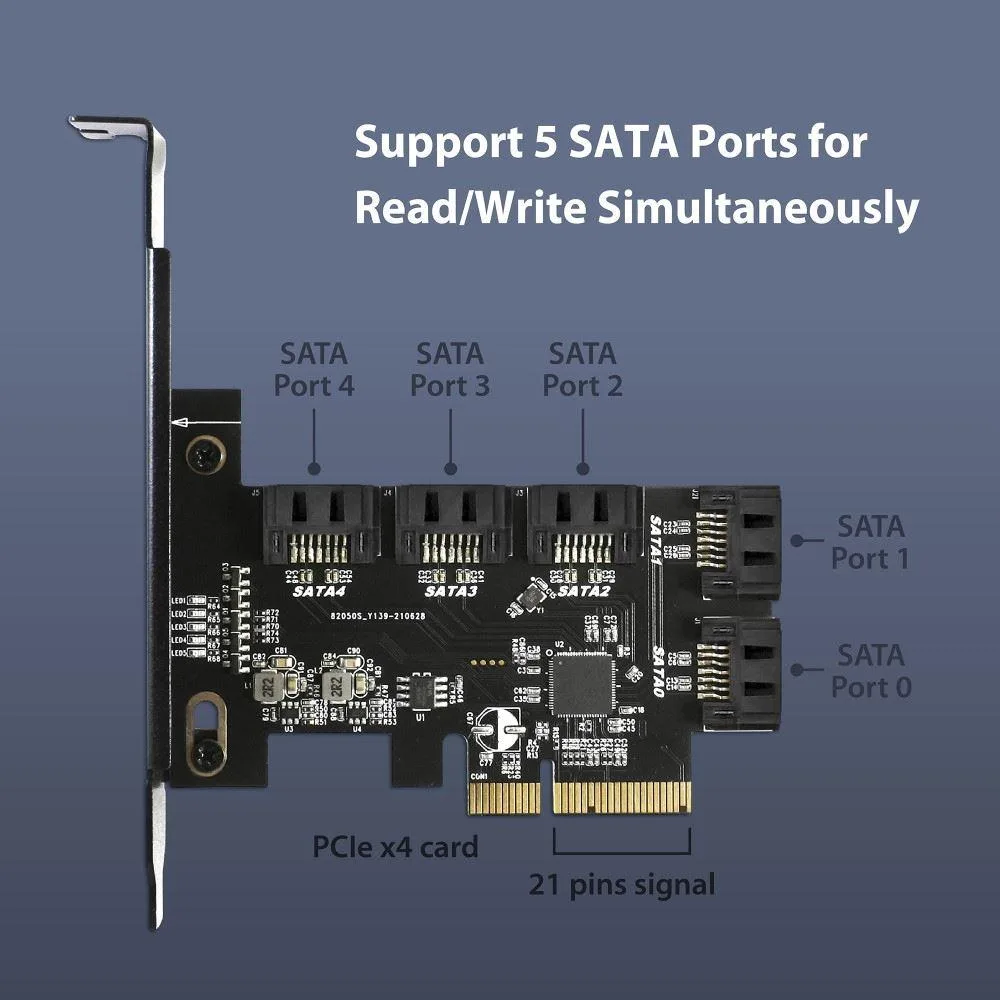

Five Internal SATA III Ports

The Vantec UGT-ST655 adds five internal SATA III 6Gbps ports through a single PCIe x4 slot. It connects SSDs, HDDs and optical drives simultaneously. No drivers are required for Windows 11, 10, 8 or 7, and Linux is also supported. Standard and low-profile brackets are included in the box.

Suits Builders Needing Extra Drive Bays

This card suits desktop builders who have run out of motherboard SATA headers and own a free PCIe x4 slot. It does not suit systems that lack a PCIe x4 lane, nor buyers who need external eSATA connectors. SATA cables are not included, so purchasers must supply their own.

PCIe v3.0 x4 Interface Requirement

The card requires a PCIe v3.0 x4 slot to deliver full 6Gbps bandwidth across all five ports. Installing it in a smaller lane width will reduce available throughput for simultaneous drive access. Verify that your motherboard provides an x4 electrical connection before purchase.

Fordele

  • Add five SATA III drives at once for simultaneous read and write
  • 6 Gbps SATA III speed moves large files quickly
  • Works with SSDs, HDDs and optical drives
  • Fits PCIe 3.0 x4 slots in standard or low-profile cases
  • Driver-free setup on Windows 11, 10, 8, 7 and Linux

Specifikationer

BrandVANTEC
ModelUGT-ST655
Part NumberUGT-ST655
TypePCI Express to eSATA Card
External Ports5 x SATA III
CompatibilityDesktop
FeaturesSupport 5 SATA ports for Read/Write simultaneously
Support SATA III 6Gbps transfer speed
Support SATA III SSD, HDD, Optical drive*
Support PCIe v3.0, requires x4 Slot

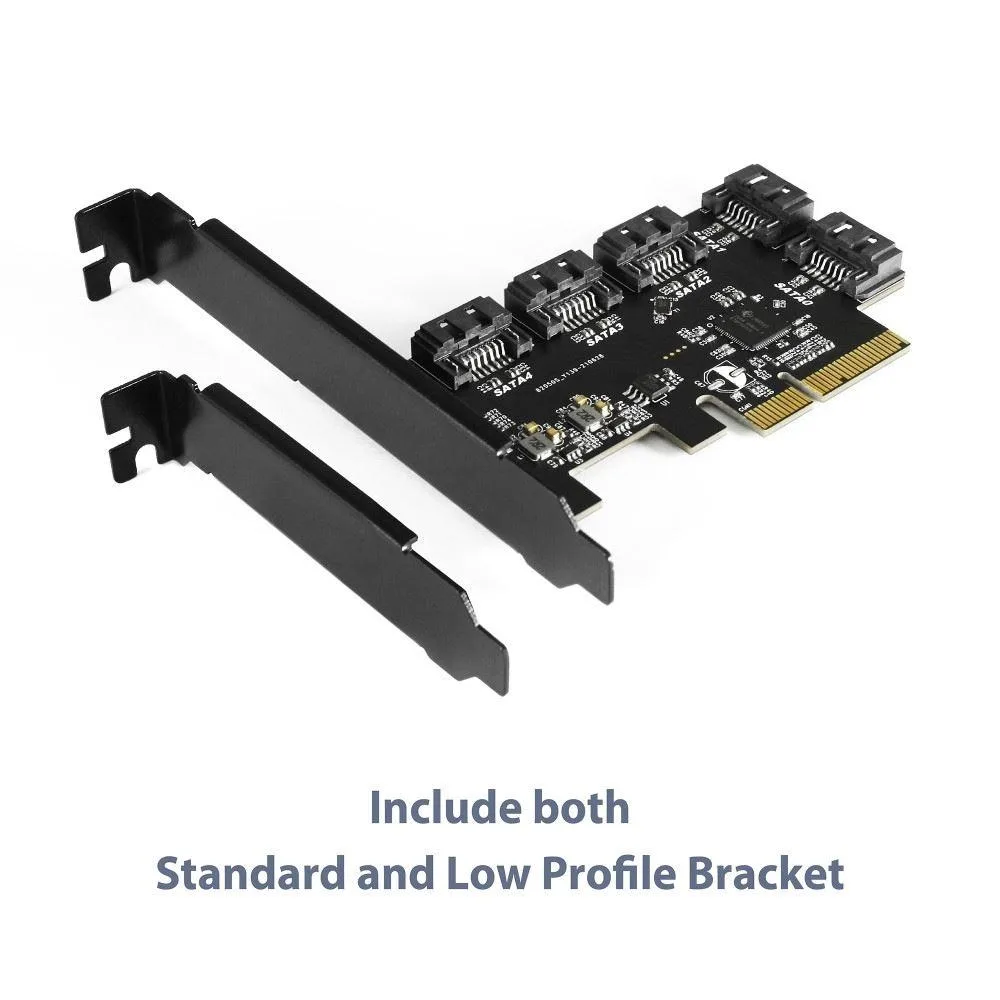

Standard and Low Profile bracket included
Windows 11/10/8/7 Ready, Compatible with Linux; No drivers required
SATA cable not included
Dimensions92 x 66 x 22 mm
Weight87g
Package Contents5-Port SATA III 6Gbps PCIe x4 Host Card
Quick Installation Guide
Standard and Low profile bracket

Spørgsmål om denne vare

What comes in the box and do I need to buy SATA cables separately?

The box includes the 5-Port SATA III 6Gbps PCIe x4 Host Card, a Quick Installation Guide, and both standard and low-profile brackets. SATA cables are not included and must be purchased separately.

Should I choose the standard or low-profile bracket for my case?

Both brackets are supplied, so you can fit the card in a full-height chassis using the standard bracket or a slim 22 mm low-profile chassis using the included low-profile bracket.

What does the 6 Gbps SATA III rating mean when all five ports are used at once?

Each of the five ports supports SATA III 6 Gbps, and the PCIe 3.0 x4 host link provides enough bandwidth for all ports to read and write simultaneously at that speed.
