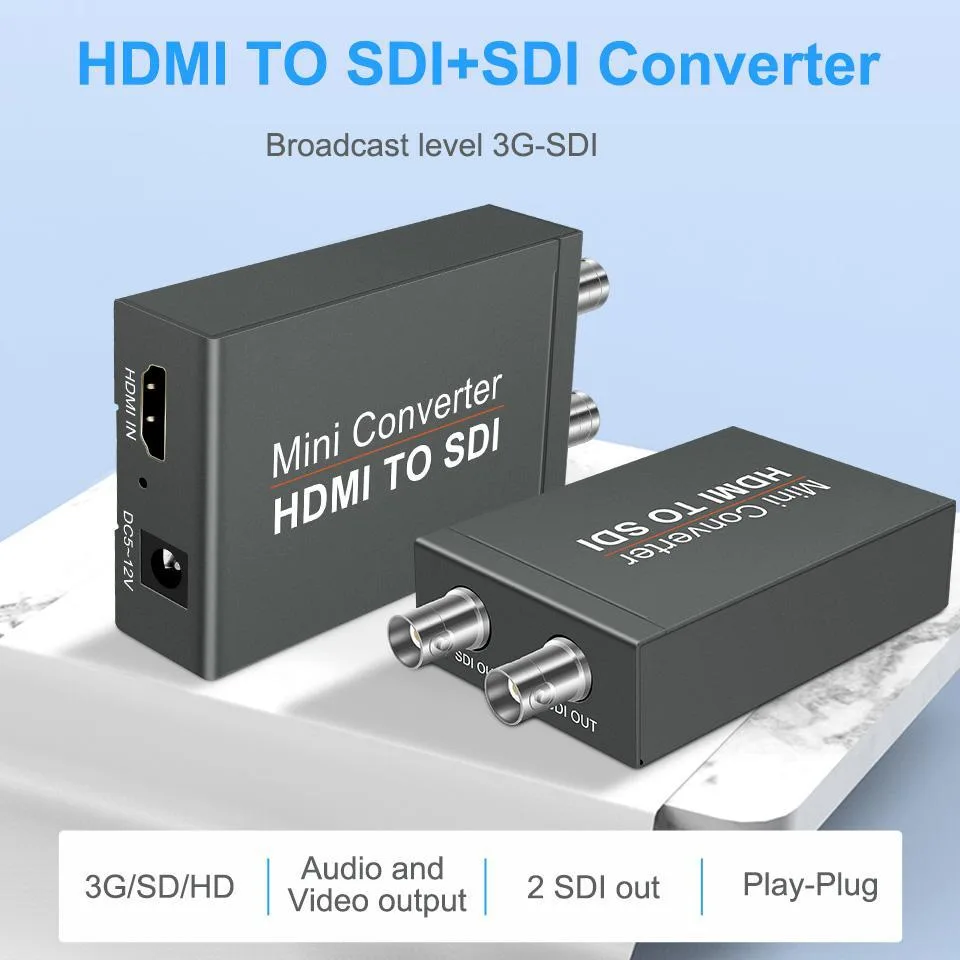

Small black metal box with one HDMI input and two SDI outputs

WRIARICH

WRIARICH HDMI2SDI HDMI to SDI Converter 1 In 2 Out 1080P 3G-SDI media converter

SKU CH-F3C1-98270

Converts an HDMI source to two 3G-SDI outputs at 1080P with automatic format detection and 100-metre cable reach

  • FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Resolution Support1080P
  • ColorBlack
  • VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • HDMI1 In
  • SDI2 Out
  • Converts HDMI to dual SDI for professional video distribution
  • Embedded audio and image stay in sync across both outputs
  • Auto-detects HD-SDI or 3G-SDI format from the HDMI source
  • Drives 3G-SDI up to 100 metres and HD-SDI up to 200 metres
  • No external power supply required for compact installation

Purpose and Audience

The WRIARICH HDMI2SDI converts a single HDMI source into two simultaneous 3G-SDI or HD-SDI outputs for professional video workflows. It accepts HDMI 1.3 signals up to 1080P at 24, 25, 30, 50 and 60 Hz plus common PC resolutions and embeds audio in sync with the picture. The unit is aimed at camera operators, CCTV installers and broadcast engineers who need to feed SDI monitors or recorders from an HDMI camera or switcher. It is not suited for users who require SDI-to-HDMI conversion or bi-directional signal routing.

Setup Checks

Verify that your HDMI source matches one of the listed input formats: 480I, 480P, 576I, 576P, 720P at 50 or 60 Hz, 1080I at 50 or 60 Hz, or 1080P at 24, 25, 30, 50 or 60 Hz. Confirm the source uses HDMI Type A and complies with HDCP 1.3. Ensure each SDI run stays within 100 metres for 3G-SDI or 200 metres for HD-SDI using appropriate coaxial cable. The converter includes a power adapter; no external supply beyond that is required. Do not connect an SDI source expecting HDMI output.

Thermals Noise and Power

The aluminium enclosure measures 5.83 by 4.49 by 2.44 inches and weighs 7.8 ounces with no moving parts, so operation is silent. Power is drawn solely from the supplied adapter; the specification notes no need for an additional external supply. Built-in ESD protection guards the circuitry during handling. Under normal use the unit runs cool enough for desktop or rack placement without forced airflow.

Fordele

  • Converts HDMI to dual SDI for professional video distribution
  • Embedded audio and image stay in sync across both outputs
  • Auto-detects HD-SDI or 3G-SDI format from the HDMI source
  • Drives 3G-SDI up to 100 metres and HD-SDI up to 200 metres
  • No external power supply required for compact installation

Specifikationer

BrandWRIARICH
SeriesHDMI2SDI
ModelHDMI2SDI
FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Resolution Support1080P
ColorBlack
VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplayThis HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Power SupplyNO need external power supply
SpecificationInput Port: HDMI input
Output Port: SDI Output X 2
Input HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz

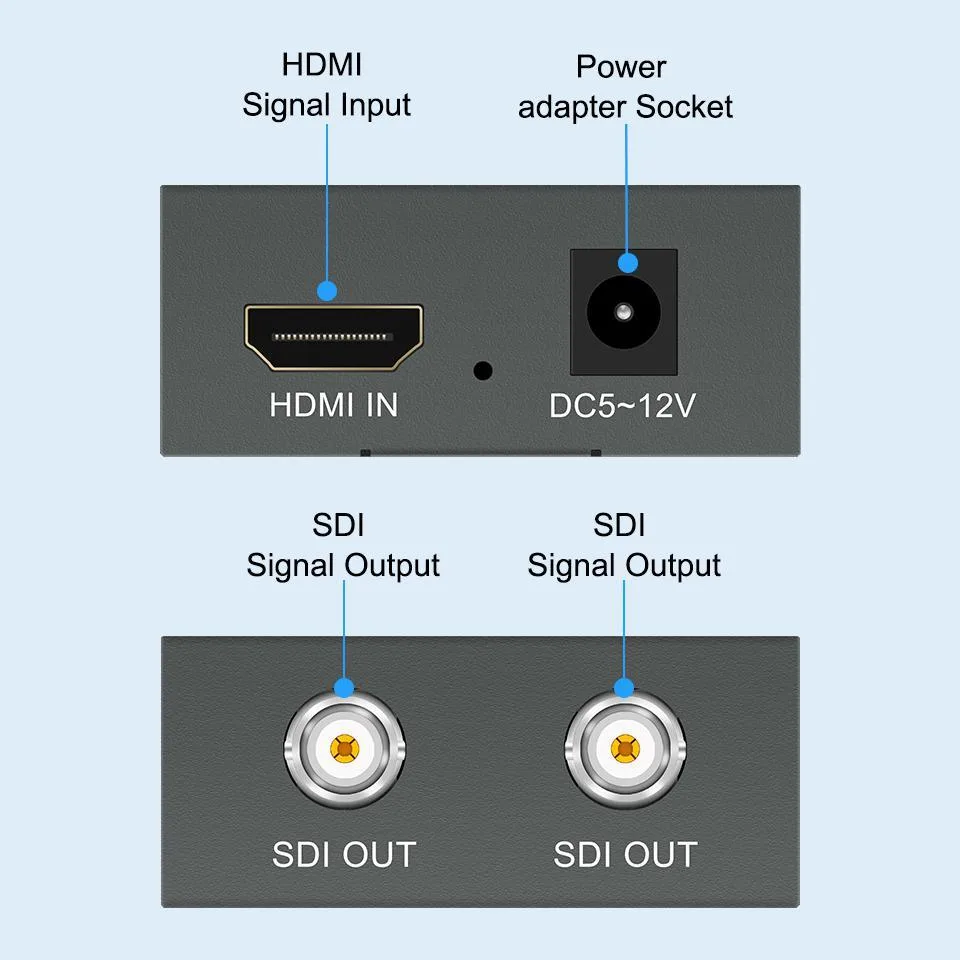

Feature1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual

Spørgsmål om denne vare

Does the box include a power adapter or must I buy one separately?

The package includes one HDMI to SDI converter, one power adapter and a user manual so no extra power supply needs to be purchased.

Should I choose the HD-SDI or 3G-SDI output mode for my 1080P 60Hz camera?

The converter auto-detects the input and selects HD-SDI for 720P 50/60Hz or 3G-SDI for 1080P 50/60Hz, so a 1080P 60Hz source will use the 3G-SDI path.

What does the 2.97 Gbit/s rate mean for cable length in my studio?

At 2.97 Gbit/s the 3G-SDI outputs can drive cables up to 100 metres while the HD-SDI mode reaches 200 metres.
