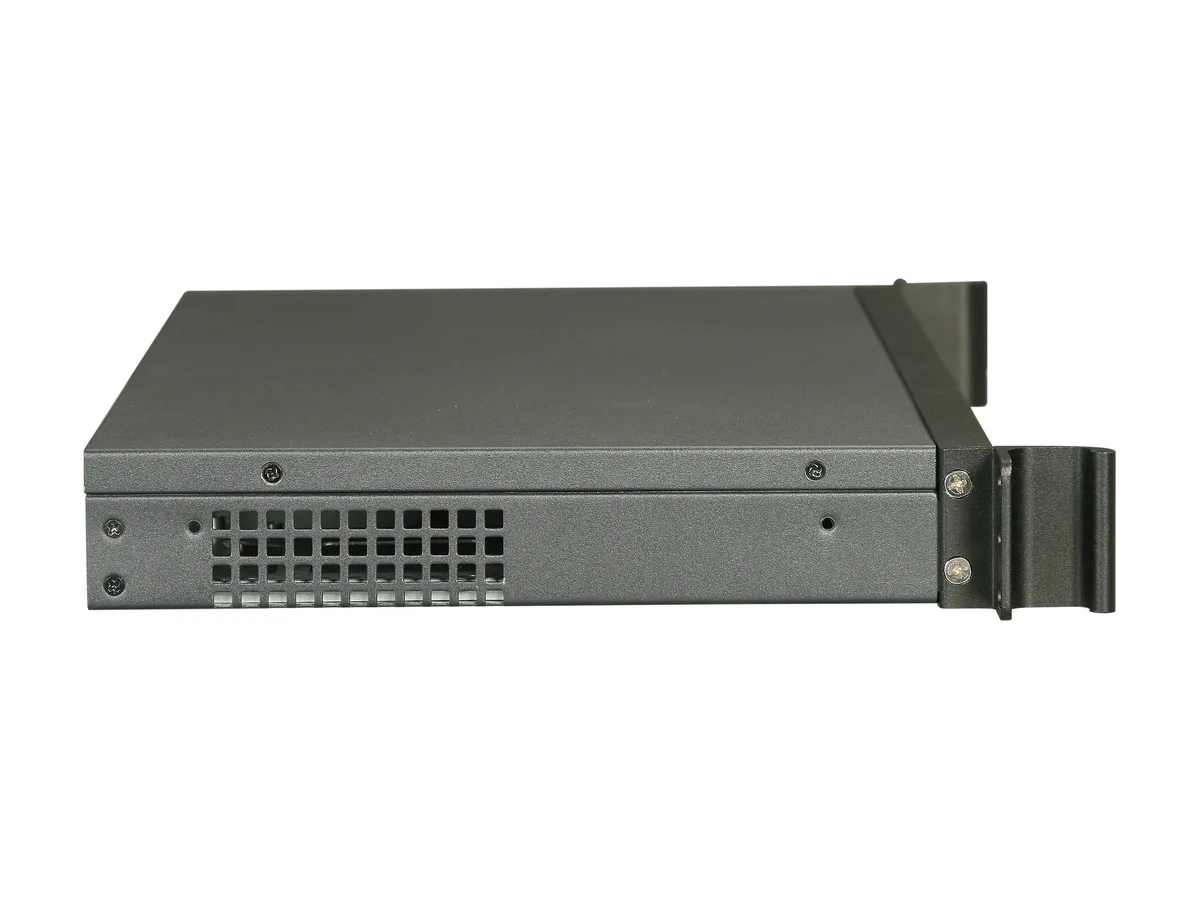

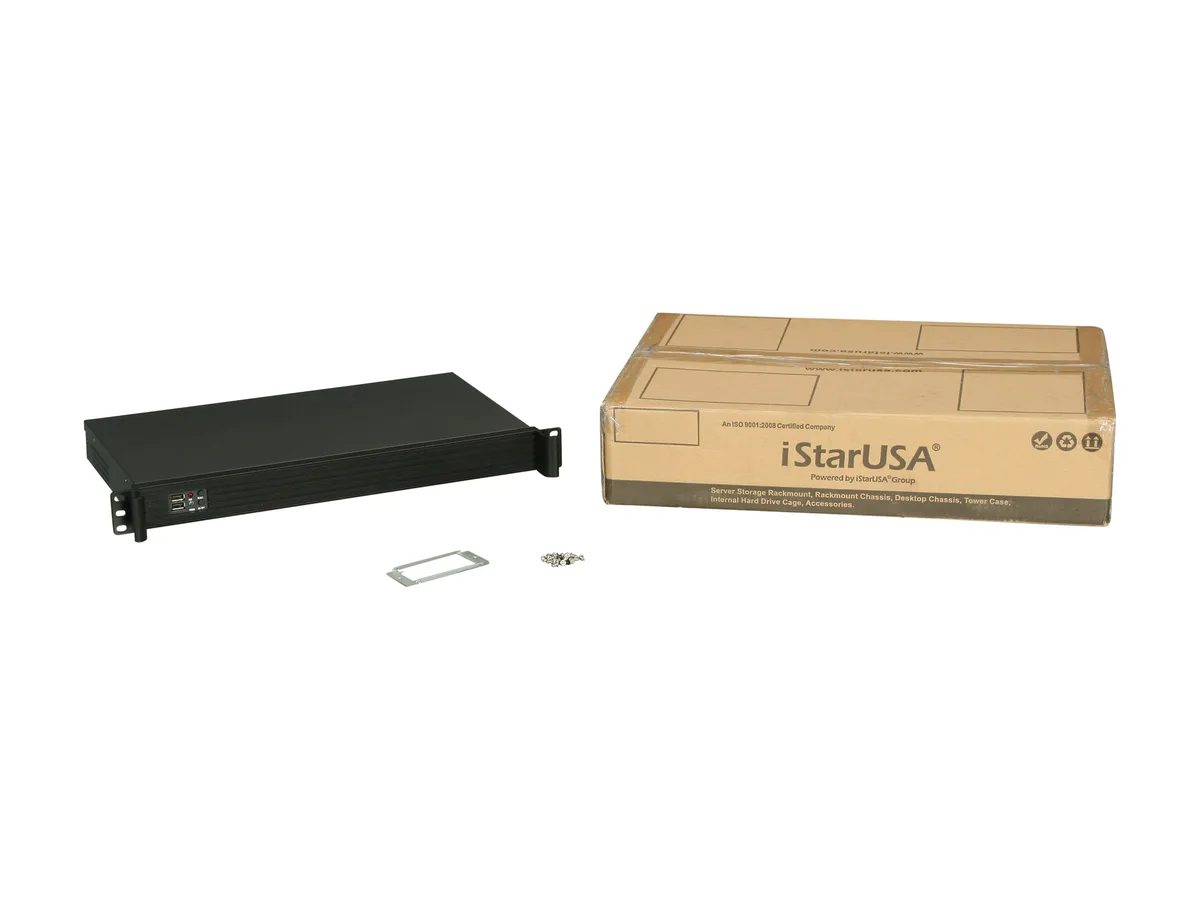

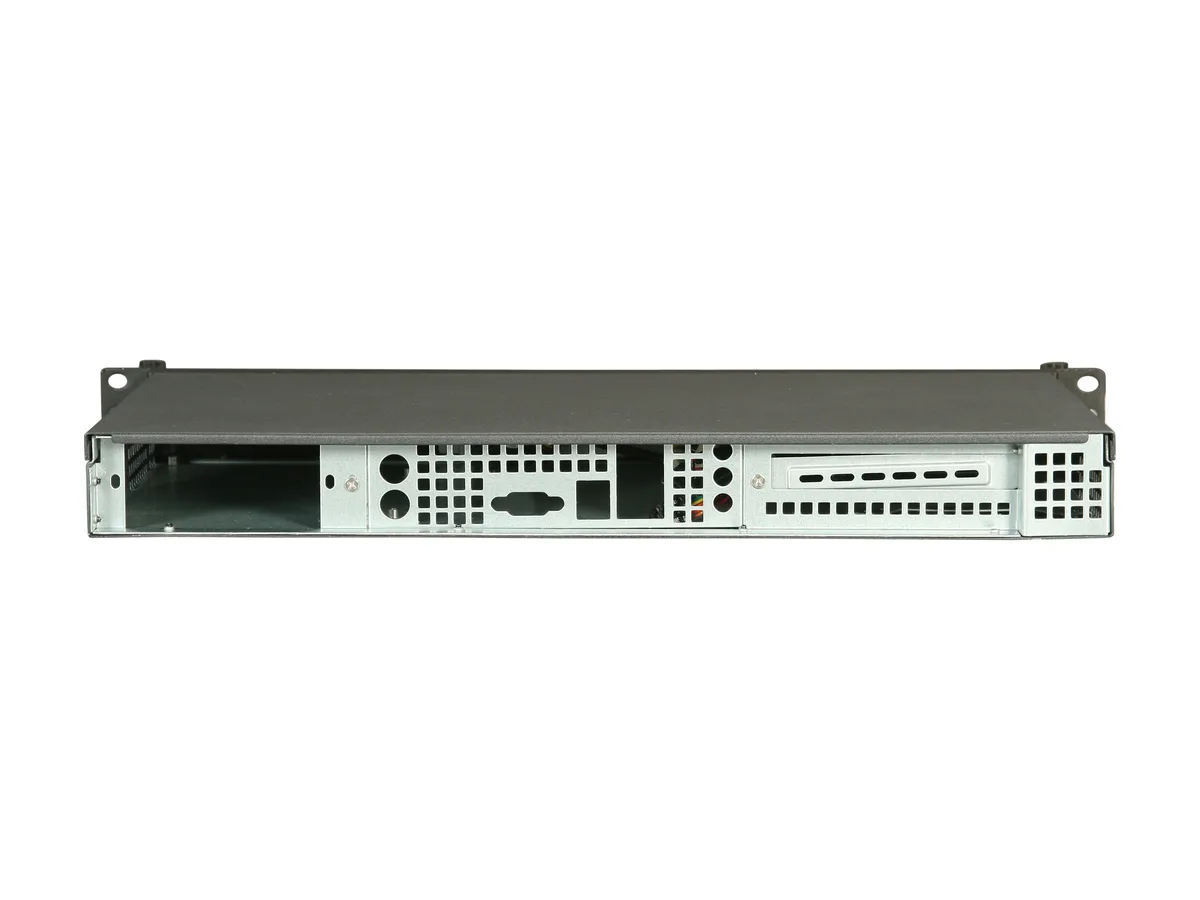

Black 1U rackmount server chassis, 11 inch depth, front USB ports and fans

iStarUSA Inc.

iStarUSA Inc. D-118V2-ITX 1U Rackmount Server Chassis 11" Depth

SKU CH-W82N-J7VK1 MPN D-118V2-ITX

Holds one 3.5" or two 2.5" drives with a mini-ITX board in an 11" deep 1U rackmount frame

  • Chassis TypeRackmount
  • Form Factor1U
  • ColorBlack
  • Case MaterialMetal / Aluminum
  • Motherboard Compatibility6.7 x 6.7 (mini-ITX)
  • Internal 3.5" Drive Bays1

Model D-118V2-ITX

  • Fits shallow 11" depth racks with 1U height
  • Holds one 3.5" or two 2.5" drives on mini-ITX board
  • Two front 40mm fans pull cool air through chassis
  • Front panel gives two USB 2.0 ports plus power and reset
  • Metal and aluminum build meets RoHS compliance

Compact 1U rackmount server chassis

The iStarUSA D-118V2-ITX is a 1U-high metal and aluminium chassis designed for mini-ITX motherboards. It fits standard 19-inch racks while keeping depth to 11 inches for tight spaces. Industrial environments and edge deployments benefit from its short form factor and included front cooling.

Mini-ITX motherboard compatibility

The chassis accepts boards measuring 6.7 by 6.7 inches and provides a single expansion slot. Storage options include one 3.5-inch drive or two 2.5-inch drives mounted internally. A 1U flex power supply is required but not included.

Straightforward assembly with one caution

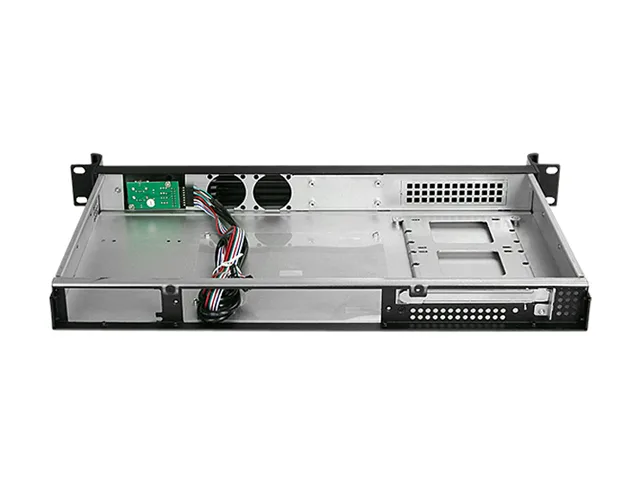

Two 40mm intake fans at the front pull air through the chassis for component cooling. Front-panel USB 2.0 ports, power and reset switches, plus power and HDD LEDs are pre-wired. Builders must verify their flex power supply dimensions match the 1U bay before ordering.

Kohokohdat

  • Fits shallow 11" depth racks with 1U height
  • Holds one 3.5" or two 2.5" drives on mini-ITX board
  • Two front 40mm fans pull cool air through chassis
  • Front panel gives two USB 2.0 ports plus power and reset
  • Metal and aluminum build meets RoHS compliance

Tekniset tiedot

BrandiStarUSA
ModelD-118V2-ITX
Chassis TypeRackmount
Form Factor1U
ColorBlack
Case MaterialMetal / Aluminum
Motherboard Compatibility6.7 x 6.7 (mini-ITX)
Internal 3.5" Drive Bays1
Expansion Slots1
Front Ports2 x USB 2.0
FeaturesRoHS Compliance Version: Yes
Standard Drive Bays: 3.5" Drive (internal): 1 or 2 x 2.5"
Indicators: Power, HDD
Switches: Power, Reset
Industrial Chassis with 11" in Depth
Supports 1U Flex Power Supply
Notes: 3.5" HDD cannot be placed when expansion slot is used. Standard I/O shield will NOT fit the unit.
Dimensions19.00" x 1.75" x 11.00"
Lähetyspaino3.18 kg
Pakkauksen mitat526 × 396 × 122 mm

Tämän mallin muut versiot

3 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How does the 11-inch depth affect what I can install in a standard rack?

The 11-inch depth lets this 1U chassis fit in shallow cabinets or wall-mount racks where deeper servers would not clear the rear door.

What does the single expansion slot limit in practice?

Only one low-profile add-in card can be installed, so you must choose between a RAID controller, a NIC or another peripheral.

What clearance do the two front 40mm fans need for airflow?

They draw air through the front bezel, so leave at least a few centimetres of unobstructed space in front of the rack rails.
