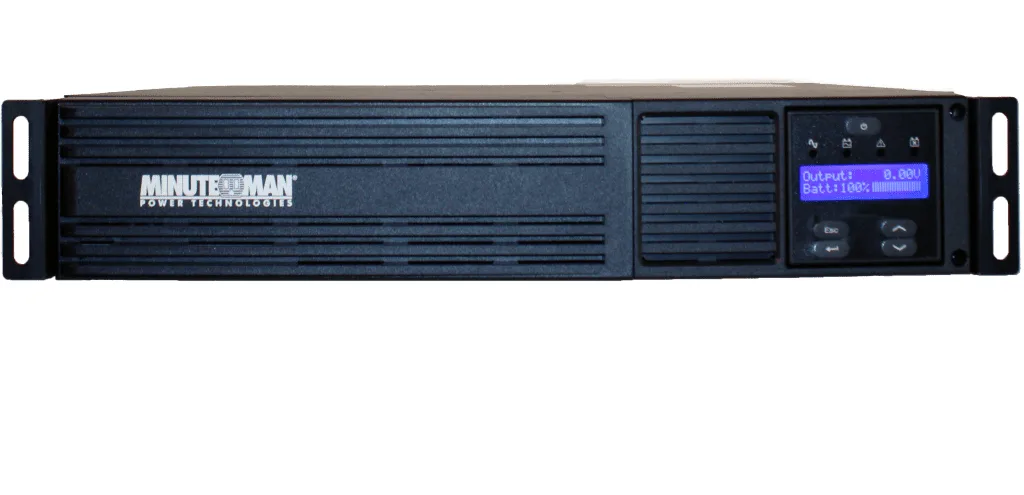

Black rectangular 2U rackmount UPS unit with eight NEMA 5-15R outlets on rear panel

MINUTEMAN

MINUTEMAN EXR1000RT2U UPS 1000 VA 900W 8 Outlets 2U

SKU CH-XGR2-09ARA MPN EXR1000RT2U

Line-interactive UPS delivers 1000 VA and 900 W with eight NEMA 5-15R outlets and 4 or 13 minutes runtime

  • Input Voltage Range80 to 164VAC (150 - 271VAC)
  • Input Frequency50/60 Hz, +/- 6 Hz auto-sensing
  • Input ConnectionNEMA 5-15P (10-ft.) (NEMA 6-15P)
  • VA Rating1000 VA
  • Watts900W
  • Output Voltage120VAC: 101 - 136VAC (208VAC: 186 - 236VAC)

Model EXR1000RT2U

Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

  • 1000 VA / 900 W capacity protects critical rack equipment
  • Line-interactive topology with true sine-wave output delivers clean power
  • Eight NEMA 5-15R outlets support multiple servers and peripherals
  • DB-9, USB and RJ-45 ports enable flexible monitoring and management
  • 2U rack-mount design fits standard cabinets and saves space

2U rack/tower UPS for servers

The Minuteman EXR1000RT2U is a line-interactive uninterruptible power supply rated at 1000 VA and 900 W. It fits a 2U rack space or stands as a tower, making it suitable for small server rooms, network closets or edge deployments where true sine-wave output is required.

Eight NEMA 5-15R outlets and three management ports

Eight rear outlets provide battery-backed and surge-protected power for connected equipment. A DB-9 serial port, USB port and RJ-45 network interface enable local or remote monitoring and automated shutdown. The RJ-45 surge path also protects a 1 Gbit Ethernet link from transients.

Battery runtime drops sharply at full load

At 100 % load the internal battery delivers roughly 4 minutes of runtime, extending to about 13 minutes at 50 % load. This limits the unit to bridging short outages or allowing scripted shutdowns rather than sustaining operation through extended blackouts. The input window of 80 to 164 VAC means very deep sags will still transfer to battery.

Kohokohdat

  • 1000 VA / 900 W capacity protects critical rack equipment
  • Line-interactive topology with true sine-wave output delivers clean power
  • Eight NEMA 5-15R outlets support multiple servers and peripherals
  • DB-9, USB and RJ-45 ports enable flexible monitoring and management
  • 2U rack-mount design fits standard cabinets and saves space

Tekniset tiedot

BrandMINUTEMAN
SeriesEXR Series
ModelEXR1000RT2U
Input Voltage Range80 to 164VAC (150 - 271VAC)
Input Frequency50/60 Hz, +/- 6 Hz auto-sensing
Input ConnectionNEMA 5-15P (10-ft.) (NEMA 6-15P)
VA Rating1000 VA
Watts900W
Output Voltage120VAC: 101 - 136VAC (208VAC: 186 - 236VAC)
Outlets8
Outlet Type(8) NEMA 5-15R
Battery Run TimeFull/Half Load: 4 / 13 minutes
Battery ReplaceableBM0086
Interface PortDB-9, USB, RJ-45
ApprovalscULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B, CE & NOM certified,EnergyStar 2.0, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)
Rackmountable2U
Surge Energy Rating1000 Joules
Surge Protection1Gbit RJ45 Ethernet (in/out)
Temperature0 to 40°C (+32 to +104°F)
Humidity0 - 95% Non-Condensing
Dimensions3.48" x 18.96" x 17.32"
Weight41.70 lbs.
Lähetyspaino23.32 kg
Pakkauksen mitat601 × 556 × 248 mm

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Which battery module replaces the internal pack on the EXR1000RT2U?

The user-replaceable battery module is BM0086, designed for hot-swap replacement without powering down connected equipment.

What is the shortest runtime I should expect when the UPS is loaded to its full 900 W capacity?

At full load the unit provides 4 minutes of battery runtime, giving enough time for an orderly shutdown.

How much heat does the EXR1000RT2U add to a rack when it runs continuously at full load?

Operating temperature range is 0 to 40 °C; the line-interactive design minimises internal heat generation during normal utility operation.
