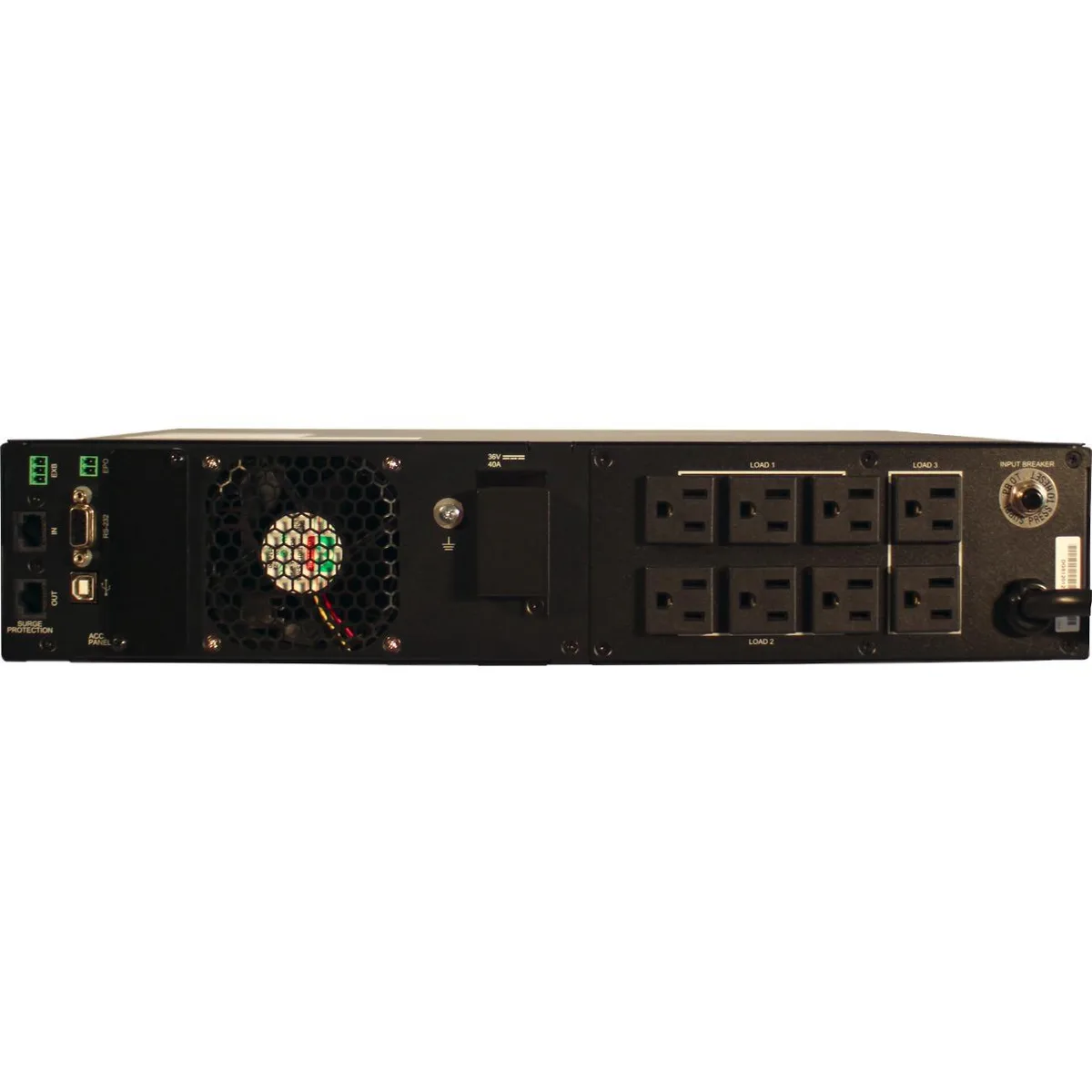

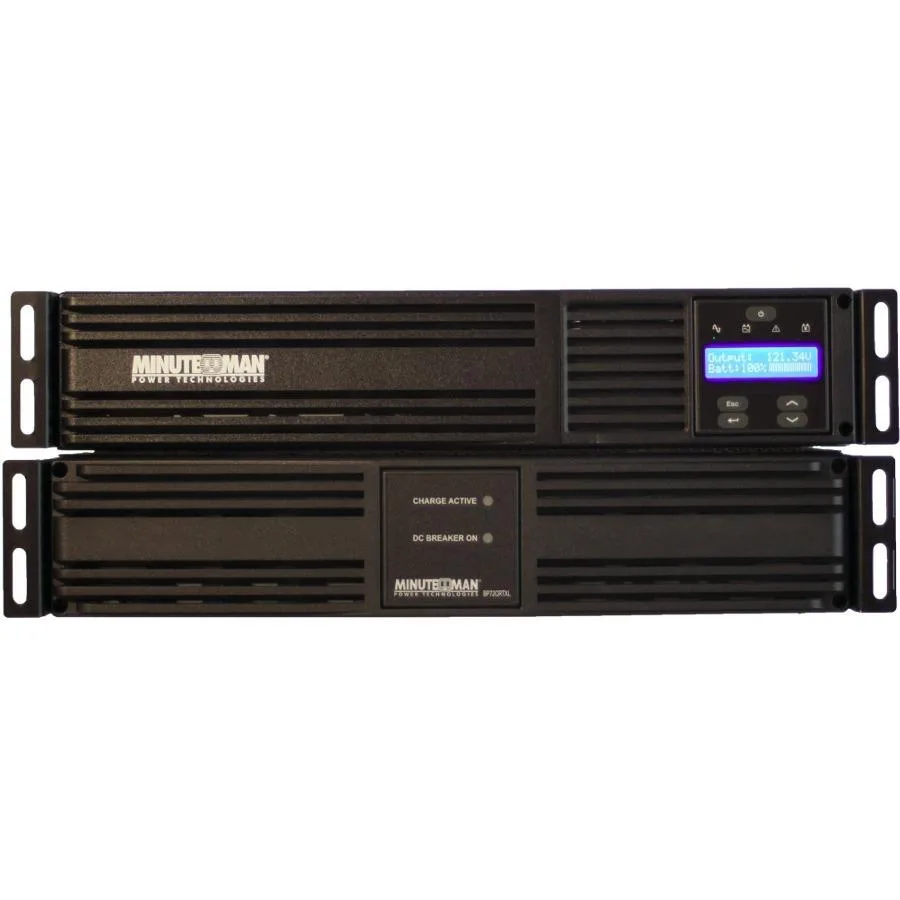

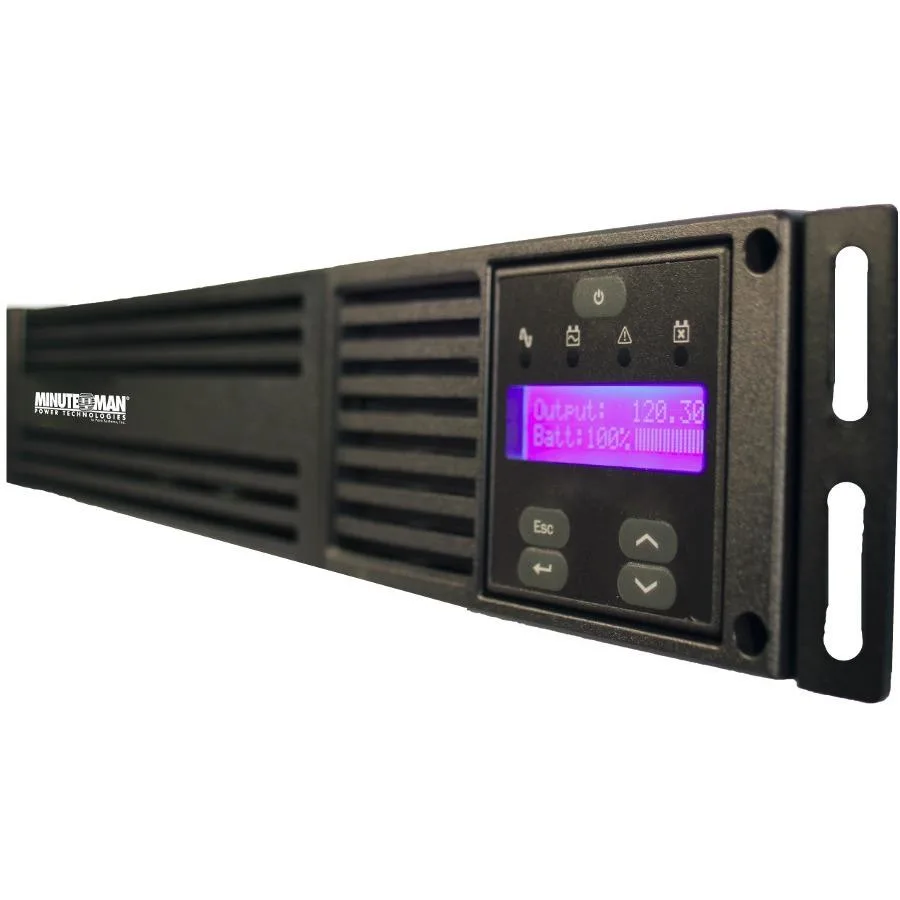

Black rectangular 2U rackmount UPS with front LCD display and eight rear outlets

MINUTEMAN

MINUTEMAN EXR1500RT2U 1500VA 1350W 2U UPS

SKU CH-13PK-AKGN2 MPN EXR1500RT2U

Line-interactive 1500 VA UPS with sine-wave output, eight NEMA 5-15R outlets and 2U rack-mount design

  • Input Voltage Range80 to 164VAC (150 - 271VAC)
  • Input Frequency50/60 Hz, +/- 6 Hz auto-sensing
  • Input ConnectionNEMA 5-15P
  • VA Rating1500 VA
  • Watts1350W
  • Output Voltage120VAC: 101 - 136VAC (208VAC: 186 - 236VAC)

Model EXR1500RT2U

Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

  • 1500 VA 1350 W protects critical network loads
  • Pure sine wave output safeguards sensitive electronics
  • Eight NEMA 5-15R outlets power multiple devices
  • DB-9 USB RJ-45 interfaces enable remote management

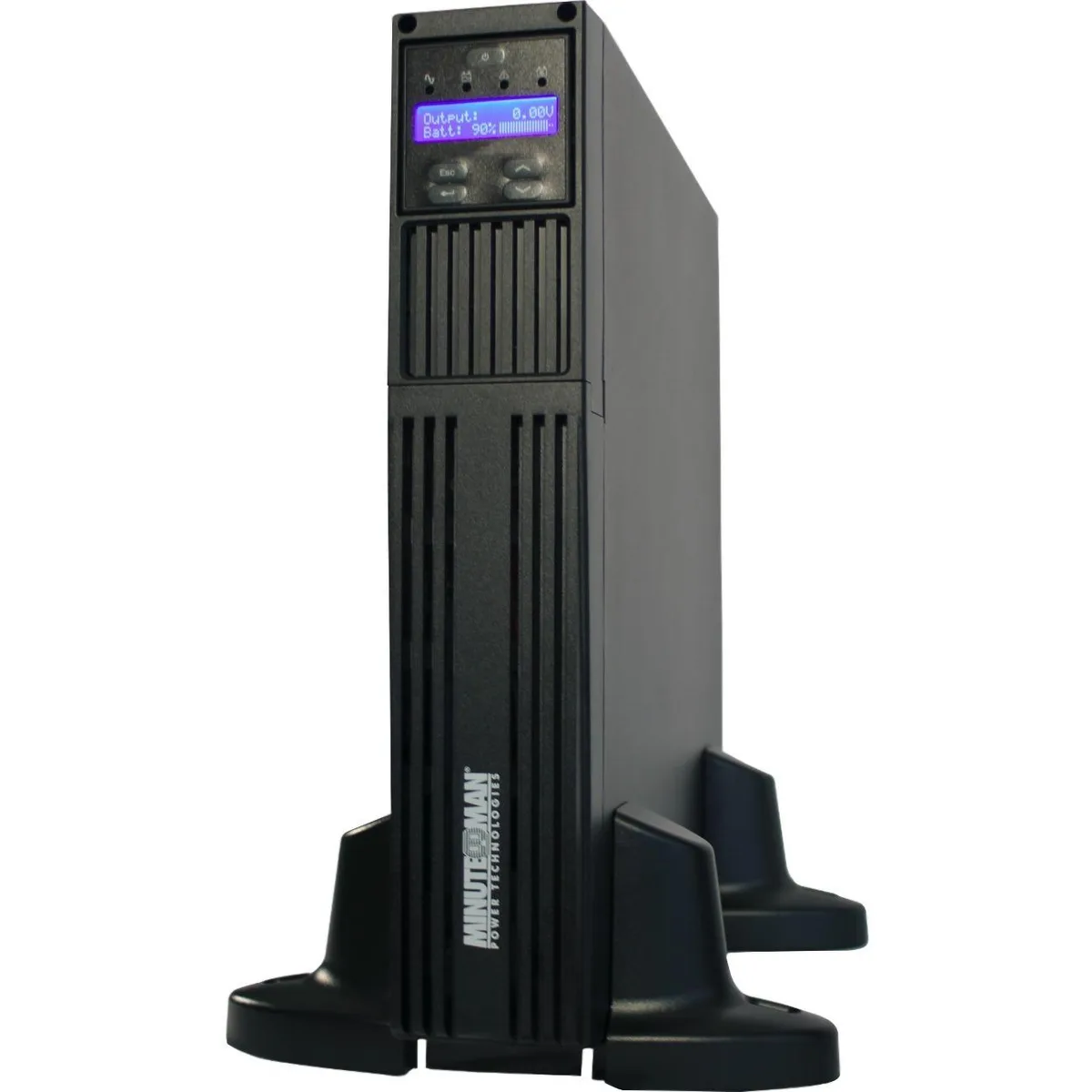

  • 2U rack wall tower design fits diverse installations

Rack-mountable 1500 VA UPS

The Minuteman EXR1500RT2U is a line-interactive uninterruptible power supply rated at 1500 VA and 1350 W. It fits a 2U rack, wall or tower footprint and provides eight NEMA 5-15R outlets for connected equipment. The unit accepts an input range of 80 to 164 VAC at 50 or 60 Hz with auto-sensing frequency. A built-in LCD panel reports status for network closets, security systems and education networks.

Sine-wave output under load

The UPS delivers a pure sine-wave output at 120 VAC regulated between 101 and 136 VAC. Automatic voltage regulation corrects fluctuations without draining the battery, preserving runtime for genuine outages. At full load the internal battery supports 2.5 minutes of operation; at half load it extends to 9 minutes. The replaceable BM0087 battery module allows service without removing the chassis.

Management ports and surge limits

Connectivity includes DB-9, USB and RJ-45 interfaces for monitoring and graceful shutdown software. Surge protection covers the AC path with a 1000 joule rating and adds 1 Gbit RJ-45 Ethernet in/out protection for data lines. The unit operates from 0 to 40 °C in 0 to 95 % non-condensing humidity and carries cULus, FCC Class B, CE, NOM, EnergyStar 2.0 and RoHS2 approvals.

Kohokohdat

  • 1500 VA 1350 W protects critical network loads
  • Pure sine wave output safeguards sensitive electronics
  • Eight NEMA 5-15R outlets power multiple devices
  • DB-9 USB RJ-45 interfaces enable remote management
  • 2U rack wall tower design fits diverse installations

Tekniset tiedot

BrandMINUTEMAN
SeriesEXR Series
ModelEXR1500RT2U
Input Voltage Range80 to 164VAC (150 - 271VAC)
Input Frequency50/60 Hz, +/- 6 Hz auto-sensing
Input ConnectionNEMA 5-15P
VA Rating1500 VA
Watts1350W
Output Voltage120VAC: 101 - 136VAC (208VAC: 186 - 236VAC)
Outlets8
Outlet Type(8) NEMA 5-15R
Battery Run TimeFull/Half Load: 2.5 / 9 minutes
Battery ReplaceableBM0087
Interface PortDB-9, USB, RJ-45
ApprovalscULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B, CE & NOM certified,EnergyStar 2.0, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)
Rackmountable2U
Surge Energy Rating1000 Joules
Surge Protection1Gbit RJ45 Ethernet (in/out)
Temperature0 to 40°C (+32 to +104°F)
Humidity0 - 95% Non-Condensing
Dimensions3.48" x 18.96" x 17.32"
Weight43 lbs.
Lähetyspaino24.04 kg
Pakkauksen mitat813 × 610 × 254 mm

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How much heat and noise does the EXR1500RT2U produce when running continuously at full load?

The unit operates between 0 and 40°C with 0 to 95% non-condensing humidity. It meets EnergyStar 2.0 efficiency standards and uses a line-interactive design that limits fan activity to battery or high-load conditions.

Which cables or modules must I already have to connect the EXR1500RT2U to my network gear for monitoring and shutdown?

The UPS provides DB-9, USB and RJ-45 interface ports. You need a standard USB cable, a serial cable with DB-9 connectors or an Ethernet patch cable to link it to your server or management appliance.

Will the EXR1500RT2U protect older 100 Mbps switches and legacy servers connected to its NEMA 5-15R outlets?

Yes. The eight NEMA 5-15R outlets deliver 120VAC within 101 to 136VAC, and the 1000-joule surge rating plus 1Gbit RJ45 Ethernet in/out protection cover both power and data lines for legacy equipment.
