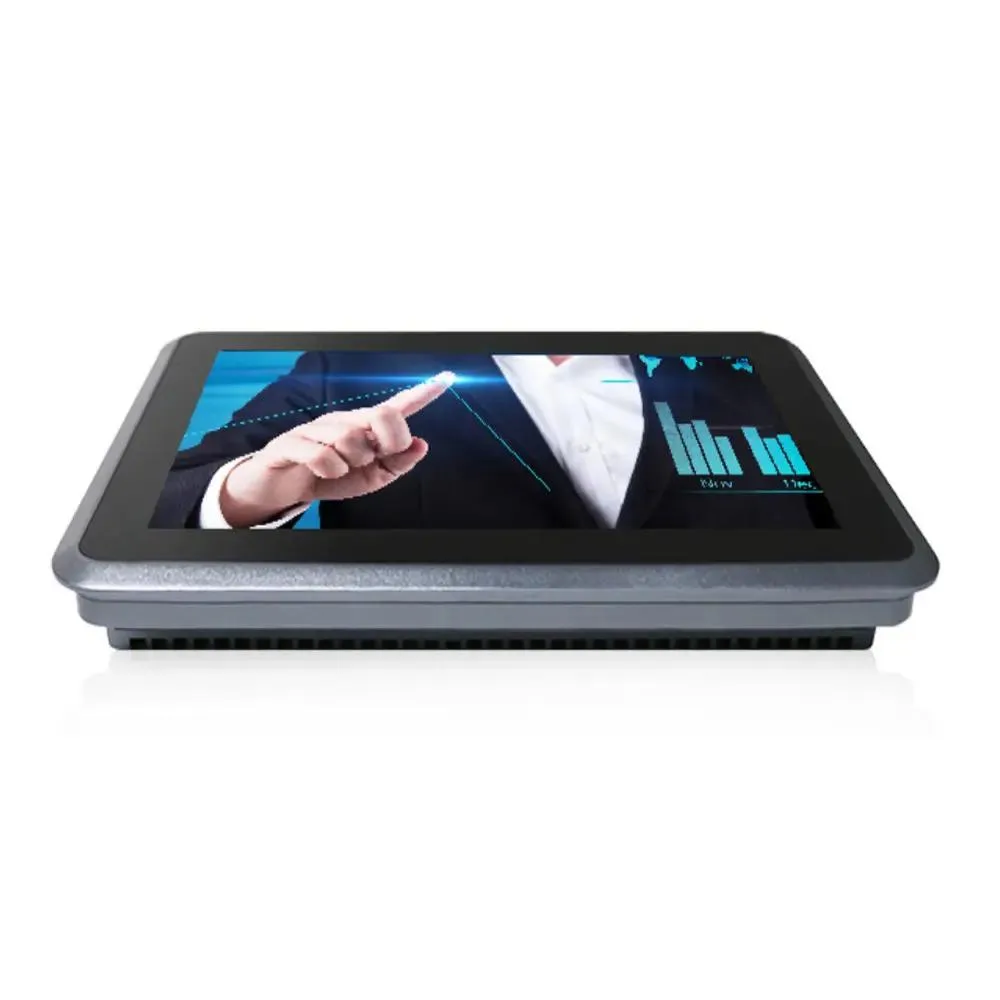

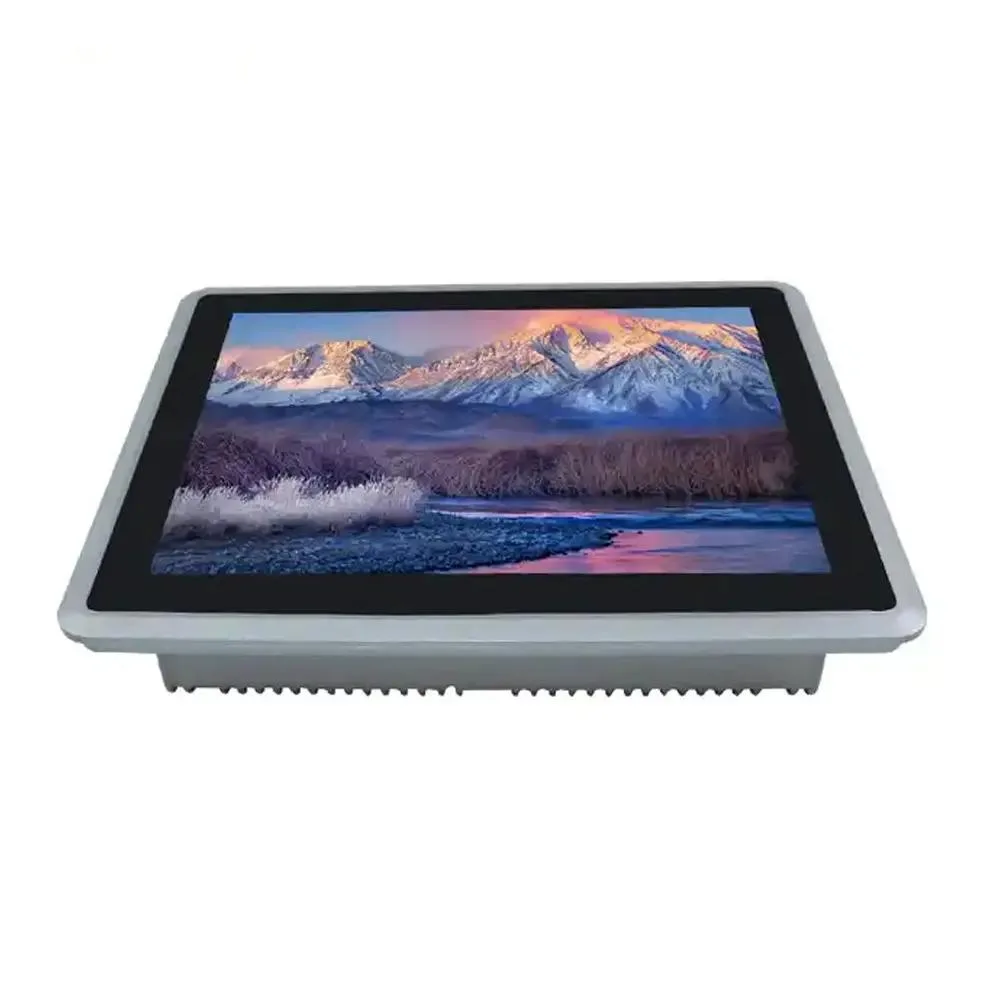

Compact 12.1 inch industrial all-in-one PC with flat IP65 front panel, aluminium fanless chassis, resistive multi-touch screen

partaker

Partaker A19 12.1" All-in-One PC J6413 16GB DDR4 512GB

SKU CH-ZTDJ-ZQS9Q

Industrial 12.1-inch IP65 touch all-in-one with J6413, 16GB DDR4 and 512GB SSD for embedded or wall-mounted deployment

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeCeleron
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Celeron

Memory Capacity 16GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium alloy chassis runs silently and efficiently
  • Intel Celeron J6413 up to 3.00 GHz handles industrial workloads
  • 16 GB DDR4 and 512 GB SATA SSD provide responsive multitasking
  • Wide 9-36 V Phoenix input suits unstable power supplies

Industrial Panel PC with IP65 Front

The Partaker A19 is a 12.1 inch all-in-one computer built for industrial environments. It runs Windows 11 Pro on an Intel Celeron J6413 processor with 16GB DDR4 memory and a 512GB SATA SSD. The fanless aluminium chassis operates silently across a wide temperature range.

Embedded Mounting with Wide Voltage Input

Installation uses the embedded cut-out of 298.5 by 237 millimetres or the supplied wall-mount and desktop kits. A 9 to 36 volt DC Phoenix connector accepts unstable power sources common in factories. The resistive multi-touch screen works with gloves but does not support capacitive gestures.

Verify I/O and Expansion Needs First

Confirm that two COM ports, three Intel gigabit LAN ports, four USB 3.0 ports and one HDMI output satisfy your peripheral count. The single Mini PCIe slot with SIM holder adds Wi-Fi or 4G but occupies the only expansion bay. RAID 0 or 1 requires a second 2.5 inch SATA drive not included.

Kohokohdat

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium alloy chassis runs silently and efficiently
  • Intel Celeron J6413 up to 3.00 GHz handles industrial workloads
  • 16 GB DDR4 and 512 GB SATA SSD provide responsive multitasking
  • Wide 9-36 V Phoenix input suits unstable power supplies

Tekniset tiedot

ModelA19-New-J6412-16G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeCeleron
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How do I confirm the IP65 front panel is sealing correctly after installation?

Verify the front bezel sits flush in the 298.5 x 237 mm cut-out, power on the J6413 system, and check Windows 11 Pro reports the 12.1" 1024 x 768 touchscreen responding to multi-touch input across the full viewing angle.

Which items ship in the box and which must be sourced separately?

The box contains the A19 panel PC with 16 GB DDR4 and 512 GB SATA SSD installed, a 12 V 5 A AC-DC adapter for the 9-36 V Phoenix connector, and mounting hardware; Wi-Fi or 4G modules for the Mini PCIe slot and SIM card are not included.

Should I choose the 16 GB DDR4 / 512 GB SATA SSD configuration or plan a memory upgrade?

The unit ships with one SODIMM DDR4 3200 MT/s module at 16 GB and a 512 GB M.2 2280 SATA SSD; the board supports up to 32 GB total RAM and offers a second 2.5" SATA bay for RAID 0/1 storage expansion.
