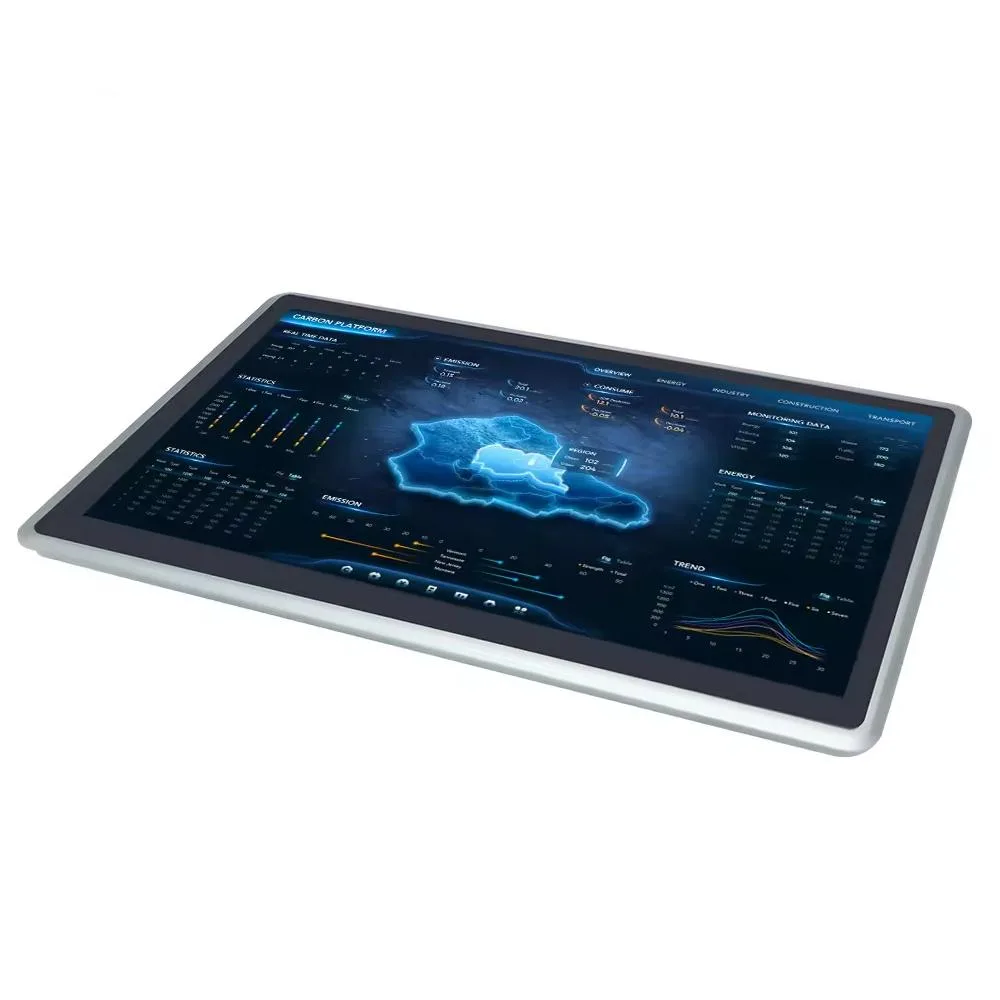

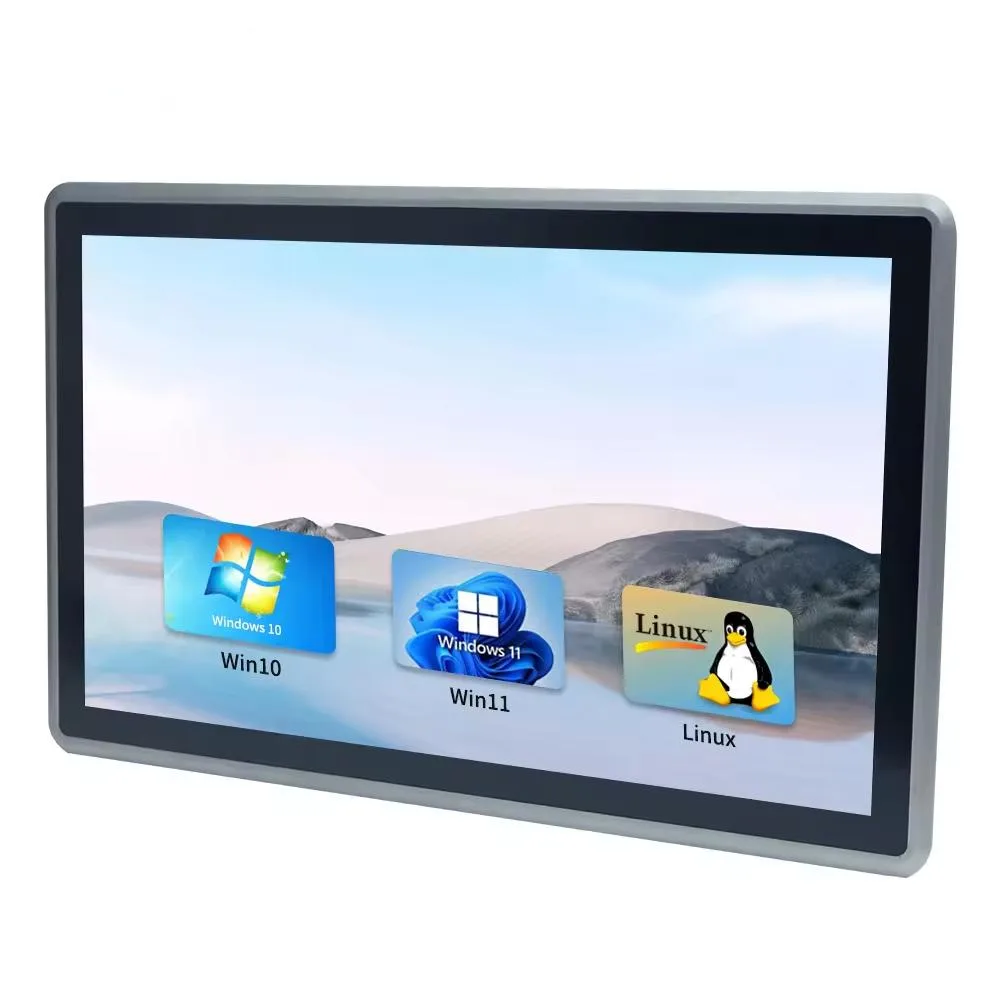

21.5 inch industrial all-in-one PC with flat resistive touchscreen and aluminium fanless chassis

partaker

Partaker A22 21.5" IP65 Resistive Touch All-in-One PC i3-10110U 16GB DDR4 256GB SATA

SKU CH-WXKR-V83J6

A 21.5 inch IP65 resistive touch all-in-one PC with Intel Core i3-10110U, 16GB DDR4, 256GB SATA storage and Windows 11 Pro for industrial environments

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i3 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i3 10th Gen

Memory Capacity 16GB DDR4

SSD 256GB

  • IP65 front panel resists water and dust ingress
  • Intel Core i3-10110U up to 4.10 GHz handles industrial workloads
  • 16GB DDR4 with 32GB maximum supports multitasking
  • 256GB SATA SSD plus second 2.5" bay for storage expansion
  • Fanless aluminium chassis operates silently from 0 to 50°C

Industrial All-in-One with IP65 Front

The Partaker A22 is a 21.5 inch industrial panel PC built around an Intel Core i3-10110U processor, 16GB DDR4 memory and a 256GB SATA SSD. Its full-flat resistive touchscreen carries an IP65 rating on the front face, making it suitable for environments where dust or water jets are present. The fanless aluminium chassis runs Windows 11 Pro out of the box.

Check Power Voltage and Mounting Cutout

Verify that your supply delivers between 9 and 36 volts DC through a two-pin Phoenix connector before wiring the unit. The embedded installation cutout measures 528 by 320 millimetres, so confirm the panel opening matches these dimensions. Two Gigabit LAN ports, two COM ports configurable for RS232, RS422 or RS485, HDMI, four USB 3.0 ports and audio are available for peripheral connections.

Fanless Cooling for Continuous Operation

The aluminium alloy body dissipates heat without moving parts, allowing 7 by 24 hour stability across a commercial range of 0 to 50 degrees Celsius or an industrial range of minus 20 to 60 degrees Celsius with an industrial SSD. Passive cooling eliminates fan noise and removes a common mechanical failure point during sustained workloads. The resistive screen is rated for more than 50 million touches.

Kohokohdat

  • IP65 front panel resists water and dust ingress
  • Intel Core i3-10110U up to 4.10 GHz handles industrial workloads
  • 16GB DDR4 with 32GB maximum supports multitasking
  • 256GB SATA SSD plus second 2.5" bay for storage expansion
  • Fanless aluminium chassis operates silently from 0 to 50°C

Tekniset tiedot

ModelA22-New-I3-10110U-16G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i3 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size21.5"
TouchscreenYes

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Does the box include the 12V 5A power adapter or must I buy it separately?

The unit ships with a 12V 5A AC-to-DC adapter and a 9-36 V Phoenix connector, so no separate power supply is required.

Should I choose the 256 GB M.2 SATA drive or add a 2.5" SATA drive for more capacity?

The 256 GB M.2 2280 SATA SSD is pre-installed; a second 2.5" SATA bay is available if you need additional storage later.

How does the 4.10 GHz boost clock on the i3-10110U perform with the fanless aluminium chassis?

The fanless design dissipates heat passively, allowing the dual-core processor to sustain its 4.10 GHz turbo within the 0-50 °C commercial range.
