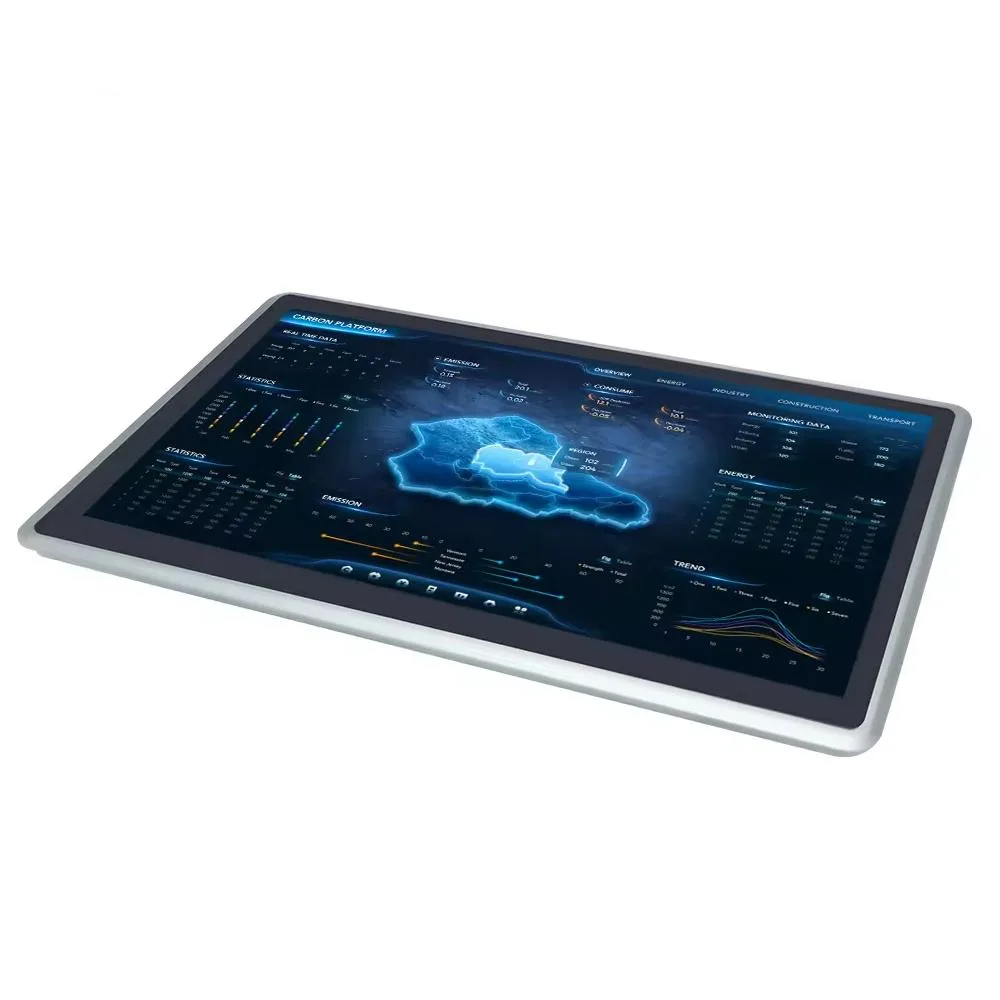

21.5 inch flat industrial panel PC with resistive touchscreen, aluminium fanless chassis

partaker

Partaker A22 21.5" IP65 resistive touch all-in-one PC i5-10310U 8GB DDR4 256GB SATA

SKU CH-DGPM-S18C0

21.5" IP65-rated industrial all-in-one with resistive touchscreen, Core i5-10310U, 8GB DDR4 and 256GB SATA SSD for embedded deployment

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i5 10th Gen

Memory Capacity 8GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water ingress
  • Resistive touchscreen operates with gloves or stylus
  • Fanless aluminium chassis runs silently 24/7
  • Wide 9–36 V DC input suits industrial power
  • Dual Intel LAN plus four USB 3.0 ports for connectivity

Industrial all-in-one with IP65 front panel

The Partaker A22 is a 21.5 inch fanless panel PC built around an Intel Core i5 10310U processor. It ships with Windows 11 Pro, 8GB DDR4 memory and a 256GB SATA SSD. The resistive touchscreen carries an IP65 rating on the front bezel, making the unit suitable for industrial environments that demand dust and water protection.

Verify power input and mounting before ordering

The system accepts a wide 9 to 36 volt DC supply through a 2 pin Phoenix connector and also includes a 12V 5A adapter for AC mains. You must confirm that your cabinet or machine can provide the required DC voltage range or accommodate the external adapter. The embedded cut-out measures 528 by 320 millimetres, so check your panel opening matches this footprint.

Fanless aluminium chassis sustains silent 24/7

Without moving parts the aluminium alloy body dissipates heat passively, allowing continuous duty across a 0 to 50°C commercial range or -20 to 60°C with an industrial SSD. Two Intel gigabit LAN ports, two COM ports configurable for RS232/422/485, HDMI and four USB 3.0 ports remain available during extended loads. A Mini PCIe slot with a SIM holder supports optional wireless expansion.

Kohokohdat

  • IP65 front panel resists dust and water ingress
  • Resistive touchscreen operates with gloves or stylus
  • Fanless aluminium chassis runs silently 24/7
  • Wide 9–36 V DC input suits industrial power
  • Dual Intel LAN plus four USB 3.0 ports for connectivity

Tekniset tiedot

ModelA22-New-I5-10310U-8G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size21.5"
TouchscreenYes

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Does the A22 ship with the 12 V 5 A power supply and mounting kits, or must I order them separately?

The unit includes a 12 V 5 A power supply and mounting kits in the box, so no separate purchase is needed for basic installation.

Should I pick the 8 GB DDR4 256 GB SATA model or upgrade to 32 GB RAM and a second 2.5" SATA drive?

Choose 8 GB and 256 GB for standard industrial tasks; select 32 GB RAM and add a 2.5" SATA SSD or HDD if your application needs more memory or local storage.

What does the IP65 front-panel rating mean for daily use on a factory floor?

The IP65 rating protects the 21.5" resistive touchscreen against dust and low-pressure water jets, allowing reliable operation in wet or dusty industrial environments.
