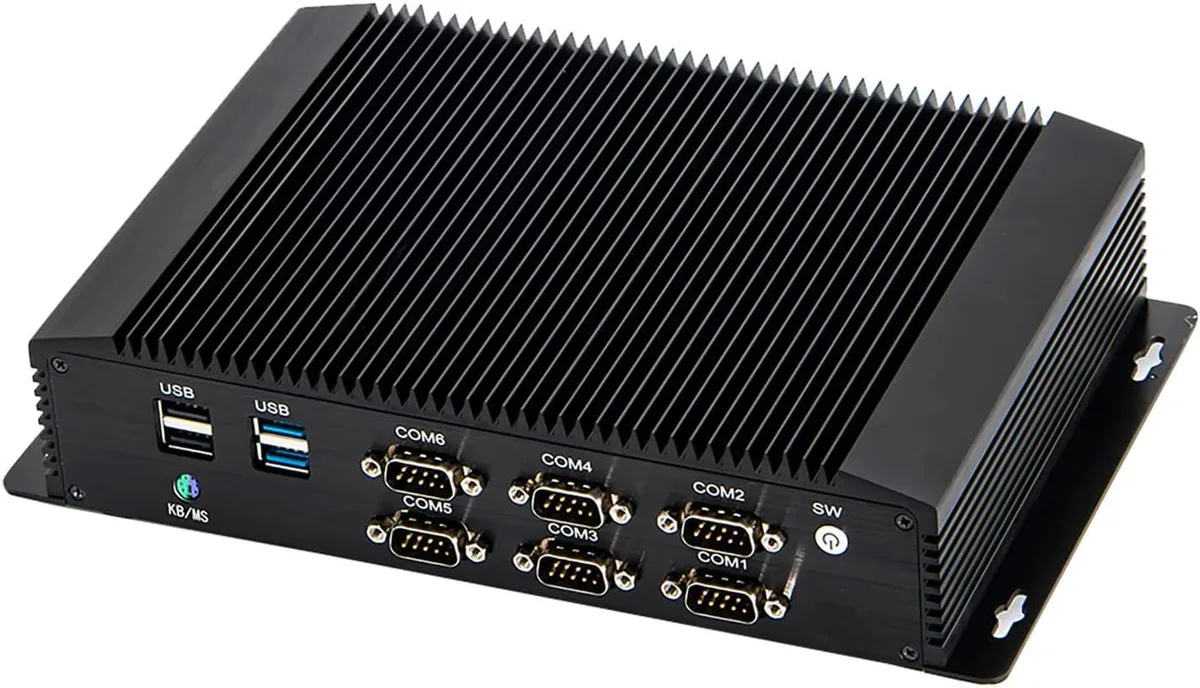

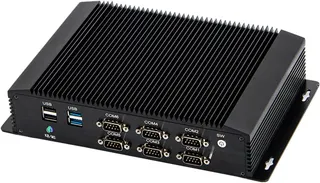

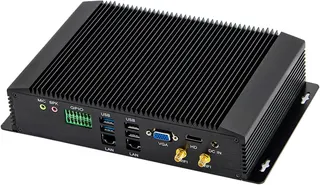

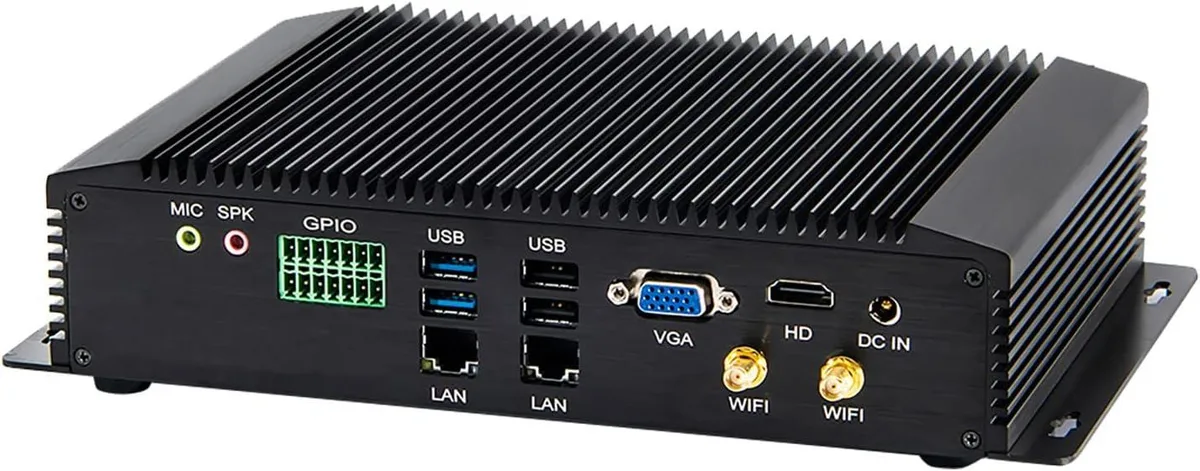

Black aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

Partaker I27 barebone mini PC Intel Core i7 10510U 10810U 8G RAM 128G SSD

SKU CH-QYYM-82GW7

Fanless industrial mini PC with Intel Core i7 10th Gen, 8 GB DDR4, 128 GB SSD, six COM ports, dual LAN, GPIO and Windows 11 Pro

  • ColorBlack
  • CPU TypeIntel Core i7 10th Gen

CPU Type i7-10510U

Group 8GB / 128GB SSD

  • Fanless design runs silently in industrial settings
  • Intel Core i7 10th Gen powers demanding workloads
  • Windows 11 Pro pre-installed for immediate deployment
  • Six COM ports with RS232 RS422 RS485 switching
  • Wide operating range from minus 10°C to 60°C

Industrial Fanless Mini PC

The Partaker I27 is a compact barebone system built around a 10th-generation Intel Core i7 processor, supplied as either the 10510U or 10810U. It ships with 8 GB of DDR4-2666 memory and a 128 GB SSD, while Windows 11 Pro is pre-installed for immediate deployment. The aluminium chassis measures 230 x 175 x 50 mm and weighs 1.25 kg, mounting via integrated ears for DIN-rail or wall installation.

Sustained 24/7 Operation

Passive cooling eliminates moving parts, allowing continuous duty from -10 °C to 60 °C without thermal throttling. The 15 W typical power draw and 19 V 5 A supply keep energy costs low in always-on scenarios. Dual Intel i213 LAN ports, Wi-Fi 802.11 ac and an optional 4G module with SIM slot provide redundant connectivity for remote monitoring.

Replaces Legacy Industrial Boxes

This unit consolidates a traditional fan-cooled IPC, separate serial adapters and external networking gear into one silent enclosure. The six COM ports support RS232, RS422 and RS485 with BIOS-selectable modes, while 8-bit GPIO and a 256-level watchdog cover legacy automation I/O. The jump is worthwhile when space, noise or maintenance intervals rule out ventilated chassis, but buyers needing more than 32 GB RAM or discrete graphics should look elsewhere.

Kohokohdat

  • Fanless design runs silently in industrial settings
  • Intel Core i7 10th Gen powers demanding workloads
  • Windows 11 Pro pre-installed for immediate deployment
  • Six COM ports with RS232 RS422 RS485 switching
  • Wide operating range from minus 10°C to 60°C

Tekniset tiedot

ColorBlack
CPU TypeIntel Core i7 10th Gen

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How much power does the fanless Partaker I27 draw during continuous 24/7 operation?

The unit consumes 15W while running without a fan, so heat output stays low even under constant industrial workloads.

Which display cables and storage drives must I supply to use the pre-installed Windows 11 Pro on this barebone?

Connect a monitor via the HDMI or VGA port; the 128GB mSATA SSD already holds the OS, but you can add a 2.5-inch SATA drive or an M.2 2280 SATA/NVME module for extra space.

Will my legacy RS-422 and RS-485 serial devices plug straight into the six COM ports on this IPC?

Yes, COM1 and COM2 support RS232, RS422 and RS485 with BIOS-selectable switching, while the remaining four COM ports handle standard RS232 connections.
