Black fanless aluminium mini PC with mounting ears, 230 x 175 x 50 mm

partaker

Partaker I27 i5-8250U/8260U 8GB 128GB barebone mini PC

SKU CH-0P44-M3BW7

Fanless industrial mini PC with Intel Core i5 8250U or 8260U, 8 GB DDR4, 128 GB SSD, six COM ports, dual LAN and Windows 11 Pro pre-installed

  • ColorBlack
  • CPU TypeIntel Core i5 8th Gen

CPU Type Intel Core i5-8250U

Group 8GB / 128GB SSD

  • Fanless cooling enables silent 24/7 operation
  • Intel Core i5 8250U/8260U delivers quad-core performance

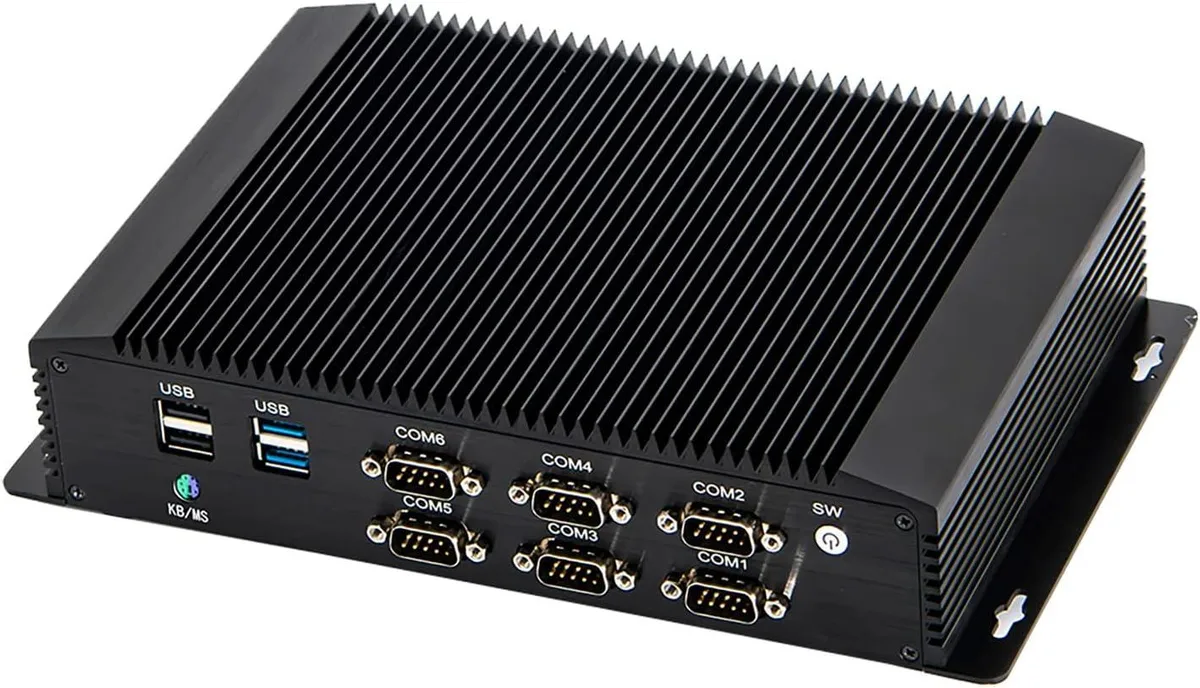

  • Six COM ports with RS232/422/485 switching
  • 8 GB DDR4-2400 and 128 GB SSD pre-installed
  • Wide -10 °C to 60 °C operating range

Industrial fanless mini PC

The Partaker I27 is a compact barebone system built around an Intel Core i5 8250U or 8260U quad-core processor. It ships with 8 GB of DDR4-2400 memory and a 128 GB mSATA SSD, while Windows 11 Pro 64-bit comes pre-installed for immediate deployment. The aluminium chassis measures 230 x 175 x 50 mm and weighs 1.25 kg, operating silently without any moving parts.

Suited for automation and edge tasks

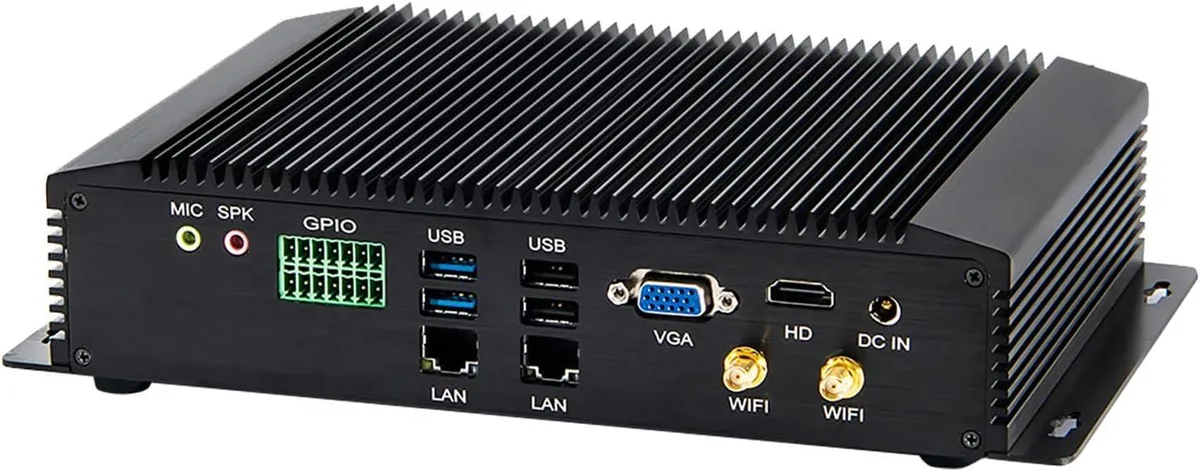

This unit targets integrators who need 24/7 reliability in temperatures from -10 °C to 60 °C, with dual Intel I213 LAN ports, six COM ports supporting RS232, RS422 and RS485, and an 8-bit GPIO header. It is not intended for buyers who require discrete graphics performance, high-speed NVMe boot drives as primary storage, or consumer-grade audio and gaming features.

Straightforward mounting and wiring

Mounting ears allow direct wall or DIN-rail installation, and the external 12 V 5 A adapter connects via a locking DC jack. The single SO-DIMM slot and three drive bays (mSATA, M.2 2280 SATA/NVME, 2.5-inch SATA) are accessible after removing the bottom cover. Watchdog timer configuration and COM-mode switching are handled in BIOS, so incorrect jumper settings are the most common setup issue.

Kohokohdat

  • Fanless cooling enables silent 24/7 operation
  • Intel Core i5 8250U/8260U delivers quad-core performance
  • Six COM ports with RS232/422/485 switching
  • 8 GB DDR4-2400 and 128 GB SSD pre-installed
  • Wide -10 °C to 60 °C operating range

Tekniset tiedot

ColorBlack
CPU TypeIntel Core i5 8th Gen

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Which storage drives must I already own to use the mSATA, M.2 2280 and 2.5-inch SATA bays?

You need an mSATA SSD, an M.2 2280 SATA or NVME SSD, and a 2.5-inch SATA SSD or HDD to populate all three bays.

Will the six COM ports and GPIO header work with my existing RS-232, RS-422 and RS-485 equipment?

COM1 and COM2 support RS-232, RS-422 and RS-485 soft switching in BIOS; the remaining four COM ports and the 8-bit GPIO operate at standard logic levels.

How can I confirm the fanless cooling is keeping the CPU within its 15 W envelope after installation?

Monitor CPU package power in Windows Task Manager or HWInfo; sustained readings at or below 15 W indicate the passive heatsink is dissipating heat correctly.
