Black fanless aluminium mini PC with mounting ears, compact rectangular shape

partaker

Partaker I27 fanless barebone mini PC i5 8250U 8260U 16G 512G 6 COM GPIO 2 LAN

SKU CH-7TAV-4XYA0

Fanless industrial mini PC with Intel Core i5 8250U or 8260U, 16GB RAM, 512GB SSD, six COM ports, GPIO, dual LAN and Windows 11 Pro

  • ColorBlack
  • CPU TypeIntel Core i5 8th Gen

CPU Type Intel Core i5-8250U

Group 16GB RAM / 512GB SSD

  • Fanless cooling runs silently in noise-sensitive spaces
  • Intel Core i5 8250U or 8260U quad-core processor handles industrial workloads

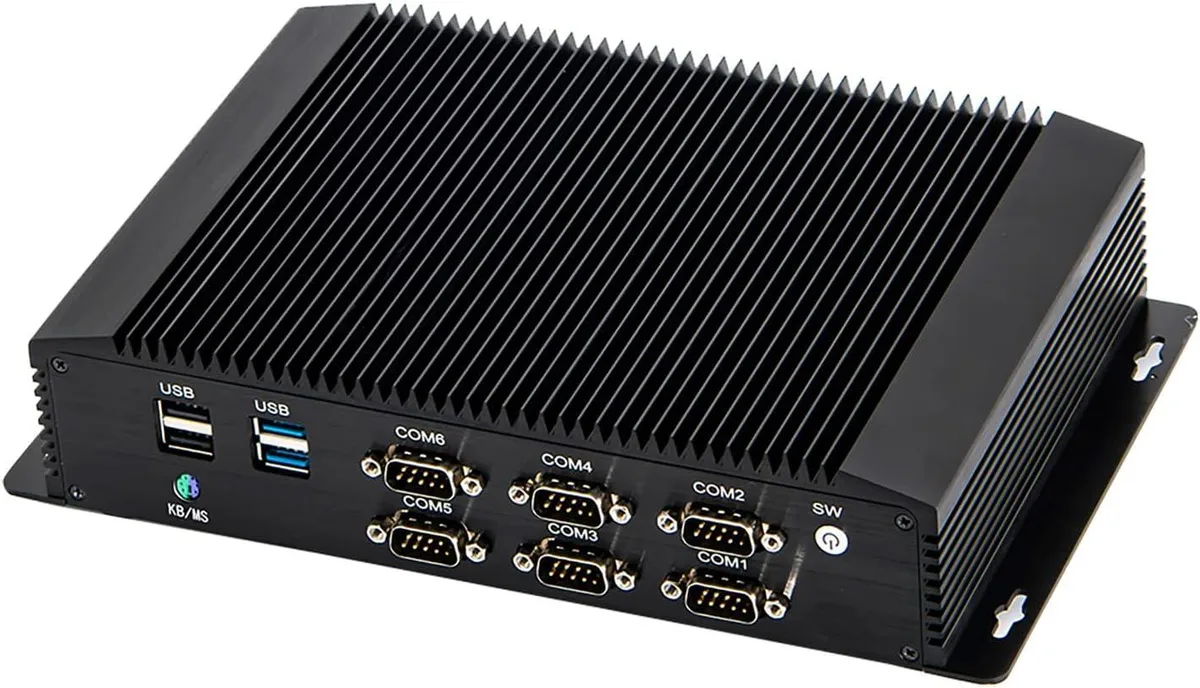

  • Six COM ports with RS232 RS422 RS485 switching connect legacy equipment
  • Dual Intel i213 LAN plus WiFi 802.11 ac and 4G-ready SIM slot ensure reliable connectivity
  • Windows 11 Pro 64-bit pre-installed for immediate deployment

Industrial mini PC with six serial ports

The Partaker I27 is a fanless barebone system built around an Intel Core i5 8250U or 8260U processor. It ships with 16 GB of DDR4 memory and a 512 GB SSD, and Windows 11 Pro is pre-installed. The aluminium chassis measures 230 x 175 x 50 mm and weighs 1.25 kg, making it suitable for industrial automation, kiosk or edge-gateway deployments where 24/7 reliability is required.

Passive cooling at 15 W typical draw

The unit relies on its aluminium enclosure for heat dissipation, so there are no moving parts to fail or generate noise. Typical power consumption is 15 W from a 12 V 5 A supply that accepts 100-240 V AC input. Operating temperature range is -10 °C to 60 °C, and the watchdog timer provides 256-level monitoring for unattended operation.

Replaces larger embedded boxes needing legacy I/O

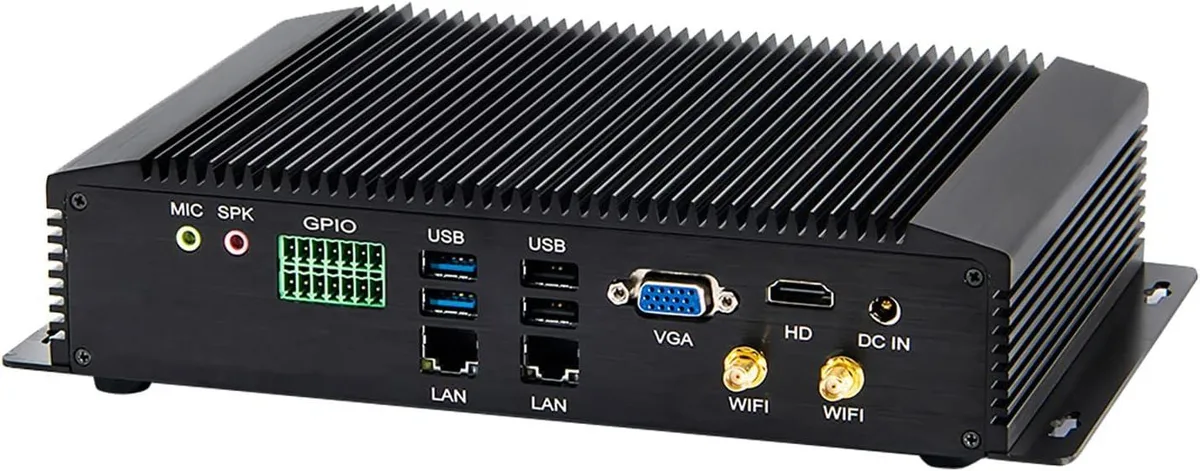

It consolidates six COM ports with RS232, RS422 and RS485 switching, dual Intel i213 LAN, GPIO, VGA and HDMI into a compact footprint. The jump is worthwhile when a project demands native serial connectivity and fanless operation without adding PCIe cards. Buyers who need more than 32 GB of RAM or discrete graphics acceleration should look elsewhere.

Kohokohdat

  • Fanless cooling runs silently in noise-sensitive spaces
  • Intel Core i5 8250U or 8260U quad-core processor handles industrial workloads
  • Six COM ports with RS232 RS422 RS485 switching connect legacy equipment
  • Dual Intel i213 LAN plus WiFi 802.11 ac and 4G-ready SIM slot ensure reliable connectivity
  • Windows 11 Pro 64-bit pre-installed for immediate deployment

Tekniset tiedot

ColorBlack
CPU TypeIntel Core i5 8th Gen

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How do I mount the I27 and which step is often missed?

Use the integrated mounting ears to fix the 230 x 175 x 50 mm aluminium chassis to a DIN rail or wall bracket, then connect the 12 V 5 A DC jack before applying AC power — skipping the ear screws leaves the unit loose in vibration-prone cabinets.

Which storage slot will I need to replace first and what type does it take?

The 512 GB mSATA SSD is the primary boot drive; when it wears out, replace it with another mSATA module — the M.2 2280 SATA/NVME and 2.5-inch SATA bays remain available for expansion.

At what temperature does the fanless I27 hit its thermal limit during continuous load?

The operating ceiling is 60 °C; sustained heavy workloads in poorly ventilated enclosures will reach this limit first, triggering CPU throttling to protect the i5-8250U/8260U.
