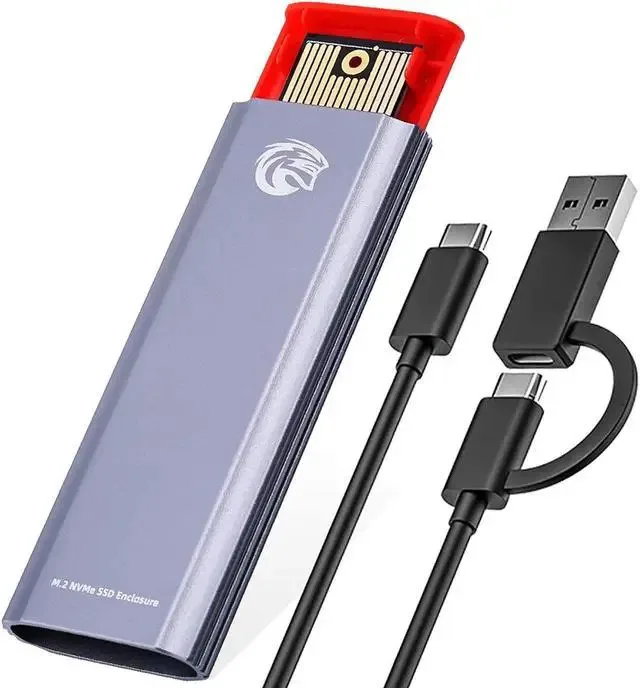

KingSpec M.2 NVMe SSD Enclosure USB 3.1 Gen 2 10Gbps 2230-2280 Silver Grey
- Silver Grey
- M.2
18,99 $
0.00024207BTC
Varastossa
Synology Inc.
Synology RS3626xs Xeon D-1726 12-Bay Rackmount NAS 8GB RAM 800GB Cache 192TB Drives
A 12-bay rackmount NAS with Xeon D-1726 processor, 8GB DDR4 RAM, 800GB cache and 192TB of SATA drives pre-installed
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory8GB
- Included HDD Capacity192TB (12 x 16TB)
- Enterprise-grade 12-bay rackmount NAS for scalable storage
- Intel Xeon D-1726 6-core processor powers demanding workloads
- Dual 10GbE RJ-45 ports enable high-speed network connectivity
- 192TB raw capacity with twelve 16TB enterprise drives pre-installed
- 800GB Synology enterprise SSD cache accelerates frequent data access
12-Bay Rackmount NAS with Enterprise Drives
The Synology RS3626xs is a 2U rackmount network-attached storage system pre-populated with twelve 16 TB enterprise-class SATA drives for 192 TB of raw capacity. An Intel Xeon D-1726 processor and 8 GB of DDR4 ECC memory power file, virtualization and backup workloads. Dual redundant power supplies protect uptime against a single supply failure.
Upgrade from Smaller or Non-Redundant Storage
The jump is worthwhile when a department or branch office needs more than eight drive bays, hardware RAID redundancy and 10 GbE connectivity in a single 2U chassis. Two PCIe Gen 4 x8 slots allow later addition of 25 GbE, Fibre Channel or extra SSD cache without replacing the appliance. Buyers who need only a few terabytes or a tower form factor will find this platform oversized.
Integration into a Rack Infrastructure
The unit mounts in a standard 19-inch rack using 88 mm of vertical space and draws 100-240 VAC from two C14 inlets. Dual 10 GbE RJ-45 ports and a dedicated out-of-band management port connect directly to core switches. Twelve front-access bays accept 3.5-inch or 2.5-inch SATA media, leaving expansion slots free for future network or cache cards.
Kohokohdat
- Enterprise-grade 12-bay rackmount NAS for scalable storage
- Intel Xeon D-1726 6-core processor powers demanding workloads
- Dual 10GbE RJ-45 ports enable high-speed network connectivity
- 192TB raw capacity with twelve 16TB enterprise drives pre-installed
- 800GB Synology enterprise SSD cache accelerates frequent data access
Tekniset tiedot
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 8GB |
| Included HDD Capacity | 192TB (12 x 16TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Kysymyksiä tästä tuotteesta
How much rack depth does the 88 mm × 482 mm × 724 mm chassis require?
The unit is 724 mm deep, so allow at least that much clear depth plus cable bend radius behind the rear 10GbE and management ports.
What drive preparation is needed before the twelve 16 TB drives appear in DSM?
The drives are pre-installed; after powering on, use DSM Storage Manager to initialise the storage pool — skipping this step leaves the 192 TB raw capacity unallocated.
When should the two 400 GB cache modules be replaced?
Monitor SSD life remaining in DSM; replace a cache module when its endurance indicator approaches zero to avoid losing the 800 GB read-write acceleration layer.
