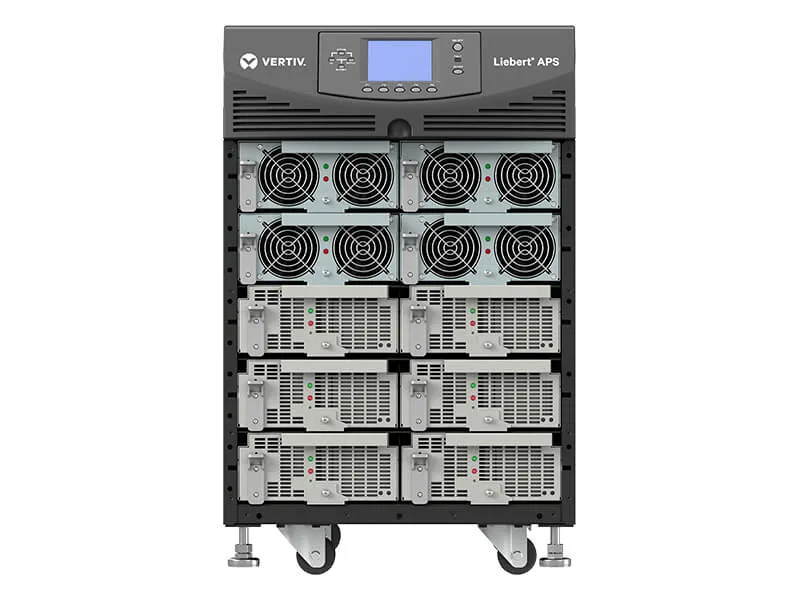

Tall rectangular UPS cabinet, dark metal finish, LCD panel on front, 27 by 17 by 32 inches

Vertiv

Vertiv Liebert AS5B0NCVGNNXLKB 10kVA Scalable to 15kVA N+1 208V Split Phase Modular UPS

SKU CH-FAPV-5SE5Q MPN AS5B0NCVGNNXLKB

Modular 10 kVA online UPS scales to 15 kVA N+1 with five minutes full-load runtime and hot-swappable VRLA batteries

  • International Version208V
  • Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection4-Wire (L-L-N-G)
  • VA Rating10 kVA
  • Watts9 kW

Option AS5B0NCVGNNXLKB

Näytä 16 muuta kokoonpanoa
  • Scalable to 15 kVA N+1 for future growth
  • Online double-conversion topology protects critical loads
  • Five minutes runtime at full load

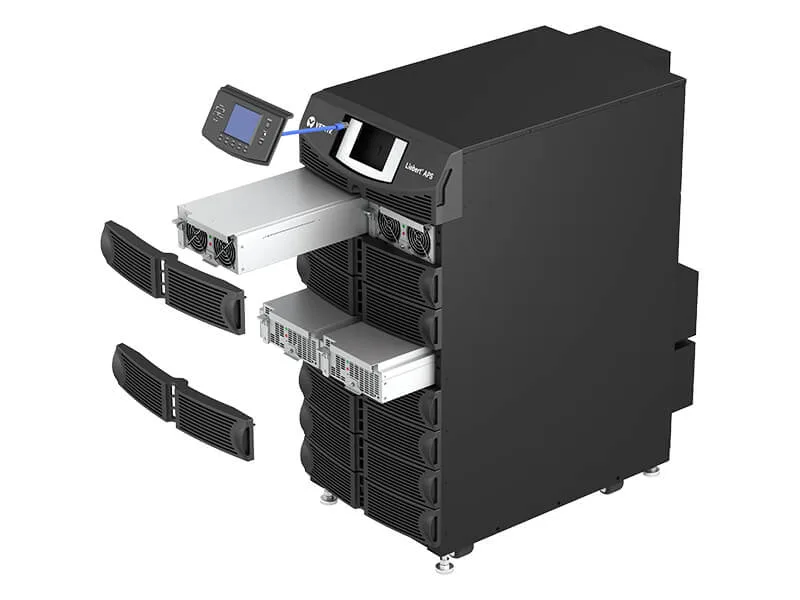

  • Hot-swappable modules enable maintenance without downtime
  • LCD status display gives instant operational visibility

Scalable 10 kVA Split-Phase UPS

The Vertiv Liebert AS5B0NCVGNNXLKB is a 10 kVA online double-conversion UPS that scales to 15 kVA in an N+1 redundant frame. It accepts 200/100 through 240/120 VAC split-phase input and delivers the same selectable output voltages. The unit mounts in a rack or tower and ships with a factory-installed SNMP web card for network management.

Sustained Load Runtime and Expansion

At full 9 kW load the internal valve-regulated lead-acid batteries provide five minutes of runtime; at half load the reserve extends to fifteen minutes. The modular architecture allows hot-swappable power modules so capacity can be added or a failed module replaced without dropping the connected load. Operating temperature range is 0 °C to 40 °C with humidity tolerance up to 95 % non-condensing.

Five-Minute Full-Load Battery Reserve

The decisive specification is the five-minute runtime at the full 9 kW rating, which determines whether the UPS can bridge the gap to generator start or graceful shutdown in your environment. If the application requires a longer battery window at full load, this model will not meet that need.

Kohokohdat

  • Scalable to 15 kVA N+1 for future growth
  • Online double-conversion topology protects critical loads
  • Five minutes runtime at full load
  • Hot-swappable modules enable maintenance without downtime
  • LCD status display gives instant operational visibility

Tekniset tiedot

BrandVertiv
SeriesLiebert
ModelAS5B0NCVGNNXLKB
International Version208V
Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection4-Wire (L-L-N-G)
VA Rating10 kVA
Watts9 kW
Output Voltage200/100, 208/120, 220/110, 230/115, 240/120 VAC
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load: 5 mins.
Half Load: 15 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions27" x 17" x 32"
Weight470 lbs.
Lähetyspaino213.19 kg
Pakkauksen mitat813 × 813 × 432 mm

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How much heat does the 9 kW output generate when the UPS runs continuously at full load?

The unit operates between 32°F and 104°F and weighs 470 lbs, so adequate airflow in the rack or room is needed to dissipate the heat produced by 9 kW continuous output.

What electrical service must the site already provide for the 4-wire L-L-N-G input?

A 208/120 VAC three-phase service with neutral and ground, capable of supplying the 10 kVA input within the 200–240 VAC range and 40–70 Hz frequency window.

Can the factory-installed SNMP/Webcard manage the UPS alongside older network gear that only supports 10/100 Mbps Ethernet?

Yes, the SNMP/Webcard communicates over standard Ethernet and will interoperate with legacy 10/100 switches without requiring a dedicated management network.
