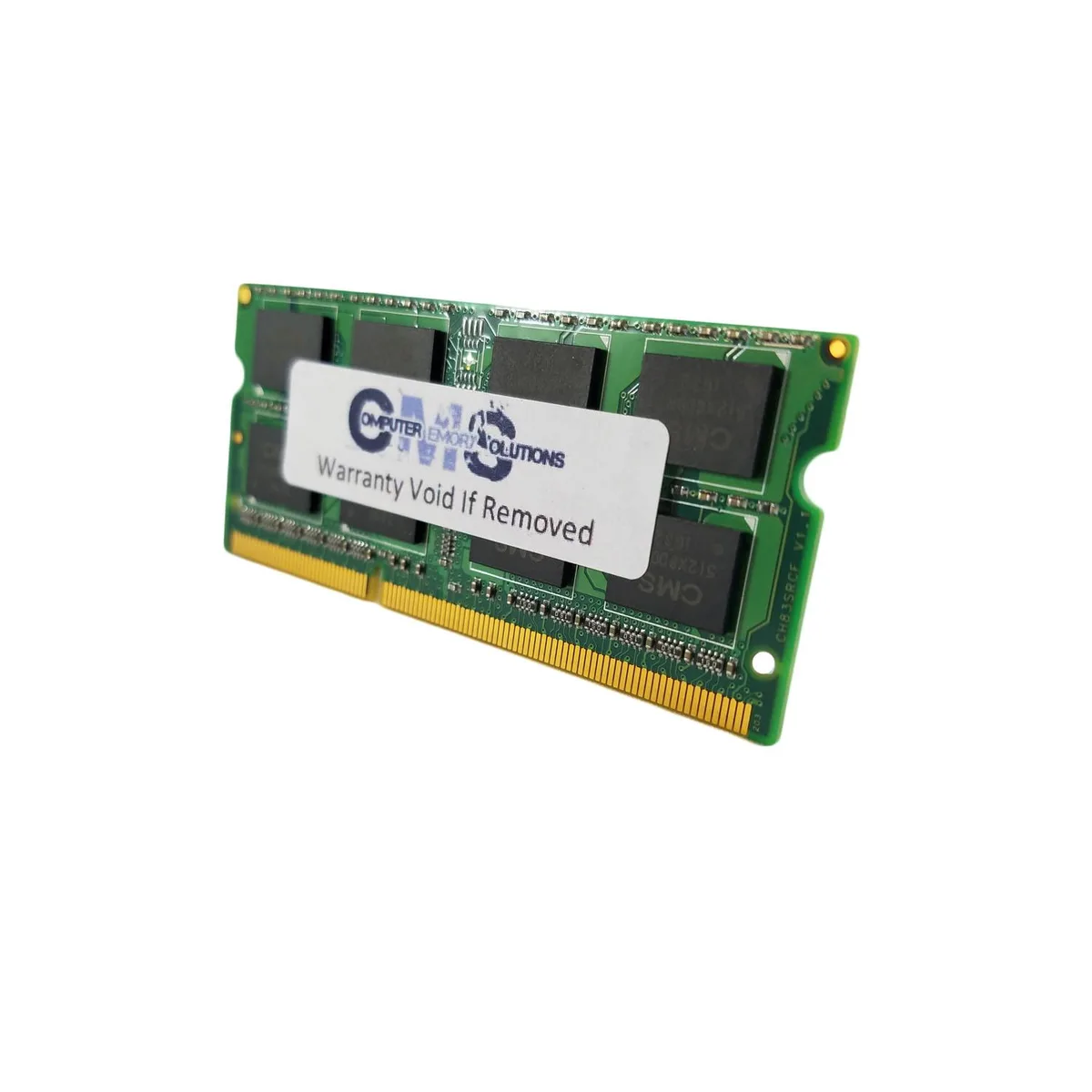

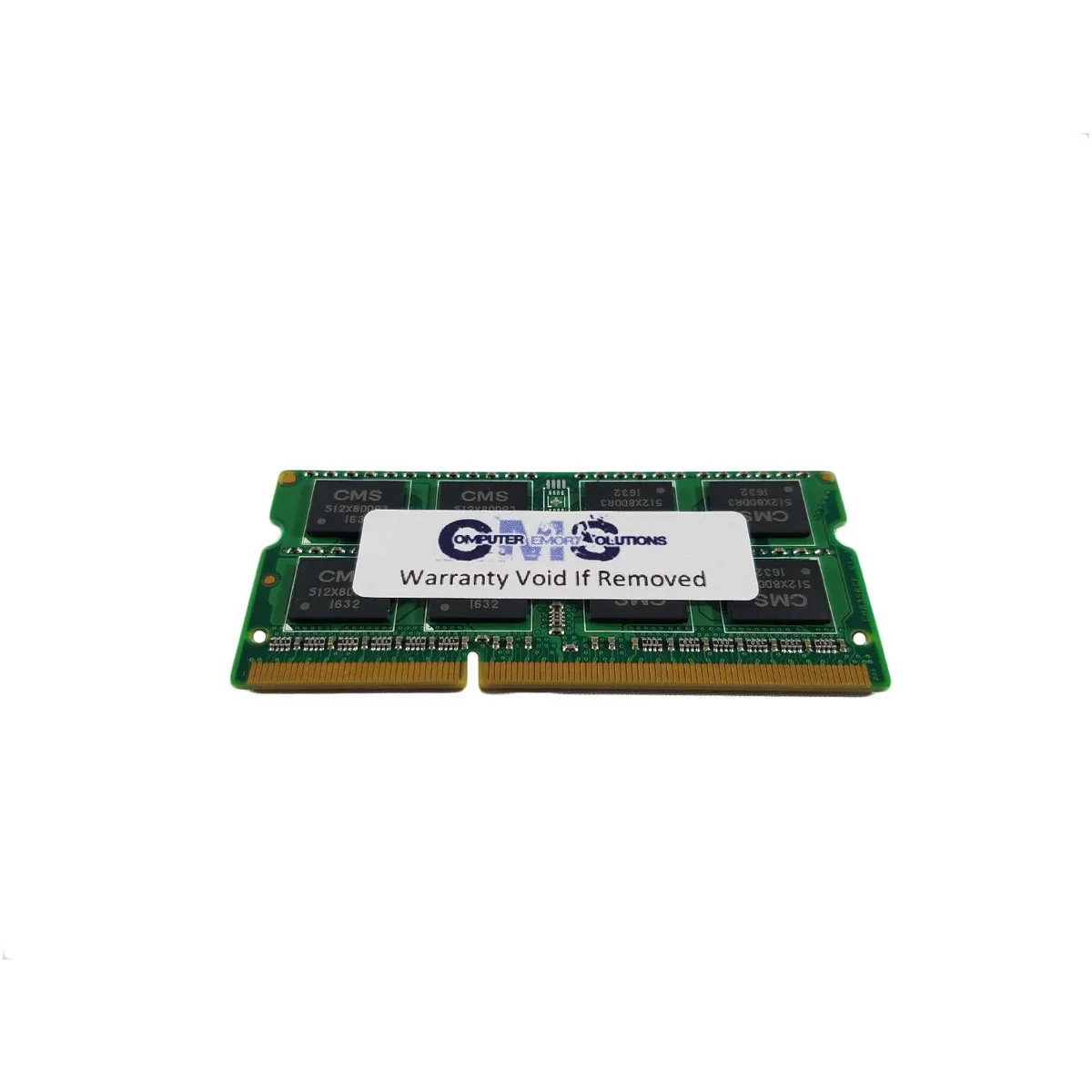

Green circuit board SODIMM module with black memory chips, 204 pins, no heat spreader

Computer Memory Solutions

Computer Memory Solutions CM5126410600SODRH 4GB DDR3 1333 SODIMM Asus X54C-Bbk13 K53E-Bbr17

SKU CH-1DAA-KJC0R

4GB DDR3 1333MHz SODIMM module for Asus X54C-BBK13 and K53E-BBR17 notebooks

  • Capacity4GB
  • Type204-Pin DDR3 SO-DIMM
  • SpeedDDR3 1333 (PC3 10600)
  • CAS LatencyCL7
  • Timing7-7-7
  • Voltage1.5V
  • 4GB DDR3 1333 MHz boosts notebook responsiveness
  • CL7 timing with 1.5V operation keeps power draw low
  • 204-pin SODIMM fits Asus X54C-BBK13 and K53E-BBR17
  • 2Rx8 rank on major-brand chipset delivers stable throughput
  • Single 4GB module allows easy 8GB maximum expansion

System-specific DDR3 upgrade

This 4 GB DDR3 SODIMM module is built for the Asus X54C-BBK13 and K53E-BBR17 notebooks. It installs directly into the 204-pin slot to add 4 GB of system memory. The stick uses unbuffered, non-ECC chips at 1.5 V. Buyers whose laptops already hold the maximum 8 GB across two sockets will not gain capacity from this module.

Low-voltage DDR3 operation

The module runs at DDR3 1333 (PC3-10600) with CL7 7-7-7 timings at the standard 1.5 V. Without a heat spreader it relies on the notebook’s existing airflow. Power draw stays within the limits of the original platform. The single-rank 2Rx8 organisation keeps electrical loading light on the memory controller.

Adds 4 GB to compatible Asus notebooks

This upgrade replaces a missing or smaller SODIMM in the two-slot X54 or K53E chassis. The system supports up to 8 GB total, so adding this 4 GB stick moves a 4 GB configuration toward the ceiling. If both slots are already populated the notebook cannot accept another module.

נקודות עיקריות

  • 4GB DDR3 1333 MHz boosts notebook responsiveness
  • CL7 timing with 1.5V operation keeps power draw low
  • 204-pin SODIMM fits Asus X54C-BBK13 and K53E-BBR17
  • 2Rx8 rank on major-brand chipset delivers stable throughput
  • Single 4GB module allows easy 8GB maximum expansion

מפרט טכני

BrandComputer Memory Solutions
ModelCM5126410600SODRH
Capacity4GB
Type204-Pin DDR3 SO-DIMM
SpeedDDR3 1333 (PC3 10600)
CAS LatencyCL7
Timing7-7-7
Voltage1.5V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemAsus/Asmobile Notebook X54C-Bbk13, K53E-Bbr17
Package Content1 Memory RAM Stick

שאלות על הפריט הזה

How do I install the 204-pin DDR3 SODIMM in the Asus X54C-Bbk13, and what step is often missed?

Power off the notebook, remove the battery, open the memory cover, insert the module at an angle until the gold contacts disappear, then press down until both side clips click. The step often missed is forgetting to remove the battery before opening the cover.

What maintenance or replacement will the CM5126410600SODRH need later?

No routine maintenance is required for this unbuffered non-ECC module. Replacement is only needed if a memory error appears or if you upgrade to the 8 GB maximum supported across the two sockets.

What limit appears first under sustained use with this CL7 1.5 V DDR3 1333 module?

The 4 GB capacity ceiling is reached before any thermal or bandwidth limit, because the notebook only supports two sockets and an 8 GB total maximum.
