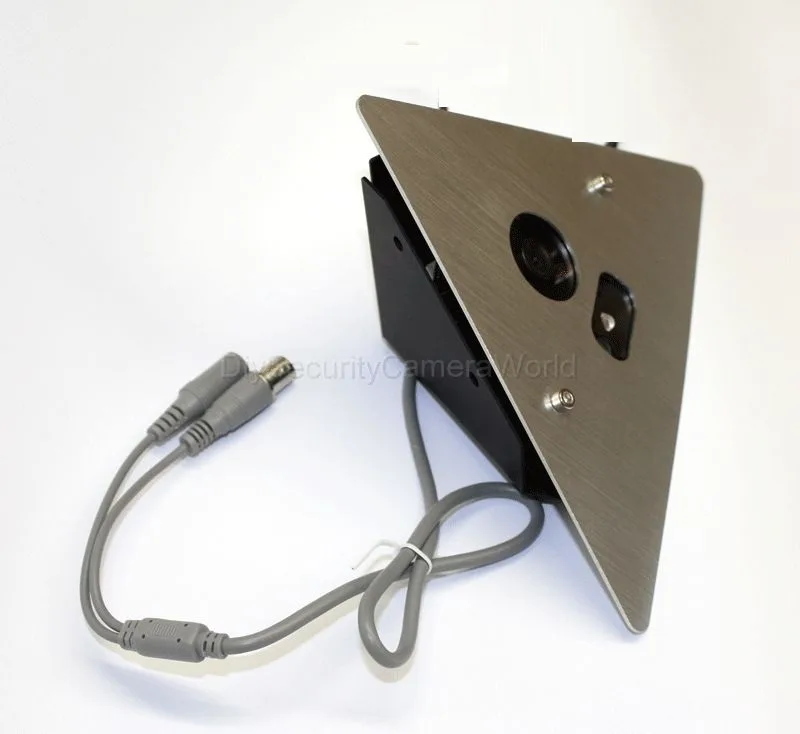

Silver corner-mount analog camera with 2.8mm lens and IR LED

DiySecurityCameraWorld

DiySecurityCameraWorld TVI-MC3121080 1080P HDTVI Corner Mount Analog Camera Silver

SKU CH-TNQ0-3H0D5

A silver corner-mount analog camera delivering 1920 x 1080 resolution at 30 fps via BNC for HD-TVI DVRs only, with a 2.8 mm lens, 10 ft IR night vision and 12 V DC power

  • ColorSilver
  • Network CameraNo
  • Camera Type2 Megapixel
  • TypeCovert Camera
  • Connection TypeBNC
  • Sensor & DetectorCMOS
  • 1080p HD-TVI video clarity from 2 megapixel sensor
  • Corner-mount design fits tight indoor spaces like elevators
  • 8 mm lens covers wide field of view
  • IR array LED gives 10 ft night vision in total darkness
  • Works only with HD-TVI DVR via BNC connection

Corner-Mount HD-TVI Camera

This silver covert camera delivers 1920 x 1080P resolution at 30fps through a 2.8mm board lens. It uses a CMOS sensor and a single array IR LED to provide night vision up to 10ft. The unit is designed specifically for corner installation in indoor environments such as elevators.

Check DVR Compatibility First

The camera outputs a 1CH HD-TVI video signal over a BNC connection and requires a compatible HD-TVI DVR. It will not function with 960H, AHD, CVI or standard analogue recorders. Verify that your recorder supports the HD-TVI standard before ordering.

Power and Cabling Requirements

Operation requires a separate DC 12V power adapter which is not supplied. Video can be transmitted up to 500m using common 75-3 coaxial lines. The camera operates between -10°C and 55°C and features an auto-switching IR cut filter for day and night transitions.

נקודות עיקריות

  • 1080p HD-TVI video clarity from 2 megapixel sensor
  • Corner-mount design fits tight indoor spaces like elevators
  • 8 mm lens covers wide field of view
  • IR array LED gives 10 ft night vision in total darkness
  • Works only with HD-TVI DVR via BNC connection

מפרט טכני

BrandDiySecurityCameraWorld
ModelTVI-MC3121080
ColorSilver
Network CameraNo
Camera Type2 Megapixel
TypeCovert Camera
Connection TypeBNC
Sensor & DetectorCMOS
MAX Resolution1920 x 1080
Video Capture Resolution1920 x 1080P
Frame Rate30fps
Lens Type2.8mm
Night VisionYes
PowerDC 12V

שאלות על הפריט הזה

Does the TVI-MC3121080 come with a 12 V power adapter, or must I buy one separately?

The camera needs a DC 12 V supply, but the adapter is not included in the box.

Should I choose this 2.8 mm lens model or a different focal length for a corner installation?

This unit has a fixed 2.8 mm board lens, giving a wide view that suits tight corner mounting.

What does the 1080P HDTVI rating mean when the camera is connected to my DVR?

It delivers 1920 x 1080 resolution at 30 fps over a single BNC coax run up to 500 m, but only works with an HD-TVI recorder.
