Black rectangular NVR box with twelve bullet cameras and cables

GW Security Inc.

GW Security GW5516NPN 16CH 4K NVR Kit 12 Cam 2TB

SKU CH-DZQQ-ZPGN8

Records 4K video across 16 channels with 12 included PoE cameras, AI face recognition, human/vehicle detection, built-in microphones and a 2TB hard drive

  • TypeNVR Kit
  • Camera TypeIP Camera
  • Camera inputs16 Channel
  • Video Input16 x PoE Ports (RJ45)
  • Audio Input16CH IPC input
  • Resolution Recording4K 2160p/1920p/1520p/1080p

Camera inputs 16 Channel

  • True 4K UltraHD 8MP resolution captures every detail at 3840 x 2160
  • H.265+ compression reduces storage needs while keeping 4K quality at 30fps
  • Built-in microphone adds audio surveillance to 12 weatherproof bullet cameras
  • AI face recognition distinguishes familiar faces and sends custom alerts for strangers
  • 16-channel PoE NVR with 2TB drive records all channels in real time

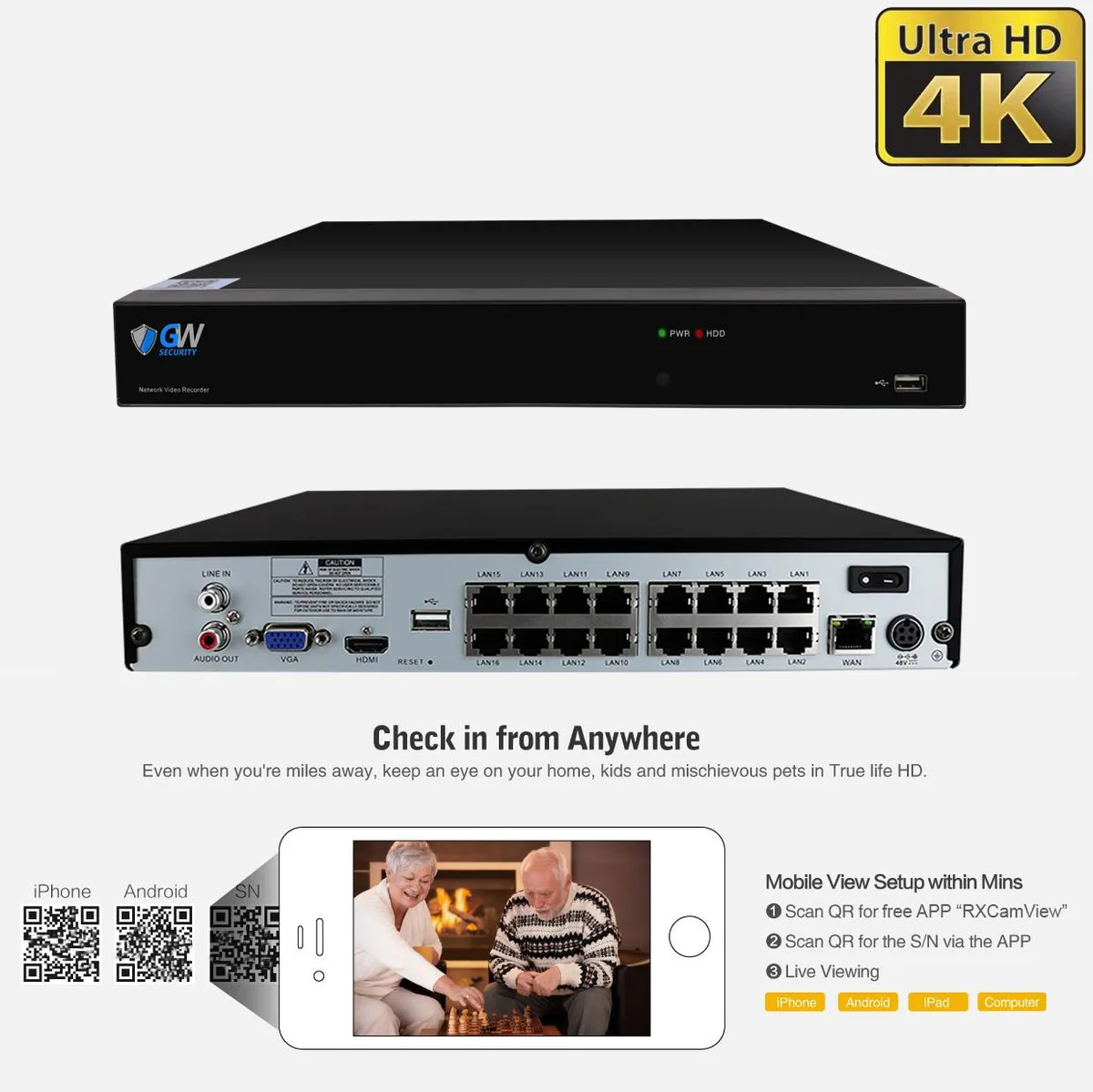

16-Channel 4K NVR Kit

This 16-channel 4K NVR kit includes twelve 8MP IP cameras with built-in microphones and a pre-installed 2TB hard drive. It is designed for homes or businesses that need continuous 4K recording across multiple indoor and outdoor zones.

Plug-and-play PoE installation

Each camera connects to the NVR's built-in PoE ports using the supplied Ethernet cables, so no separate power adapters are required. The main limitation is the fixed cable lengths provided; cameras positioned farther than the longest included run will need additional cabling.

2TB storage capacity

The NVR ships with a 2TB hard drive that stores 4K footage from up to sixteen channels. Buyers who need longer retention periods or plan to record all channels at the highest bitrate continuously will need to add or replace the drive.

נקודות עיקריות

  • True 4K UltraHD 8MP resolution captures every detail at 3840 x 2160
  • H.265+ compression reduces storage needs while keeping 4K quality at 30fps
  • Built-in microphone adds audio surveillance to 12 weatherproof bullet cameras
  • AI face recognition distinguishes familiar faces and sends custom alerts for strangers
  • 16-channel PoE NVR with 2TB drive records all channels in real time

מפרט טכני

BrandGW Security
SeriesPlug N Play
ModelGW5516NPN
TypeNVR Kit
Camera TypeIP Camera
Camera inputs16 Channel
Video Input16 x PoE Ports (RJ45)
Audio Input16CH IPC input
Resolution Recording4K 2160p/1920p/1520p/1080p
Recording Frame Rate4K 2160P/1920P/1520P/1080P @ real time @ all channels
Recording ModeMotion Detective / Continues / Time Schedule / Alarm
Recording CompressionNew Technology : H.265 HEVC
Video Output1 x VGA, 1 x HDMI up to 4K
Audio OutputRCA x 1
ONVIFYes
Resolution Display4K (3840 x 2160P)
Max Resolution4K 8MP (3840 x 2160)
Display Frame Rate4K 2160P/1920P/1520P/1080P @ 30fps @ all channels
Built-In HDDYes
Storage Capacity2TB HDD
Backup DeviceLocal: USB3.0 (faster video files transfer and backup) / Online: download video through internet
Network ConnectionRJ45
Network ProtocolRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/P2P/ONVIF
Network RemoteComputers (Windows & Mac), Smartphones (iPhone & Android), and Tablets are All Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing)
Features4K (3840x2160) NVR : Support 8MP 4K IP cameras
Operating SystemLinux (embedded)
Power SupplyNo Power Adapter for Camera Needed. PoE ports is supporting video signal and power through a single Ethernet cable (Ethernet cables are all included in the package)
PoE (Power-over-Ethernet)Yes
Bundled Camera Number12

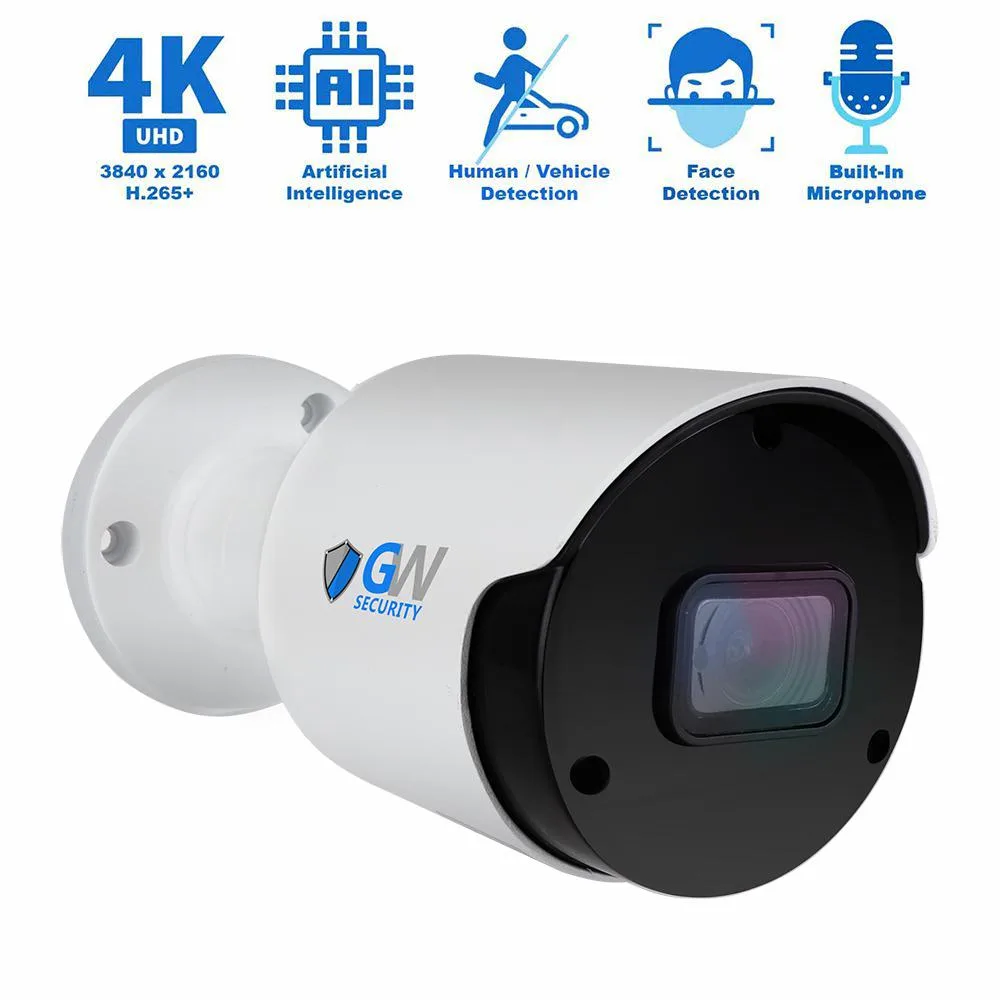

Bundled Camera SpecGW8533MIC: 8MP IP Smart AI Camera (Built in Microphone), 2.8mm Wide Angle Lens, 18pcs SMD LED, 100 feet IR Distance. H.265+/H.265/H.264 Video Compression. 4K@15fps high resolution
Camera Horizontal Resolution4K Ultra
Kit Feature OtherH.265+ is the latest video compression standard which brings extensive possibilities and optimism to the HD-IP Camera by addressing H.264 problems such as shortage of bandwidth, improving transmission efficiency and delivers ultra HD image quality. • Compared with current H.265 and H.264, the H.265+ is able to double the data compression ratio, while improve video quality with low bit-rate, this enables IP camera to deliver smooth Superb HD video with low bandwidth, which in turn, reducing the network bandwidth, and video storage size.
Dimensions14.9 x 13.4 x 2 inches
Weight8 lb
Package ContentsNVR with selected HDD, PoE IP cameras, NVR power adapter, USB mouse, Remote Control, Ethernet cables, Mouting screws, User manual CD, Specification sheet, One year warranty

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

How can I confirm the NVR is recording at 4K 2160P @ 30fps across all 16 channels after setup?

Open the live view on the HDMI or VGA output set to 3840 x 2160P and check the on-screen display; it shows real-time frame rate and resolution for every channel so you can verify 30fps at 2160P instantly.

Which cables and accessories are included, and what must I purchase separately for the 12 cameras?

The kit includes six 100 ft cables, six 60 ft cables, a 3 ft HDMI cable, a 10 ft router cable, a USB mouse and mounting screws; buy extra PoE cables if any camera needs a longer run.

Should I choose the 2 TB or 4 TB drive version for 12 cameras recording H.265+ 4K video?

The listed model ships with a 2 TB drive; a 4 TB version exists as a separate SKU. For 12 channels at 8 MP, 4 TB roughly doubles retention before overwrite.
