17-inch flat-front industrial all-in-one with IP65 rating

partaker

Partaker A21 17" IP65 All-in-One PC J6413 32GB DDR4 1TB SATA

SKU CH-D9H4-NTTHS

A 17-inch IP65-rated all-in-one with a fanless Celeron J6413, 32GB DDR4, 1TB SATA storage and Windows 11 Pro for industrial use

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeCeleron
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Celeron

Memory Capacity 32GB DDR4

SSD 1TB

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis runs silently in noise-sensitive areas
  • 9–36 V wide-range DC input suits unstable industrial power
  • Three Intel 1000 M LAN ports provide redundant network paths
  • 32 GB DDR4 and 1 TB SATA SSD deliver responsive multitasking

Industrial IP65 Panel PC

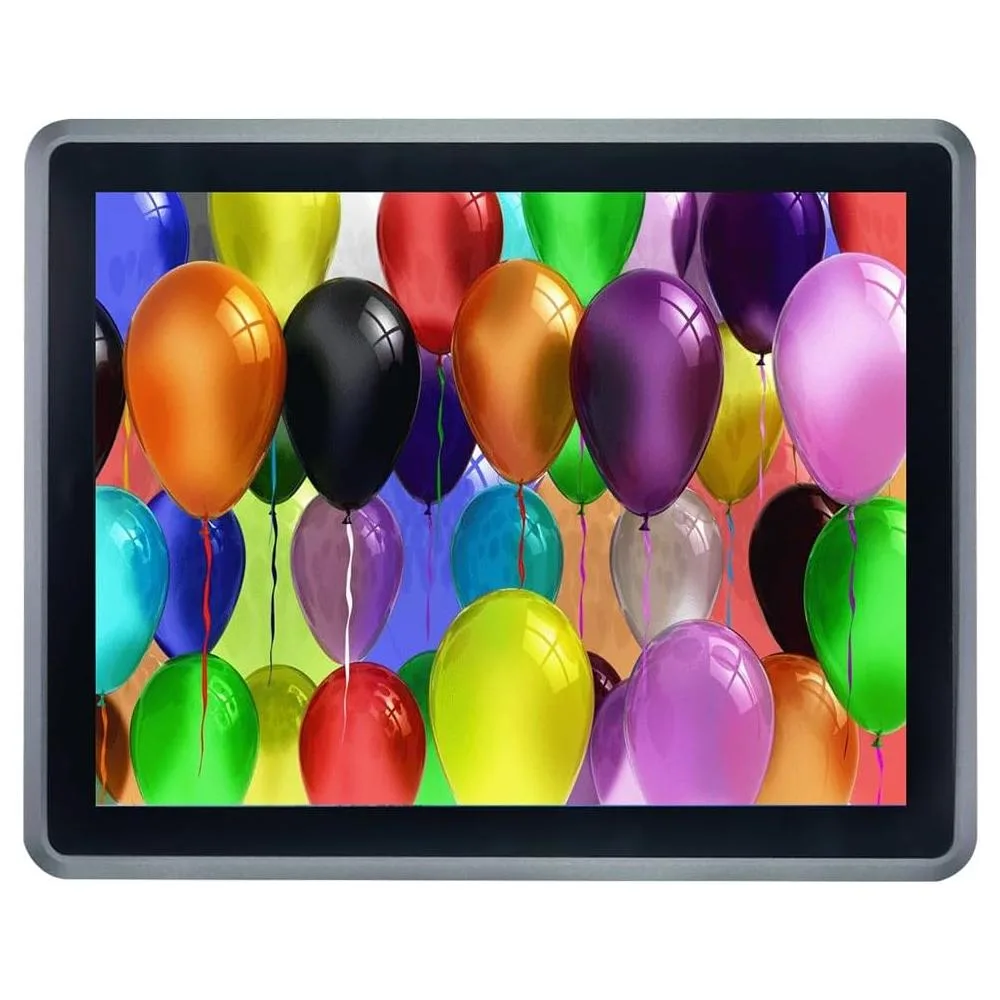

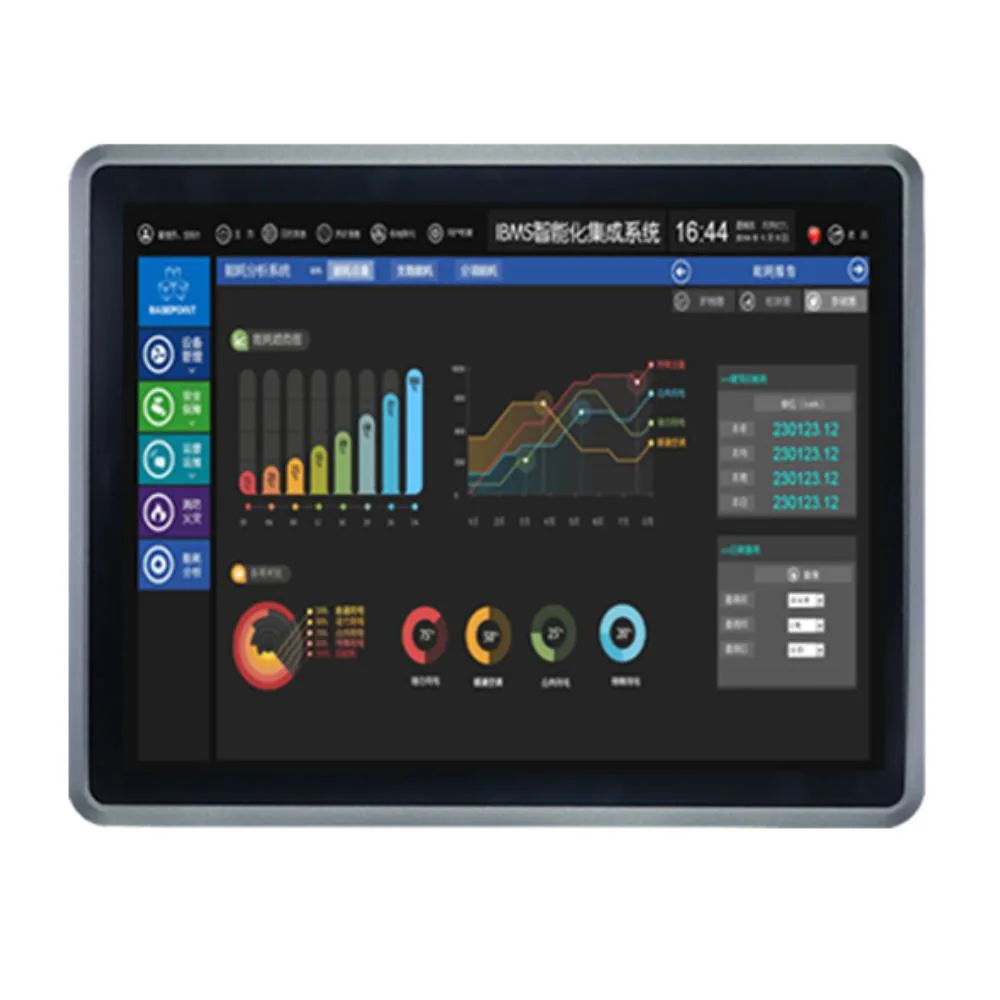

The Partaker A21 is a 17-inch all-in-one computer rated IP65 on the front panel for dust and water resistance. It runs Windows 11 Pro on an Intel Celeron J6413 processor with 32 GB DDR4 memory and a 1 TB SATA SSD. The resistive multi-touch screen suits gloved operation in factories, kiosks or outdoor enclosures where a sealed front face is required.

Fanless Cooling and Wide-Voltage Power

An aluminium-alloy chassis dissipates heat without fans, giving silent operation and removing a moving-part failure point. The unit accepts 9 V to 36 V DC through a two-pin Phoenix connector and includes a 12 V 5 A AC adapter for 100 V to 240 V mains. Typical draw stays modest thanks to the low-power Celeron platform, supporting continuous 7×24 use across a -20 °C to 60 °C industrial temperature range.

Mounting Flexibility and Legacy I/O

The 408.5 mm by 346 mm by 61 mm body weighs 4.7 kg and fits a 389 mm by 321 mm panel cut-out for embedded installs, while VESA points allow wall, desktop or cantilever mounting. Two COM ports handle RS232, RS422 or RS485 gear, three Intel gigabit LAN ports connect separate networks, and HDMI plus four USB 3.0 ports cover modern peripherals. A Mini PCIe slot with a SIM holder is available for optional 4G or Wi-Fi expansion.

נקודות עיקריות

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis runs silently in noise-sensitive areas
  • 9–36 V wide-range DC input suits unstable industrial power
  • Three Intel 1000 M LAN ports provide redundant network paths
  • 32 GB DDR4 and 1 TB SATA SSD deliver responsive multitasking

מפרט טכני

ModelA21-New-J6412-32G1TBSSD
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeCeleron
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD1TB
HDDNo
Screen Size17"
TouchscreenYes

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

How do I mount the A21 into a panel cut-out and which step is often missed?

Cut an opening of 389 x 321 mm, slide the unit in from the front, and secure the supplied mounting clips; the step often missed is tightening all clips evenly so the IP65 front seal sits flat against the panel.

Which internal parts may need replacement after years of 24/7 operation?

The resistive touch layer is rated for more than 50000 thousand touches, the fanless aluminium chassis has no moving parts, and the single SODIMM DDR4-2133 module and M.2 2280 SATA SSD are the only field-replaceable components.

What thermal limit appears first when the system runs at full load in a sealed cabinet?

The operating ceiling is 50 °C for commercial use or 60 °C with an industrial SSD; sustained loads in a confined space will hit that ambient limit before the fanless heatsink reaches its own saturation point.
