Compact gray aluminum all-in-one with 10.1-inch touchscreen

partaker

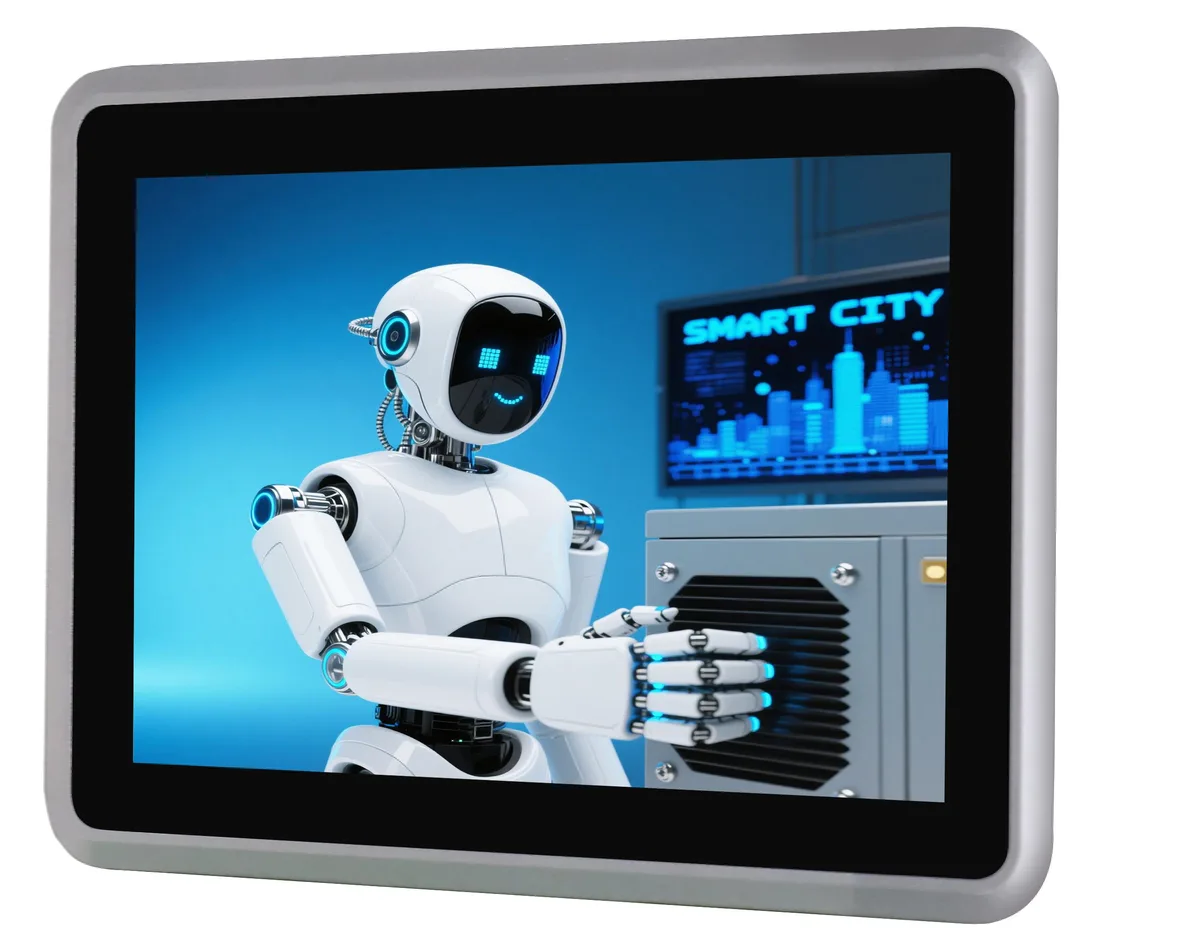

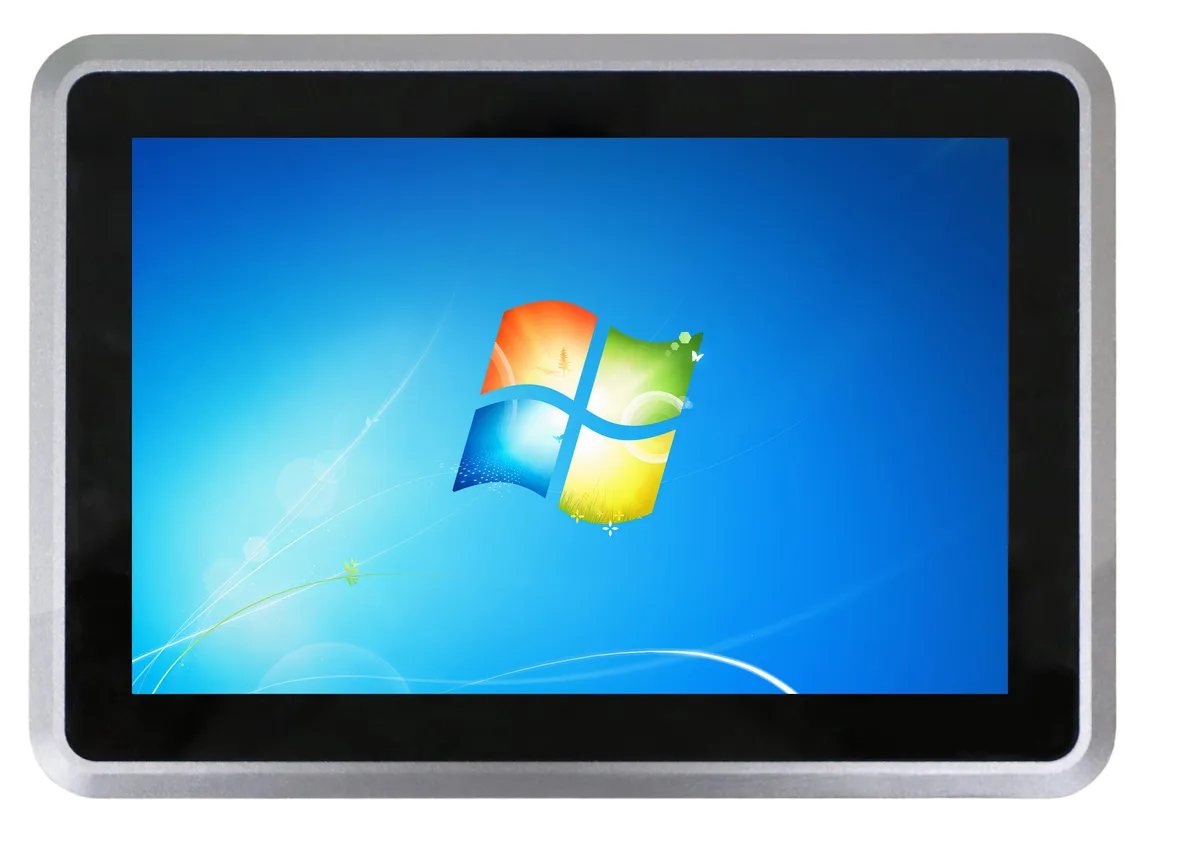

Partaker A25 10.1" All-in-One PC i5-6200U/6300U 8GB 128GB

SKU CH-C4ZA-VYGJF

A 10.1-inch IP65-rated fanless all-in-one PC with an Intel Core i5-6200U or 6300U processor, 8GB DDR4 memory, 128GB mSATA storage, and a multi-touch display running Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

Option 8GB RAM / 128GB SSD

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis runs silently for continuous industrial use
  • 1-inch capacitive multi-touch display removes need for external input devices
  • Dual Gigabit LAN and dual RS232/485 ports connect equipment and networks
  • Core i5-6200U/6300U with 8 GB DDR4 and 128 GB mSATA handles demanding multitasking

Compact industrial all-in-one

The Partaker A25 is a 10.1-inch panel computer built for embedded and VESA-mounted installations. Its IP65-rated front panel resists dust and water jets while the fanless aluminum chassis operates silently from -20 to 60 °C. A 1280×800 IPS display with capacitive touch rated for 50 million touches removes the need for external peripherals. Windows 10 Pro ships pre-installed on the 128 GB mSATA drive.

Build integration and expansion

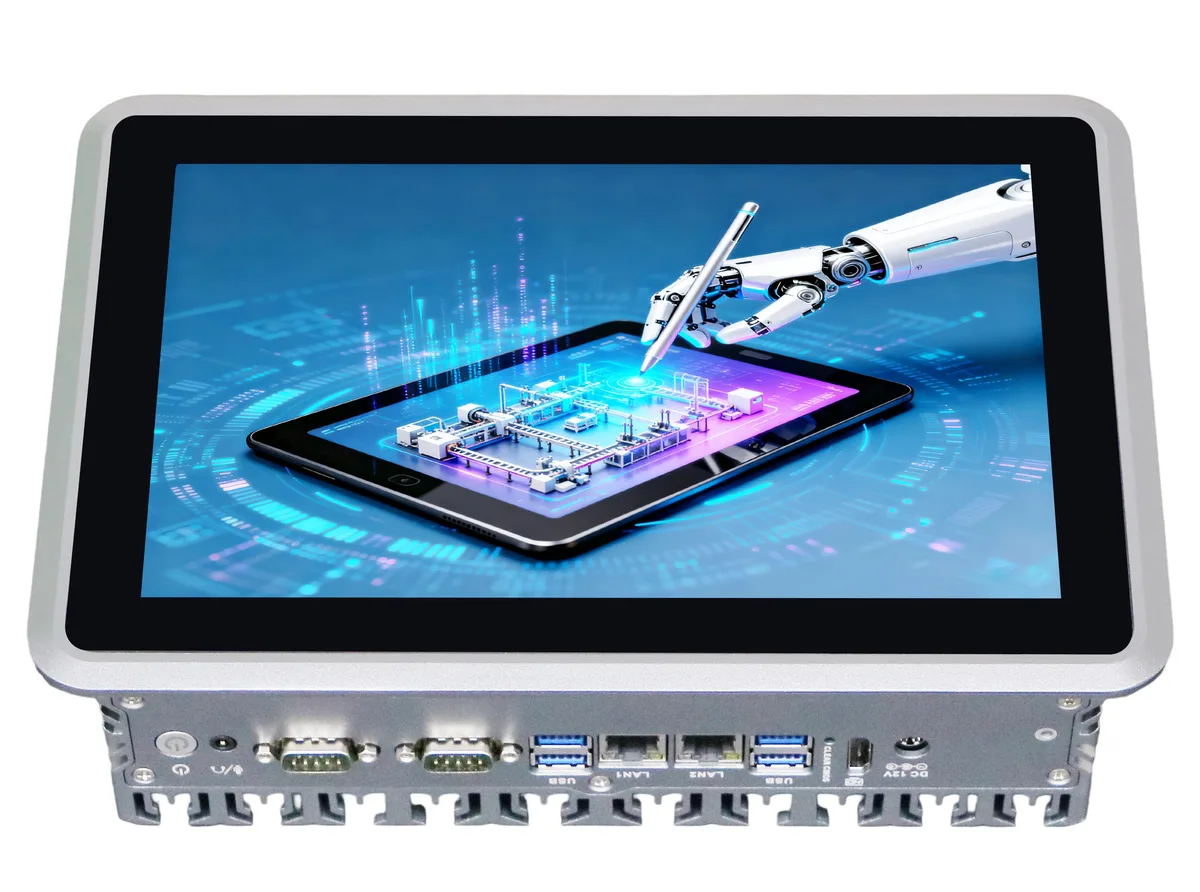

Dual Gigabit Ethernet ports and two RS232/485 serial ports connect directly to industrial networks and legacy equipment without adapters. Four USB ports and an HDMI output handle additional I/O and a second synchronous or asynchronous display via the internal LVDS link. The system accepts 12 V DC standard or an optional 9–36 V wide-range input for unstable power environments. Two mini-PCIe slots allow field upgrades such as Wi-Fi, Bluetooth or cellular modules with a SIM holder.

Suited for fixed automation, not mobile workstations

This unit targets machine builders and integrators who need a sealed, fanless touchscreen node for control panels, kiosks or harsh factory floors. Buyers who require battery operation, higher-resolution graphics or consumer-style wireless standards should evaluate alternative form factors. The 8 GB DDR4 configuration handles typical HMI and SCADA workloads, while the 32 GB ceiling supports heavier multitasking if upgraded.

נקודות עיקריות

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis runs silently for continuous industrial use
  • 1-inch capacitive multi-touch display removes need for external input devices
  • Dual Gigabit LAN and dual RS232/485 ports connect equipment and networks
  • Core i5-6200U/6300U with 8 GB DDR4 and 128 GB mSATA handles demanding multitasking

מפרט טכני

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size10.1"
Screen TypeMulti-Touch Screen

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

How much DDR4 memory can the A25 support before it hits its ceiling?

The board accepts up to 32 GB of DDR4 across its two slots, so sustained workloads are limited by that maximum capacity.

What are the thermal and acoustic characteristics when the unit runs continuously?

A fanless all-aluminium chassis provides silent operation and passive heat dissipation across the full -20 °C to +60 °C industrial temperature range.

Which power source must already be available for the A25 to operate?

The system requires a DC 12 V supply; an optional wide-range 9–36 V input can be specified instead.
