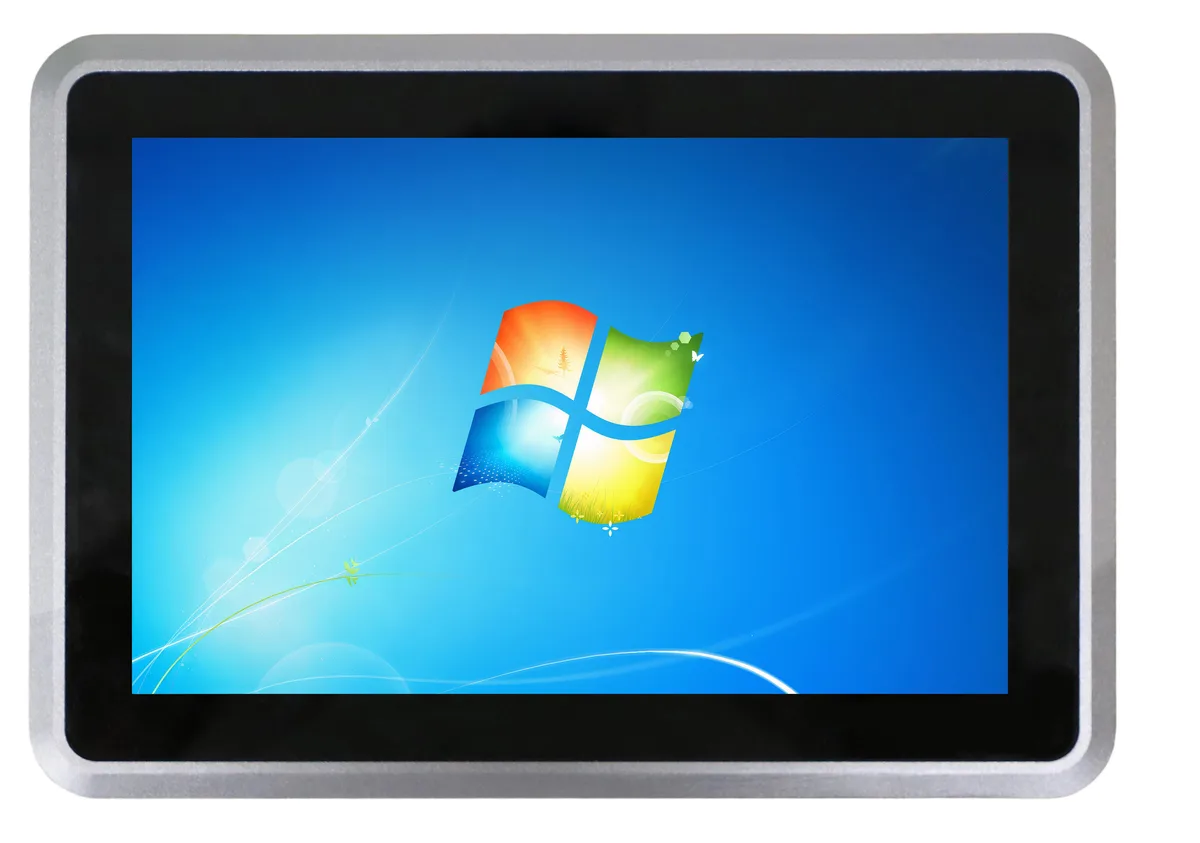

Gray aluminum all-in-one PC with 10.1 inch capacitive touch screen

partaker

Partaker A25 all-in-one PC 10.1" i5-8250U 8GB 512GB

SKU CH-MTVP-D3KD0

A 10.1-inch IP65-rated industrial all-in-one with an i5-8250U processor, 8GB DDR4 memory, 512GB storage and capacitive multi-touch screen for embedded or VESA mounting

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8250U

A25 10.1 Inch I5 8250U 8GB RAM / 512GB SSD

  • IP65 front panel resists dust and water in harsh settings
  • Fanless aluminium chassis runs silently for continuous operation
  • 1" capacitive multi-touch screen removes need for external input devices
  • Dual Gigabit LAN plus dual RS232/485 ports connect industrial equipment
  • Intel Core i5-8250U with up to 32 GB DDR4 handles demanding multitasking

Compact Industrial Panel PC

The Partaker A25 is a 10.1-inch all-in-one computer built around an Intel Core i5-8250U processor with 8 GB of DDR4 memory and a 512 GB mSATA drive. Its fanless aluminum chassis carries an IP65-rated front panel, making it suitable for dusty or wet industrial environments. The unit ships with Windows 10 Pro and a capacitive multi-touch display rated for more than 50 million touches.

Connectivity and Mounting Limits

Dual Gigabit Ethernet ports and two RS232/485 serial ports provide wired network and legacy equipment links without wireless modules unless a mini-PCIe card is added. Video output is restricted to a single HDMI port alongside the internal LVDS connection, so only one external display can be driven. The DC input accepts 12 V by default with an optional 9–36 V wide-range adapter, and the system offers no internal expansion beyond the two mini-PCIe slots.

Touch-Screen Durability Decides Fit

The projected-capacitive panel is specified for over 50 million touch cycles, a figure that determines whether the A25 survives continuous operator use in kiosk, HMI or machine-interface roles. If the application demands a higher actuation count or a different touch technology, this model will not meet the requirement.

נקודות עיקריות

  • IP65 front panel resists dust and water in harsh settings
  • Fanless aluminium chassis runs silently for continuous operation
  • 1" capacitive multi-touch screen removes need for external input devices
  • Dual Gigabit LAN plus dual RS232/485 ports connect industrial equipment
  • Intel Core i5-8250U with up to 32 GB DDR4 handles demanding multitasking

מפרט טכני

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8250U
Screen Size10.1"
Screen TypeMulti-Touch Screen

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

Should I pick the 8 GB / 512 GB configuration or upgrade toward the 32 GB DDR4 maximum?

The unit ships with 8 GB DDR4 and a 512 GB mSATA drive; the board supports up to 32 GB DDR4 across two slots, so add memory later if your industrial workloads demand it.

What does the i5-8250U at up to 3.40 GHz deliver inside this fanless chassis?

The quad-core i5-8250U runs up to 3.40 GHz within the sealed aluminum body, giving sustained performance for control tasks without any moving parts.

How do the dual Gigabit Ethernet ports and RS232/485 COM ports limit real-world connectivity?

Two Realtek Gigabit LAN ports handle network redundancy or separate VLANs, while two COM ports switch between RS232 and RS485 for legacy PLC or sensor links.
