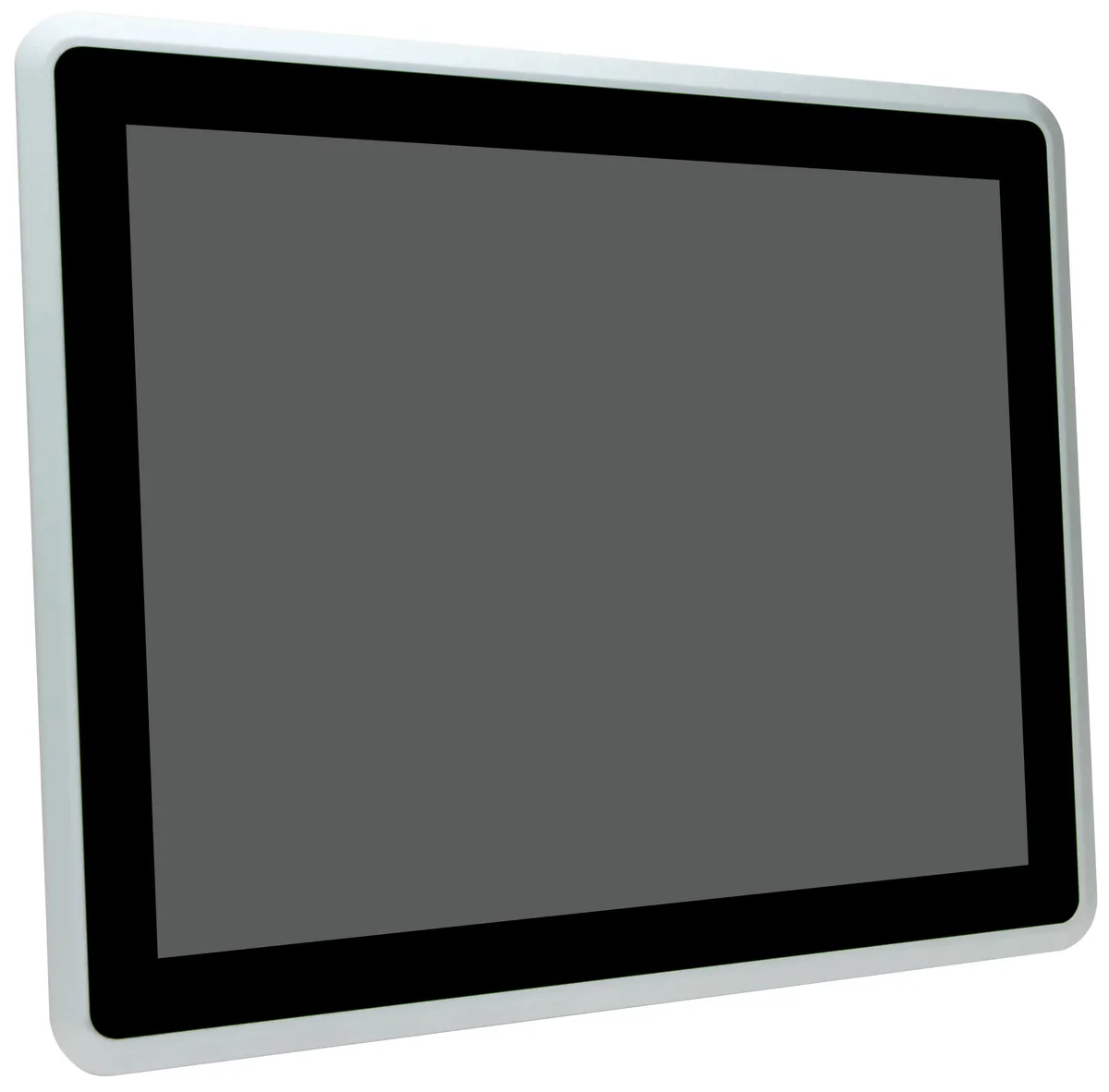

Gray 15-inch all-in-one panel PC with capacitive touchscreen and aluminum chassis

partaker

partaker A27 15" all-in-one PC i3-5005U 8GB 256GB DDR3

SKU CH-SZX5-QWRP0

A 15-inch IP65-rated industrial all-in-one with a capacitive touchscreen, Intel Core i3-5005U processor, 8GB DDR3 memory, and 256GB storage for rugged environments

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A27 15" Capacitive I3 5005U 8GB RAM / 256GB SSD

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Capacitive multi-touch screen gives responsive industrial control
  • Dual Gigabit LAN plus four USB ports connect equipment
  • Windows 10 Pro installed ready for deployment

Industrial Panel PC for Harsh Environments

The Partaker A27 is a 15-inch all-in-one computer built for industrial automation, logistics and machine vision. Its IP65-rated front panel resists dust and water ingress while the capacitive multi-touch screen enables direct control. A fanless aluminum chassis ensures silent, maintenance-free operation across a wide temperature range. The system suits embedded installations that demand rugged reliability.

Fanless Thermal Design and Low Power Draw

Passive cooling eliminates moving parts so the unit runs silently in dusty or vibration-prone settings. The Intel Core i3-5005U dual-core processor operates at 2.00 GHz within a 20 to +60 °C range using standard 12 V DC input. Optional 9 to 36 V wide-range support adds flexibility for unstable power environments. Dual 8 W speakers provide audible alerts without active cooling noise.

Aluminum Build with Embedded Mounting and Legacy I/O

The gray aluminum alloy shell measures 355 by 279 mm for panel cutout compatibility. Connectivity includes dual Gigabit Ethernet, two configurable RS232/485 COM ports, four USB ports and HDMI output. Dual mini PCIe slots allow Wi-Fi, Bluetooth or cellular expansion. An mSATA drive slot and two DDR3 memory slots support up to 16 GB for storage and memory upgrades.

נקודות עיקריות

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Capacitive multi-touch screen gives responsive industrial control
  • Dual Gigabit LAN plus four USB ports connect equipment
  • Windows 10 Pro installed ready for deployment

מפרט טכני

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size15"
Screen TypeMulti-Touch Screen

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

How is the A27 mounted into a panel cutout and what alignment step is often missed?

The unit fits a 355×279 mm rectangular cutout and uses the embedded mounting brackets on the aluminum alloy shell; the step often missed is verifying the IP65 gasket seats evenly on all four sides before tightening the clamp screws.

Which components will need replacement first during long-term operation in a dusty environment?

The 256 GB mSATA SSD and the two DDR3 memory modules are the only field-replaceable parts; the fanless chassis and solid-state design eliminate moving-part wear.

At what ambient temperature does the system hit its thermal limit under continuous load?

The specified operating ceiling is +60 °C; beyond that the fanless aluminum alloy shell cannot dissipate heat fast enough and the processor will throttle.
