15.6 inch industrial all-in-one panel PC with IP65 front aluminium chassis resistive touchscreen

partaker

partaker A7 15.6" IP65 i7-8565U 8GB DDR4 128GB SSD all-in-one PC

SKU CH-VCHM-3DKJB

15.6" IP65 industrial all-in-one with i7-8565U, 8GB DDR4, 128GB SSD, resistive touchscreen and fanless aluminium cooling

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • HDDNo

Memory Capacity 8GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 8GB DDR4

SSD

HDD None

  • 1TB
  • None

גרסאות עם קו חוצה קיימות, אך אינן במלאי כאן.

  • IP65 front protection shields the 15.6" panel from dust and water jets
  • Fanless aluminium chassis runs silently for 7×24 operation
  • Intel Core i7-8565U up to 4.60 GHz handles demanding industrial workloads
  • 8 GB DDR4 with two SODIMM slots expandable to 64 GB
  • Triple drive bays — mSATA, M.2 2280 and 2.5" SATA — for flexible storage

Industrial Panel PC for 24/7 Operations

The Partaker A7 is a 15.6 inch all-in-one computer built for continuous industrial use. Its IP65-rated front panel resists dust and water jets, while the 5-wire resistive touchscreen works reliably in high-temperature conditions. An Intel Core i7-8565U processor with 8GB of DDR4 memory and a 128GB SSD runs Windows 11 Pro out of the box. This configuration targets automation, kiosk and control-room deployments that demand rugged integration.

Fanless Cooling and Low Power Draw

An aluminium-alloy chassis dissipates heat passively, so the system operates without fans and produces no audible noise. The CPU sustains clocks up to 4.60 GHz within a 0 to 50 °C operating range when an SSD is installed. Power is supplied through a 12 V DC input compatible with 100-240 V AC sources, supporting energy-efficient 7x24-hour operation. The silent, solid-state thermal design eliminates moving-part failures in harsh environments.

Upgrade Path from Legacy Panel PCs

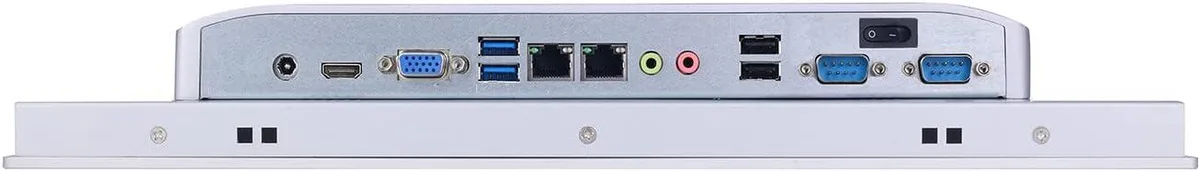

The A7 replaces older panel computers that lack IP65 sealing, modern I/O or 1920 x 1080 resolution. Two SODIMM slots accept up to 64GB of DDR4-2400, while mSATA, M.2 2280 and 2.5 inch SATA bays provide flexible storage expansion. Dual LAN, dual COM, HDMI, VGA and four USB ports cover most industrial connectivity needs. Buyers who require wireless connectivity must add a Mini PCIe module themselves, as Wi-Fi is not included.

נקודות עיקריות

  • IP65 front protection shields the 15.6" panel from dust and water jets
  • Fanless aluminium chassis runs silently for 7×24 operation
  • Intel Core i7-8565U up to 4.60 GHz handles demanding industrial workloads
  • 8 GB DDR4 with two SODIMM slots expandable to 64 GB
  • Triple drive bays — mSATA, M.2 2280 and 2.5" SATA — for flexible storage

מפרט טכני

ModelA7-PA-156TPC-CE5A(I78)-8G128G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
HDDNo
Screen Size15.6"
TouchscreenYes

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

How do I mount the A7 panel PC and what is the exact cut-out size for the embedded buckle installation?

The embedded mounting cut-out is 386.5 x 236 mm; the unit measures 392.6 x 241.7 x 54.5 mm and weighs 3.4 kg. Use the supplied buckle kits, ensure the front IP65 gasket seats evenly, and torque the screws uniformly so the seal does not leak.

Which memory slots and drive bays are user-accessible for future upgrades on the A7?

Two SODIMM DDR4-2400 slots support up to 64 GB total. Storage options include one mSATA SSD, one M.2 2280 NVME PCIE X4/SATA SSD, and one 2.5" SATA SSD or HDD bay.

What is the first thermal or component limit reached during continuous 24/7 operation at full load?

The fanless aluminum chassis is rated for 0–50 °C ambient with SSD; sustained full load will hit the 50 °C operating ceiling before the CPU throttles, and the backlight is rated for a minimum of 30 000 hours.
