Gray 14-inch industrial all-in-one with IP65 front panel and capacitive touchscreen

partaker

Partaker Z10 14" IP65 i7-6500U 8GB 512GB all-in-one PC

SKU CH-C8NC-NVKGA

A 14-inch IP65-rated all-in-one with a 10-point capacitive touchscreen, Intel Core i7-6500U processor, 8GB DDR4 memory and 512GB SSD, designed for fanless industrial operation

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • CPU NameIntel Core i7-6500U
  • GPU/VGA TypeIntel HD Graphics 520

CPU Type Intel Core i7 6th Gen

CPU Name Intel Core i7-6500U

Memory Capacity 8GB DDR4

SSD 512GB

HDD None

  • 1TB
  • None

גרסאות עם קו חוצה קיימות, אך אינן במלאי כאן.

  • IP65 front panel withstands dust and water jets in harsh environments
  • Fanless aluminium alloy cooling runs silently for 24/7 industrial operation
  • 10-point projected capacitive touch enables precise multi-finger control
  • Intel Core i7-6500U with 8 GB DDR4 and 512 GB SSD delivers responsive performance
  • Dual LAN, dual COM, HDMI, VGA and four USB ports connect diverse industrial equipment

Industrial 14″ IP65 Panel PC

The Partaker Z10 is a fanless all-in-one system built around an Intel Core i7-6500U processor with 8GB of DDR4 memory and a 512GB SSD. Its 14″ TFT LED display offers 1600 x 900 resolution and a 10-point projected capacitive touchscreen rated for 200 million touches. The IP65-rated front panel protects against dust and water jets, making it suitable for continuous operation in factories, kiosks or outdoor enclosures where standard PCs would fail.

Fanless Aluminium Chassis With Embedded Mounting

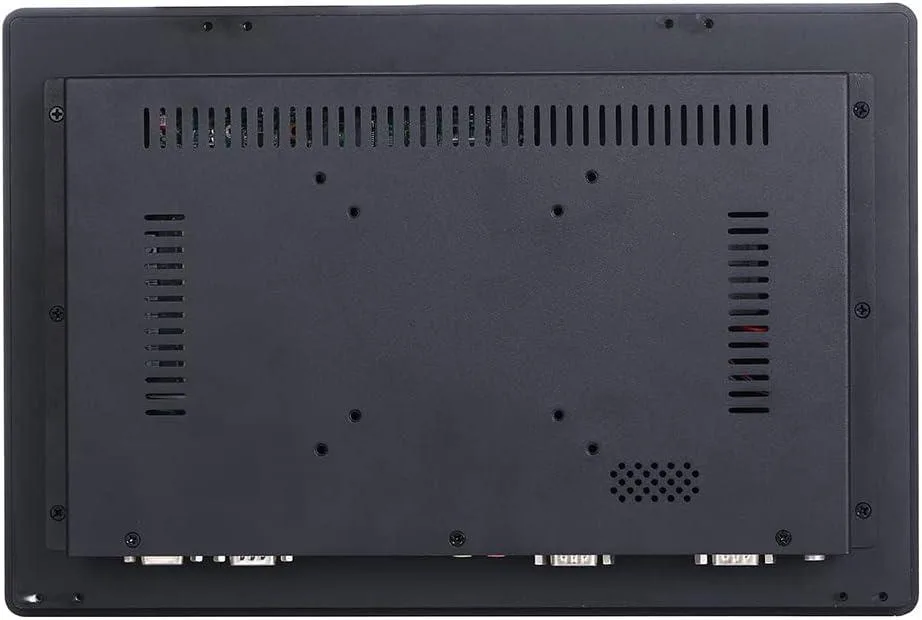

Passive cooling through an aluminium alloy body eliminates moving parts, allowing silent 24/7 running between 0 and 50 °C. The slim 346.3 mm wide chassis weighs 2.55 kg and fits a 340.3 x 225.3 mm cut-out for embedded, wall, desktop or cantilever installation. Connectivity includes HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, two COM ports, audio in/out and a 12 V DC input, while a Mini PCIe slot with SIM holder allows optional 4G or Wi-Fi expansion.

6th-Generation U-Series Platform Limits

The i7-6500U tops out at 3.10 GHz with Intel HD Graphics 520, so 3D workloads and modern gaming are impractical. Memory uses DDR3L SODIMM slots despite the installed DDR4 module, capping upgrades at 16 GB. Storage expansion relies on one mSATA, one M.2 2280 NVME or SATA socket and a 2.5″ SATA bay. The 200 cd/m² brightness and 15/35° vertical viewing angles restrict outdoor readability in direct sunlight.

נקודות עיקריות

  • IP65 front panel withstands dust and water jets in harsh environments
  • Fanless aluminium alloy cooling runs silently for 24/7 industrial operation
  • 10-point projected capacitive touch enables precise multi-finger control
  • Intel Core i7-6500U with 8 GB DDR4 and 512 GB SSD delivers responsive performance
  • Dual LAN, dual COM, HDMI, VGA and four USB ports connect diverse industrial equipment

מפרט טכני

ModelZ10-I7 6500U-8G512G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
CPU NameIntel Core i7-6500U
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR4
SSD512GB
HDDNo
Screen Size14"
TouchscreenYes

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

What resolution does the 14" IP65 touchscreen run at, and what does that cap in daily use?

The panel runs at 1600 x 900, so Windows 11 Pro and industrial HMI software are limited to that pixel grid; external displays via HDMI or VGA can go higher.

What are the exact cut-out dimensions for embedded mounting, and how much clearance does the 42.7 mm depth need?

Cut a 340.3 x 225.3 mm opening; the unit sits 42.7 mm deep behind the front bezel, so allow at least that much space inside the enclosure.

How is the mSATA or M.2 2280 NVME drive fitted, and which step do installers often miss?

Remove the rear cover, insert the drive into the mSATA or M.2 2280 NVME slot at an angle, then secure it with the tiny retention screw — skipping that screw is the common mistake.
