Tripp Lite SU2200RTXLCD2U 2000VA 1800W 120V Double-Conversion UPS
Double-conversion UPS delivers 2000 VA and 1800 W of sine-wave power with seven outlets and hot-swappable batteries in a 2U rack or tower form factor
- International Version120V
- Input Voltage Range100V AC; 110V AC; 115V AC; 120V AC; 127V AC
- Input ConnectionNEMA 5-20P
- VA Rating2000 VA
- Watts1800 Watts
- Output Voltage120V
VA 2200 VA
- 750 VA
- 1000 VA
- 1500 VA
- 1500 VA w/ WEBCARDLX
- 2200 VA
- 2200 VA w/ WEBCARDLX
- 3000 VA (2U)
גרסאות עם קו חוצה קיימות, אך אינן במלאי כאן.
- Double-conversion topology delivers pure sine-wave power
- 2000 VA / 1800 W supports dense server loads
- 2U rack-tower form fits standard cabinets
- Hot-swappable batteries enable runtime maintenance without downtime
- LCD panel plus USB and RS-232 give local and remote monitoring
Double-Conversion UPS with Extended Runtime

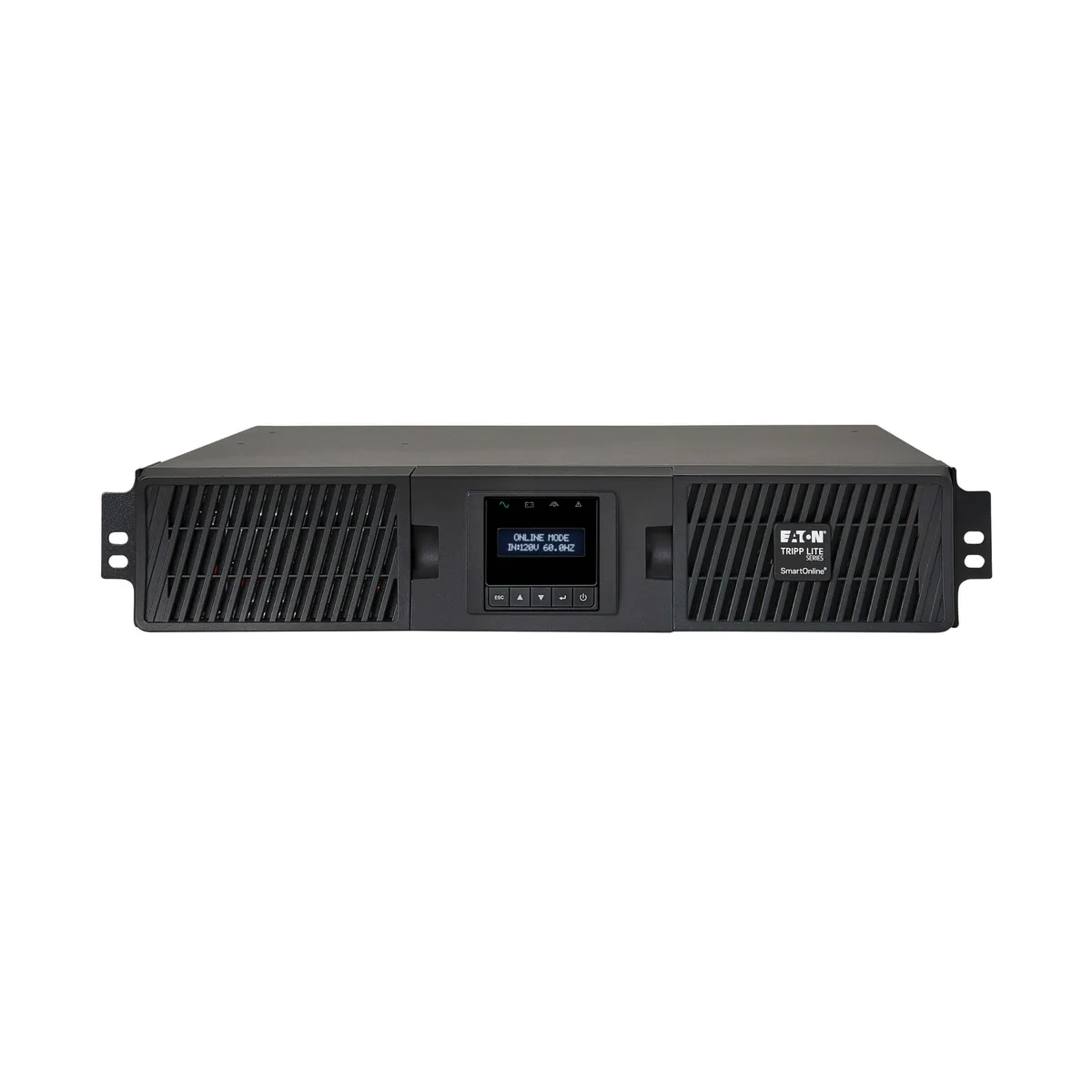

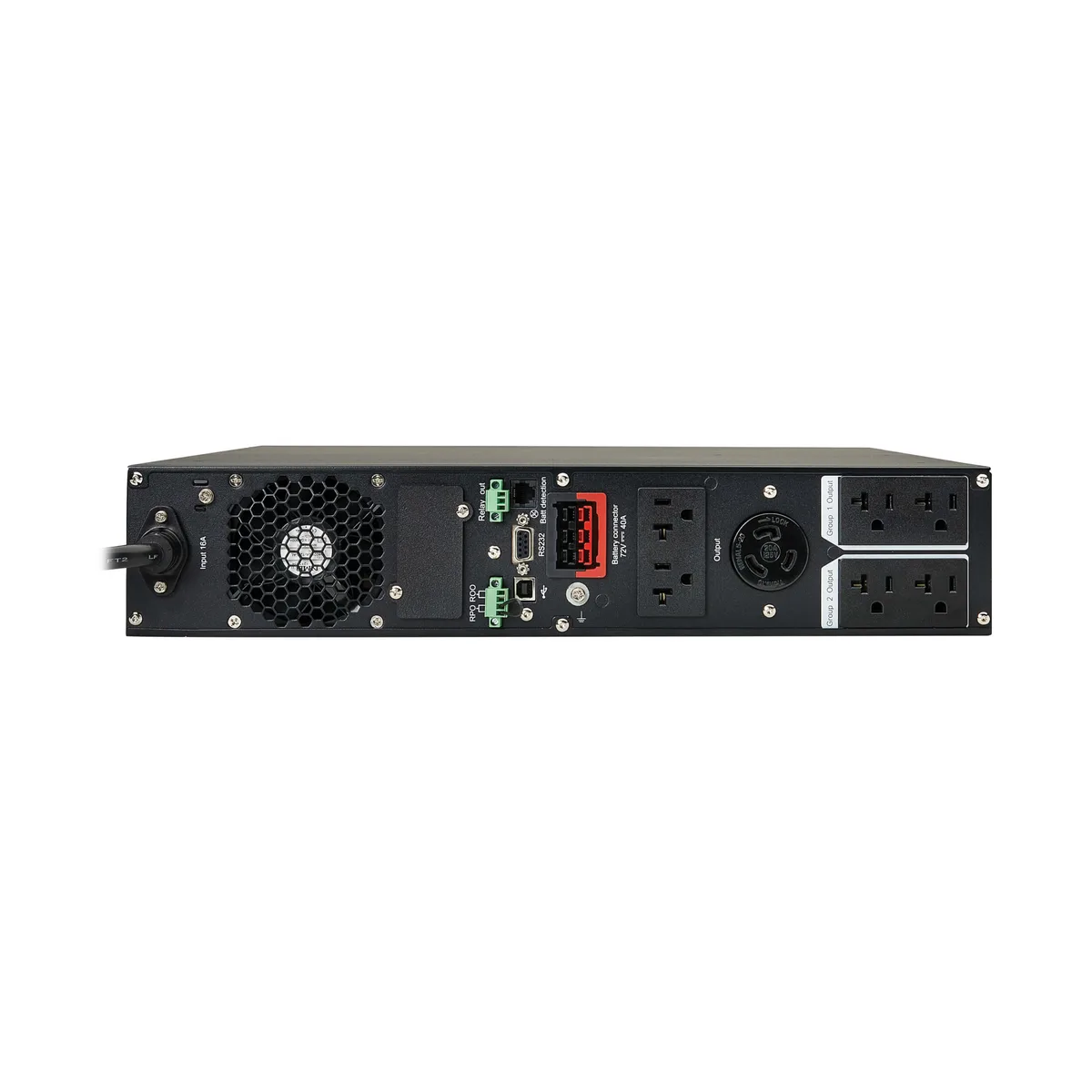

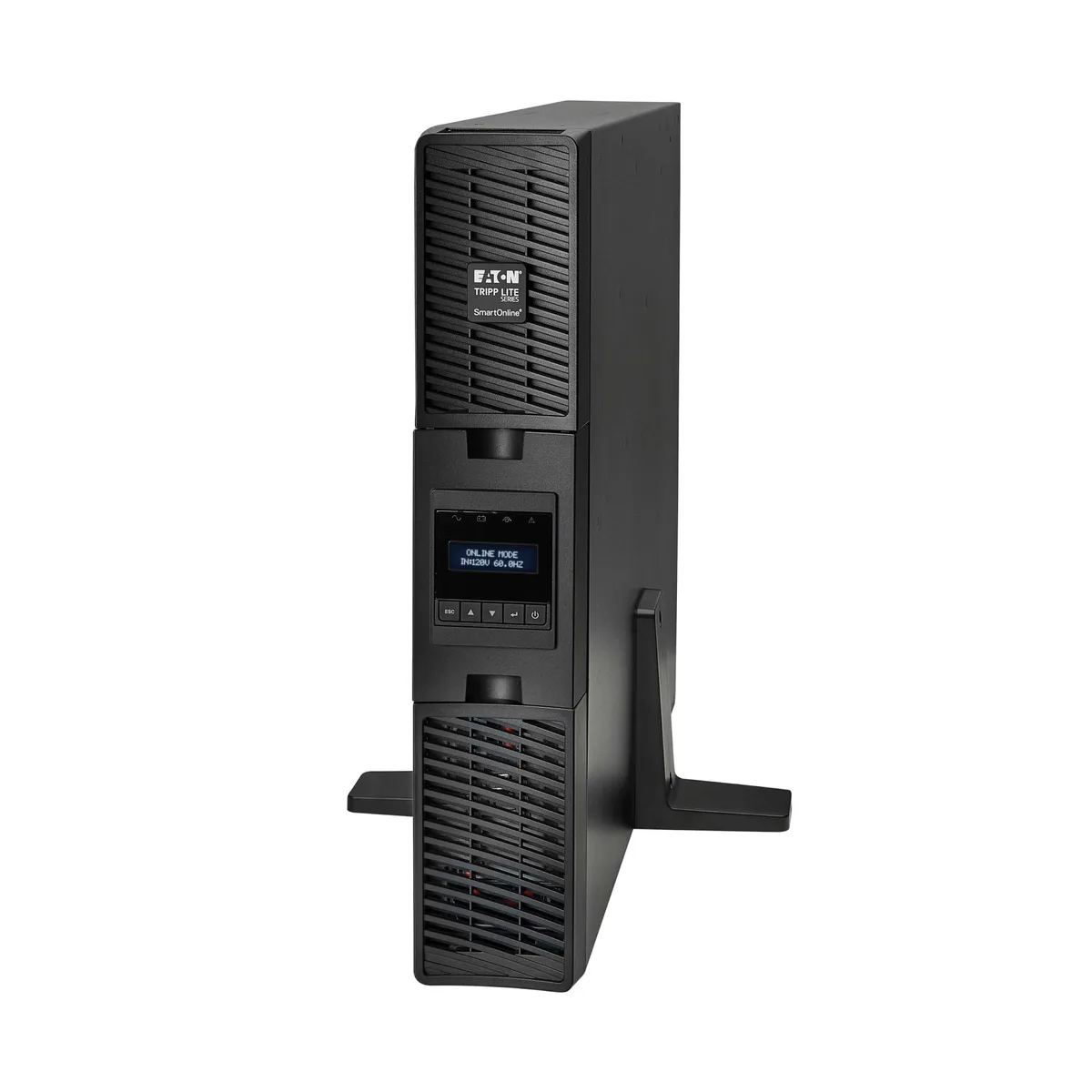

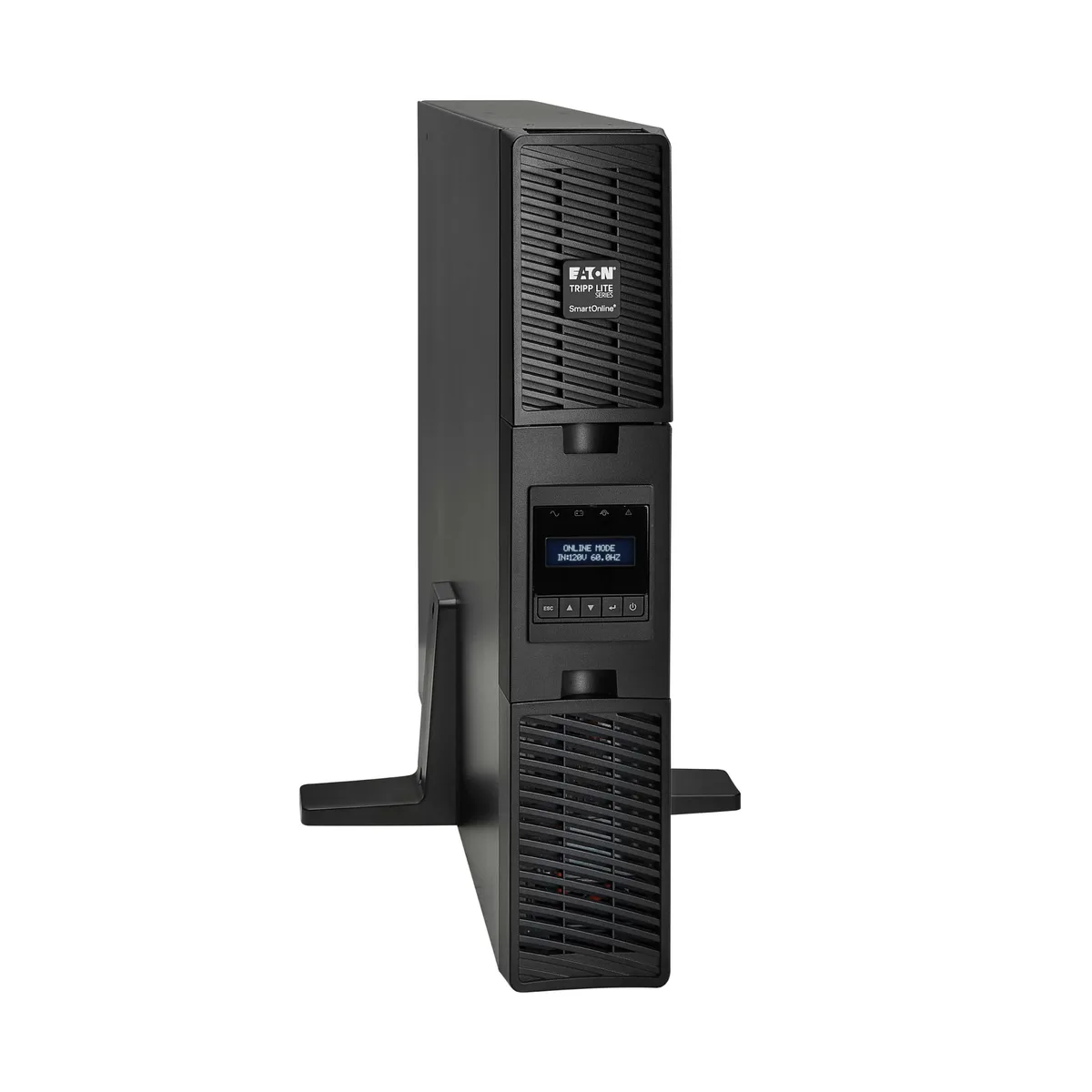

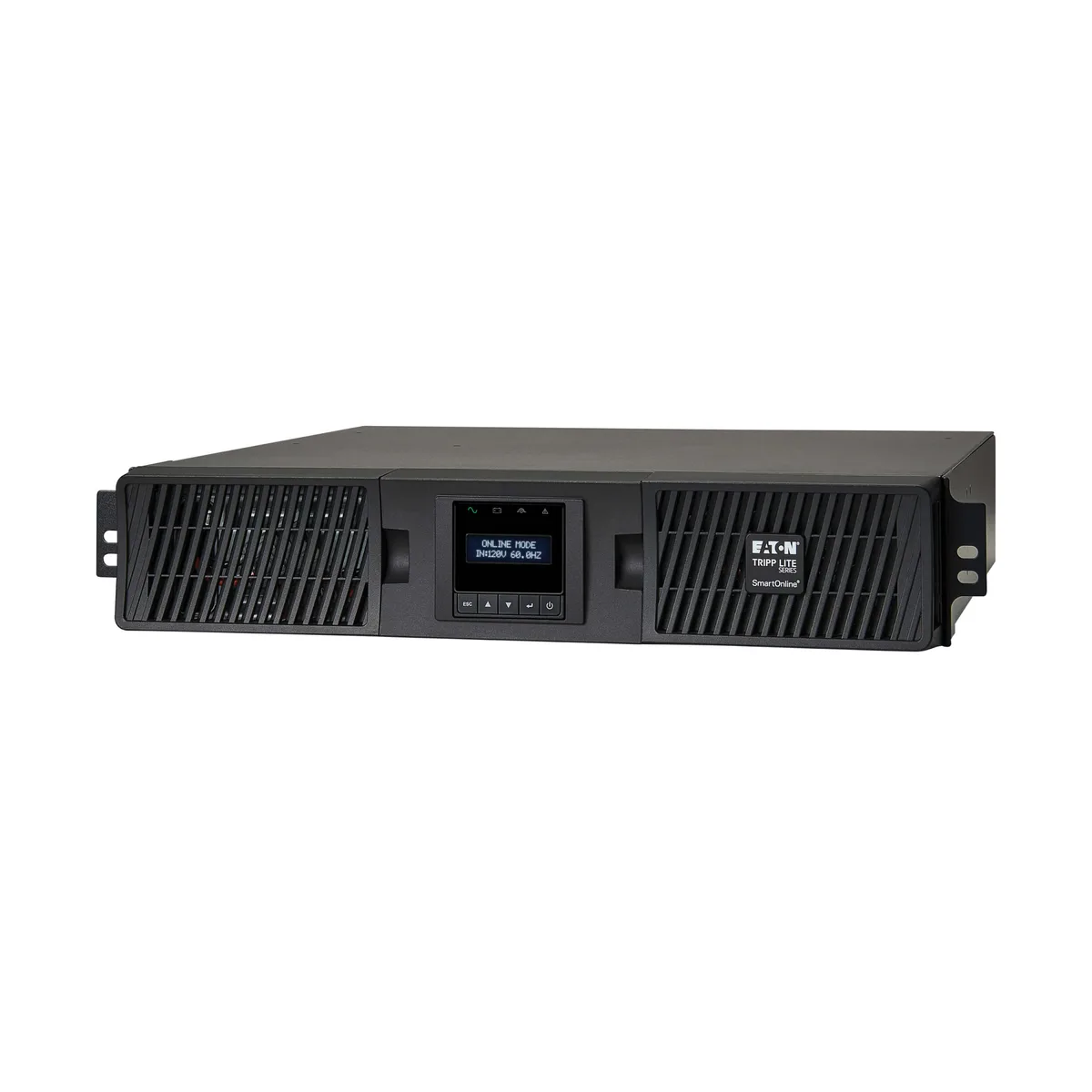

The Tripp Lite SU2200RTXLCD2U is a double-conversion online UPS rated at 2000 VA and 1800 watts. It accepts 120-volt input and provides pure sine-wave output to seven outlets, six NEMA 5-20R and one NEMA L5-20R. The unit fits a 2U rack space or stands as a tower.
Suits critical loads needing clean power.
This UPS protects servers, network switches and storage arrays that cannot tolerate any transfer time or waveform distortion. Hot-swappable batteries and an optional network card allow maintenance and remote monitoring without downtime. Buyers powering only non-critical peripherals or needing longer runtime at full load should consider other options.
2000 VA rating with 7.7 minutes at full load
The 2000 VA capacity delivers 1800 watts for 7.7 minutes when fully loaded, extending to 20.2 minutes at 900 watts. Batteries recharge to 90 percent in three hours. This runtime figure is the primary measure for sizing the unit to your equipment.
נקודות עיקריות
- Double-conversion topology delivers pure sine-wave power
- 2000 VA / 1800 W supports dense server loads
- 2U rack-tower form fits standard cabinets
- Hot-swappable batteries enable runtime maintenance without downtime
- LCD panel plus USB and RS-232 give local and remote monitoring
מפרט טכני
| Brand | TRIPP LITE |
|---|---|
| Series | SmartOnline |
| Model | SU2200RTXLCD2U |
| International Version | 120V |
| Input Voltage Range | 100V AC; 110V AC; 115V AC; 120V AC; 127V AC |
| Input Connection | NEMA 5-20P |
| VA Rating | 2000 VA |
| Watts | 1800 Watts |
| Output Voltage | 120V |
| Output Frequency | 50 / 60 Hz |
| Outlets | 7 |
| Outlet Type | (6) NEMA 5-20R; (1) NEMA L5-20R |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Run Time | Full load: 7.7 min. (1800W) Half load: 20.2 min. (900W) |
| Battery Recharge Time | 3 hours recharge to 90% |
| Battery Replaceable | Hot-swappable, user replaceable batteries |
| Alarms | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Interface Port | RS-232, USB |
| Rackmountable | 2U |
| Surge Energy Rating | 190 Joules |
| Temperature | Operating Temperature Range: 32° to 104°F (0° to 40°C) Storage Temperature Range: With battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C) |
| Humidity | 0-96% non-condensing |
| Dimensions | 3.4" x 17.3" x 23.8" |
| Weight | 61.51 lbs. |
| Package Contents | SU2200RTXLCD2U UPS System PowerAlert Software with USB, Serial & EPO cabling 4 post rackmount installation kit Instruction manual |
| משקל משלוח | 28.37 kg |
| מידות האריזה | 599 × 508 × 239 mm |
גרסאות נוספות של דגם זה
3 נוספים באותה הסדרה
אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.
Tripp Lite
Tripp Lite SU2200RTXLCDN UPS 2000VA 1800W 120V 7 Outlets 2U Rack/Tower
- 120V
- NEMA 5-20P
1,760.99 $
0.02254327BTC
במלאי
Tripp Lite
Tripp Lite SU3000RTXLCD2U 3000VA 2700W 120V Double-Conversion UPS
- 120V
- NEMA L5-30P
2,227.99 $
0.02852156BTC
במלאישאלות על הפריט הזה
What input plug must my building supply to connect this UPS?
The unit ships with a NEMA 5-20P plug, so a 20 A, 120 V receptacle is required.
Will my existing NEMA 5-15R power strips work with the six NEMA 5-20R outlets on this UPS?
Yes, standard 5-15 plugs fit into the 5-20R outlets, so legacy strips connect without adapters.
Which LCD readout confirms the UPS is delivering clean 120 V output after I power it on?
The interactive LCD shows the output voltage; a steady 120 V reading means the double-conversion stage is operating normally.
