Black 2U rackmount UPS with LCD display and eight rear outlets

Tripp Lite

Tripp Lite SU3000LCD2UHV UPS 3000VA 2.7kW Double-Conversion 2U Rackmount 8 Outlets

SKU CH-Q6NG-N8WZV MPN SU3000LCD2UHV

Double-conversion 2U rackmount UPS delivering 3000 VA / 2700 W with eight NEMA outlets and 13.5 minutes runtime at half load

  • Input Voltage Range200V AC; 208V AC; 220V AC; 230V AC; 240V AC
  • Input ConnectionC20 inlet
  • VA Rating3000 VA
  • Watts2700 Watts
  • Output Voltage200V; 208V; 220V; 230V; 240V
  • Outlets8
  • Double-conversion topology delivers zero transfer time for sensitive network equipment
  • 3000 VA / 2700 W capacity supports high-density rack loads
  • Selectable 200/208/220/230/240 V output matches varied regional power standards

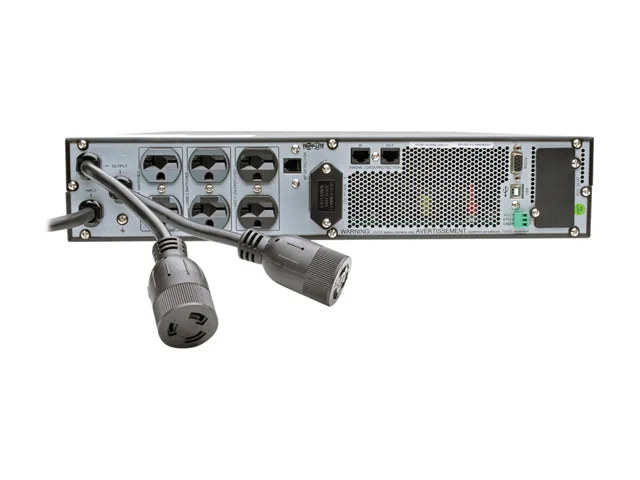

  • Eight outlets — six NEMA 6-15/20R and two NEMA L6-20R — connect diverse devices

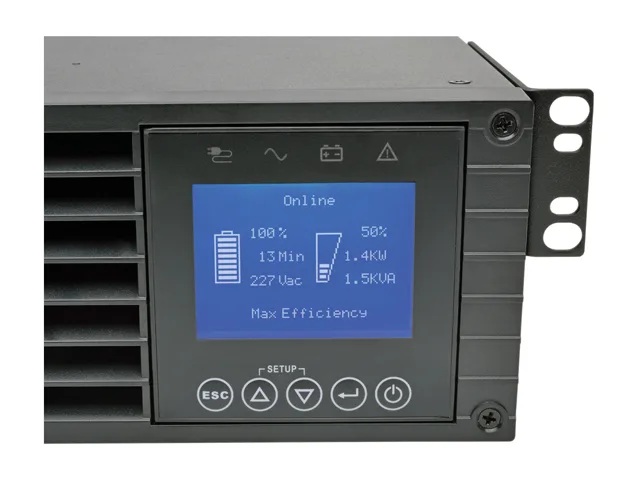

  • LCD front panel shows real-time status and allows on-site configuration

Double-Conversion UPS for 200-240V Racks

The Tripp Lite SU3000LCD2UHV is an on-line double-conversion UPS rated at 3000VA and 2700W. It accepts 200V to 240V AC input through a C20 inlet and delivers selectable output voltage across eight outlets. The 2U rackmount chassis includes an interactive LCD interface, USB, DB9 serial and a slot for an SNMP management card.

Suited for high-availability servers

This unit fits environments that require zero transfer time and tight voltage regulation for sensitive loads. The NEMA 6-15/20R and L6-20R receptacles match 200-240V equipment commonly found in data centres. Sites without 200-240V supply or without matching outlet infrastructure should select a different topology or form factor.

Five-minute runtime at full 2700W load

Internal VRLA batteries provide 5 minutes of backup at 2700W and 13.5 minutes at 1350W. The battery module is replaceable using the RBC72S pack. Extended runtime requires optional external battery packs that are automatically recognised by the UPS management system.

נקודות עיקריות

  • Double-conversion topology delivers zero transfer time for sensitive network equipment
  • 3000 VA / 2700 W capacity supports high-density rack loads
  • Selectable 200/208/220/230/240 V output matches varied regional power standards
  • Eight outlets — six NEMA 6-15/20R and two NEMA L6-20R — connect diverse devices
  • LCD front panel shows real-time status and allows on-site configuration

מפרט טכני

BrandTRIPP LITE
ModelSU3000LCD2UHV
Input Voltage Range200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Input ConnectionC20 inlet
VA Rating3000 VA
Watts2700 Watts
Output Voltage200V; 208V; 220V; 230V; 240V
Outlets8
Outlet Type2 x NEMA L6-20R
6 x NEMA 6-15/20R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load Runtime: 5 minutes (2700 Watts)
Half Load Runtime: 13.5 minutes (1350 Watts)
Battery ReplaceableRBC72S
AlarmsAudible alarm indicates power failure, low battery, overload and fault
Interface PortUSB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Management SoftwareYES
ApprovalsMeets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
RackmountableYes
Surge Energy Rating570 Joules
FeaturesZero transfer time suitable for advanced network applications
2% output voltage regulation in online and battery modes
Selectable 200/208/220/230/240V output voltage
6 NEMA 6-15/20R and 2 NEMA L6-20R outlets
13.5 minutes runtime at half load; 5 minutes at full load
Weight80
VA3000 VA
משקל משלוח38.99 kg
מידות האריזה765 × 605 × 249 mm

שאלות על הפריט הזה

What input connection does the SU3000LCD2UHV need from the building supply?

The unit requires a C20 inlet fed from a 200–240 V AC circuit rated for at least 3000 VA.

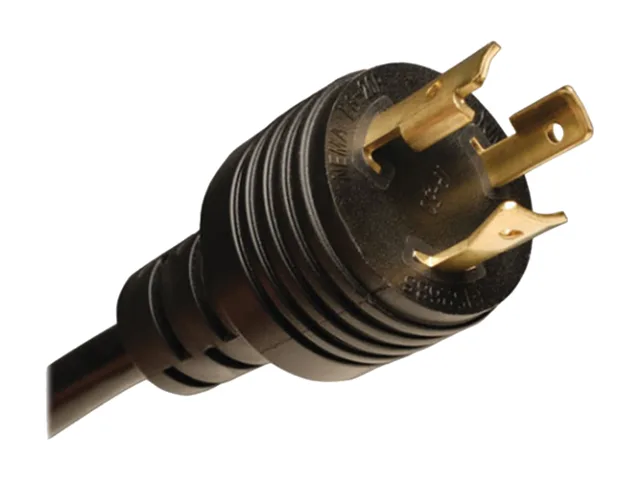

Will my existing NEMA 6-15P or L6-20P equipment plug straight into this UPS?

Yes, the rear panel provides six NEMA 6-15/20R and two NEMA L6-20R receptacles that accept those plugs.

How can I confirm the UPS is regulating voltage within the rated ±2 % after installation?

The front-panel LCD shows real-time output voltage; verify it reads 200, 208, 220, 230 or 240 V as selected.
