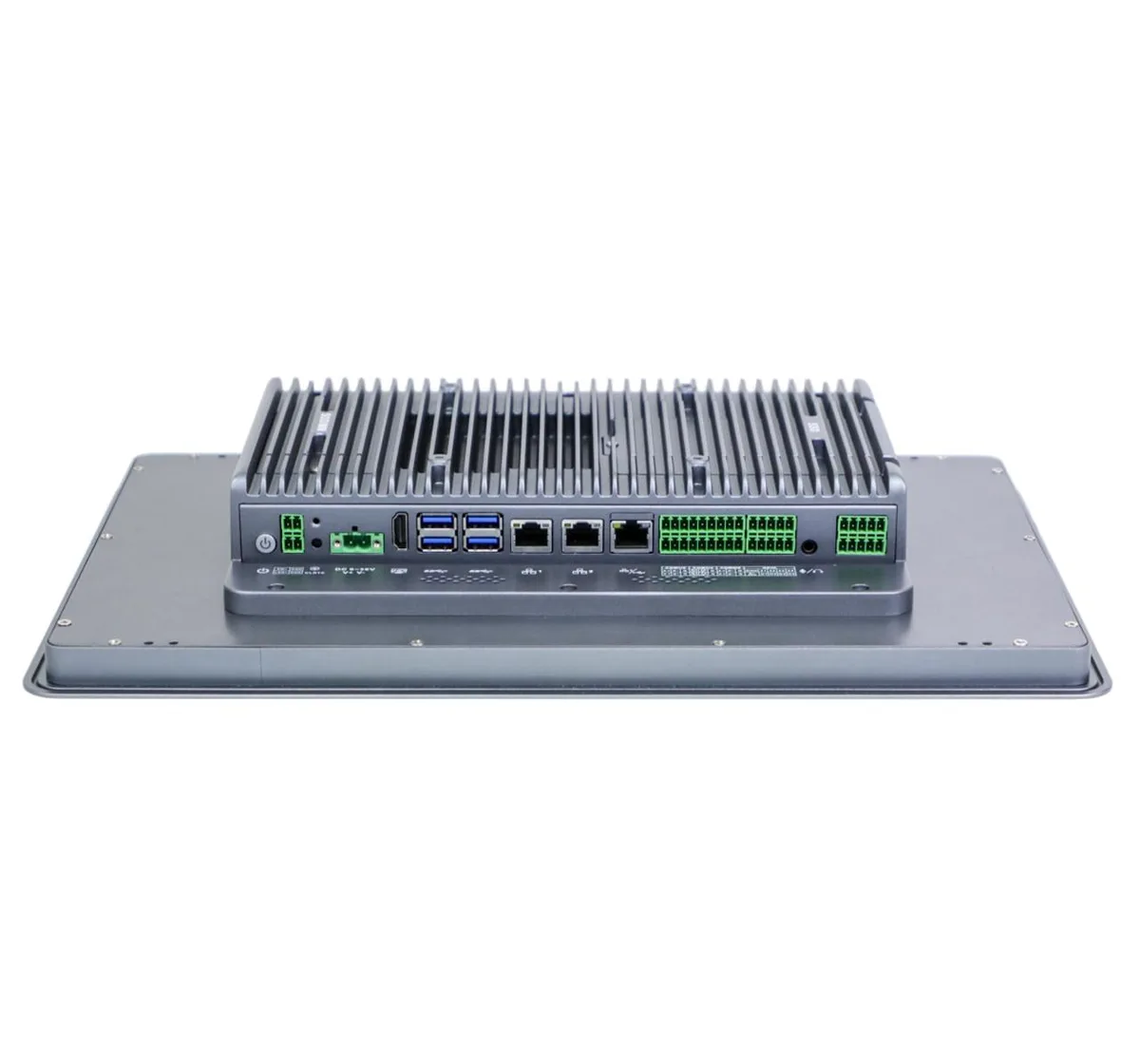

Gray 15-inch industrial all-in-one PC with flat resistive touch front

partaker

Partaker 15" Industrial IP65 All-in-One PC i7-1255U 32GB 512GB

SKU CH-55PW-K3J6S

A 15-inch IP65-rated industrial all-in-one with resistive touch, fanless cooling, Intel Core i7-1255U, 32GB DDR5 and 512GB NVMe, plus 6 COM ports, 3 LAN, 8 isolated GPIO and 9-36V DC input

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 12th Gen
  • Screen Size15"

Option 32GB RAM / 512GB SSD

  • IP65 front panel resists water and dust ingress
  • Intel Core i7-1255U with 10 cores reaches 4.70 GHz
  • 32 GB DDR5 4800 MHz memory handles heavy workloads
  • 512 GB NVMe SSD plus dual M.2 slots for storage growth
  • 9–36 V DC input with reverse-polarity protection suits industrial power

Industrial 15 inch IP65 Panel PC

The Partaker A20 is a fanless all-in-one computer built around a 15 inch 4:3 resistive touch display rated IP65 at the front. An Intel Core i7-1255U processor with 10 cores and 12 threads runs up to 4.70 GHz inside a sealed aluminium and steel chassis. It ships with Windows 11 Pro, 32 GB of DDR5 memory and a 512 GB NVMe drive.

Suited for machine interfaces and harsh environments

Engineers who need six serial ports, three independent LAN connections and isolated GPIO for PLC integration will find the I/O complement ready for factory automation. The 9 to 36 V DC input with reverse polarity protection suits mobile or cabinet power. Buyers who require a projected capacitive screen, a larger display diagonal or active cooling should look elsewhere.

Sustained load on a fanless design

Passive cooling across the full chassis surface keeps the CPU at operating temperature during continuous duty without moving parts. The 350 cd/m² panel remains readable in bright ambient light while the resistive layer works with gloves or stylus. TPM 2.0, watchdog timer and Wake-on-LAN support unattended 24/7 operation.

Istaknuto

  • IP65 front panel resists water and dust ingress
  • Intel Core i7-1255U with 10 cores reaches 4.70 GHz
  • 32 GB DDR5 4800 MHz memory handles heavy workloads
  • 512 GB NVMe SSD plus dual M.2 slots for storage growth
  • 9–36 V DC input with reverse-polarity protection suits industrial power

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

What power supply do I need for the 9-36V DC input?

A DC source between 9 and 36 volts with a 2-pin phoenix connector, reverse-polarity protected.

Can I keep using my RS-485 devices on COM3 and COM4?

Yes, COM3 and COM4 are configurable as RS232 or RS485 to match legacy equipment.

How do I confirm the watchdog timer is running after setup?

Enable the WDT in BIOS (0-255 level); the system will reset automatically if the timer expires.
