Black metal desktop switch with eight Ethernet ports and status LEDs

TRENDnet

TRENDnet TPE-TG80G 8-Port Gigabit PoE+ Network Switch 123W

SKU CH-0KYB-CTX07 MPN TPE-TG80G

Eight-port Gigabit PoE+ desktop switch delivers 123 W power budget and 16 Gbps switching capacity in a fanless metal case

  • FormatDesktop
  • StandardsIEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000
  • Network Management TypeUnmanaged
  • Uplink PortsNone

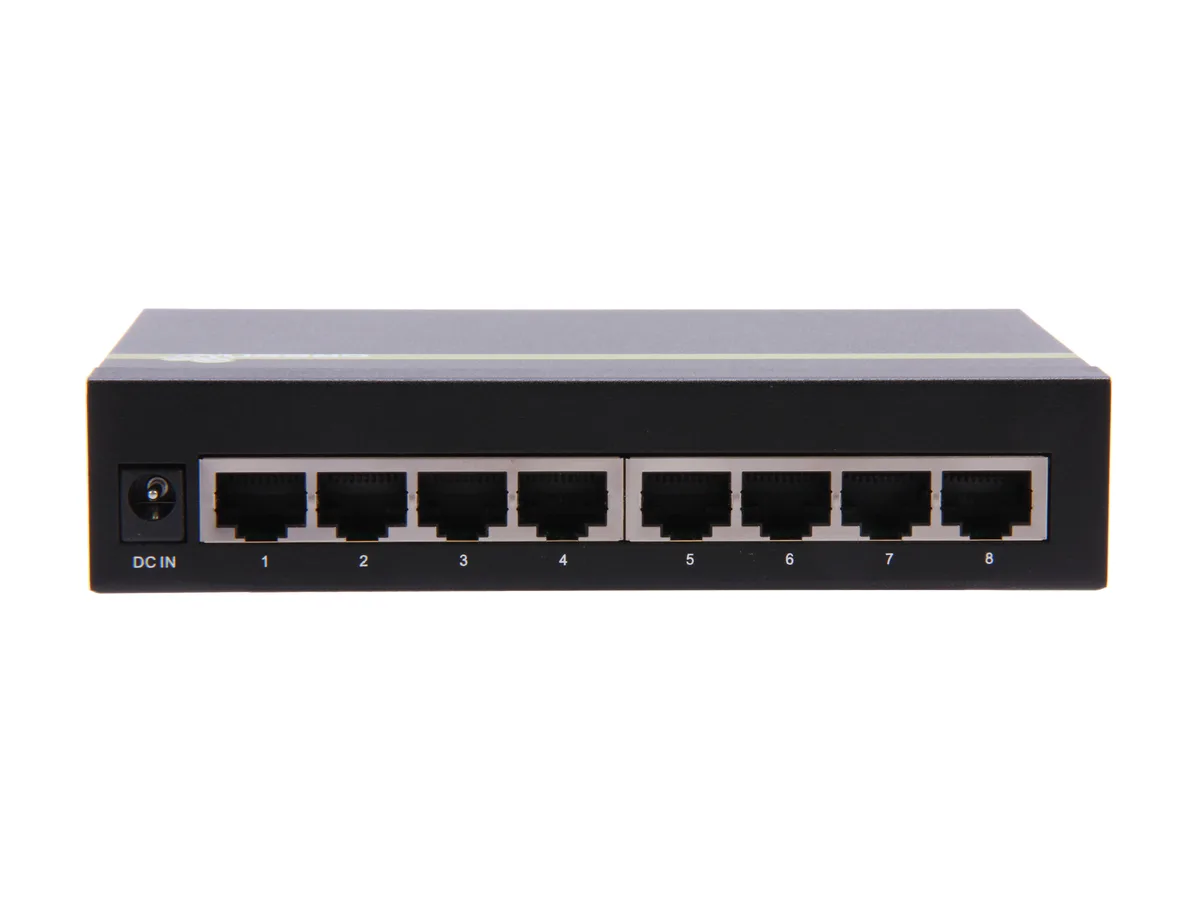

  • Primary Ports8 x Gigabit PoE/PoE+ port
  • Primary Port Speed10/100/1000Mbps

Model TPE-TG80g

Lihat 4 konfigurasi lagi

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • Powers eight PoE+ devices with a 123 W budget
  • Delivers up to 30 W per port for cameras or access points
  • Fanless metal chassis runs silently in quiet spaces
  • 16 Gbps switching capacity handles high-throughput edge traffic
  • Plug-and-play unmanaged operation needs no configuration

8-Port Gigabit PoE+ Desktop Switch

The TRENDnet TPE-TG80G is an unmanaged desktop switch with eight Gigabit PoE+ ports and a 123 W PoE power budget. It supports IEEE 802.3at and 802.3af standards, delivering up to 30 W per port for devices such as IP cameras, wireless access points or VoIP phones. A 16 Gbps switching capacity handles traffic across all ports. Sturdy metal housing and fanless design suit quiet office or home environments.

Upgrade from Non-PoE or Lower-Budget Switches

This switch replaces a standard non-PoE switch or an older PoE model with a smaller power budget when you need to power multiple devices over Ethernet cables. The jump is worth it if your current infrastructure cannot supply 30 W per port across eight ports simultaneously. It also adds IEEE 802.3az Energy Efficient Ethernet for reduced power draw during low-traffic periods. Plug-and-play operation removes the need for configuration software.

Check Power Requirements and Port Count

Verify that the total power draw of your PoE devices stays within the 123 W budget before ordering. Confirm that eight Gigabit ports match your current and near-term port needs, as the switch has no uplink ports and cannot be stacked. Ensure the external 52 VDC power adapter can reach a 100-240 V AC outlet. The fanless metal chassis requires adequate airflow around its 5.6" x 3.7" x 1.2" footprint.

Ciri-ciri utama

  • Powers eight PoE+ devices with a 123 W budget
  • Delivers up to 30 W per port for cameras or access points
  • Fanless metal chassis runs silently in quiet spaces
  • 16 Gbps switching capacity handles high-throughput edge traffic
  • Plug-and-play unmanaged operation needs no configuration

Spesifikasi

BrandTRENDnet
ModelTPE-TG80G
FormatDesktop
StandardsIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3X Flow Control
IEEE 802.3az Energy Efficient Ethernet
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports8 x Gigabit PoE/PoE+ port
Primary Port Speed10/100/1000Mbps
MAC Address Table1K
Switching MethodStore and Forward
Jumbo FramesUp to 9K
Buffer Memory96 Kbytes
ProtocolsTCP/IP
PoEYes
StackableNo
QoSNo
LayerLayer 2 Only

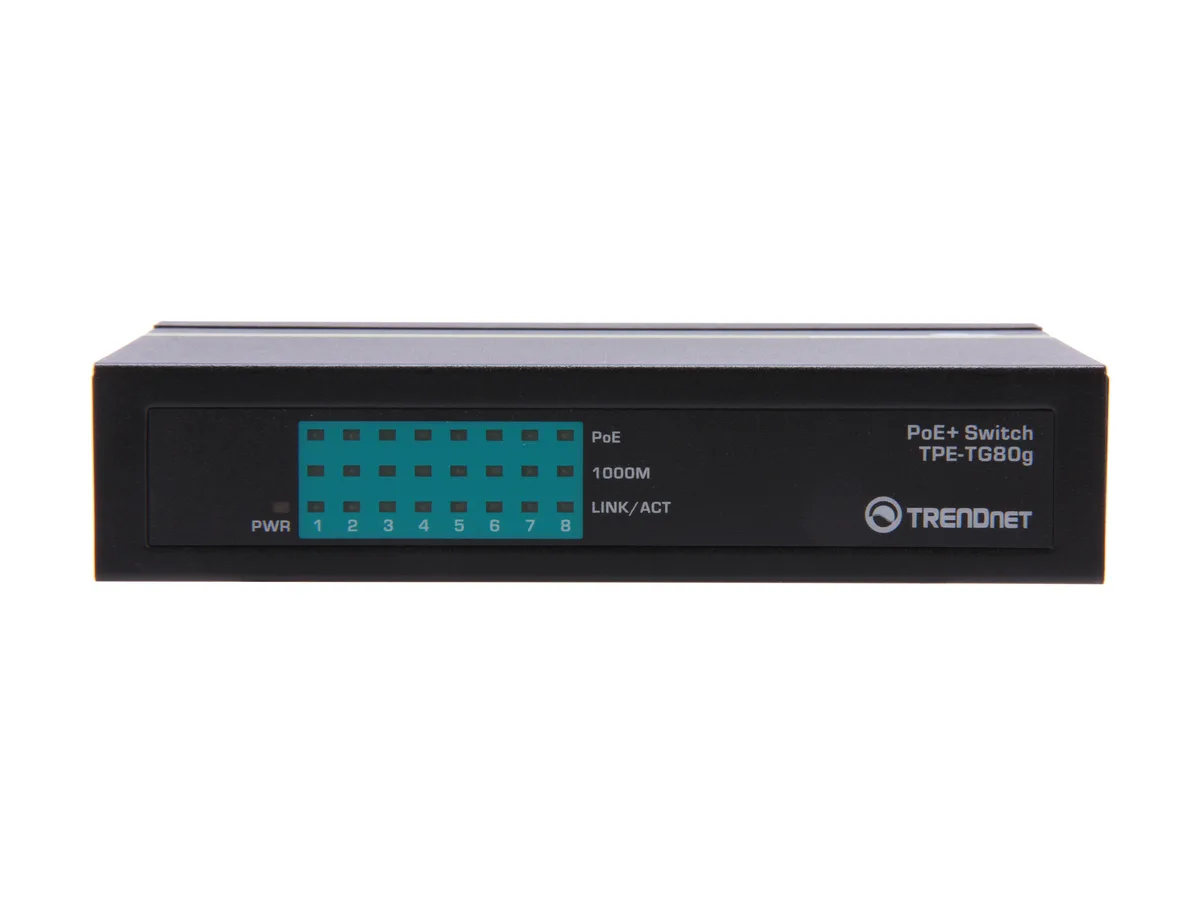

LEDsPower, PoE, 1000 Mbps, Link/Activity
PowerInput: 100-240V 50/60 Hz, 2.1A
Output: 52VDC, 2.31A External Power Adapter
Dimensions5.6" x 3.7" x 1.2"
Weight14 oz.
Temperature0°C to 40°C (32°F to 104°F)
Humidity90% Maximum, Non-condensing
FeaturesSwitch Fabric: 16 Gbps
Power over Ethernet:
Up to 15.4 watts for PoE
Up to 30 watts for PoE+
PoE: pin 3, 6 for power+ and pin 1, 2 for power- (mode A)
Power saving technology powers down unused ports and when a connected device is in standby mode
Plug and Play
Sturdy metal case

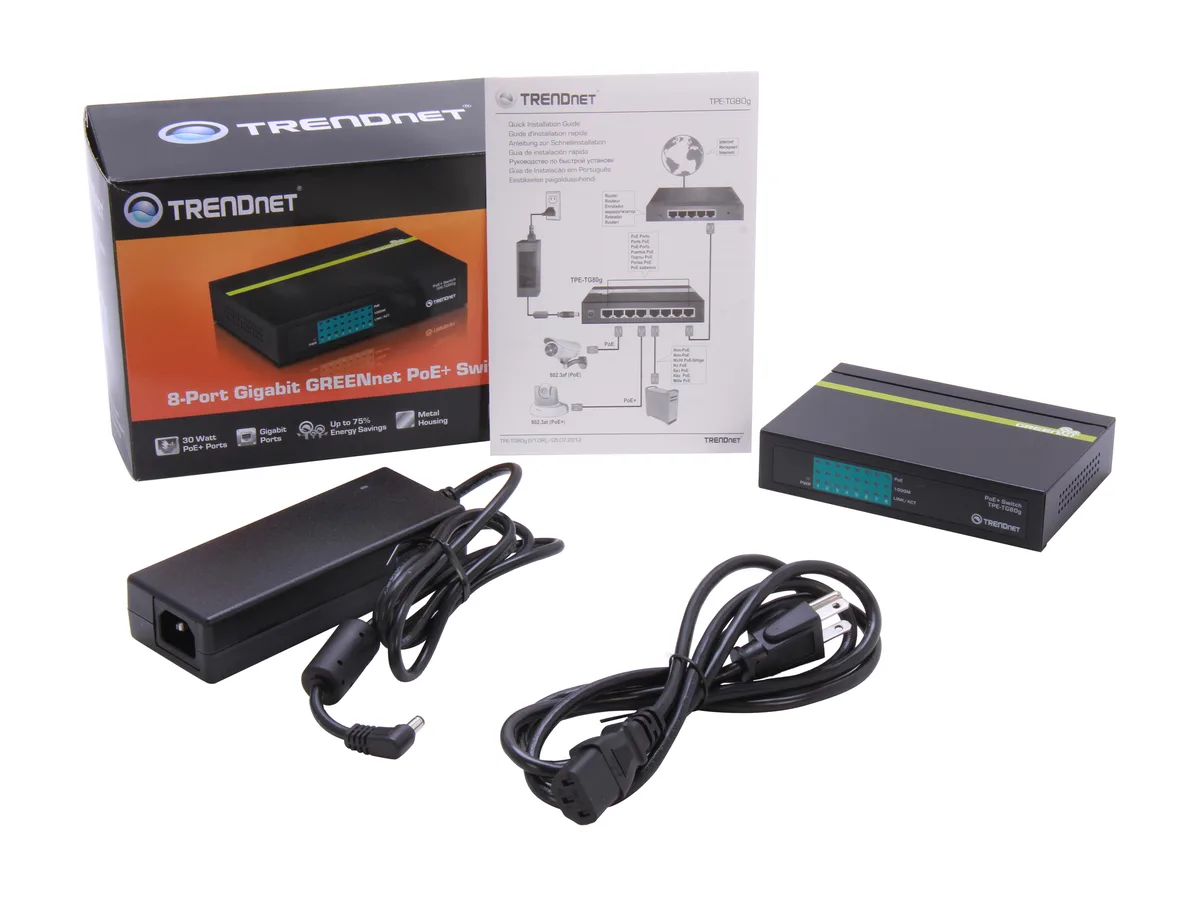

Package ContentsTPE-TG80g
Quick Installation Guide
Power Adapter (52V DC, 2.31A)
Berat penghantaran1.18 kg
Dimensi bungkusan254 × 173 × 76 mm

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What are the exact dimensions of the TPE-TG80G so I can check it fits on my desk?

The switch measures 5.6 inches wide, 3.7 inches deep and 1.2 inches high, with a compact metal housing designed for desktop placement.

How do I install this unmanaged PoE+ switch and what is the common mistake to avoid?

Connect the external 52 VDC 2.31 A power adapter to a 100–240 V outlet, then plug devices into the eight Gigabit PoE+ ports; the frequent error is exceeding the 123 W total PoE budget across all ports.

Which parts of the TPE-TG80G are most likely to need replacement over time?

The external power adapter is the only field-replaceable component; the fanless metal chassis and internal switching electronics have no moving parts or user-serviceable items.
