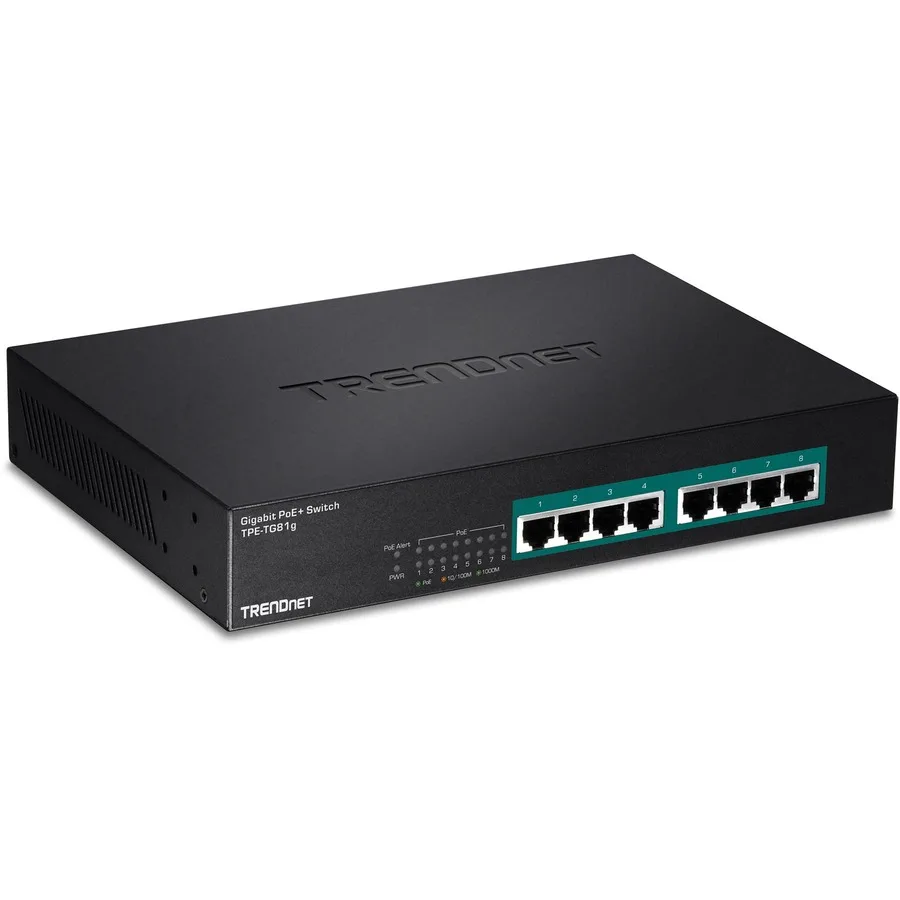

A black metal rackmount switch with eight RJ45 ports and status LEDs on the front

TRENDnet

TRENDnet TPE-TG81g 8-Port Gigabit PoE+ network switch

SKU CH-VC6X-Q5RQQ MPN TPE-TG81g

Eight-port Gigabit PoE+ switch supplies up to 30W per port with a 110W total power budget in a fanless rackmount metal case

  • FormatRackmount
  • StandardsIEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000
  • Network Management TypeNetwork - Switches
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table2K

Model TPE-TG81g

Lihat 4 konfigurasi lagi

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • 8 Gigabit PoE+ ports power devices up to 30 W each
  • 110 W total PoE budget runs multiple high-power devices simultaneously
  • Fanless metal chassis delivers silent operation in any environment
  • 16 Gbps switching fabric handles heavy traffic without congestion
  • GREENnet technology cuts power draw by up to 75 % when idle

8-Port Gigabit PoE+ Switch

The TRENDnet TPE-TG81g is an unmanaged network switch designed for small business or branch-office deployments. It combines eight Gigabit RJ45 ports with Power over Ethernet Plus so that access points, IP cameras and VoIP phones receive both data and power over a single cable. A fanless metal chassis allows silent operation in noise-sensitive environments.

110 W PoE+ Power Budget

The switch delivers up to 30 W per port while the total PoE budget is capped at 110 W. Auto-sensing IEEE 802.3at and 802.3af compliance means higher-power devices draw 30 W, standard PoE devices draw 15 W, and non-PoE gear receives data only. This budget dictates how many powered endpoints can run simultaneously.

Three Full-Power PoE+ Devices

With the 110 W budget the switch comfortably handles three 30 W PoE+ devices such as PTZ cameras or high-power wireless access points. Connecting a fourth 30 W device would exceed the limit, so deployments needing more simultaneous high-power ports require a switch with a larger budget. Lower-power 15 W devices can fill the remaining ports up to the same ceiling.

Ciri-ciri utama

  • 8 Gigabit PoE+ ports power devices up to 30 W each
  • 110 W total PoE budget runs multiple high-power devices simultaneously
  • Fanless metal chassis delivers silent operation in any environment
  • 16 Gbps switching fabric handles heavy traffic without congestion
  • GREENnet technology cuts power draw by up to 75 % when idle

Spesifikasi

BrandTRENDnet
ModelTPE-TG81g
FormatRackmount
StandardsIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet
Network Management TypeNetwork - Switches
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table2K
Switching MethodStore and Forward
Jumbo FramesYes
Buffer Memory96 Kbytes
ProtocolsTCP/IP
PoEYes
LEDsPower, PoE, Link / Activity
PowerInternal power supply: 90-260 V, 50/60 Hz, 1 A
Power Consumption:
Min: 8 Watts (standby)
Max: 122 Watts
PoE Max: 105 Watts (7 x 15 watts PoE devices connected or 3 x 30 Watts PoE+ devices connected)
Power over Ethernet:
Up to 15.4 watts for PoE
Up to 30 watts for PoE+
PoE: pin 3,6 for power+ and pin 1,2 for power- (mode A)
Dimensions10.5" x 6.3" x 1.7"
Weight3 lbs.
Temperature0°C to 45°C (32°F to 113°F)
Humidity90% Maximum, Non-condensing
FeaturesForwarding Rate: Gigabit / 1,488,000 pps, 100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
Switch Fabric: 16 Gbps
8 x Gigabit PoE+ ports (up to 30 watts per PoE+ port)
Reduces equipment cost by delivering data and power over existing network cables
Sturdy rack mountable metal case
Up to 75% GREENnet power savings
Jumbo Frame support up to 9 Kbytes
Plug and Play.
Package ContentsTPE-TG81g
Quick Installation Guide
Power Cord
Rack mount brackets
Berat penghantaran2.02 kg
Dimensi bungkusan335 × 241 × 74 mm

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

How many PoE+ devices can run at the full 30 W per port with the 110 W total power budget?

Up to three PoE+ devices can draw 30 W each; the remaining ports supply up to 15 W for standard PoE or data only.

Which IEEE standards limit the maximum speed and power delivery on the eight RJ45 ports?

The ports comply with IEEE 802.3ab for 1000 Mbps data and IEEE 802.3at for up to 30 W PoE+ per port.

What are the physical dimensions and weight for rack mounting this switch?

The metal chassis measures 10.5" x 6.3" x 1.7" and weighs 3 lbs, fitting a standard rack shelf or brackets.
