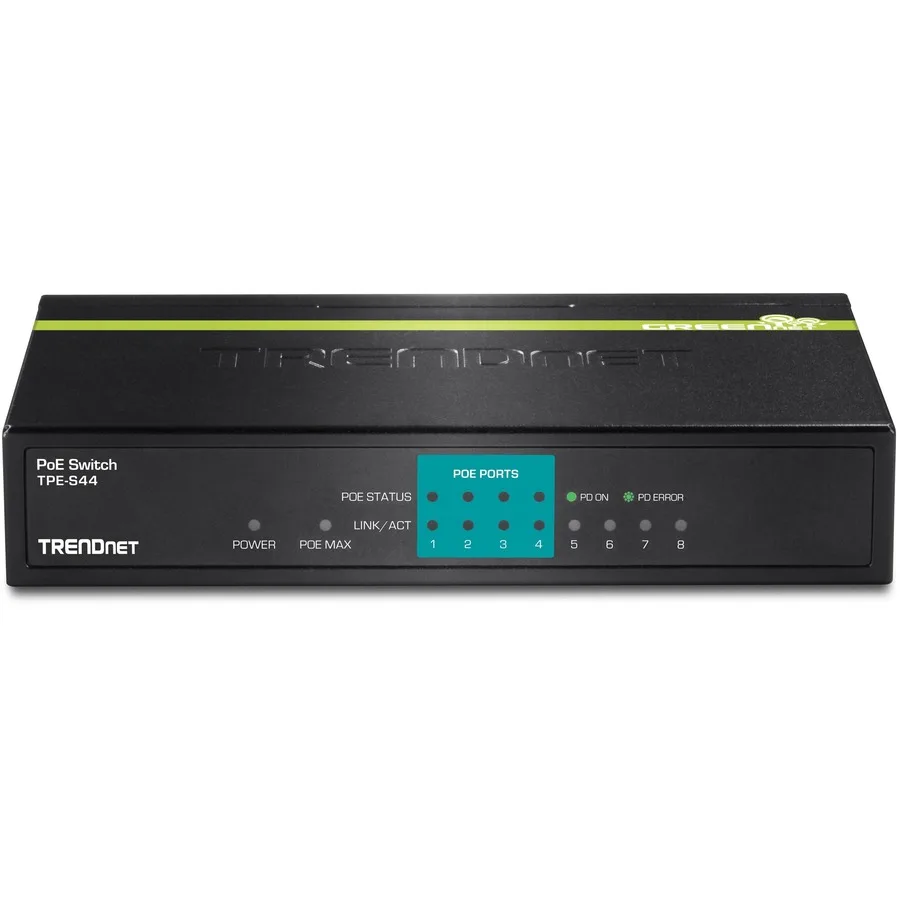

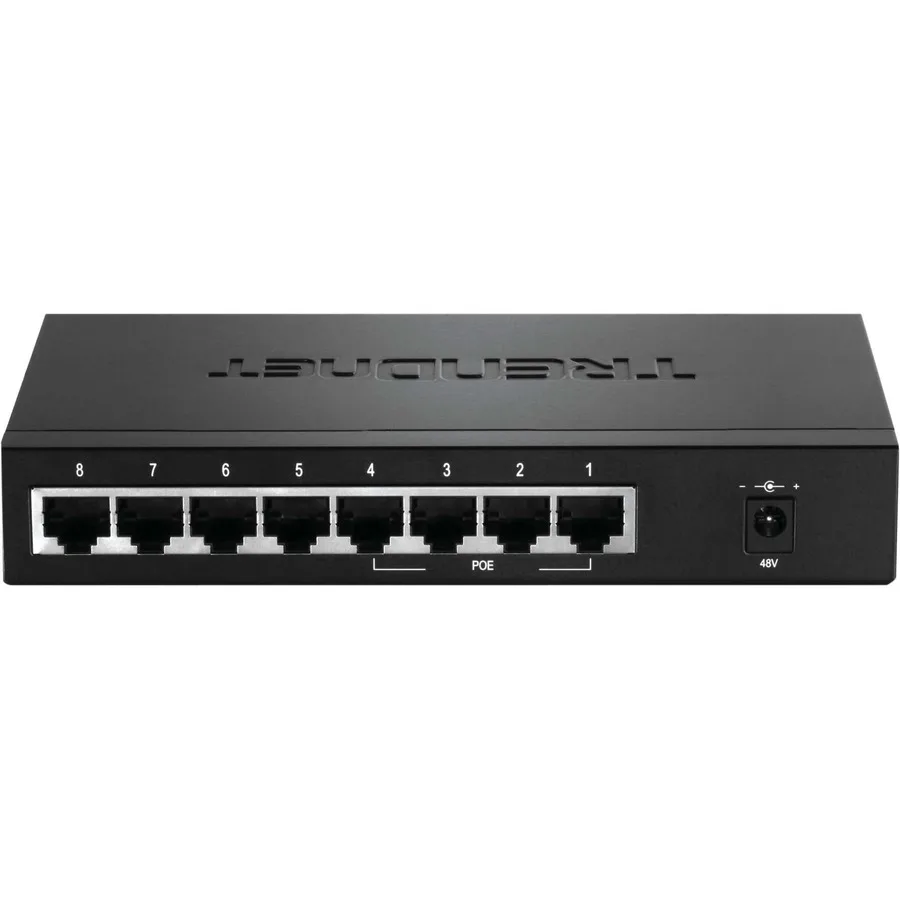

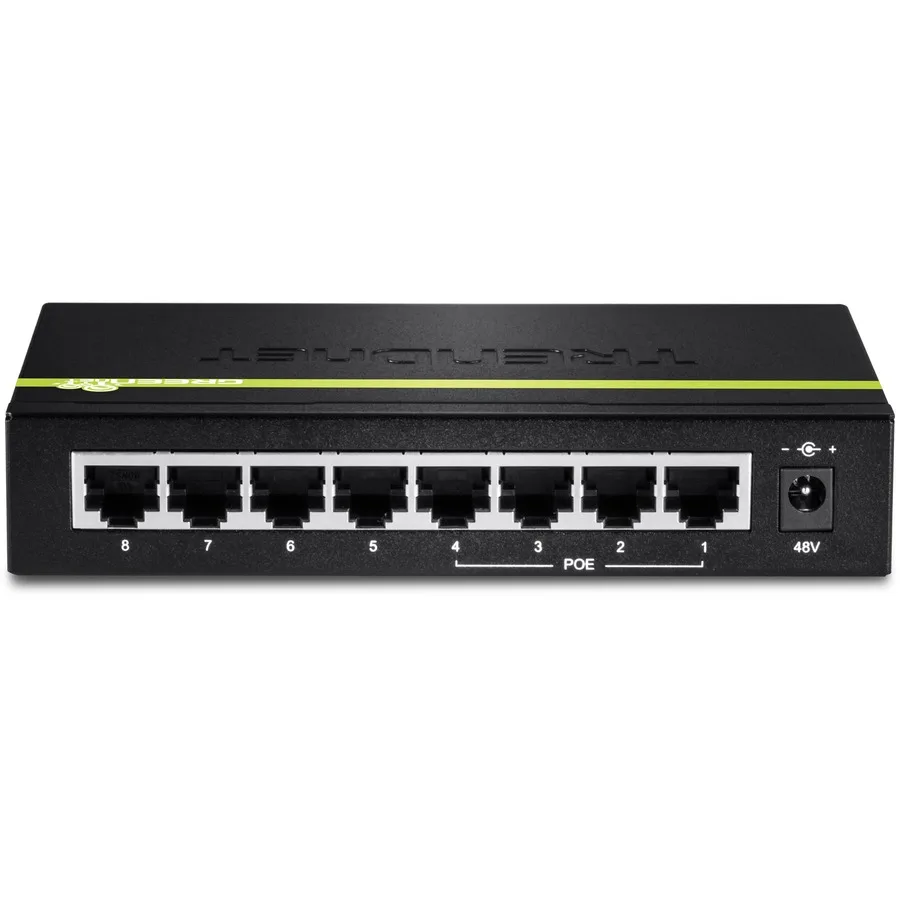

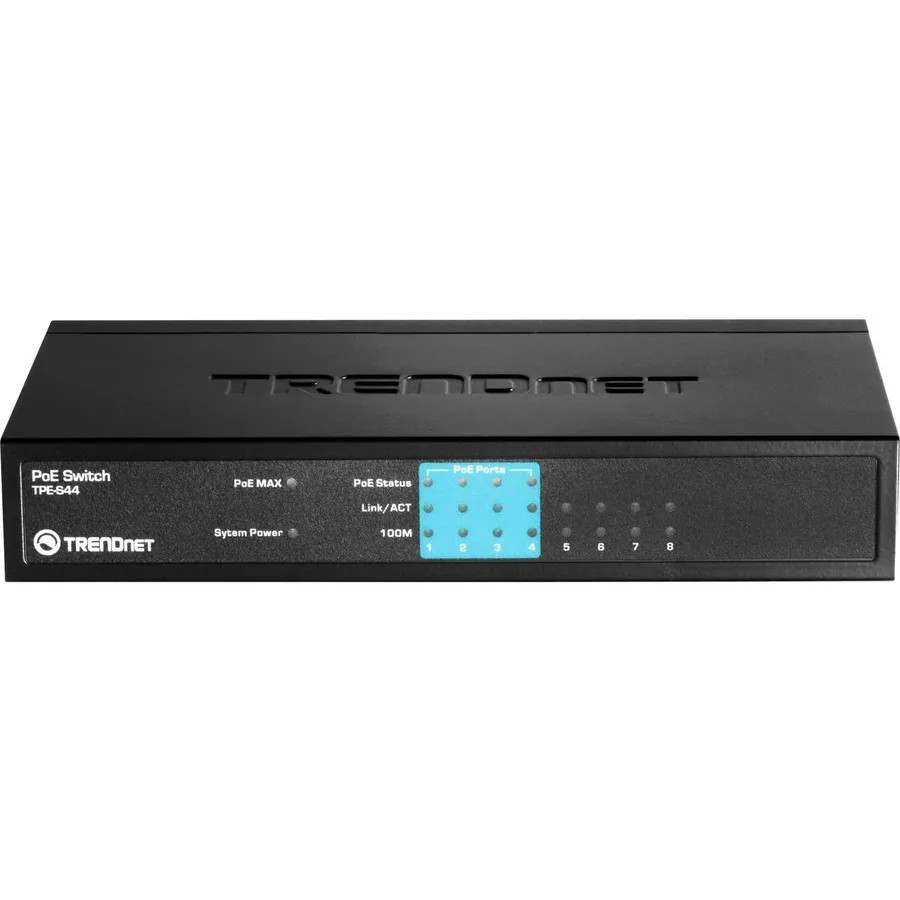

Black metal box with eight RJ45 ports and status LEDs

TRENDnet

TRENDnet TPE-S44 8-port 10/100 PoE switch 4 PoE 30W 1.6Gbps

SKU CH-889Q-6NQRJ MPN TPE-S44

An 8-port 10/100 unmanaged switch with four PoE ports delivering up to 30 W total power budget and 1.6 Gbps switching capacity

  • FormatExternal
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3af
  • Network Management TypeUnmanaged
  • Uplink PortsNone
  • Primary Ports4 x 10/100Mbps Auto-MDIX POE Ports (1~4) 4 x 10/100Mbps Auto
  • Primary Port Speed10/100Mbps

Model TPE-S44

Lihat 4 konfigurasi lagi

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • Powers four devices with 30 W PoE budget
  • Eight Fast Ethernet ports at 10/100 Mbps speed
  • 6 Gbps switching capacity handles traffic
  • Unmanaged plug-and-play setup needs no configuration
  • Sturdy metal housing protects internal components

8-port 10/100 PoE switch

The TRENDnet TPE-S44 is an unmanaged Layer 2 switch with eight Fast Ethernet ports. Four ports deliver Power over Ethernet to compatible devices such as IP cameras or wireless access points. A 30 W total power budget is shared across the PoE ports. The metal enclosure supports plug-and-play deployment without configuration.

Suits small PoE deployments, not managed networks

This switch fits installations that need a few powered ports and simple connectivity. It lacks uplink ports, SNMP, QoS, LACP and port mirroring, so administrators who require traffic prioritisation, link aggregation or remote monitoring should consider a managed alternative. Jumbo frames are not supported.

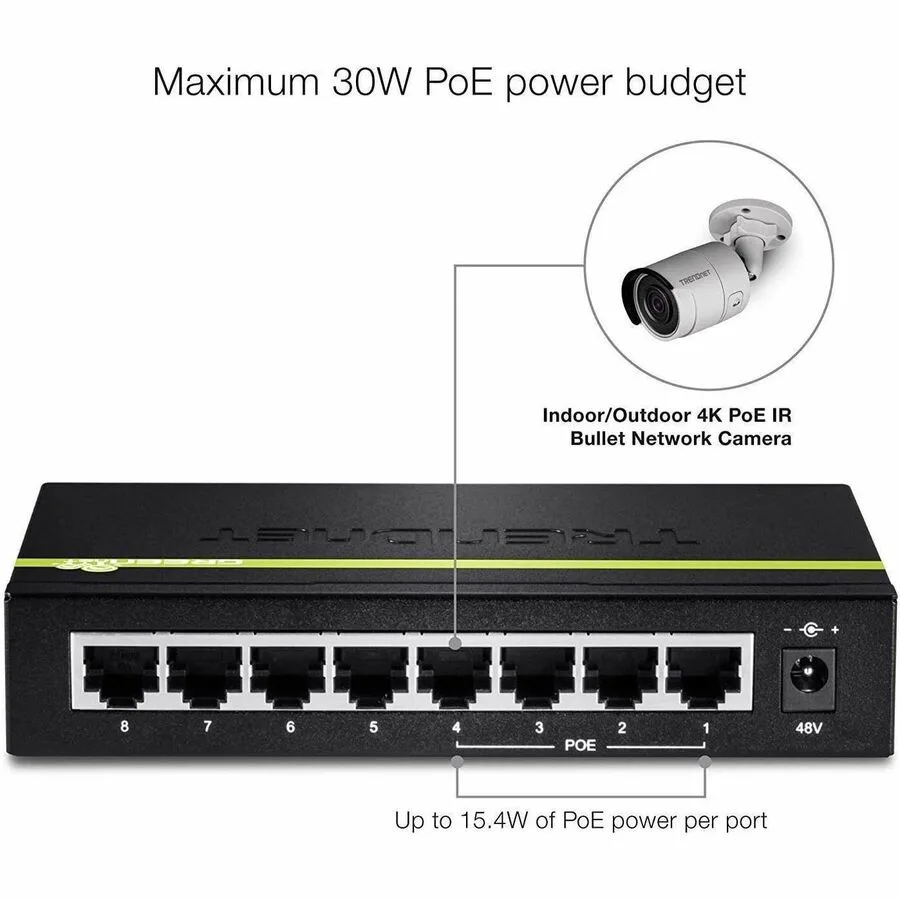

30 W budget and 1.6 Gbps switching capacity

The 30 W PoE budget comfortably handles several Class 3 devices but will not power multiple high-draw units simultaneously. Switching capacity of 1.6 Gbps provides adequate headroom for typical 10/100 Mbps traffic loads. All ports operate at Fast Ethernet speeds using Cat 5 or better cabling.

Ciri-ciri utama

  • Powers four devices with 30 W PoE budget
  • Eight Fast Ethernet ports at 10/100 Mbps speed
  • 6 Gbps switching capacity handles traffic
  • Unmanaged plug-and-play setup needs no configuration
  • Sturdy metal housing protects internal components

Spesifikasi

BrandTRENDnet
ModelTPE-S44
FormatExternal
StandardsIEEE802.3, IEEE802.3u, IEEE802.3af
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports4 x 10/100Mbps Auto-MDIX POE Ports (1~4)
4 x 10/100Mbps Auto-MDIX Fast Ethernet Ports (5 ~8)
Primary Port Speed10/100Mbps
Switching MethodStore and Forward
Jumbo FramesNo
ProtocolsCSMA/CD
PoEYes
StackableNo
SNMPNo
QoSNo
LACPNo
LayerLayer 2 Only
Port MirroringNo
Module SupportNo
Cabling10Mbps: Cat 3,4,5 Unshielded Cable
100Mbps: Cat 5, 5E, 6 Unshielded Cable
TopologyStar
LEDsPer Unit: Power, Power MAX
Per Port: Link/Activity, Speed
PoE: PoE Status, Link/Activity, Speed
Power48V DC 0.8A External Power Adapter
6.3 watts max (no PD Device connected)
36.3 watts max (with 30w PoE Device connected)
Dimensions6.7" x 3.7" x 1.1"
Weight13.8 oz.
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesPower over Ethernet:
Up to 15.4 watts per Port; PD classification Identify
PoE Over Current Protection; PoE Circuit Sorting Protection
PoE Power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power
IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
Built-in 4 PoE Ports (Port 1 ~ Port 4)
Supports PoE Power Maximum 15.4 watts for each POE port
Supports PoE Powered Device(PD) classification identify
Full Wire-Speed Non-Blocking Reception and Transmission
96Kbytes RAM Data Buffer and 1K entries MAC Address Table
E
Package ContentsTPE-S44
USB Extension Cable
Driver Disk
Berat penghantaran0.91 kg
Dimensi bungkusan290 × 246 × 66 mm

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What type of Ethernet cable is required to use the 100Mbps ports on the TPE-S44?

The 100Mbps ports require Cat 5, 5E or 6 unshielded cable for proper operation.

Can the TPE-S44 pass traffic to a legacy 10Mbps device connected to one of its ports?

Yes, the switch supports 10Mbps operation using Cat 3, 4 or 5 unshielded cable on any port.

How can I verify that a powered device is receiving PoE from ports 1 to 4 on the TPE-S44?

Connect the device to ports 1 through 4; if it powers on and establishes a network link, PoE is being delivered within the 30W total budget.
