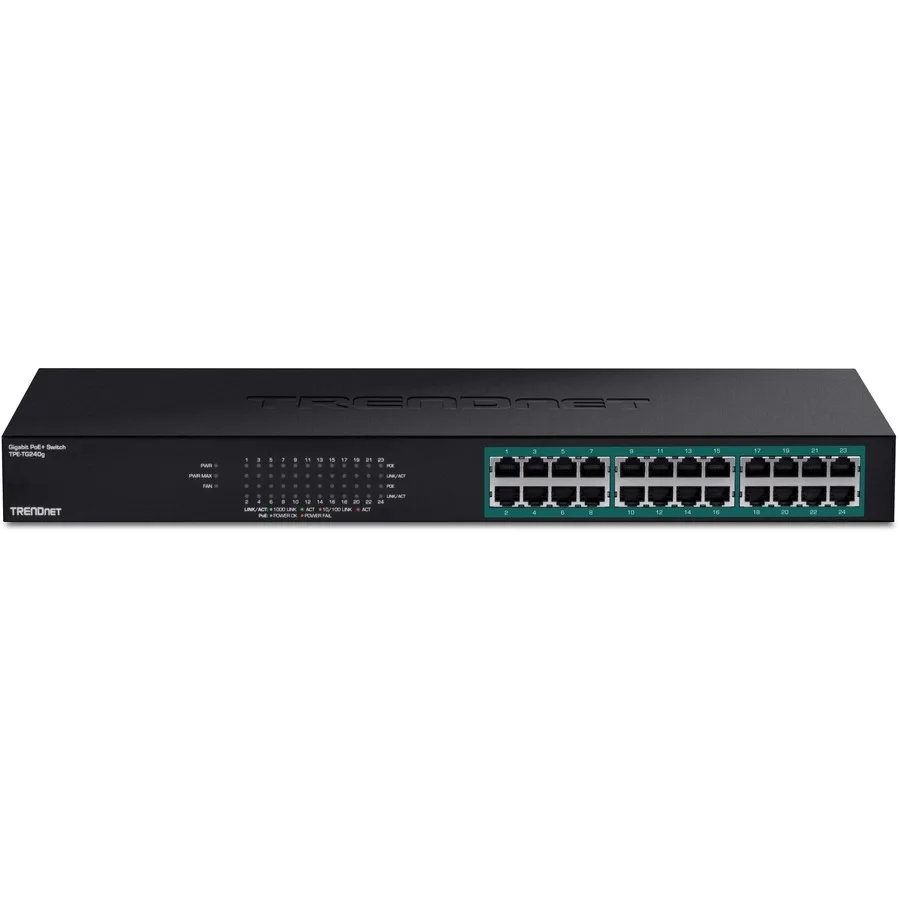

Black metal 1U rackmount switch with 24 front ports and included brackets

TRENDnet

TRENDnet TPE-TG240g 24-Port Gigabit PoE+ network switch 370W

SKU CH-C13K-RT4JG MPN TPE-TG240g

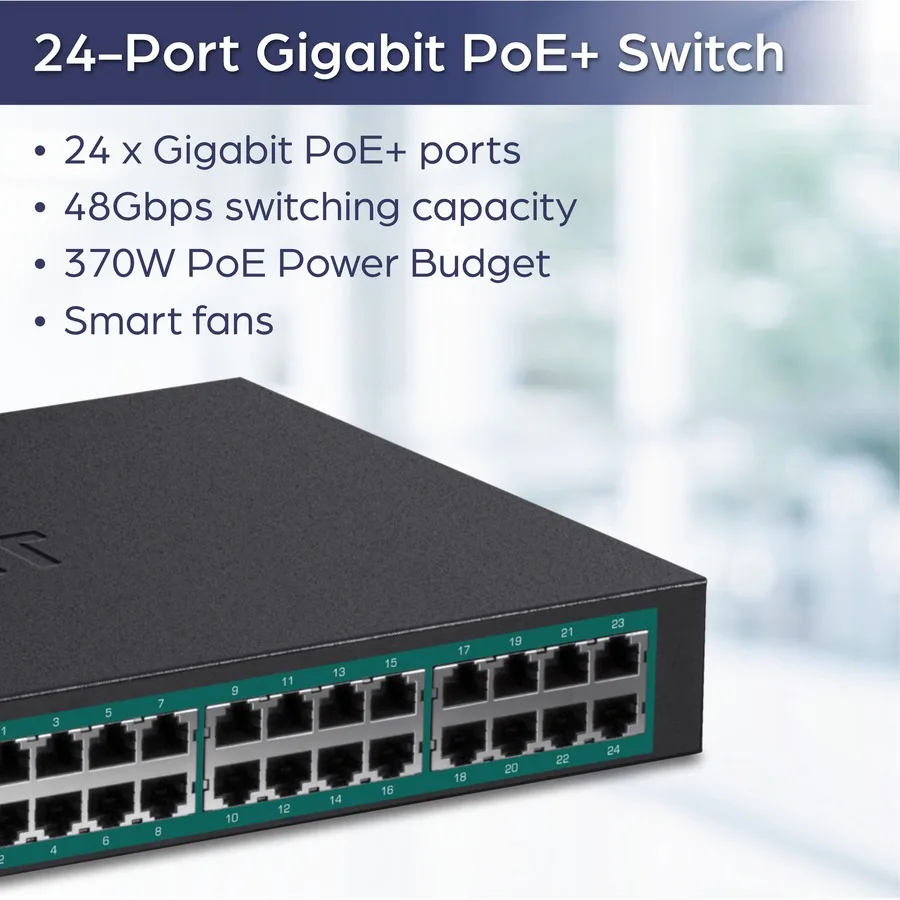

A 24-port Gigabit PoE+ switch delivers up to 30W per port with a 370W total power budget and 48Gbps switching capacity in a 1U rack-mount metal housing

  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af
  • Primary Ports24 x Gigabit PoE/PoE+ ports
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast
  • MAC Address Table8K
  • Jumbo Frames10KB
  • Buffer Memory512 KB

Model TPE-TG240g

Lihat 4 konfigurasi lagi
  • TPE-TG182
  • TPE-TG182F
  • TPE-TG262
  • TPE-S44

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • 24 Gigabit PoE+ ports power cameras and phones over one cable
  • 370 W total PoE budget supports many high-power devices at once
  • 48 Gbps switching capacity moves data without bottlenecks
  • 1U metal chassis with included brackets fits standard 19-inch racks
  • Internal 110–240 V supply runs cool with smart fans

24-Port Gigabit PoE+ Switch for Installers

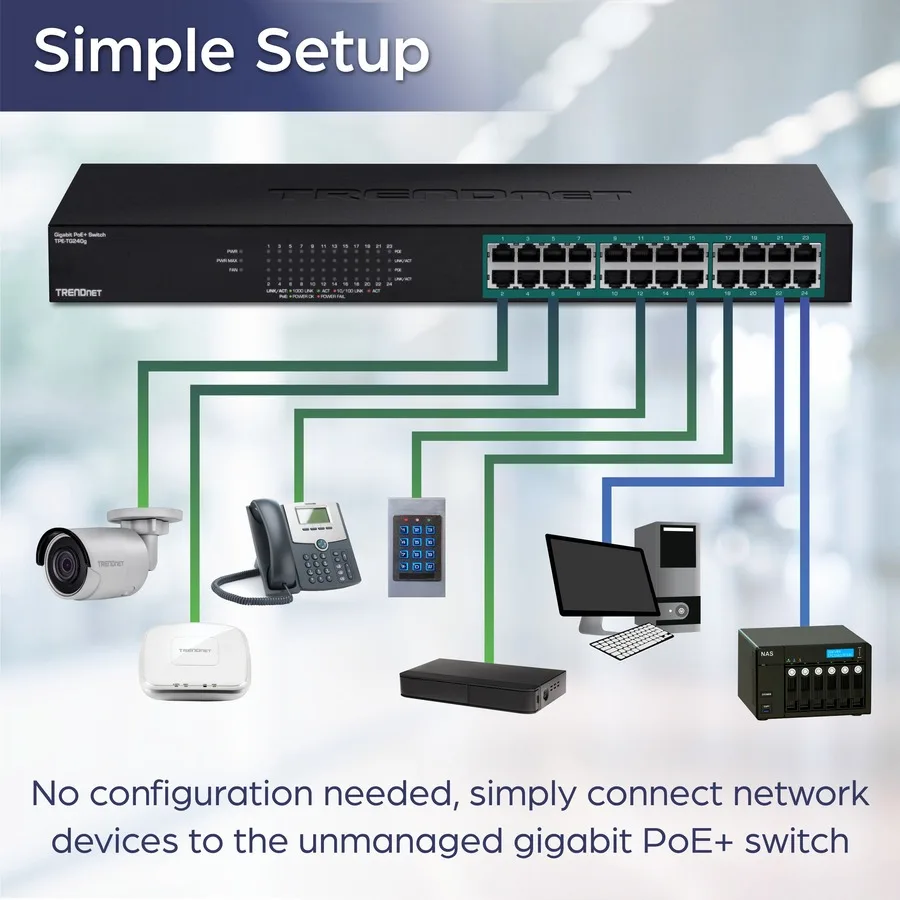

The TRENDnet TPE-TG240g is an unmanaged switch built for installers and integrators who need to power and connect up to twenty-four PoE devices over existing Ethernet cables. It delivers data and up to 30W per port from a total 370W power budget. A 48Gbps switching capacity handles the combined traffic. The 1U metal housing fits a standard 19-inch rack.

Rack Mount Kit and Internal Power Supply

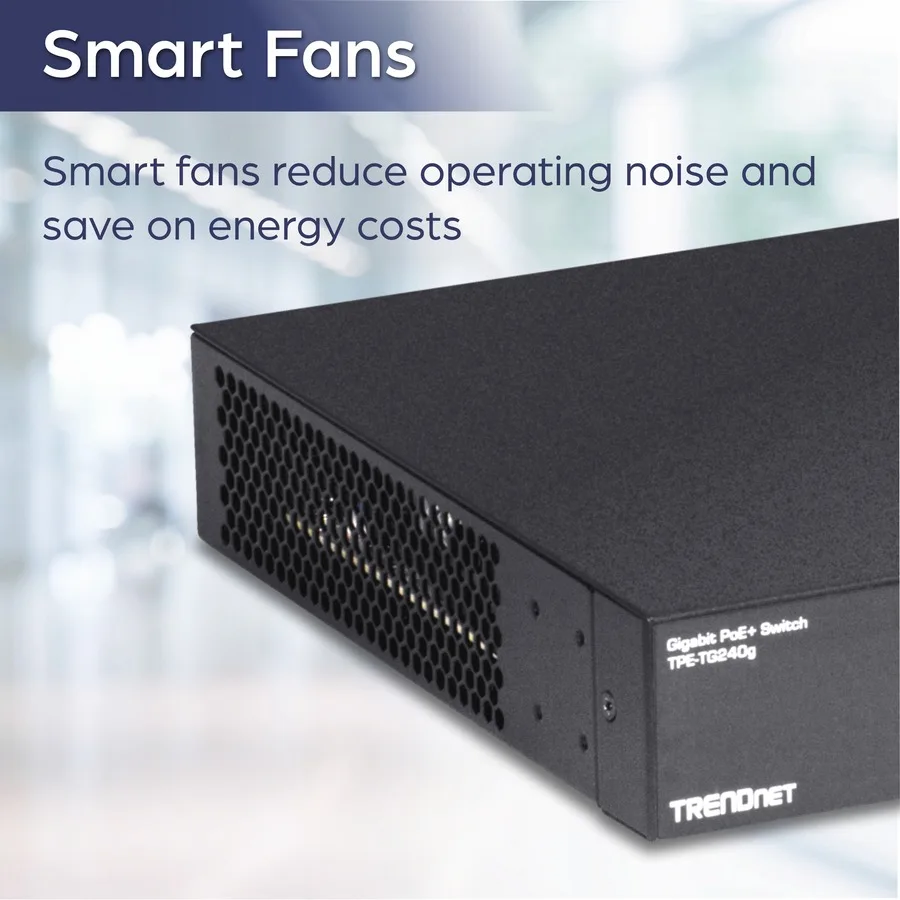

The package includes rack-mount brackets so the unit can be secured in a cabinet immediately. An internal power supply accepts 110-240 V AC input without an external brick. A quick installation guide and power cord complete the bundle. Smart fans adjust airflow automatically to keep the chassis within its 0°C to 40°C operating range.

IEEE 802.3af/at Power Limits

Each port complies with IEEE 802.3af and 802.3at, capping per-port output at 30W. The 370W total budget means not every port can run at maximum simultaneously; deployments with many high-power devices must stay within the aggregate limit. Jumbo frames up to 10KB and an 8K MAC address table support larger packets and device counts, while 512KB of buffer memory absorbs bursts.

Ciri-ciri utama

  • 24 Gigabit PoE+ ports power cameras and phones over one cable
  • 370 W total PoE budget supports many high-power devices at once
  • 48 Gbps switching capacity moves data without bottlenecks
  • 1U metal chassis with included brackets fits standard 19-inch racks
  • Internal 110–240 V supply runs cool with smart fans

Spesifikasi

BrandTRENDnet
ModelTPE-TG240g
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
Primary Ports24 x Gigabit PoE/PoE+ ports
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
MAC Address Table8K
Jumbo Frames10KB
Buffer Memory512 KB
ProtocolsTCP/IP
PoEYes
PowerInput: 110-240 V AC, 50/60 Hz, 0.75 A
Consumption: 36 Watts (Max. without PD)
Dimensions1.70" x 9.80" x 17.30"(H x W x D)
Weight8.00 lbs.
Temperature0°C to 40°C (32°F to 104°F)
Humidity90% Maximum, Non-condensing
Features24 x Gigabit PoE+ ports
370 Watts total power budget
48 Gbps switching capacity
Sturdy metal switch
Rack mount brackets included
Package ContentsTPE-TG240g
Quick Installation Guide
Rack mount kit
Power cord
Berat penghantaran4.81 kg
Dimensi bungkusan528 × 318 × 97 mm

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

Will the internal power supply or fans need replacement after a few years of 24/7 operation?

The switch uses an internal power supply and smart fans; no user-serviceable parts are listed, so plan for whole-unit replacement if a fan or PSU fails.

At what point does the 370 W PoE budget become the bottleneck when all 24 ports are active?

With a 370 W budget and up to 30 W per port, the budget limits you to roughly 12 ports at full 30 W before you must reduce power on remaining ports.

How loud are the smart fans and how much heat does the unit add to a closed rack running all day?

The smart fans adjust speed to temperature; maximum draw without powered devices is 36 W, so heat output stays modest in a ventilated 1 U rack space.
