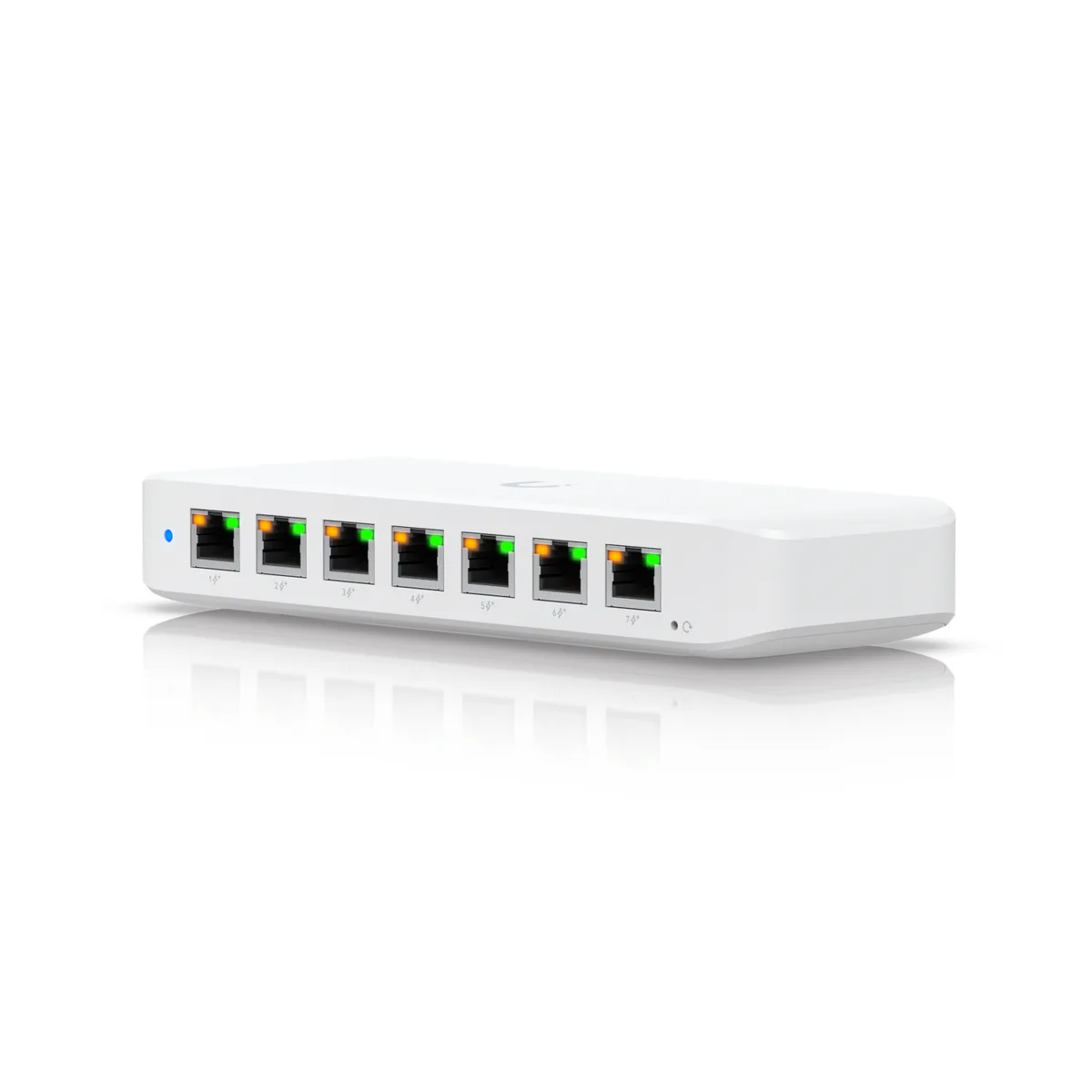

Compact white desktop switch with eight RJ45 ports and included power adapter

Ubiquiti Networks

Ubiquiti Networks USW-ULTRA-210W 8-port GbE PoE switch server power supply

SKU CH-8CSA-8FQD2 MPN USW-ULTRA-210W

An 8-port GbE PoE switch delivering 202 W of PoE power with Layer 2 features and desktop or wall mounting

  • FormatDesktop
  • Network Management TypeUnmanaged
  • Primary Ports(8) GbE RJ45 ports
  • Primary Port SpeedTotal non-blocking throughput 8 Gbps Switching capacity 16 G
  • PoE(7) PoE/PoE+ (Pins 1, 2+; 3, 6-) (1) PoE++ (Pair A 1, 2+; 3,
  • LayerLayer 2 features STP / RSTP with priorities and port-level d

Model Ultra 210W

Vis 1 flere konfigurasjoner

Overstrøkne versjoner finnes, men er ikke på lager her.

  • Compact 8-port GbE switch fits tight spaces with 203 x 76 x 33 mm desktop form factor
  • Seven PoE+ ports power access points or cameras using 202W total PoE budget
  • One PoE++ port accepts 60W or 90W input for flexible uplink power options
  • Layer 2 management adds STP, VLAN isolation and storm control for reliable traffic handling
  • Wide operating range from -30 to 60 °C suits harsh environments with included 210W adapter

Compact 8-port PoE switch

The Ubiquiti USW-ULTRA-210W is an unmanaged Layer 2 switch with eight GbE RJ45 ports in a desktop form factor. It supplies PoE+ on seven ports and accepts PoE++ input on the eighth, making it suited for small networks powering access points, cameras or VoIP phones.

Sustained 202 W PoE budget

The included 54 V 3.9 A adapter delivers 202 W of total PoE power for continuous operation across all powered ports. Non-blocking throughput reaches 8 Gbps with a 16 Gbps switching capacity, so every port can run at line rate without head-of-line blocking during extended loads.

Silent fanless operation

The unit has no moving parts and runs from -20 °C to 60 °C with the 210 W adapter, or -30 °C to 60 °C when powered via PoE++. Power draw stays within the adapter rating, and the compact 203 x 76 x 33 mm enclosure mounts on a desk or wall without audible noise.

Høydepunkter

  • Compact 8-port GbE switch fits tight spaces with 203 x 76 x 33 mm desktop form factor
  • Seven PoE+ ports power access points or cameras using 202W total PoE budget
  • One PoE++ port accepts 60W or 90W input for flexible uplink power options
  • Layer 2 management adds STP, VLAN isolation and storm control for reliable traffic handling
  • Wide operating range from -30 to 60 °C suits harsh environments with included 210W adapter

Spesifikasjoner

BrandUbiquiti Networks
SeriesNetwork Switch
ModelUSW-ULTRA-210W
FormatDesktop
Network Management TypeUnmanaged
Primary Ports(8) GbE RJ45 ports
Primary Port SpeedTotal non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
PoE(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
LayerLayer 2 features STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Power(1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Dimensions203 x 76 x 33 mm (8 x 3 x 1.3")
WeightDevice: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)
TemperaturePoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Humidity10 to 90% noncondensing
Fraktvekt1.43 kg
Pakkestørrelse254 × 140 × 114 mm

Andre versjoner av denne modellen

5 flere i samme serie

Samme familie, annet minne, annen kjøler eller klokkefrekvens — sammenlign før du bestemmer deg.

Spørsmål om denne varen

Does the 210 W adapter make the switch run hot or loud during all-day use?

The unit operates from -20 to 60 °C with the included 210 W adapter and has no fan, so it stays silent and within its rated temperature range under continuous load.

What must I already have to power the seven PoE+ output ports?

The included 54 V, 3.9 A adapter supplies up to 202 W of PoE budget; no separate injector or extra power supply is needed for the PoE+ ports.

Can the single PoE++ input port be fed by an existing PoE+ injector to run the switch itself?

Yes, the switch accepts PoE++ or PoE+ input on port 1 for its own operation, but PoE output to other devices still requires the AC adapter.
