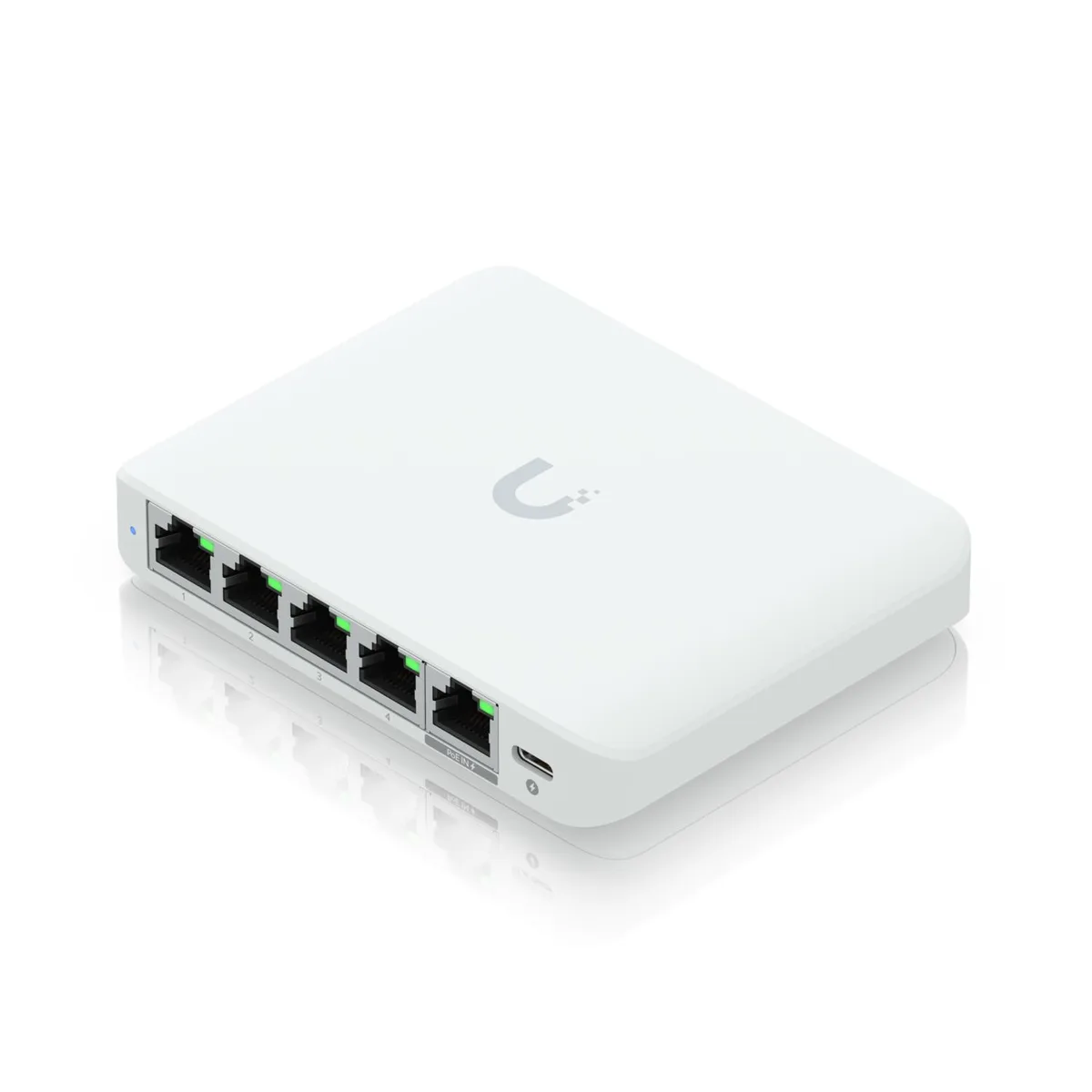

Small white desktop switch with five RJ45 ports and a USB-C power socket

Ubiquiti Networks

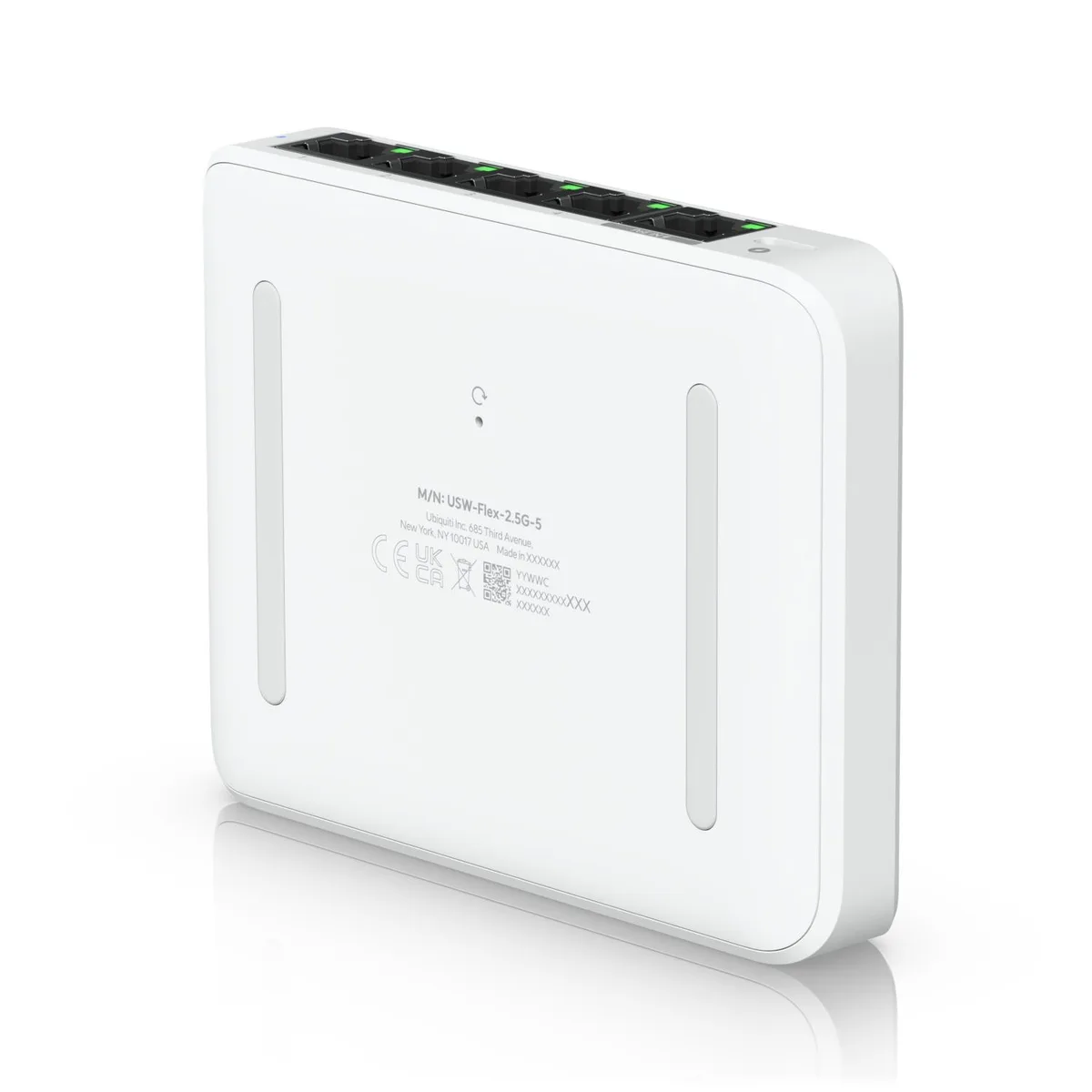

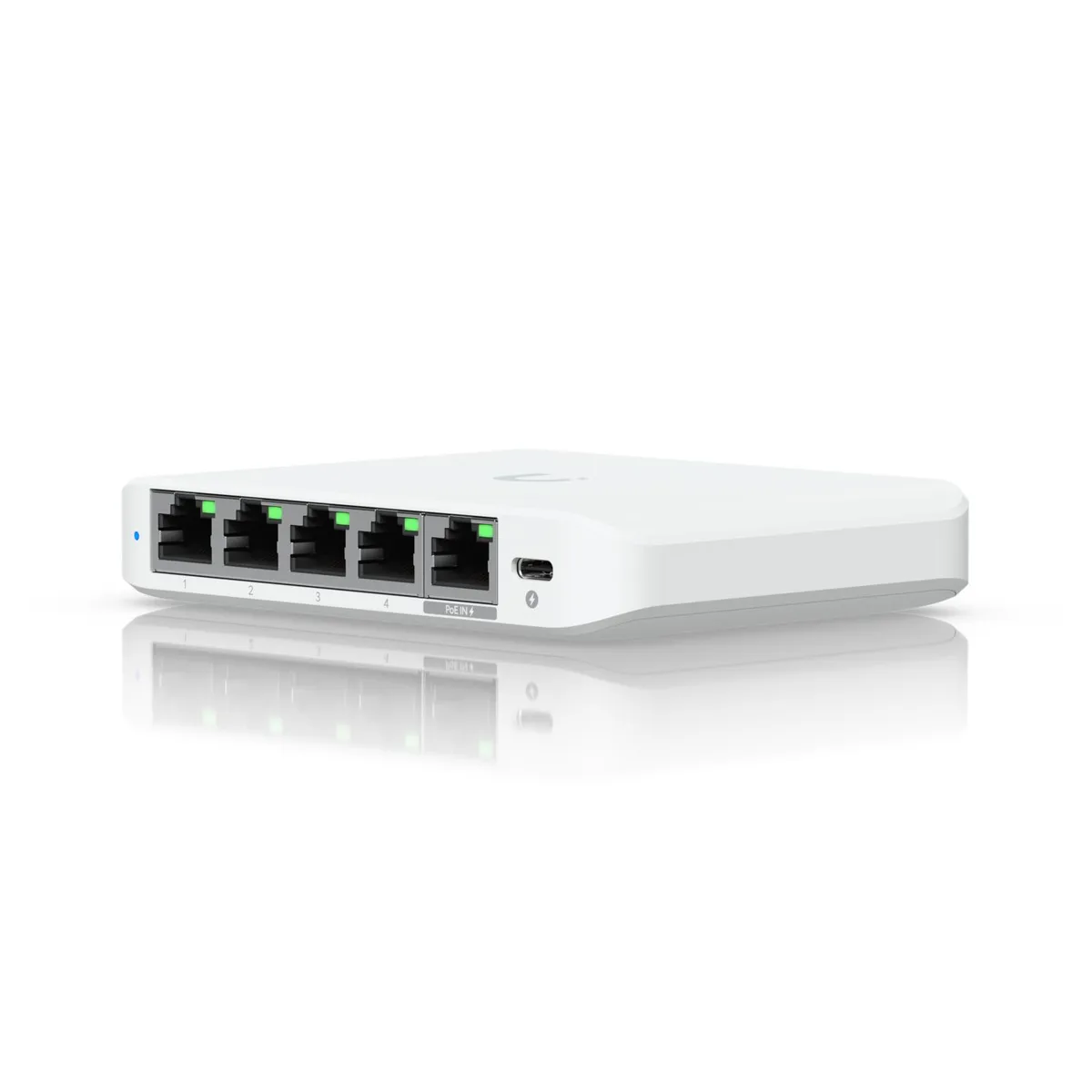

Ubiquiti Networks USW-Flex-2.5G-5 5-port 2.5G PoE network switch

SKU CH-P7YY-CV59G MPN USW-Flex-2.5G-5

Compact 5-port 2.5G managed switch with PoE input and USB-C power option

  • FormatDesktop
  • Network Management TypeManaged
  • Primary Ports5 x RJ45
  • Primary Port Type5 x 2.5 GbE RJ45
  • PoEYes
  • Layer2

Model Flex Mini 2.5G

Vis 1 flere konfigurasjoner

Overstrøkne versjoner finnes, men er ikke på lager her.

  • Five 2.5 GbE ports deliver multi-gigabit throughput in a 117.1 x 90 x 21.2 mm chassis
  • PoE input or USB-C power means no separate mains adapter is required
  • 25 Gbps switching capacity with 12.5 Gbps non-blocking throughput handles heavy traffic
  • Layer 2 features including VLANs, port isolation and storm control secure network segments
  • Managed via UniFi Network 8.6.9 or later for central configuration and monitoring

Compact 2.5G PoE switch for small networks

The Ubiquiti USW-Flex-2.5G-5 is a managed Layer 2 desktop switch with five 2.5 GbE RJ45 ports. It suits installers who need multi-gigabit connectivity in a compact form factor for enclosures or pole mounting. The unit delivers 25 Gbps switching capacity and 12.5 Gbps non-blocking throughput with a 19 Mpps forwarding rate. It supports 256 VLANs and a 4,000-entry MAC address table.

Power flexibility and 2.5G limits

The switch accepts power from a USB-C adapter at 4.8–5.2V DC or via PoE input at 44–57V, consuming up to 5W or 6.4W respectively. One port serves as the PoE input; the remaining four ports provide 2.5 GbE data only. All ports operate at 2.5 Gbps with no 10 GbE uplink option. Jumbo frames, flow control, storm control and loop protection are supported at Layer 2.

Check UniFi version and PoE source

Your network must run UniFi Network version 8.6.9 or later to adopt and manage this switch. Verify that your PoE injector or upstream switch delivers 44–57V if you plan to power the unit without the included 5V USB-C adapter. The switch does not supply PoE output to connected devices. Ensure the 117.1 x 90 x 21.2 mm footprint fits your enclosure or mounting location.

Høydepunkter

  • Five 2.5 GbE ports deliver multi-gigabit throughput in a 117.1 x 90 x 21.2 mm chassis
  • PoE input or USB-C power means no separate mains adapter is required
  • 25 Gbps switching capacity with 12.5 Gbps non-blocking throughput handles heavy traffic
  • Layer 2 features including VLANs, port isolation and storm control secure network segments
  • Managed via UniFi Network 8.6.9 or later for central configuration and monitoring

Spesifikasjoner

BrandUbiquiti Networks
SeriesNetwork Switch
ModelFlex Mini 2.5G
Part NumberUSW-Flex-2.5G-5
FormatDesktop
Network Management TypeManaged
Primary Ports5 x RJ45
Primary Port Type5 x 2.5 GbE RJ45
PoEYes
Layer2
Layer 2 FeaturesSTP & RSTP
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
Port Isolation
Port Mirroring
Jumbo Frames
Loop Protection
PowerPower Method
(1) USB Type-C, 5V DC, 1A
(1) PoE
Power Supply
AC/DC, external, 5W
Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE
Max Power Consumption5W (AC/DC input)
6.4W (PoE input)
Dimensions117.1 x 90 x 21.2 mm
(4.6 x 3.5 x 0.8")
CertificationCE, FCC, IC
System RequirementUniFi Network
Version 8.6.9 and later
FeaturesPerformance
Switching Capacity: 25 Gbps
Total Non-Blocking Throughput: 12.5 Gbps
Forwarding Rate: 19 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000
Fraktvekt0.91 kg
Pakkestørrelse254 × 203 × 178 mm

Andre versjoner av denne modellen

5 flere i samme serie

Samme familie, annet minne, annen kjøler eller klokkefrekvens — sammenlign før du bestemmer deg.

Spørsmål om denne varen

Should I pick the 5-port 2.5G model or the 8-port 2.5G model for a small office?

The 5-port Flex Mini 2.5G fits tight spaces at 117.1 x 90 x 21.2 mm and uses a USB-C or PoE power source, while the 8-port Flex 2.5G is larger at 212.9 x 99.4 x 33.5 mm and needs an AC supply or PoE+ input.

What does the 25 Gbps switching capacity mean for daily traffic?

The 25 Gbps switching capacity and 12.5 Gbps non-blocking throughput let all five 2.5 GbE ports run at line rate simultaneously, so multi-gigabit file transfers and camera streams move without internal bottlenecks.

How does the USB-C power option limit the switch in practice?

With the included 5V, 1A USB-C adapter the switch draws 5W and provides no PoE output; using a 44—57V PoE source raises consumption to 6.4W but still only powers the switch itself, not connected devices.
