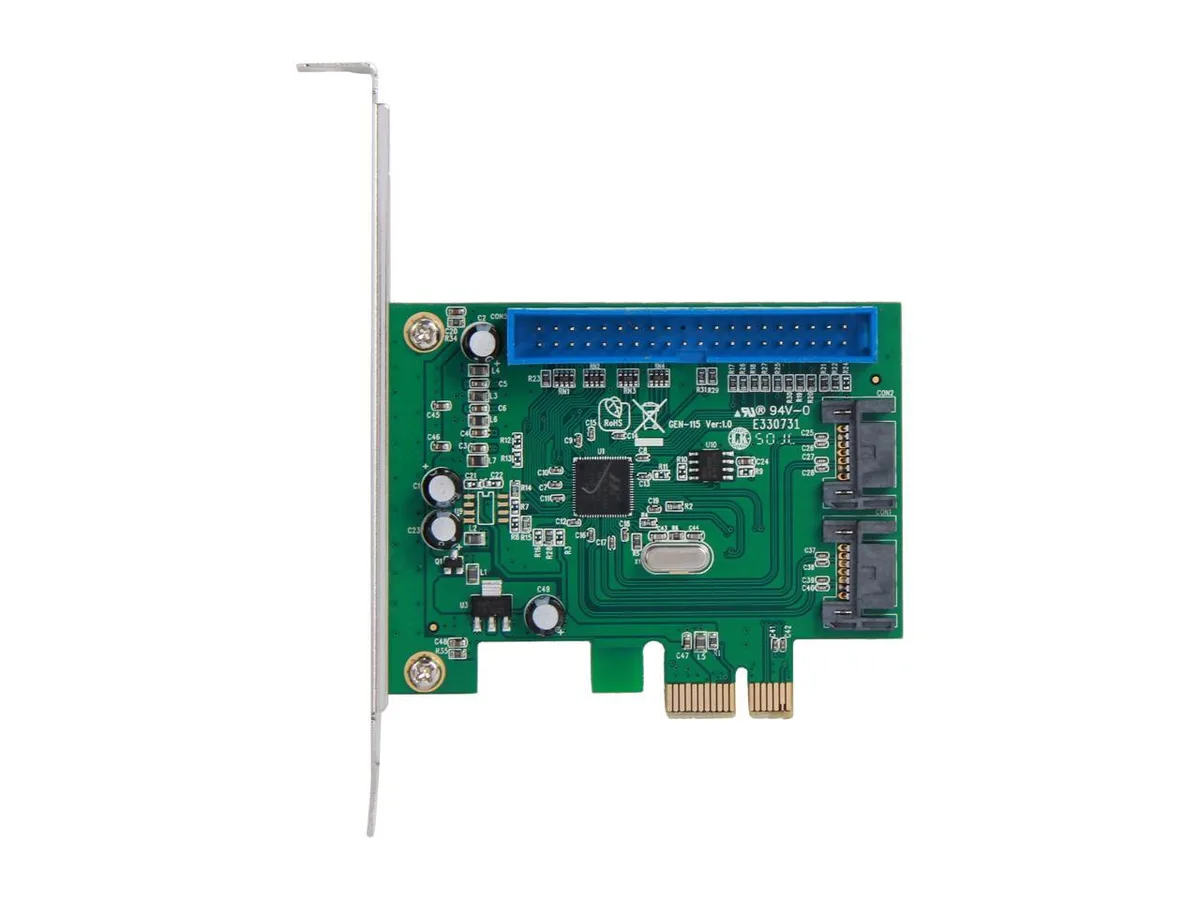

sakose BT-PES322i PCI Express to SATA expansion card 2 ports
Adds two SATA 3.0 ports via a PCI Express 2.0 slot, compatible with SATA 6G, 3G and 1.5G drives, and supports RAID 0 and 1
- TypePCI Express to SATA Card
- Internal Ports2 x SATA 3.0
- Operating Systems SupportedWindows XP, 2003 Server, Vista, 2008 Server and 7 (32/64-bit
- SpecificationsCompliant with PCI Express 2.0 Supports communication speed
- Package ContentsPCIe SATAIII 2 ports Card 1 x User Manual 1 x Driver CD
- Add two internal SATA 3.0 ports via a single PCI Express 2.0 slot
- Achieve up to 6 Gbps drive throughput with SATA 3.0 specification compliance
- Connect legacy and modern drives through backward compatibility with SATA 6G, 3G and 1.5G speeds
- Enable hot-swap and hot-plug capability for drive changes without system shutdown
- Configure RAID 0 or RAID 1 arrays using the onboard RAID function
Two internal SATA 3.0 ports
The sakose BT-PES322i adds two SATA 3.0 ports through a PCI Express 2.0 slot. It suits owners of older Windows systems such as XP, Vista or Windows 7 who need extra internal drive connections. The card supports SATA 6G, 3G and 1.5G devices and includes RAID 0 and 1 functions.
Low-profile bracket eases fit
A low-profile bracket is supplied so the card fits slim chassis without modification. Installation requires a free PCIe slot and the driver CD for the listed operating systems. Hot-swap and hot-plug work only when the connected drives and backplane also support those functions.
Sustained throughput limited by PCIe 2.0
Under continuous load the PCIe 2.0 x1 link caps total bandwidth at 5.0 Gbps, so two SATA 3.0 drives cannot both run at 6 Gbps simultaneously. Port multiplier support and NCQ help maintain steady performance across multiple drives, but the bus ceiling remains the bottleneck.
Puncte forte
- Add two internal SATA 3.0 ports via a single PCI Express 2.0 slot
- Achieve up to 6 Gbps drive throughput with SATA 3.0 specification compliance
- Connect legacy and modern drives through backward compatibility with SATA 6G, 3G and 1.5G speeds
- Enable hot-swap and hot-plug capability for drive changes without system shutdown
- Configure RAID 0 or RAID 1 arrays using the onboard RAID function
Specificații
| Brand | BYTECC |
|---|---|
| Model | BT-PES322i |
| Type | PCI Express to SATA Card |
| Internal Ports | 2 x SATA 3.0 |
| Operating Systems Supported | Windows XP, 2003 Server, Vista, 2008 Server and 7 (32/64-bit) |
| Specifications | Compliant with PCI Express 2.0 Supports communication speed of 2.5Gbps & 5.0Gbps Compliant with SATA 3.0 specification Compatible with SATA 6G, 3G & 1.5G Hard drive Hot-swap & Hot Plug Supports Port Multiplier FIS based switching or command based switching Supports Native Command Queuing(NCQ) Supports RAID function 0 and 1 Supports ATA/ATAPI-7 Spec, Supports ATA & ATAPI commands Supports DMA protocols, and up to UDMA 150Mbps data transfer rate Supports Master and Slave operations from a single PATA port Supports PCI Low Profile |
| Package Contents | PCIe SATAIII 2 ports Card 1 x User Manual 1 x Driver CD |
Întrebări despre acest articol
How can I verify the BT-PES322i is running at SATA 3.0 speeds after installation?
Check the device manager or BIOS to confirm the SATA ports negotiate at 6Gbps, which indicates SATA 3.0 operation with connected drives.
What comes in the box with the sakose BT-PES322i and what must I provide?
The package includes the PCIe SATAIII 2-port card, a user manual and a driver CD; you must supply SATA data cables and a compatible PCI Express 2.0 slot.
Which version of the BT-PES322i should I choose for a Windows 7 64-bit system?
The card supports Windows 7 (32/64-bit) along with XP, Vista, 2003 Server and 2008 Server, so the single listed model covers that OS.
