Athena Power
Athena Power RM-3U300PRR55U2 3U rackmount server chassis 550W redundant PSU
3U rackmount server chassis with 550W redundant power supply, three 5.25" bays, two 3.5" bays, seven expansion slots and front USB 2.0 ports
- Chassis TypeRackmount
- Form Factor3U
- ColorBlack
- Case MaterialBrushed Aluminum Front Bezel / 1.2mm SECC
- Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX
- Power Supply2U 550W Micro Redundant power supply
- Redundant 550W supply keeps systems running if one module fails
- 3U height fits standard racks while holding full-size ATX boards
- Three 5.25" bays provide room for optical drives or hot-swap cages
- Two front 80mm fans plus optional 60mm pair move air through the chassis
- Removable washable filter protects internals from dust without tools
Chassis and Power Configuration

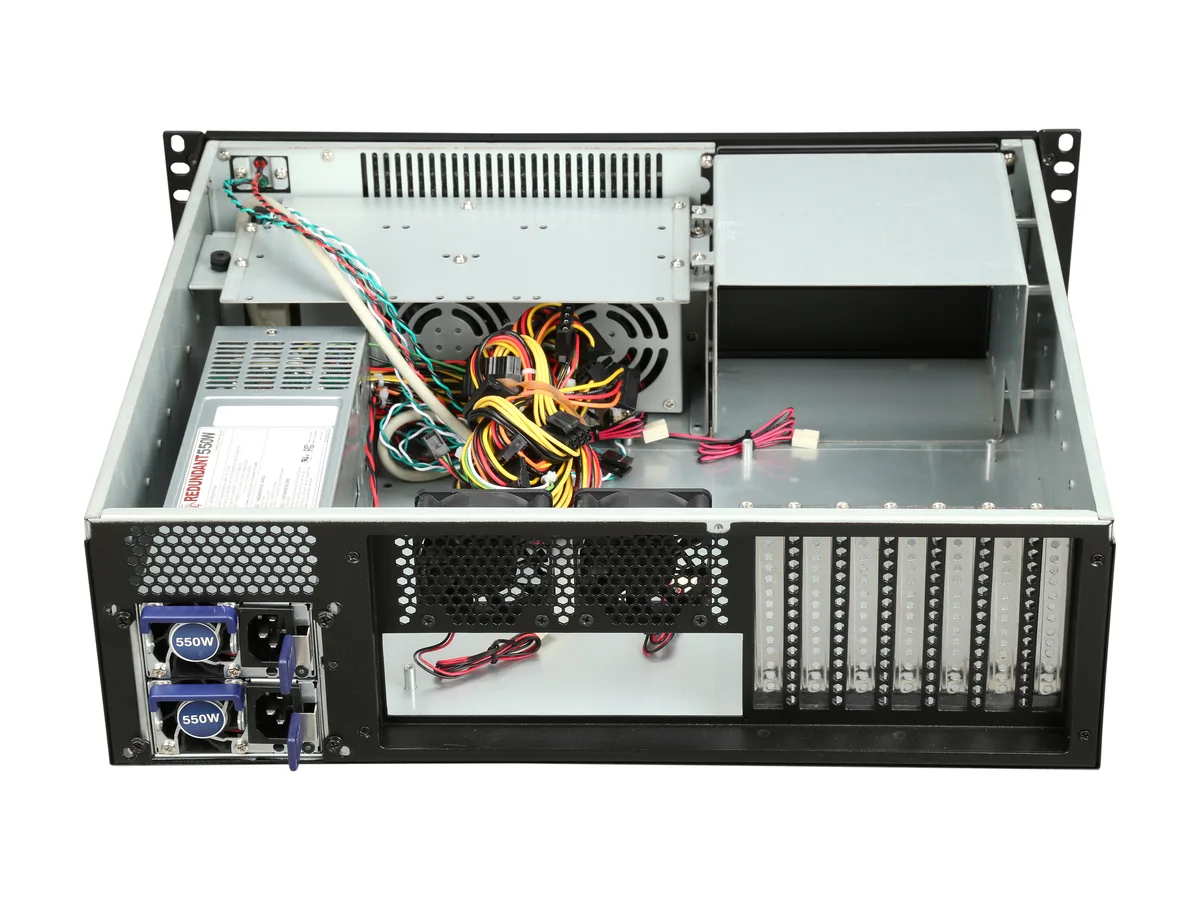

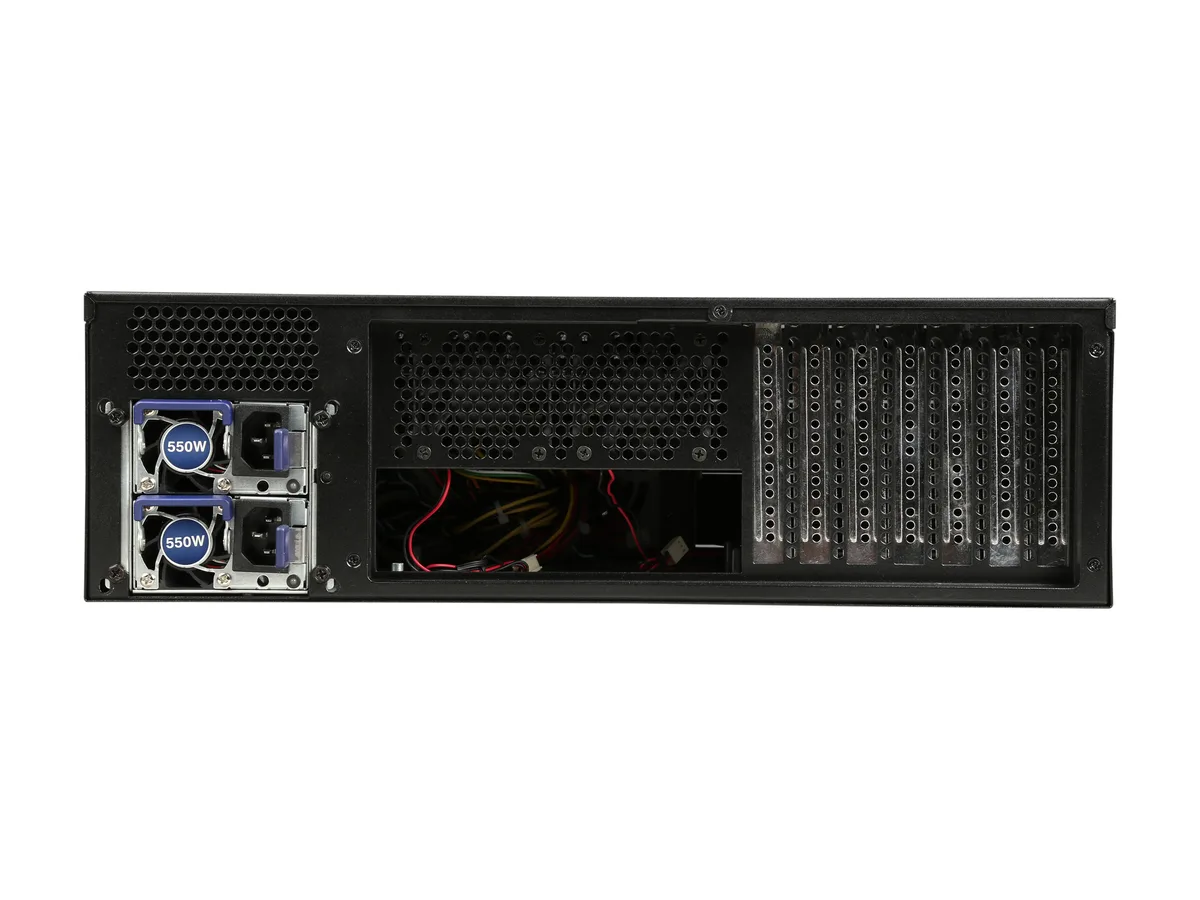

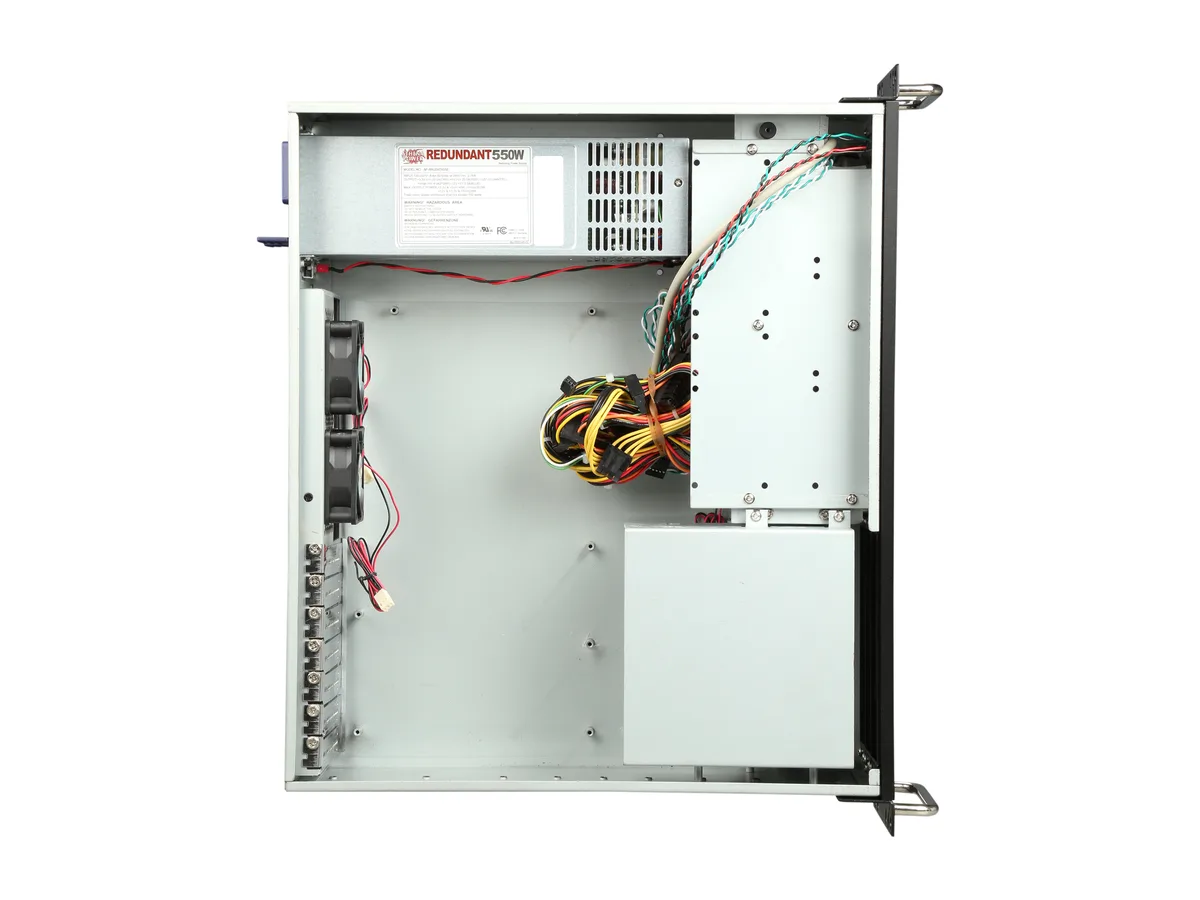

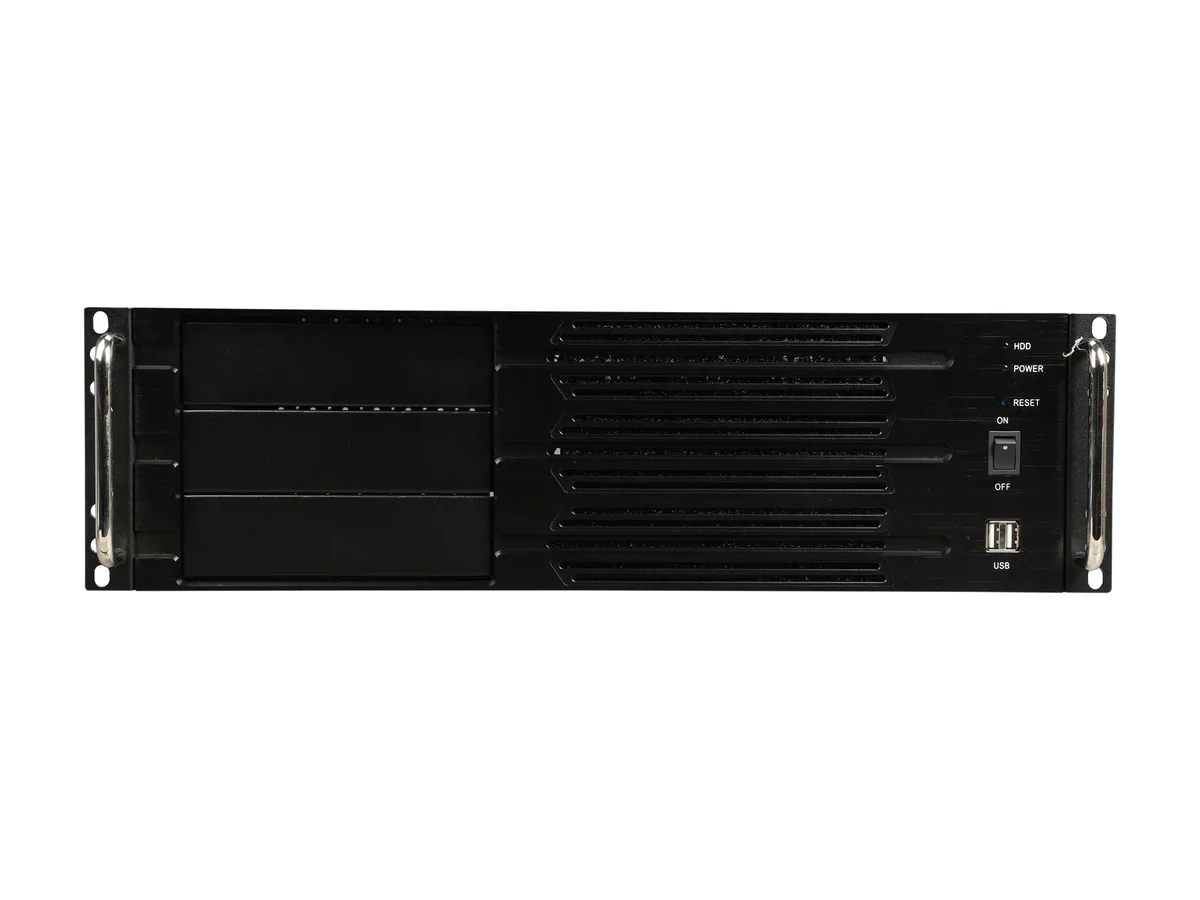

The Athena Power RM-3U300PRR55U2 is a 3U rackmount server chassis with a 550W redundant power supply. It supports ATX, MicroATX and Mini-ITX motherboards. The unit includes a brushed aluminium front bezel and 1.2mm SECC body.
Ideal Users and Limitations
This chassis suits builders who need hot-swap power redundancy in a 3U form factor. It also works for installations that require three 5.25in external bays. Buyers who need more than two internal 3.5in bays should look at larger enclosures. Systems requiring horizontal expansion slots cannot use the vertical-only layout.
Deciding Specification
The 550W redundant power supply is the single specification that determines suitability. It delivers fail-over protection for critical workloads while fitting the 2U power supply cavity. Verify that your total system draw stays within this limit before purchasing.
Prednosti
- Redundant 550W supply keeps systems running if one module fails
- 3U height fits standard racks while holding full-size ATX boards
- Three 5.25" bays provide room for optical drives or hot-swap cages
- Two front 80mm fans plus optional 60mm pair move air through the chassis
- Removable washable filter protects internals from dust without tools
Špecifikácie
| Brand | Athena Power |
|---|---|
| Model | RM-3U300PRR55U2 |
| Chassis Type | Rackmount |
| Form Factor | 3U |
| Color | Black |
| Case Material | Brushed Aluminum Front Bezel / 1.2mm SECC |
| Motherboard Compatibility | MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX (6.7 in. x 6.7 in.) |
| Power Supply | 2U 550W Micro Redundant power supply |
| External 5.25" Drive Bays | 3 |
| Internal 3.5" Drive Bays | 2 |
| Expansion Slots | Vertical Full Height x 7 |
| Front Ports | USB 2.0 x 2 (Front) |
| 60mm Fans | (Oprtional) 60mm x 2 |
| 80mm Fans | (Front) 80mm x 2 |
| Features | Switch: Power On/Off, Reset Air Filter: Removable & Washable |
| Dimensions | 5.20" x 17.13" x 15.00" |
| Prepravná hmotnosť | 13.74 kg |
| Rozmery balenia | 572 × 516 × 284 mm |
Otázky k tomuto produktu
Will a standard ATX board measuring 12 inches by 9.6 inches fit in the 3U chassis?
Yes, the chassis supports ATX (12 in. x 9.6 in.), MicroATX (9.6 in. x 9.6 in.) and Mini-ITX (6.7 in. x 6.7 in.) motherboards.
How do I install the 2U 550W redundant power supply and what step is often missed?
Slide the PSU module in from the rear until it locks, then seat each power module firmly; the common mistake is leaving a module partially inserted so redundancy is not active.
When should I clean or replace the removable air filter on the front bezel?
Inspect the washable filter monthly in dusty environments; rinse and dry it before refitting, and replace it if the mesh is torn or no longer seals against the bezel.
