BFKK 3U Rackmount Server Chassis EATX/ATX/MATX 4x5.25 6x3.5 Top/Side Cooling
- Rackmount
214,99 USD
0.00277053BTC
Skladom
Athena Power
Athena Power RM-3UWIN525 3U rackmount server chassis
A 3U rackmount chassis holding MicroATX, ATX or Mini-ITX boards with four 5.25-inch and six 3.5-inch drive bays, seven low-profile slots, front USB 3.0.
- Chassis TypeRackmount
- Form Factor3U
- ColorBlack
- Case Material1.2mm SECC
- Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX
- Power SupplyPS2 Single (Front) PS3 Single (Front)
- Fits MicroATX, ATX and Mini-ITX boards for flexible server builds
- Seven low-profile expansion slots support multiple add-in cards
- Four front 5.25-inch bays plus six internal 3.5-inch bays provide ample storage
- Seven fans with anti-vibration brackets deliver strong airflow while reducing noise
- Front USB 3.0 ports and LED indicators simplify daily management
3U Rackmount Chassis for MicroATX Boards

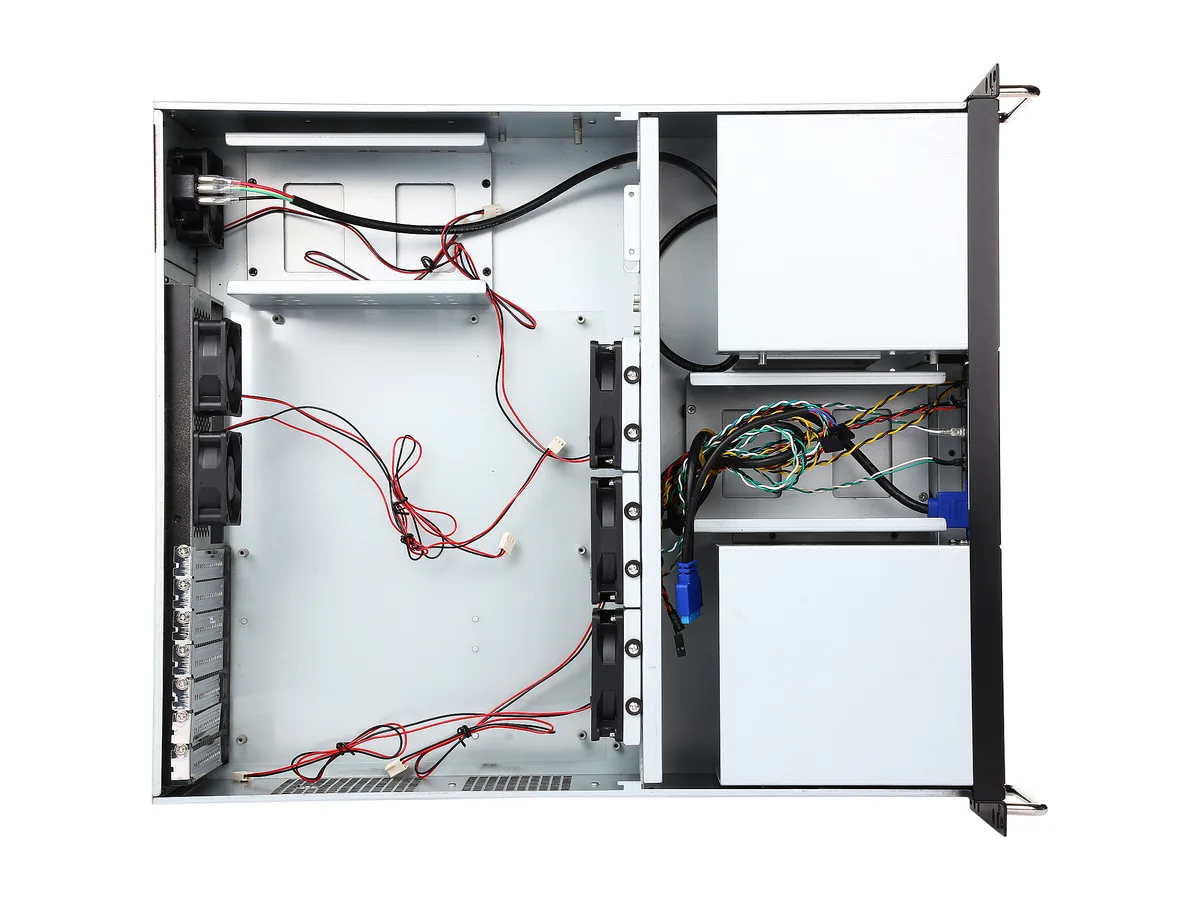

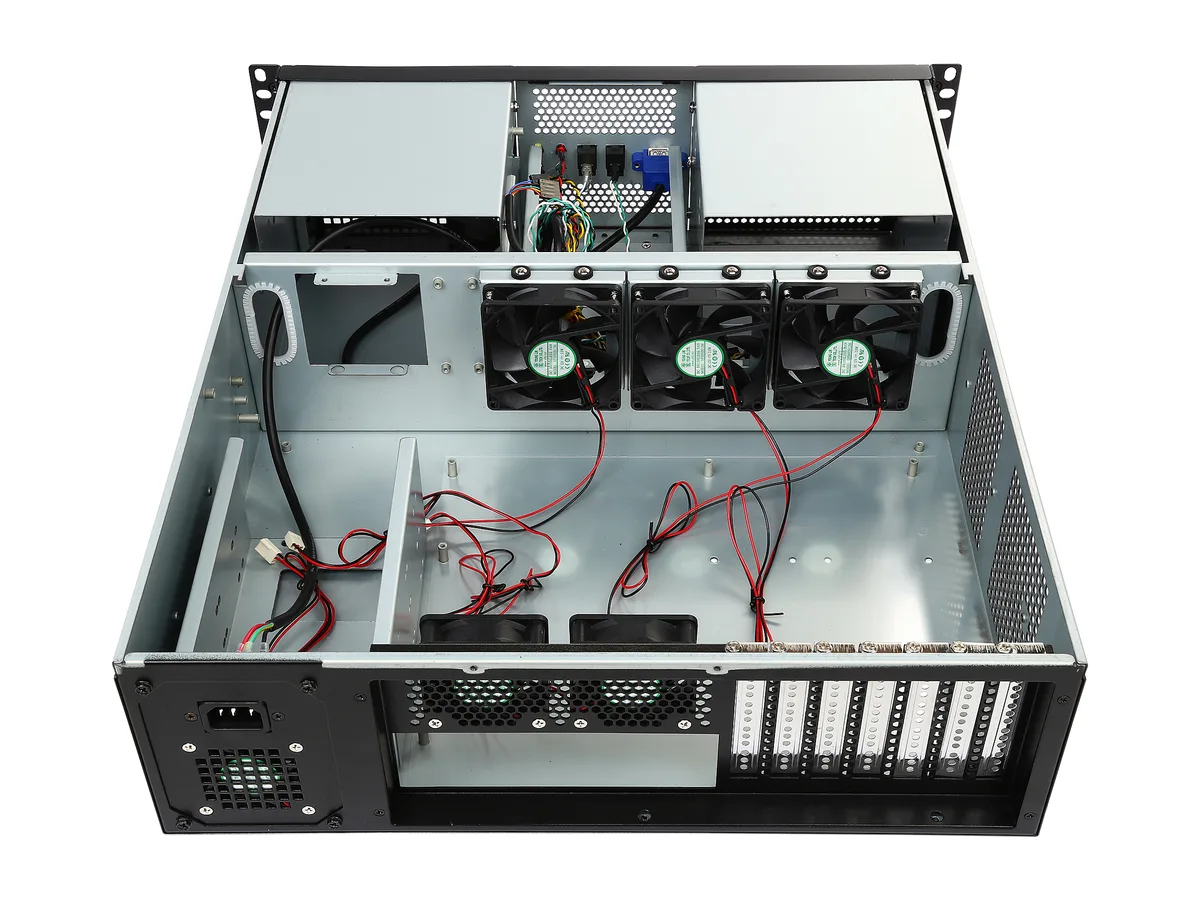

The Athena Power RM-3UWIN525 is a new 3U rackmount server chassis built from 1.2mm SECC steel in black. It accepts MicroATX, ATX and Mini-ITX motherboards and provides seven low-profile expansion slots for add-in cards.
Suits builds needing front PS2
This chassis fits administrators who want a front-mounted single PS2 or PS3 supply and four external 5.25in drive bays. It is not for installations that require full-height cards, hot-swap 3.5in trays or redundant power supplies.

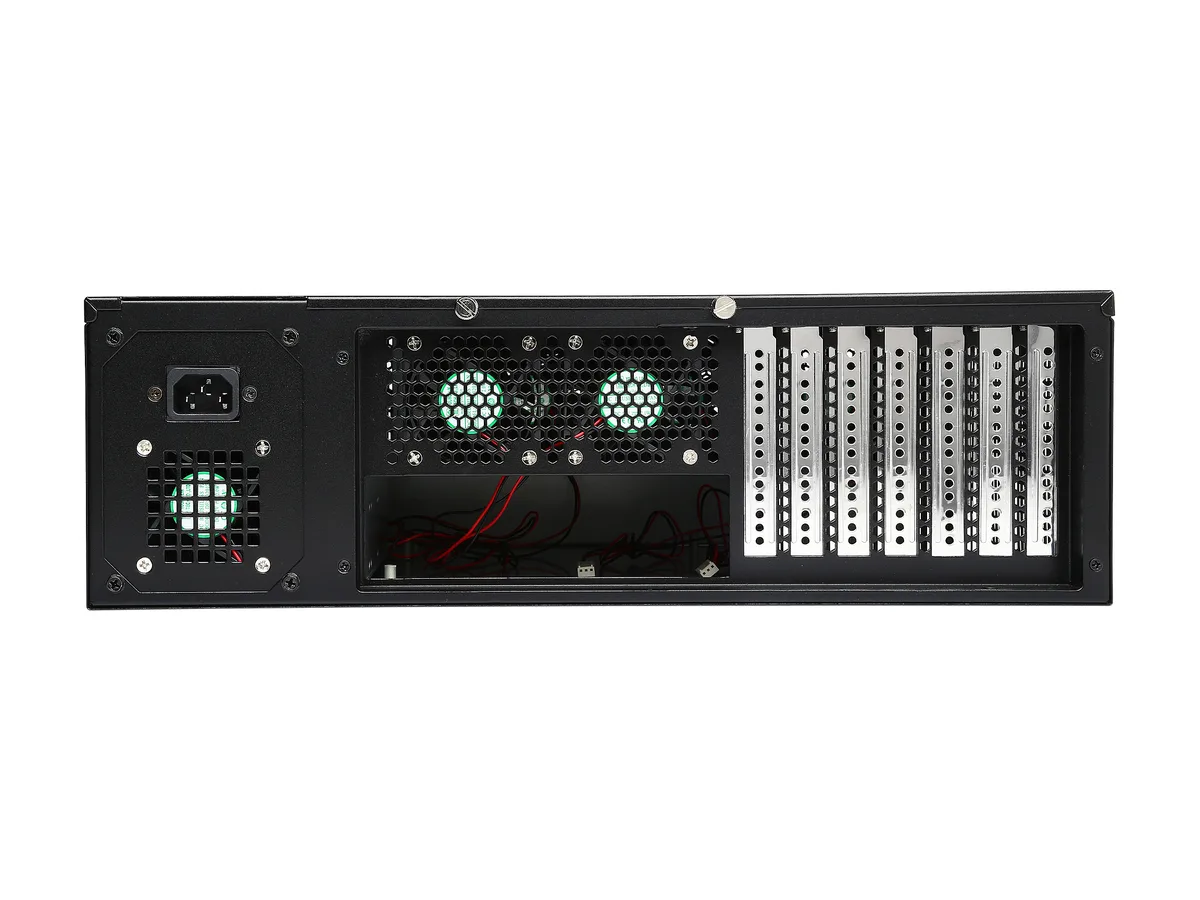

Seven low-profile slots define card height
The single specification that decides fit is the seven low-profile expansion slots. Only half-height cards can be installed, so verify your add-in cards match that height before purchase.
Prednosti
- Fits MicroATX, ATX and Mini-ITX boards for flexible server builds
- Seven low-profile expansion slots support multiple add-in cards
- Four front 5.25-inch bays plus six internal 3.5-inch bays provide ample storage
- Seven fans with anti-vibration brackets deliver strong airflow while reducing noise
- Front USB 3.0 ports and LED indicators simplify daily management
Špecifikácie
| Brand | Athena Power |
|---|---|
| Model | RM-3UWIN525 |
| Chassis Type | Rackmount |
| Form Factor | 3U |
| Color | Black |
| Case Material | 1.2mm SECC |
| Motherboard Compatibility | MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX (6.7 in. x 6.7 in.) |
| Power Supply | PS2 Single (Front) PS3 Single (Front) |
| External 5.25" Drive Bays | 4 |
| Internal 3.5" Drive Bays | 6 |
| Expansion Slots | Low-Profile x 7 |
| Front Ports | 1 x Front 2-Port USB 3.0 |
| 60mm Fans | 3 x 60mm (Rear) |
| 80mm Fans | 4 x 80mm (Center w/ easy-install & anti-vibration bracket) |
| Features | Indicators: (LED) POWER / HDD / LAN1 / LAN2 |
| Dimensions | 5.24" x 20.67" x 17.13" |
| Prepravná hmotnosť | 11.91 kg |
| Rozmery balenia | 665 × 584 × 287 mm |
Otázky k tomuto produktu
What motherboard form factors fit inside the RM-3UWIN525?
The chassis accepts ATX (12 in. x 9.6 in.), MicroATX (9.6 in. x 9.6 in.) and Mini-ITX (6.7 in. x 6.7 in.) boards.
Can I keep my full-height PCIe cards with the seven low-profile expansion slots?
No, the seven slots are low-profile only; full-height cards will not fit without a riser that is not included.

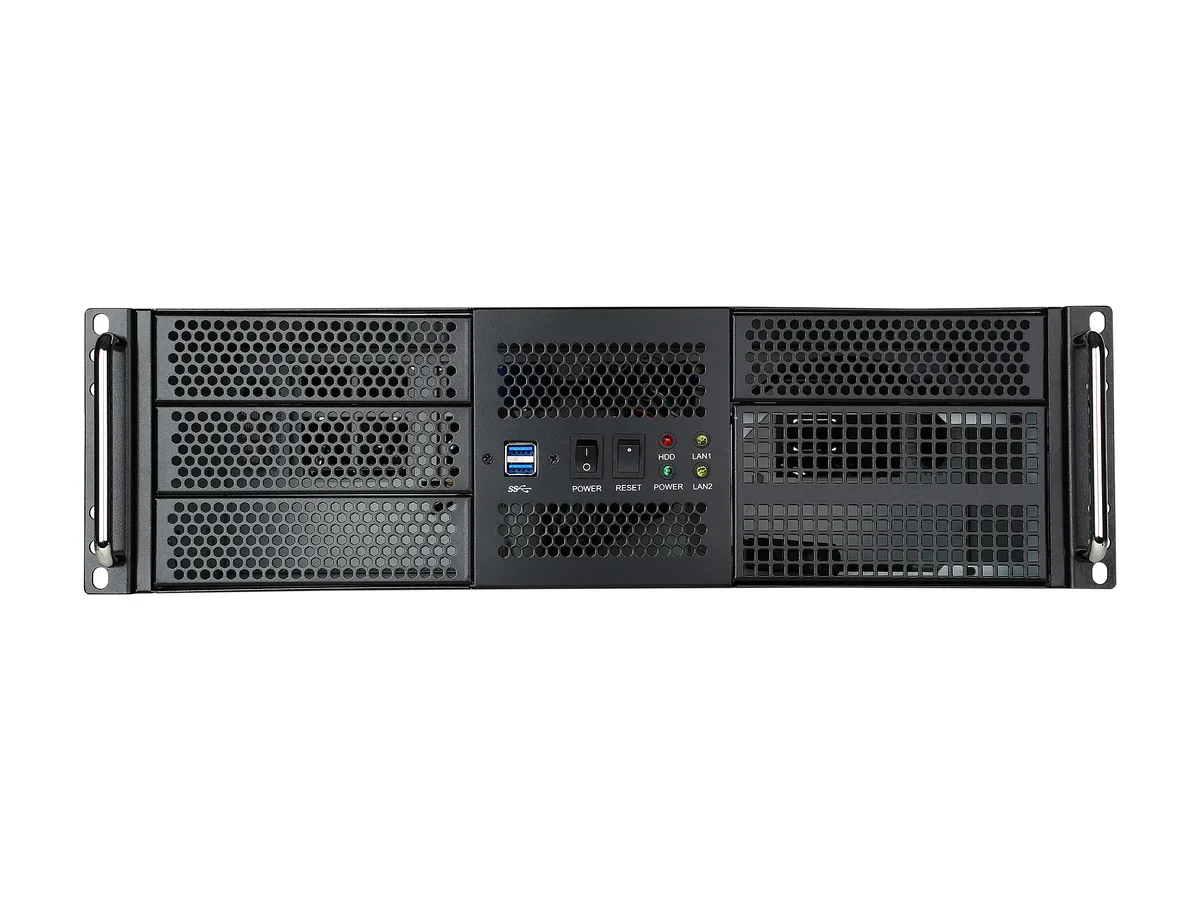

Which front-panel LEDs confirm the system is running after assembly?
The front panel shows POWER, HDD activity, LAN1 and LAN2 indicators to verify operation.
