Black 3U rackmount server chassis with four 5.25 inch drive bays and front USB 3.0 ports

Athena Power

Athena Power RM-3UWIN525P708 3U server chassis

SKU CH-28RB-VTB77 MPN RM-3UWIN525P708

3U rackmount server chassis supporting ATX, MicroATX and Mini-ITX boards with four 5.25″ external bays, six 3.5″ internal bays, seven low-profile slots and seven pre-installed fans

  • Chassis TypeRackmount
  • Form Factor3U
  • ColorBlack
  • Case Material1.2mm SECC
  • Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX
  • Power SupplyAP-P4ATX70FEP8
  • Supports ATX, Micro-ATX and Mini-ITX motherboards up to 12 x 9.6 in
  • Four 5.25 in external and six 3.5 in internal drive bays
  • Three 60 mm rear fans plus four 80 mm centre fans with anti-vibration brackets

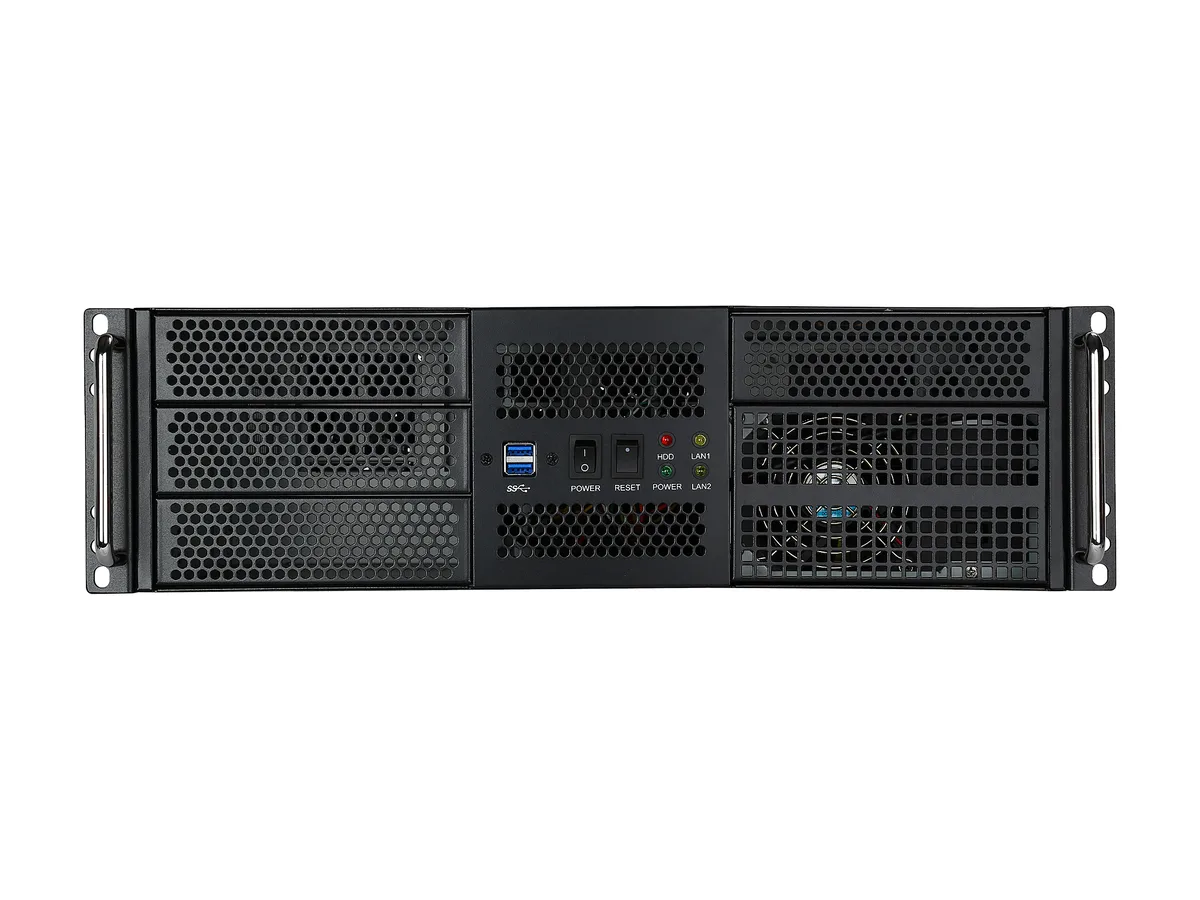

  • Front USB 3.0 ports and LED indicators for power, HDD and dual LAN
  • 2 mm SECC steel construction in a 3U rackmount form factor

Built for 3U rack density

The Athena Power RM-3UWIN525P708 is a 3U rackmount server chassis designed for environments that need high storage density and flexible motherboard support in a standard rack. It accepts ATX, MicroATX and Mini-ITX boards, making it suitable for custom server builds, backup appliances or edge-computing nodes. The 1.2 mm SECC steel construction and included AP-P4ATX70FEP8 power supply provide a ready-to-deploy platform for system integrators and IT departments.

Motherboard clearance up to 12 x 9.6 in

The single specification that decides fit is the maximum motherboard footprint of 12 inches by 9.6 inches, which covers full-size ATX down to 6.7-inch Mini-ITX. Builders needing E-ATX or larger workstation boards cannot use this chassis, and any proprietary form factor outside the three listed standards will not mount.

Slide rails not included; verify rack depth

Installation is straightforward for experienced integrators: the 80 mm centre fans sit on an easy-install anti-vibration bracket, and the 60 mm rear fans are pre-positioned. Common issues are the absence of sliding rails in the box and the 17.13-inch chassis depth, which may exceed shallow racks or conflict with rear cable management arms.

Prednosti

  • Supports ATX, Micro-ATX and Mini-ITX motherboards up to 12 x 9.6 in
  • Four 5.25 in external and six 3.5 in internal drive bays
  • Three 60 mm rear fans plus four 80 mm centre fans with anti-vibration brackets
  • Front USB 3.0 ports and LED indicators for power, HDD and dual LAN
  • 2 mm SECC steel construction in a 3U rackmount form factor

Špecifikácie

BrandAthena Power
ModelRM-3UWIN525P708
Chassis TypeRackmount
Form Factor3U
ColorBlack
Case Material1.2mm SECC
Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Power SupplyAP-P4ATX70FEP8
External 5.25" Drive Bays4
Internal 3.5" Drive Bays6
Expansion SlotsLow-Profile x 7
Front Ports1 x Front 2-Port USB 3.0
60mm Fans3 x 60mm (Rear)
80mm Fans4 x 80mm (Center w/ easy-install & anti-vibration bracket)
FeaturesIndicators: (LED) POWER / HDD / LAN1 / LAN2
Dimensions5.24" x 20.67" x 17.13"
Prepravná hmotnosť13.43 kg
Rozmery balenia663 × 584 × 287 mm

Otázky k tomuto produktu

How deep is the chassis once it is mounted in a rack?

The chassis measures 20.67 inches deep, so it occupies that full depth in a standard rack.

What does the included AP-P4ATX70FEP8 power supply provide?

It is a single PS2/PS3 form-factor unit rated at 70 watts, mounted at the front of the chassis.

Which motherboard sizes can be installed without modification?

The chassis accepts Mini-ITX 6.7×6.7 in, MicroATX 9.6×9.6 in, and ATX 12×9.6 in boards.
