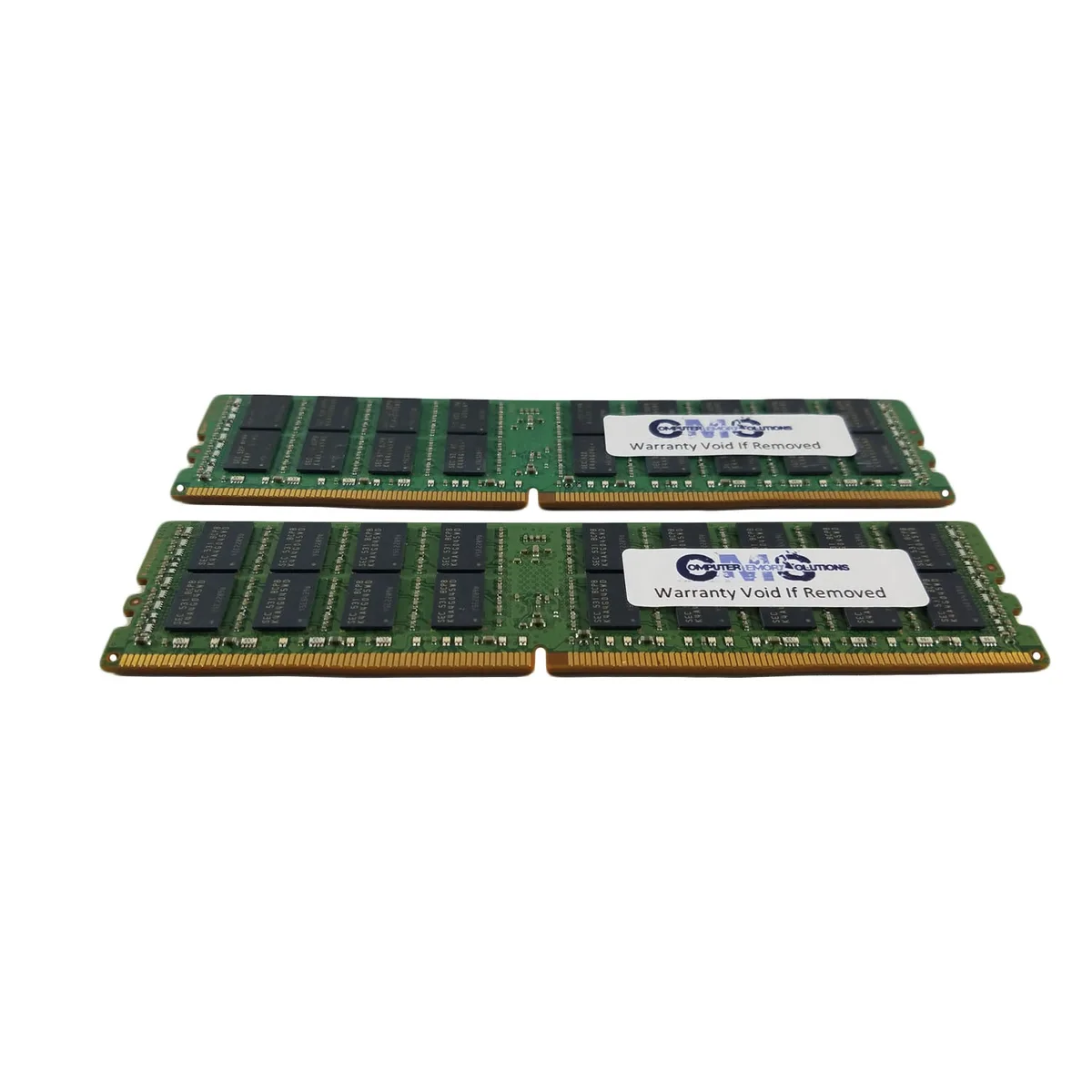

Two green DDR4 DIMMs with black chips no heat spreader

Computer Memory Solutions

Computer Memory Solutions CM4096722400ECCR 64GB (2x32GB) DDR4 2400 ECC Registered D16

SKU CH-3GDZ-CBVGY

64 GB dual-channel DDR4 ECC registered kit for ASRock EPC612D8, EPC612D8A, EPC612D8A-TB and EPC621D8A server boards

  • Capacity64GB (2 x 32GB)
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.2V
  • 64 GB capacity with two 32 GB modules
  • ECC registered design protects data integrity
  • DDR4 2400 speed at 1.2 V low voltage
  • Validated for ASRock EPC612D8 and EPC621D8A servers
  • 288-pin DIMM fits registered memory slots

Target Server Platform

This 64 GB kit is built for ASRock server boards EPC612D8, EPC612D8A, EPC612D8A-TB and EPC621D8A. It suits administrators upgrading registered ECC memory in those specific platforms only.

Registered ECC Requirement

The modules are DDR4 2400 RDIMMs with CL17 timing, 2Rx4 organisation and 1.2 V operation. They will not work in systems that require unbuffered non-ECC DIMMs or that forbid registered memory.

Thermal and Power Profile

Bare modules without spreaders run at standard DDR4 voltage, so power draw stays low and cooling relies on chassis airflow. No active cooling is needed under normal server workloads.

Prednosti

  • 64 GB capacity with two 32 GB modules
  • ECC registered design protects data integrity
  • DDR4 2400 speed at 1.2 V low voltage
  • Validated for ASRock EPC612D8 and EPC621D8A servers
  • 288-pin DIMM fits registered memory slots

Špecifikácie

BrandComputer Memory Solutions
ModelCM4096722400ECCR
Capacity64GB (2 x 32GB)
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.2V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemASRock Server Board EPC612D8, EPC612D8A, EPC612D8A-TB, EPC621D8A
Package Content2 Memory RAM Sticks

Otázky k tomuto produktu

What does the DDR4 2400 speed mean for real-world throughput on the ASRock EPC612D8?

The modules run at 2400 MT/s with CL17 timing; actual bandwidth depends on the installed CPU and the board's memory controller configuration.

How does the PC4-19200 rating relate to the memory interface on these server boards?

PC4-19200 is the JEDEC designation for DDR4-2400; the EPC612D8 and EPC621D8A platforms use a 288-pin registered ECC interface that operates at this speed.

What physical clearance and slot layout are needed to install the two 32 GB sticks?

Each stick is a standard 288-pin registered DIMM without a heat spreader; the boards provide eight DIMM sockets, so the kit occupies two of them.
