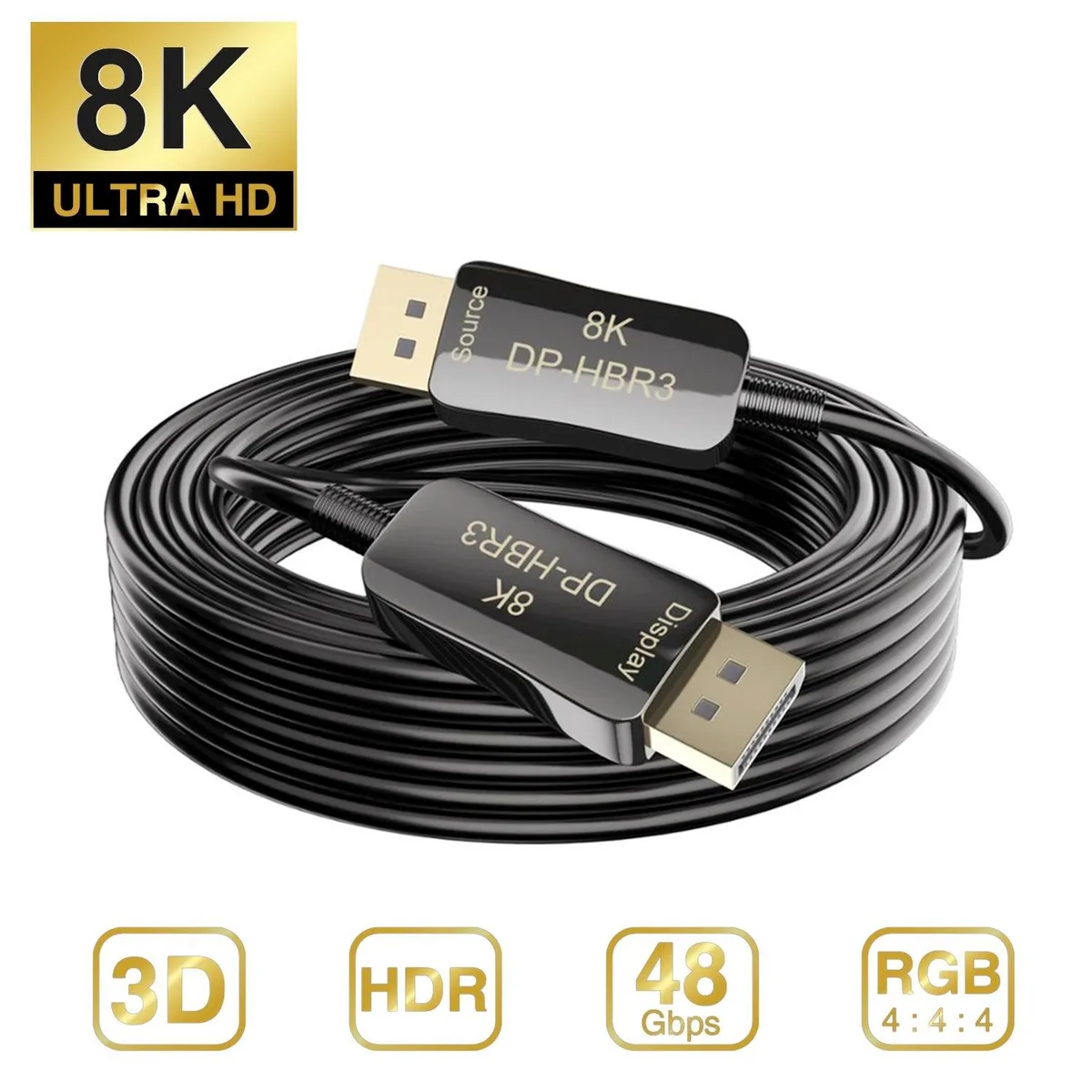

Black fiber-optic DisplayPort cable with gold-plated male connectors, 100 ft length

ESTONE

ESTONE TJ-A022 DisplayPort cable 100 ft 32.4 Gbps 8K@60Hz 4K@144Hz

SKU CH-AETB-2ZMFN

A 100 ft in-wall fibre-optic DisplayPort 1.4 cable carrying 8K at 60 Hz or 4K at 144 Hz with 32.4 Gbps bandwidth

  • TypeDisplayPort
  • ColorBlack
  • Length100 ft.
  • Cable Length100 ft.
  • Connector Number1
  • Connect From1 x DisplayPort 1.4

Cable Length 100 Feet

  • Delivers 8K at 60 Hz for ultra-sharp detail
  • Runs 4K at 144 Hz for smooth high-speed motion
  • Carries 32.4 Gbps bandwidth for lossless signal quality
  • Reaches 100 ft with fibre-optic construction for long runs
  • Gold-plated connectors resist corrosion for lasting reliability

100 ft fibre DisplayPort cable

This 100 ft optical DisplayPort cable carries 8K at 60 Hz or 4K at 144 Hz over a single male-to-male link. It is built for installers and enthusiasts who need a permanent in-wall run between a source and a display without repeaters. The hybrid glass-fibre and copper construction keeps the signal intact at distances where copper cables fail. Directional connectors mean the source and display ends must be matched correctly during installation.

32.4 Gbps bandwidth headroom

The link delivers up to 32.4 Gbps, enough for 7680×4320 at 60 Hz and 4K at 144 Hz while remaining backward compatible with 2K and 1080P timings. Four optical fibres isolate high-frequency TMDS lanes from each other, preventing crosstalk that limits copper at this length. The cable runs out of headroom only when the source or sink cannot generate or accept the target resolution and refresh rate. No external power is required because the optical engines draw from the DisplayPort pins.

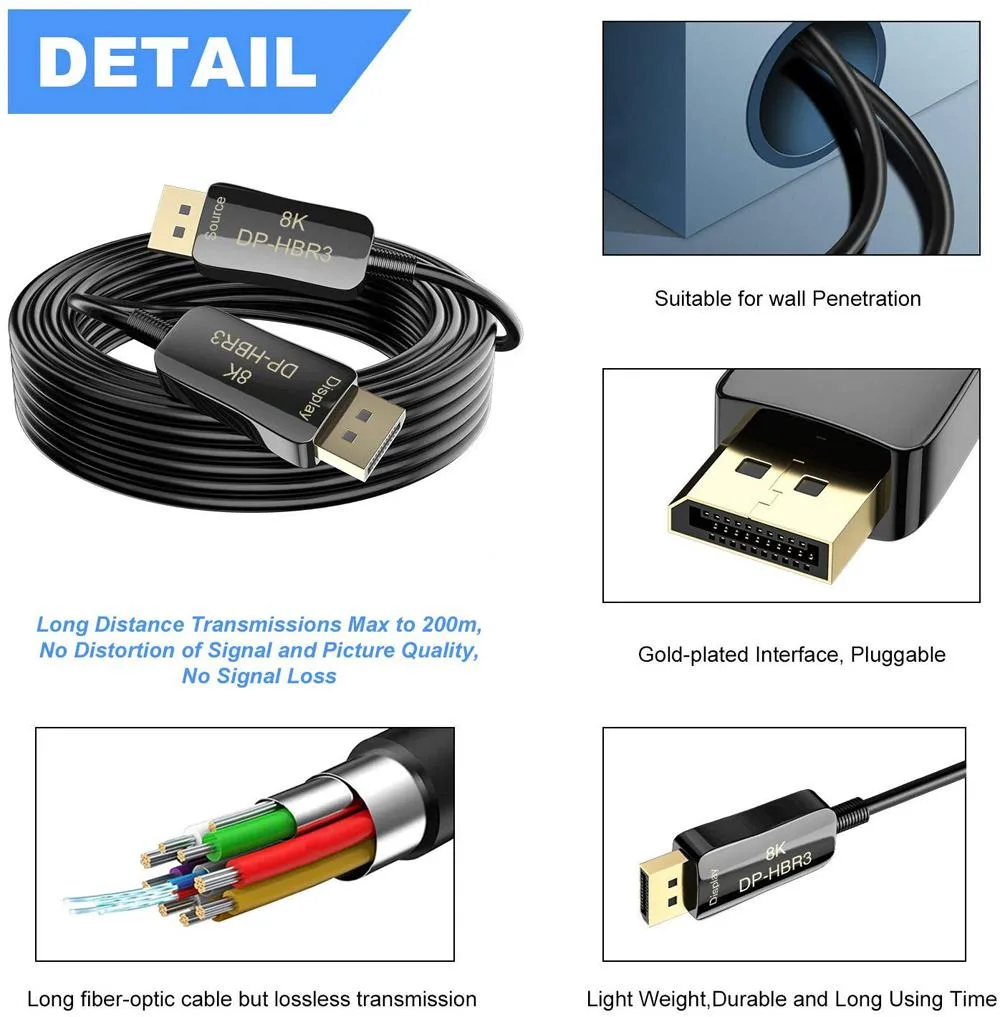

24K gold connectors and TPE jacket

Gold-plated DisplayPort 1.4 plugs resist oxidation through years of mate cycles in a fixed installation. The wear-resistant TPE outer jacket protects the fibre cores during pulling through conduit or trunking. A single connector at each end keeps the profile slim for tight bends behind walls. The directional labelling on each plug removes guesswork when terminating the run.

Prednosti

  • Delivers 8K at 60 Hz for ultra-sharp detail
  • Runs 4K at 144 Hz for smooth high-speed motion
  • Carries 32.4 Gbps bandwidth for lossless signal quality
  • Reaches 100 ft with fibre-optic construction for long runs
  • Gold-plated connectors resist corrosion for lasting reliability

Špecifikácie

BrandESTONE
ModelTJ-A022
TypeDisplayPort
ColorBlack
Length100 ft.
Cable Length100 ft.
Connector Number1
Connect From1 x DisplayPort 1.4
Connect To1 x DisplayPort 1.4
Connector DetailDisplayPort to DisplayPort( Male to Male)
Terminal GenderMale to Male
SpeedSupports up to 32.4Gbps bandwidth.
SpecificationsDisplayPort 8K Long In Wall fiber optic cable
Resolution: Support 4K@144Hz and 8K@60HZ( backward compatible with 2K and 1080P resolutions.)
Transfer speed: Support Transfer Rates of Up to 32.4Gbps (backward compatible with DP1.2)

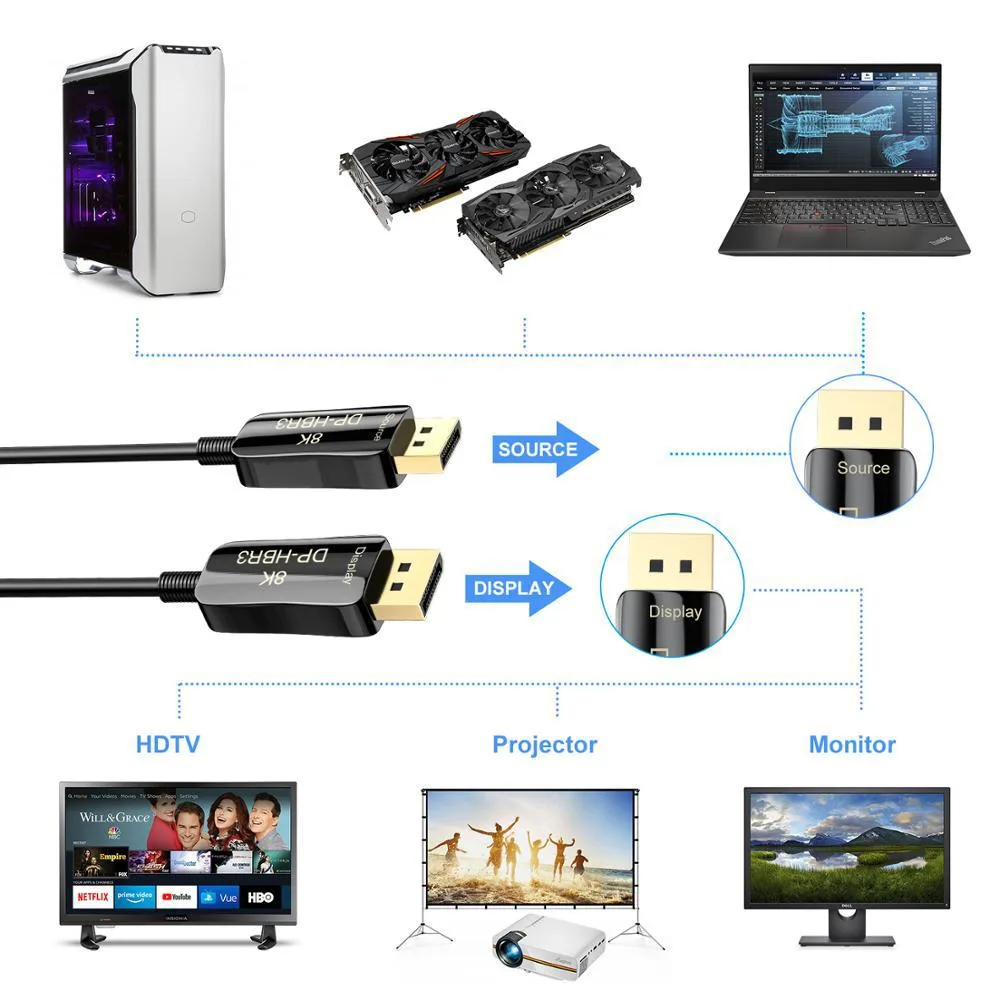

Connect to the source: Source
Connect display source: Display
Material: 24K Gold Plated Connectors, rust resistance, durable for use. Wear-resisting TPE jacket.
4-core optical fiber: Stable & high speed transmission.
Hybrid Cable Structure: Pure glass fiber + Oxygen free copper wires.
Zinc Alloy Shell paint finish: Firm,effectively prevent cracking.
ConductorTriple-shielded
ConstructionMaterial: 24K Gold Plated Connectors, rust resistance, durable for use. Wear-resisting TPE jacket.
4-core optical fiber: Stable & high speed transmission.
Hybrid Cable Structure: Pure glass fiber + Oxygen free copper wires.
Zinc Alloy Shell paint finish: Firm,effectively prevent cracking.
Refresh RateSupport 4K@144Hz and 8K@60HZ( backward compatible with 2K and 1080P resolutions.)
Sound QualityProduction Test
FeaturesTrue 8K, the ultimate experience: 8K dp fiber conforms to the 1.4 standard, supports 8K@60HZ, 4K@144HZ, and is backward compatible with 2K and 1080P resolutions. Supports up to 32.4Gbps bandwidth.
The ultimate audio-visual enjoyment: Support eARC, HBR3, DSC 1.2, Dolby Vision, HDR10, HDCP 2.2. Never worry about blur, distortion and delay
Safe and durable material: Using the latest smart chip, the high-strength aluminum alloy shell is firmly protected. The service life is greatly extended. The anti-bending design of the cable has also been upgraded, and the signal transmission is faste
Windows VistaCertified for Windows Vista

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

Will the 100 ft fiber-optic cable run alongside older DisplayPort 1.2 monitors without signal loss?

The cable is backward compatible with 1.2, 2K and 1080P resolutions, so your existing DisplayPort 1.2 displays will work at their native refresh rates over the full length.

How do I verify the 8K 7680x4320 at 60 Hz link is active after connecting the [Source] and [Display] ends?

Check the monitor OSD or GPU control panel for 7680x4320 at 60 Hz; the fiber link either delivers the full bandwidth or shows no picture, confirming correct direction.

Does the box include only the male-to-male DP 1.4 cable or are extra adapters supplied?

The package contains the 100 ft DisplayPort 1.4 male-to-male fiber cable with 24K gold-plated connectors; no additional adapters or converters are included.
