Three small green circuit boards with USB-C connectors and tiny dip switches

NuoTo

NuoTo 3pcs Type-C PD2.0 PD3.0 QC AFC Decoy Trigger 5V 9V 12V 15V 20V

SKU CH-NKG9-Y70NF

Three USB-C decoy trigger boards select 5 V, 9 V, 12 V, 15 V or 20 V via dip switches for PD 2.0, PD 3.0, QC and AFC chargers

  • CPU TypeOther
  • Supports PD 2.0 and PD 3.0 fast-charging protocols
  • Compatible with QC 2.0, QC 3.0 and AFC standards
  • Selectable fixed output at 5V, 9V, 12V, 15V or 20V
  • On-board dip switch sets the required voltage level
  • Three decoy triggers included for multi-device testing

USB-C PD/QC/AFC Trigger Module

This three-piece set of NuoTo decoy trigger boards negotiates fixed voltages of 5V, 9V, 12V, 15V, and 20V from USB-C power sources. It supports PD2.0, PD3.0, QC2.0, QC3.0, and AFC protocols for broad compatibility. DIP switches on the module select the desired output level. The pack suits makers and repairers needing configurable DC power.

For Prototyping Fixed-Voltage Loads

Engineers validating USB-C chargers or powering 5V to 20V DC projects will find these triggers convenient. They are not suited for applications requiring programmable voltage steps, PPS negotiation, or automatic voltage detection. Buyers needing monitored output without a multimeter should look at alternative solutions. The lack of onboard indication demands external verification.

DIP-Switch Voltage Selection

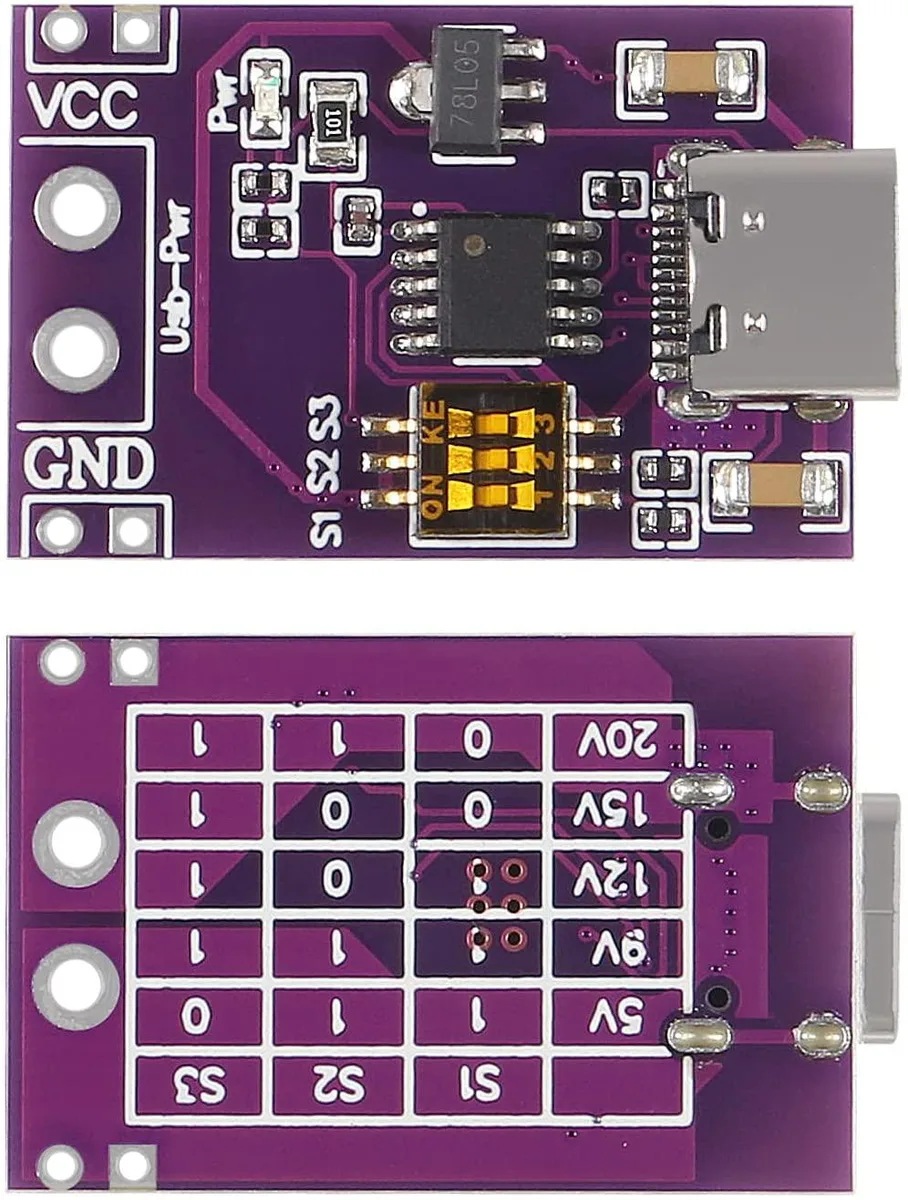

The decisive specification is the manual DIP-switch configuration that sets a single fixed output of 5V, 9V, 12V, 15V, or 20V. No dynamic adjustment or protocol-based negotiation occurs after power-up. Users must consult the printed table and confirm the resulting voltage with a multimeter before connecting sensitive circuitry. Incorrect switch positions yield an unpredictable voltage from the supported range.

Prednosti

  • Supports PD 2.0 and PD 3.0 fast-charging protocols
  • Compatible with QC 2.0, QC 3.0 and AFC standards
  • Selectable fixed output at 5V, 9V, 12V, 15V or 20V
  • On-board dip switch sets the required voltage level
  • Three decoy triggers included for multi-device testing

Špecifikácie

CPU TypeOther

Otázky k tomuto produktu

What type of USB-C power source is required to use these decoy trigger modules?

A USB-C charger or power bank that supports PD2.0, PD3.0, QC2.0, QC3.0, or AFC protocols is required to negotiate the output voltage.

Can I use these modules with a legacy USB-A charger that only provides 5V?

No, these modules require a USB-C source capable of PD or QC negotiation; a standard 5V USB-A charger cannot trigger the higher voltage outputs.

How do I verify the module is outputting the correct voltage after setting the dip switch?

Measure the output terminals with a multimeter before connecting your device, as there is no onboard voltage indicator.
