Compact 12.1 inch industrial all-in-one PC with flat IP65 front panel, aluminium fanless chassis, resistive multi-touch screen

partaker

Partaker A19 12.1" IP65 i7-10510U 8GB 256GB all-in-one PC

SKU CH-B70E-M5N7H

12.1-inch industrial all-in-one with IP65 front panel, Core i7-10510U, 8GB DDR4, 256GB SATA SSD, Windows 11 Pro, and wide 9-36V power input

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i7 10th Gen

Memory Capacity 8GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently in industrial settings
  • Intel Core i7-10510U delivers up to 4.90 GHz for demanding workloads
  • 1" resistive multi-touch screen operates with gloves
  • Windows 11 Pro pre-installed for immediate deployment

Industrial touch panel PC

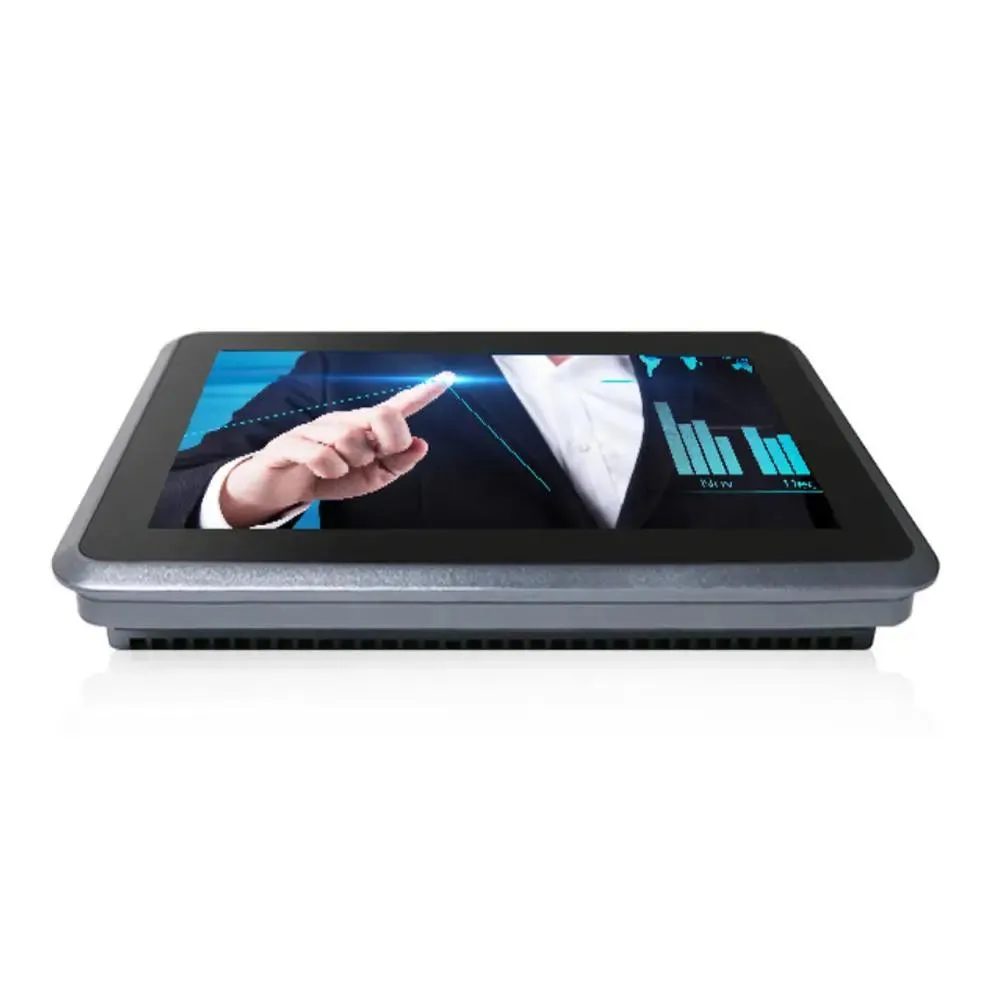

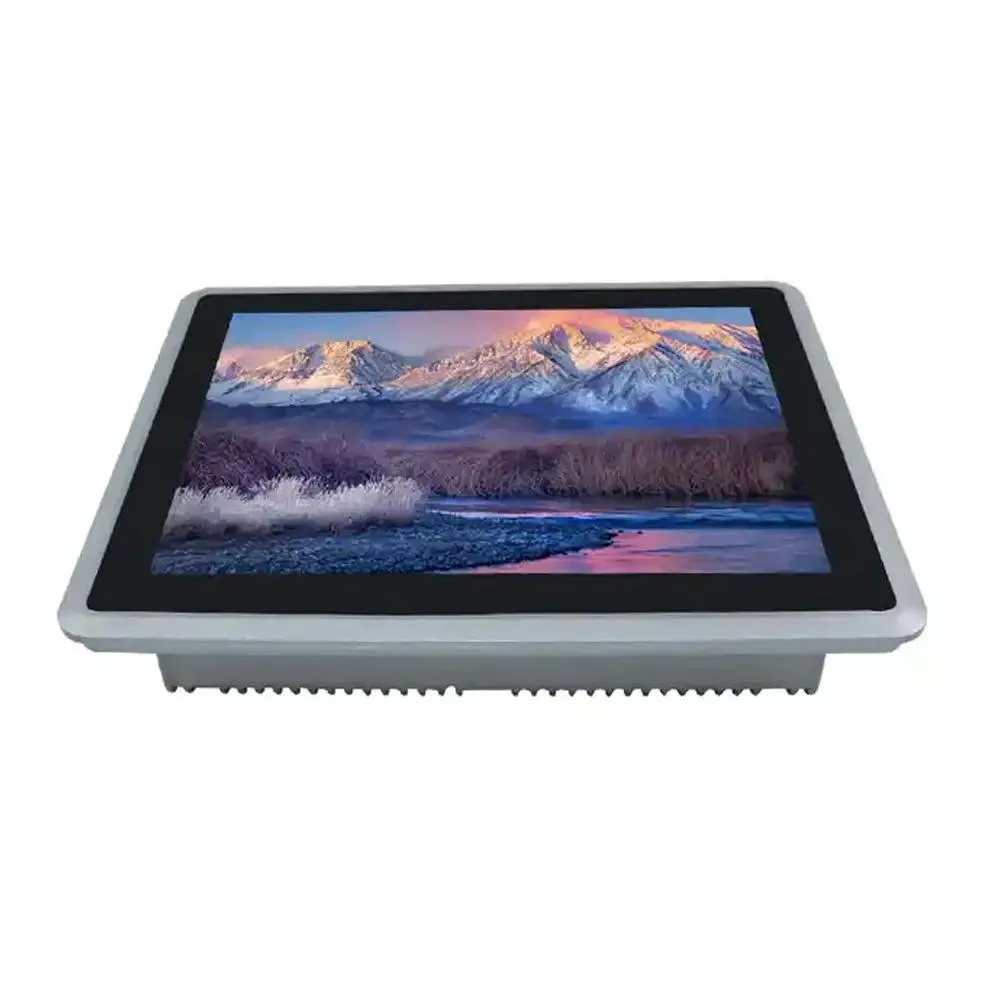

The Partaker A19 is a 12.1" all-in-one computer with an IP65-rated front panel and an Intel Core i7-10510U processor. It ships with Windows 11 Pro, 8GB DDR4 memory and a 256GB SATA SSD. The fanless aluminium chassis is built for continuous operation in industrial environments.

Embedded mounting and wide-voltage wiring

Installation uses the 298.5 x 237 mm embedded cut-out or the supplied brackets for wall, desktop or cantilever mounting. A 9-36 V DC Phoenix connector handles power; polarity must be observed. The resistive multi-touch screen works with gloves but requires periodic calibration for accurate input.

Verify voltage, I/O and expansion needs

Confirm your supply delivers 9-36 V DC at the Phoenix plug and that two COM ports cover your RS232/RS422/RS485 devices. Check whether the single Mini PCIe slot with SIM holder satisfies wireless or 4G requirements. The 1024 x 768 resolution and 350 cd/m² brightness suit standard industrial HMIs.

Prednosti

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently in industrial settings
  • Intel Core i7-10510U delivers up to 4.90 GHz for demanding workloads
  • 1" resistive multi-touch screen operates with gloves
  • Windows 11 Pro pre-installed for immediate deployment

Špecifikácie

ModelA19-New-I7-10810U-8G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How can I confirm the i7-10510U and 8GB DDR4 are detected after first boot?

Open Windows Settings > System > About; the processor will show Intel Core i7-10510U and installed RAM will read 8 GB.

What ships in the box and what must I source myself?

The unit includes the A19 panel PC, a 12 V 5 A AC adapter, and embedded mounting brackets; Wi-Fi/4G Mini-PCIe module and SIM card are not included.

Which configuration should I pick if I need more than 256 GB storage?

The M.2 2280 SATA slot holds the 256 GB drive; add a second 2.5" SATA SSD or HDD up to the bay limit for extra capacity.
