Compact 12.1 inch all-in-one with flat aluminium front, IP65 rated, fanless cooling, resistive multi-touch screen

partaker

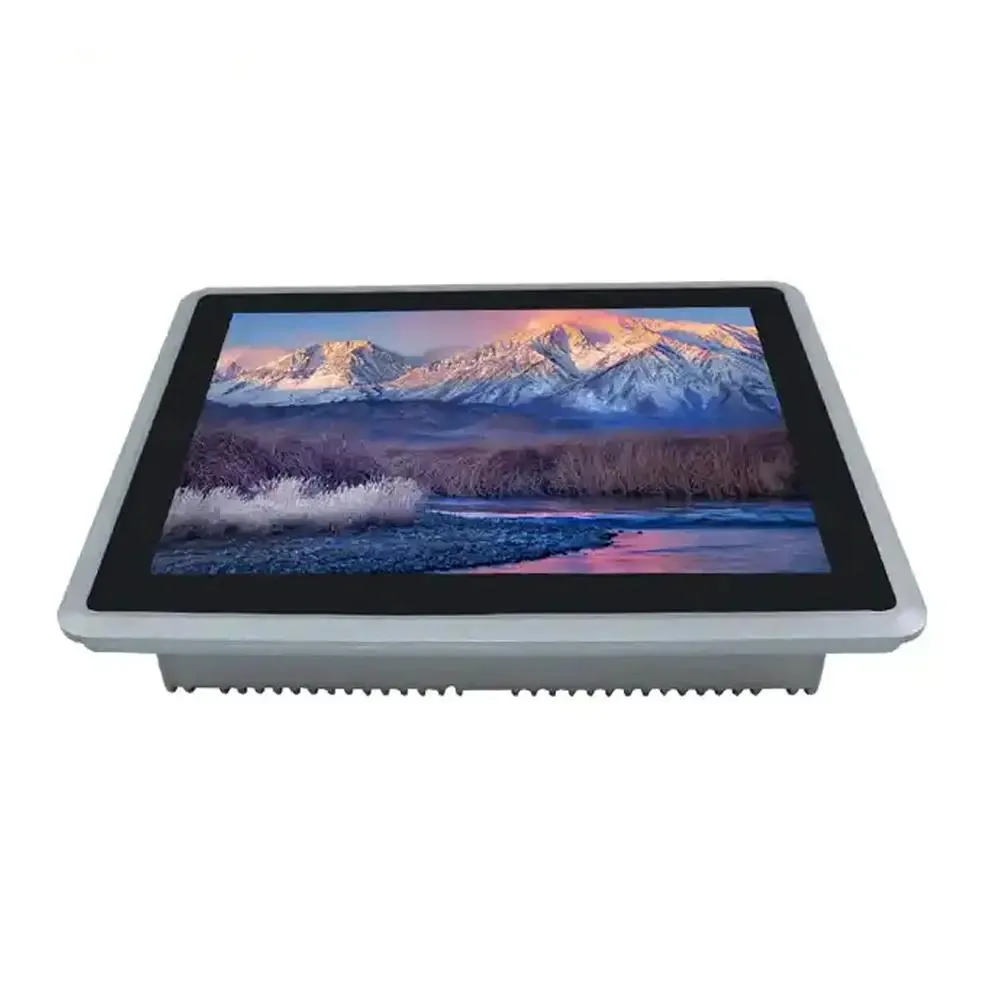

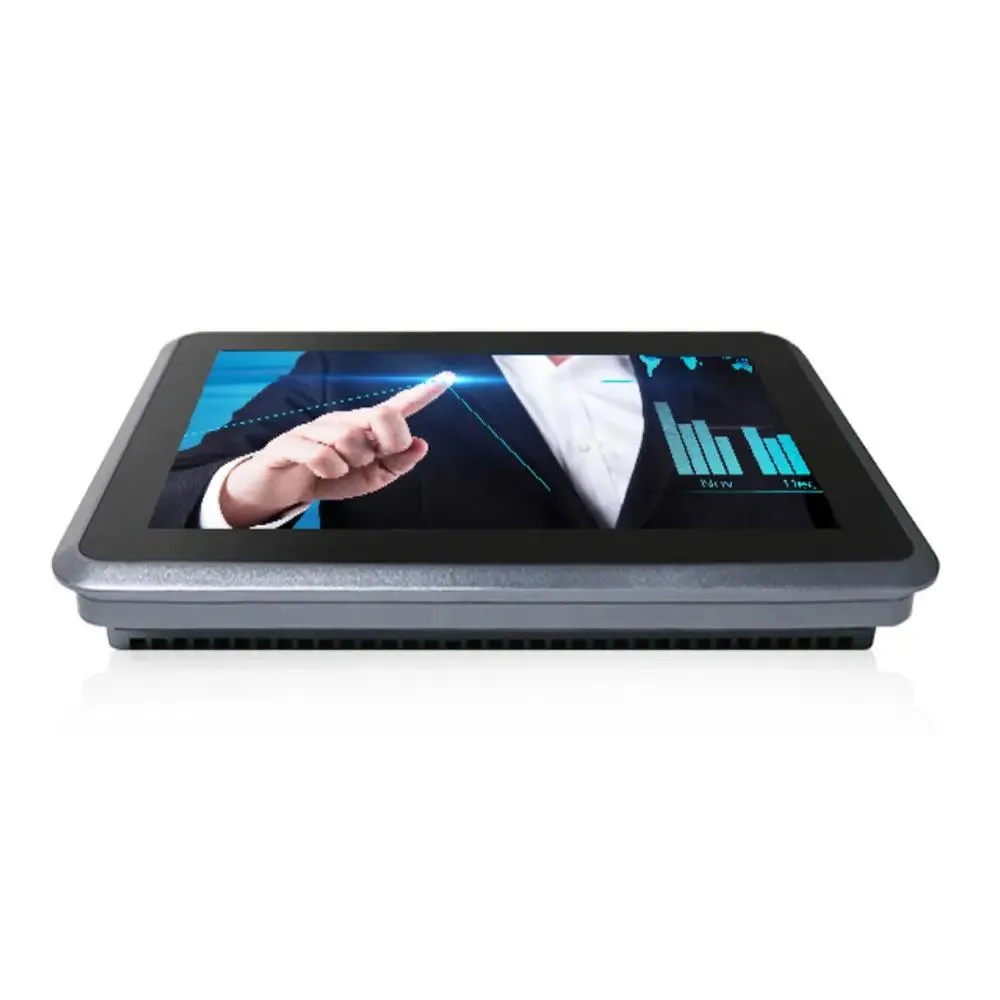

Partaker A19 12.1" J6413 8GB 128GB all-in-one PC

SKU CH-DM4X-382KF

12.1-inch IP65 front-panel all-in-one with J6413 CPU, 8 GB DDR4, 128 GB SATA SSD, Windows 11 Pro, triple LAN and wide 9-36 V power input

  • IP65 front panel resists dust and water
  • Fanless aluminium alloy chassis runs silently
  • Intel Celeron J6413 up to 3.00 GHz for responsive operation
  • 1" 1024x768 multi-touch resistive screen
  • 9-36 V wide-range DC input suits industrial power

Industrial all-in-one for embedded control

The Partaker A19 is a 12.1 inch fanless panel PC built around an Intel Celeron J6413 processor with 8 GB DDR4 memory and a 128 GB SATA SSD. Its IP65 rated front panel and wide 9 to 36 V DC input suit factory automation, kiosk and machine-interface deployments that demand continuous operation.

Resistive multi-touch front panel

The 1024 by 768 TFT LED display uses an industrial grade resistive touch sensor rated beyond 50000 thousand actuations, so it responds reliably with gloved hands or stylus in dusty or wet environments where capacitive screens would fail.

Compact embedded mounting with Phoenix power

The aluminium chassis measures 309.5 by 248 by 60 mm and fits a 298.5 by 237 mm cut-out for flush panel installation; the 2 pin Phoenix connector accepts the full 9 to 36 V range directly, but installers must verify polarity before applying power to avoid damaging the mainboard.

Prednosti

  • IP65 front panel resists dust and water
  • Fanless aluminium alloy chassis runs silently
  • Intel Celeron J6413 up to 3.00 GHz for responsive operation
  • 1" 1024x768 multi-touch resistive screen
  • 9-36 V wide-range DC input suits industrial power

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Otázky k tomuto produktu

How does the 3.00 GHz burst speed behave in a fanless chassis?

The Intel Celeron J6413 reaches 3.00 GHz in short bursts; the aluminium alloy chassis dissipates heat passively so sustained clocks settle lower, but the system is rated for 7×24 operation without a fan.

What does the 9-36 V Phoenix input actually support?

The 2-pin Phoenix connector accepts any DC source between 9 V and 36 V, letting the A19 run from vehicle power, battery banks or industrial supplies without an external adapter.

What cut-out size matches the embedded mounting kit?

The embedded installation cut-out is 298.5 mm × 237 mm; the kit also includes brackets for wall, desktop or cantilever mounting.
