Gray 15 inch industrial all-in-one PC with resistive touchscreen and fanless aluminum steel chassis

partaker

Partaker A20 All-in-One PC i5-1235U 15" 16GB 512GB

SKU CH-W79E-3TKNX

A 15-inch industrial all-in-one PC with a resistive touchscreen, fanless cooling, and an Intel Core i5-1235U processor

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 16GB RAM / 512GB SSD

  • Fanless aluminium chassis with IP65 front panel resists dust and water ingress
  • Intel Core i5-1235U 10-core CPU up to 4.40 GHz handles multi-tasking workloads
  • 15" 4:3 resistive touchscreen 1024×768 at 350 cd/m² suits gloved industrial use
  • 9-36 V DC input with reverse-polarity protection keeps system running on unstable power
  • Six COM ports plus 4-in/4-out GPIO connect legacy and modern automation gear

Industrial Panel PC for Automation

The Partaker A20 is a 15 inch fanless all-in-one computer built around an Intel Core i5-1235U processor with 10 cores and 12 threads. It ships with Windows 11 Pro, 16GB of DDR5 memory and a 512GB NVMe drive. The IP65-rated front panel and resistive touchscreen suit factory floors, kiosks and embedded control cabinets.

Fanless Cooling and Wide-Range Power

An aluminium-steel chassis dissipates heat silently without moving parts, while the 9-36V DC input with reverse-polarity protection tolerates unstable industrial supplies. TPM 2.0, watchdog timer, Wake-on-LAN and PXE boot add remote-management reliability for unattended operation.

Expansion-Ready I/O and Mounting

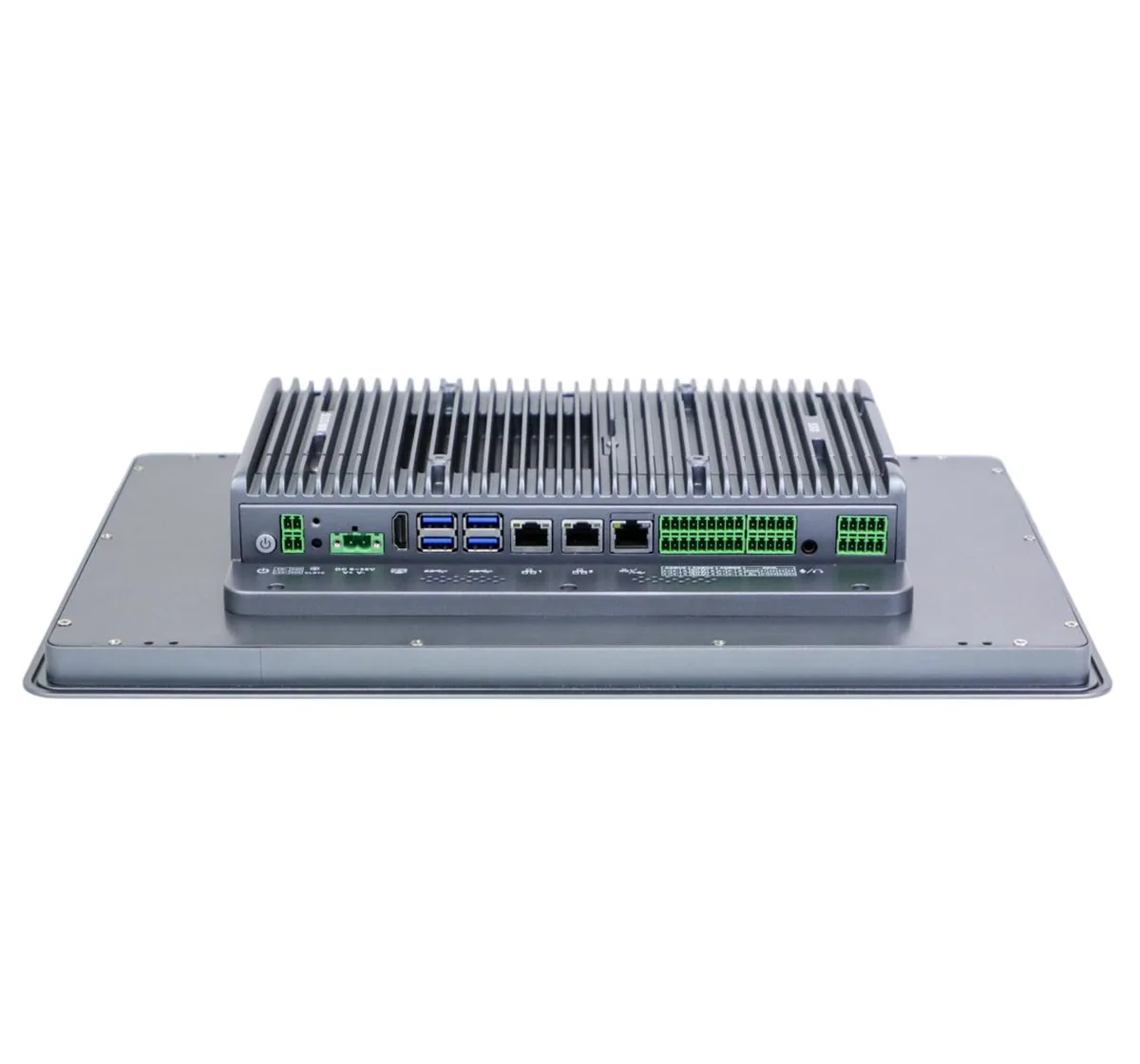

Six COM ports, three Gigabit-class LAN ports, four USB 3.0 ports, HDMI and isolated GPIO connect PLCs, sensors and displays directly. Dual M.2 2280 slots, a 2.5 inch bay, Mini PCIe with SIM and M.2 E-Key allow storage, 4G or Wi-Fi upgrades. The 355 x 279mm panel cut-out fits standard VESA or panel-mount frames.

Prednosti

  • Fanless aluminium chassis with IP65 front panel resists dust and water ingress
  • Intel Core i5-1235U 10-core CPU up to 4.40 GHz handles multi-tasking workloads
  • 15" 4:3 resistive touchscreen 1024×768 at 350 cd/m² suits gloved industrial use
  • 9-36 V DC input with reverse-polarity protection keeps system running on unstable power
  • Six COM ports plus 4-in/4-out GPIO connect legacy and modern automation gear

Špecifikácie

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How is the Partaker A20 panel PC mounted, and what step is often missed?

The unit uses an embedded cut-out of 355 x 279 mm; the step often missed is securing the IP65 front-panel gasket evenly so the seal holds in harsh environments.

Which components will need replacement or upgrade during the system's life?

The single DDR5 4800 MHz SODIMM can be expanded to 32 GB, and the two M.2 2280 slots plus the 2.5-inch bay allow storage upgrades; the resistive touch layer and fanless aluminum chassis are built for long-term industrial use.

What thermal or power limit appears first under continuous heavy load?

Fanless cooling relies on the aluminum alloy chassis to dissipate heat; sustained maximum CPU turbo of 4.40 GHz may be throttled if the enclosure airflow is restricted, and the 9-36 V DC input must stay within range to avoid protection shutdown.
