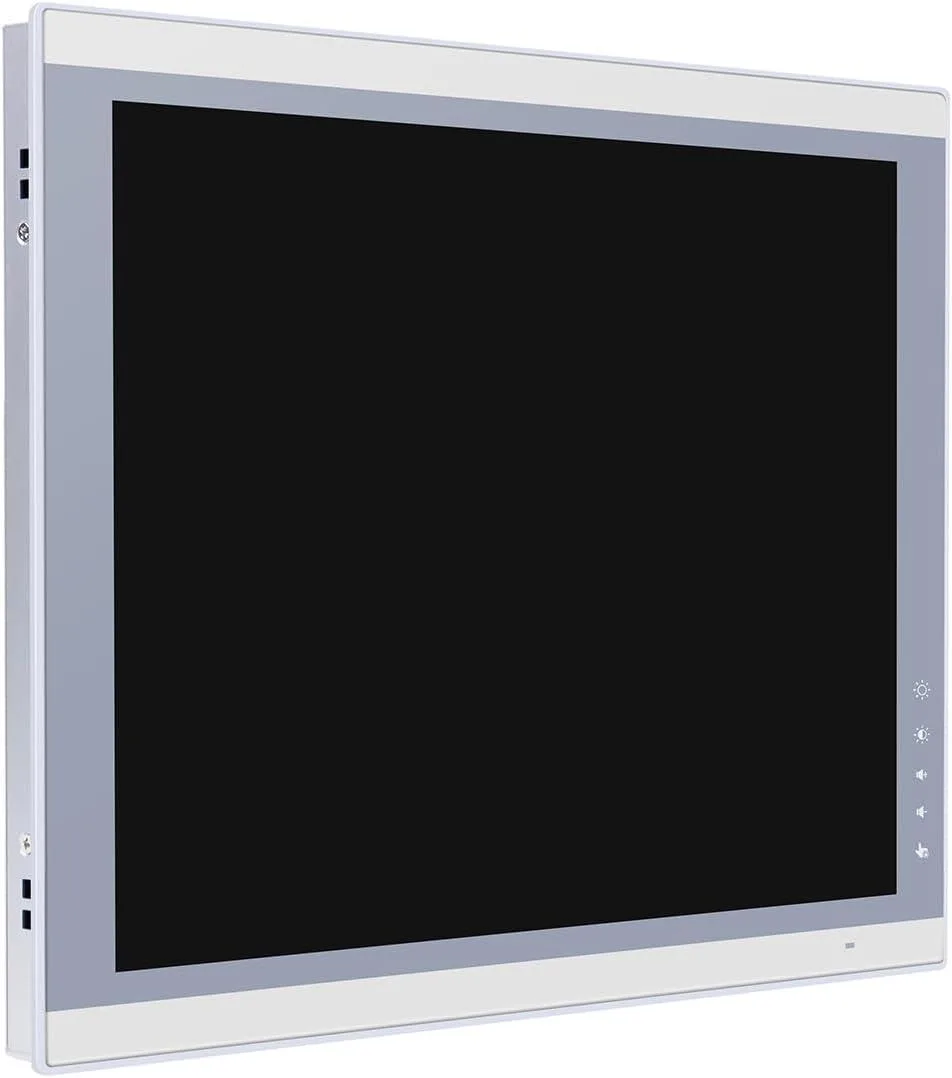

Gray 15-inch all-in-one industrial panel PC with IP65 touchscreen and fanless aluminum chassis

partaker

Partaker A23-I5 1135G7-16G256G 15" all-in-one PC

SKU CH-JMXH-JM85W

15-inch IP65-rated industrial all-in-one with 10-point capacitive touch, Core i5-1135G7, 16 GB DDR4 and 256 GB SSD

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 16GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 64GB DDR4
  • 8GB DDR4

SSD 256GB

Preškrtnuté verzie existujú, ale nie sú tu skladom.

  • IP65 front protection resists dust and water jets
  • 10-point capacitive touch enables precise multi-finger control
  • Fanless aluminium alloy chassis runs silently and reliably
  • Intel Core i5-1135G7 with 16 GB DDR4 handles multitasking smoothly
  • 256 GB SSD plus M.2 and 2.5" bays allow flexible storage expansion

Industrial panel PC

The Partaker A23 is a 15-inch all-in-one computer with an IP65-rated front panel and 10-point projected capacitive touchscreen. It runs Windows 11 Pro on an Intel Core i5-1135G7 processor with 16 GB DDR4 memory and a 256 GB SSD. Fanless aluminium construction enables silent 24/7 operation in industrial environments.

IP65 front protection

The display achieves IP65 ingress protection on the front surface, resisting dust and water jets in harsh settings. A 1024 x 768 TFT LED panel provides 350 cd/m² brightness and 1000:1 contrast with 80/80/60/60 viewing angles. The touchscreen is rated for 200 million touches and 86 % light transmittance.

Embedded mounting flexibility

The 354.3 x 278.3 x 54 mm chassis weighs 3.6 kg and fits a 348 x 272 mm cut-out for embedded, wall, desktop or cantilever installation. I/O includes HDMI, VGA, two LAN ports, two COM ports, two USB 3.0, two USB 2.0, audio and 12 V DC input. Expansion slots support WIFI6 and 5G modules with a SIM slot.

Prednosti

  • IP65 front protection resists dust and water jets
  • 10-point capacitive touch enables precise multi-finger control
  • Fanless aluminium alloy chassis runs silently and reliably
  • Intel Core i5-1135G7 with 16 GB DDR4 handles multitasking smoothly
  • 256 GB SSD plus M.2 and 2.5" bays allow flexible storage expansion

Špecifikácie

ModelA23-I5 1135G7-16G256G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity16GB DDR4
SSD256GB
HDDNo
Screen Size15"
TouchscreenYes

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

What does the 4.20 GHz boost clock mean for real workloads?

The Core i5-1135G7 can reach 4.20 GHz on single threads, giving responsive performance for HMI screens, data logging and light PLC logic while staying within the fanless thermal envelope.

What video outputs are provided and what resolution do they support?

HDMI and VGA ports are available; the internal panel runs at 1024 x 768 and external displays are driven by Intel Iris Xe graphics at their native resolutions.

What cut-out size is needed for embedded panel mounting?

The front bezel requires a 348 x 272 mm opening; the overall chassis measures 354.3 x 278.3 x 54 mm and weighs 3.6 kg.
